mitk::NodePredicateProperty Class Reference

Predicate that evaluates whether a DataNode has a specific property. More...

#include <mitkNodePredicateProperty.h>

Inheritance diagram for mitk::NodePredicateProperty:

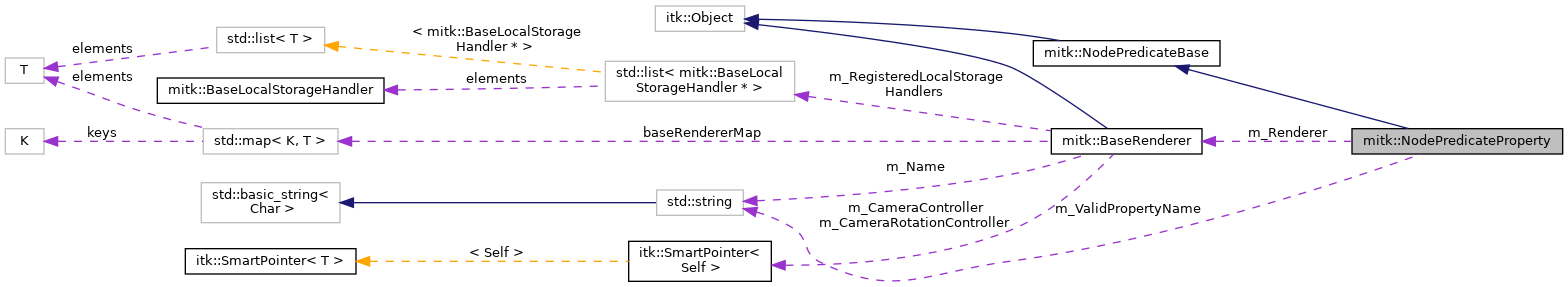

Collaboration diagram for mitk::NodePredicateProperty:

Public Member Functions
	mitkClassMacro (NodePredicateProperty, NodePredicateBase)
	mitkNewMacro1Param (NodePredicateProperty, const char *)
	mitkNewMacro2Param (NodePredicateProperty, const char *, mitk::BaseProperty *)
	mitkNewMacro3Param (NodePredicateProperty, const char *, mitk::BaseProperty *, const mitk::BaseRenderer *)
	~NodePredicateProperty () override
	Destructor. More...
bool	CheckNode (const mitk::DataNode *node) const override
	Check whether the node has the expected property. More...
Public Member Functions inherited from mitk::NodePredicateBase
	mitkClassMacroItkParent (NodePredicateBase, itk::Object)
	~NodePredicateBase () override
	Virtual destructor. More...

Protected Member Functions
	NodePredicateProperty (const char *propertyName, mitk::BaseProperty *p=nullptr, const mitk::BaseRenderer *renderer=nullptr)
	Constructor to check for a named property. More...

Protected Attributes
mitk::BaseProperty::Pointer	m_ValidProperty
std::string	m_ValidPropertyName
const mitk::BaseRenderer *	m_Renderer

Detailed Description

Predicate that evaluates whether a DataNode has a specific property.

If only a property name is specified (second constructor parameter is nullptr), the predicate checks for the existence of any property with that name. If a property value is also provided, the predicate checks that the node's property matches the given value (using operator==).

If a renderer is specified, the renderer-specific property is checked. Otherwise, the renderer-independent property is checked.

See also

NodePredicateDataProperty, NodePredicateBase, DataNode::GetProperty

Definition at line 36 of file mitkNodePredicateProperty.h.

Constructor & Destructor Documentation

~NodePredicateProperty()

mitk::NodePredicateProperty::~NodePredicateProperty ( )

override

Destructor.

NodePredicateProperty()

mitk::NodePredicateProperty::NodePredicateProperty ( const char *  propertyName, mitk::BaseProperty *  p = nullptr, const mitk::BaseRenderer *  renderer = nullptr  )

protected

Constructor to check for a named property.

Member Function Documentation

CheckNode()

bool mitk::NodePredicateProperty::CheckNode ( const mitk::DataNode *  node ) const

overridevirtual

Check whether the node has the expected property.

If m_ValidProperty is nullptr, only the existence of a property with the configured name is checked. Otherwise, both name and value equality are verified.

Parameters

[in]

node

The DataNode to evaluate. Must not be nullptr.

Returns

true if the property exists (and matches the expected value, if set).

Exceptions

std::invalid_argument

if node is nullptr or the property name is empty.

Implements mitk::NodePredicateBase.

mitkClassMacro()

mitk::NodePredicateProperty::mitkClassMacro	(	NodePredicateProperty	,
		NodePredicateBase
	)

mitkNewMacro1Param()

mitk::NodePredicateProperty::mitkNewMacro1Param	(	NodePredicateProperty	,
		const char *
	)

mitkNewMacro2Param()

mitk::NodePredicateProperty::mitkNewMacro2Param	(	NodePredicateProperty	,
		const char *	,
		mitk::BaseProperty *
	)

mitkNewMacro3Param()

mitk::NodePredicateProperty::mitkNewMacro3Param	(	NodePredicateProperty	,
		const char *	,
		mitk::BaseProperty *	,
		const mitk::BaseRenderer *
	)

Member Data Documentation

m_Renderer

const mitk::BaseRenderer* mitk::NodePredicateProperty::m_Renderer

protected

Definition at line 71 of file mitkNodePredicateProperty.h.

m_ValidProperty

mitk::BaseProperty::Pointer mitk::NodePredicateProperty::m_ValidProperty

protected

Definition at line 68 of file mitkNodePredicateProperty.h.

m_ValidPropertyName

std::string mitk::NodePredicateProperty::m_ValidPropertyName

protected

Definition at line 70 of file mitkNodePredicateProperty.h.

---

The documentation for this class was generated from the following file:

• mitkNodePredicateProperty.h
