mitk::NodePredicateCompositeBase Class Reference

Abstract base class for composite predicates that contain child predicates (e.g., AND, OR, NOT). More...

#include <mitkNodePredicateCompositeBase.h>

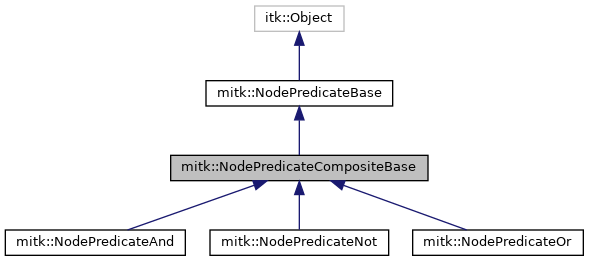

Inheritance diagram for mitk::NodePredicateCompositeBase:

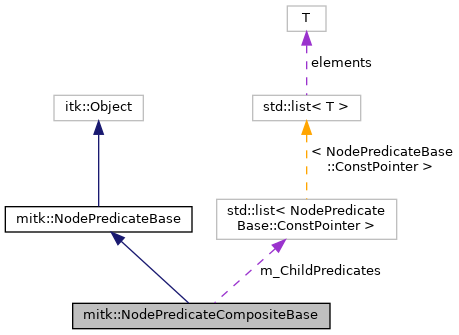

Collaboration diagram for mitk::NodePredicateCompositeBase:

Public Types
typedef std::list< NodePredicateBase::ConstPointer >	ChildPredicates
	List type for storing child predicate smart pointers. More...

Public Member Functions
	mitkClassMacro (NodePredicateCompositeBase, NodePredicateBase)
	~NodePredicateCompositeBase () override=0
	Pure virtual destructor (with implementation) making this class abstract. More...
virtual void	AddPredicate (const NodePredicateBase *p)
	Add a child predicate to this composite. More...
virtual void	RemovePredicate (const NodePredicateBase *p)
	Remove a child predicate from this composite. More...
virtual ChildPredicates	GetPredicates () const
	Return all child predicates (immutable copy). More...
Public Member Functions inherited from mitk::NodePredicateBase
	mitkClassMacroItkParent (NodePredicateBase, itk::Object)
	~NodePredicateBase () override
	Virtual destructor. More...
virtual bool	CheckNode (const mitk::DataNode *node) const =0
	Evaluate whether the given node satisfies this predicate's condition. More...

Protected Attributes
ChildPredicates	m_ChildPredicates
	List of child predicates managed by this composite. More...

Detailed Description

Abstract base class for composite predicates that contain child predicates (e.g., AND, OR, NOT).

This class provides methods to add, remove, and retrieve child predicates. It serves as the foundation for predicates that combine multiple conditions, such as NodePredicateAnd, NodePredicateOr, and NodePredicateNot.

See also

NodePredicateAnd, NodePredicateOr, NodePredicateNot, NodePredicateBase

Definition at line 31 of file mitkNodePredicateCompositeBase.h.

Member Typedef Documentation

ChildPredicates

typedef std::list<NodePredicateBase::ConstPointer> mitk::NodePredicateCompositeBase::ChildPredicates

List type for storing child predicate smart pointers.

Definition at line 37 of file mitkNodePredicateCompositeBase.h.

Constructor & Destructor Documentation

~NodePredicateCompositeBase()

mitk::NodePredicateCompositeBase::~NodePredicateCompositeBase ( )

overridepure virtual

Pure virtual destructor (with implementation) making this class abstract.

Member Function Documentation

AddPredicate()

virtual void mitk::NodePredicateCompositeBase::AddPredicate ( const NodePredicateBase *  p )

virtual

Add a child predicate to this composite.

Parameters

[in]

p

The child predicate to add. Must not be nullptr.

See also

RemovePredicate, GetPredicates

Reimplemented in mitk::NodePredicateNot.

GetPredicates()

virtual ChildPredicates mitk::NodePredicateCompositeBase::GetPredicates ( ) const

virtual

Return all child predicates (immutable copy).

Returns

A copy of the list of child predicates.

mitkClassMacro()

mitk::NodePredicateCompositeBase::mitkClassMacro	(	NodePredicateCompositeBase	,
		NodePredicateBase
	)

RemovePredicate()

virtual void mitk::NodePredicateCompositeBase::RemovePredicate ( const NodePredicateBase *  p )

virtual

Remove a child predicate from this composite.

Parameters

[in]

p

The child predicate to remove.

See also

AddPredicate

Member Data Documentation

m_ChildPredicates

ChildPredicates mitk::NodePredicateCompositeBase::m_ChildPredicates

protected

List of child predicates managed by this composite.

Definition at line 69 of file mitkNodePredicateCompositeBase.h.

---

The documentation for this class was generated from the following file:

• mitkNodePredicateCompositeBase.h
