mitk::NodePredicateAnd Class Reference

Composite predicate that forms a logical AND (conjunction) from its child predicates. More...

#include <mitkNodePredicateAnd.h>

Inheritance diagram for mitk::NodePredicateAnd:

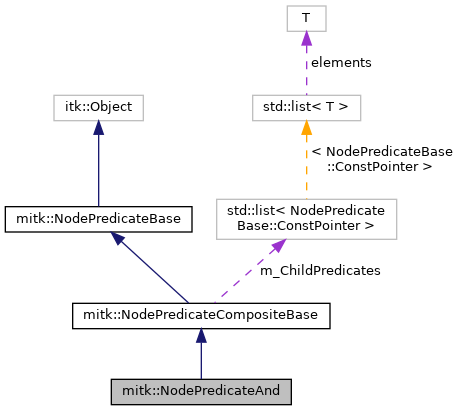

Collaboration diagram for mitk::NodePredicateAnd:

Public Member Functions
	mitkClassMacro (NodePredicateAnd, NodePredicateCompositeBase)
	mitkNewMacro2Param (NodePredicateAnd, const NodePredicateBase *, const NodePredicateBase *)
	mitkNewMacro3Param (NodePredicateAnd, const NodePredicateBase *, const NodePredicateBase *, const NodePredicateBase *)
	~NodePredicateAnd () override
	Destructor. More...
bool	CheckNode (const DataNode *node) const override
	Check whether the node satisfies all child predicates (logical AND). More...
Public Member Functions inherited from mitk::NodePredicateCompositeBase
	mitkClassMacro (NodePredicateCompositeBase, NodePredicateBase)
	~NodePredicateCompositeBase () override=0
	Pure virtual destructor (with implementation) making this class abstract. More...
virtual void	AddPredicate (const NodePredicateBase *p)
	Add a child predicate to this composite. More...
virtual void	RemovePredicate (const NodePredicateBase *p)
	Remove a child predicate from this composite. More...
virtual ChildPredicates	GetPredicates () const
	Return all child predicates (immutable copy). More...
Public Member Functions inherited from mitk::NodePredicateBase
	mitkClassMacroItkParent (NodePredicateBase, itk::Object)
	~NodePredicateBase () override
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	NodePredicateAnd ()
	Protected constructor, use static instantiation functions instead. More...
	NodePredicateAnd (const NodePredicateBase *p1, const NodePredicateBase *p2)
	Convenience constructor that adds p1 and p2 to list of child predicates Protected constructor, use static instantiation functions instead. More...
	NodePredicateAnd (const NodePredicateBase *p1, const NodePredicateBase *p2, const NodePredicateBase *p3)
	Convenience constructor that adds p1, p2 and p3 to list of child predicates Protected constructor, use static instantiation functions instead. More...

Additional Inherited Members
Public Types inherited from mitk::NodePredicateCompositeBase
typedef std::list< NodePredicateBase::ConstPointer >	ChildPredicates
	List type for storing child predicate smart pointers. More...
Protected Attributes inherited from mitk::NodePredicateCompositeBase
ChildPredicates	m_ChildPredicates
	List of child predicates managed by this composite. More...

Detailed Description

Composite predicate that forms a logical AND (conjunction) from its child predicates.

A node passes the check if and only if all child predicates return true. Child predicates are evaluated in order; evaluation short-circuits on the first false result.

auto pred = NodePredicateAnd::New(
  NodePredicateDataType::New("Image"),
  NodePredicateProperty::New("visible", BoolProperty::New(true)));
auto visibleImages = dataStorage->GetSubset(pred);

See also

NodePredicateOr, NodePredicateNot, NodePredicateCompositeBase

Definition at line 36 of file mitkNodePredicateAnd.h.

Constructor & Destructor Documentation

~NodePredicateAnd()

mitk::NodePredicateAnd::~NodePredicateAnd ( )

override

Destructor.

NodePredicateAnd() [1/3]

mitk::NodePredicateAnd::NodePredicateAnd ( )

protected

Protected constructor, use static instantiation functions instead.

NodePredicateAnd() [2/3]

mitk::NodePredicateAnd::NodePredicateAnd ( const NodePredicateBase *  p1, const NodePredicateBase *  p2  )

protected

Convenience constructor that adds p1 and p2 to list of child predicates Protected constructor, use static instantiation functions instead.

NodePredicateAnd() [3/3]

mitk::NodePredicateAnd::NodePredicateAnd ( const NodePredicateBase *  p1, const NodePredicateBase *  p2, const NodePredicateBase *  p3  )

protected

Convenience constructor that adds p1, p2 and p3 to list of child predicates Protected constructor, use static instantiation functions instead.

Member Function Documentation

CheckNode()

bool mitk::NodePredicateAnd::CheckNode ( const DataNode *  node ) const

overridevirtual

Check whether the node satisfies all child predicates (logical AND).

Parameters

[in]

node

The DataNode to evaluate. Must not be nullptr.

Returns

true if all child predicates return true for the node.

Exceptions

std::invalid_argument

if no child predicates have been added or node is nullptr.

Implements mitk::NodePredicateBase.

mitkClassMacro()

mitk::NodePredicateAnd::mitkClassMacro	(	NodePredicateAnd	,
		NodePredicateCompositeBase
	)

mitkNewMacro2Param()

mitk::NodePredicateAnd::mitkNewMacro2Param	(	NodePredicateAnd	,
		const NodePredicateBase *	,
		const NodePredicateBase *
	)

mitkNewMacro3Param()

mitk::NodePredicateAnd::mitkNewMacro3Param	(	NodePredicateAnd	,
		const NodePredicateBase *	,
		const NodePredicateBase *	,
		const NodePredicateBase *
	)

New()

static Pointer mitk::NodePredicateAnd::New ( )

static

---

The documentation for this class was generated from the following file:

• mitkNodePredicateAnd.h
