mitk::LabeledImageVolumeCalculator Class Reference

Calculates the volume and centroid for each label in a labeled image. More...

#include <mitkLabeledImageVolumeCalculator.h>

Inheritance diagram for mitk::LabeledImageVolumeCalculator:

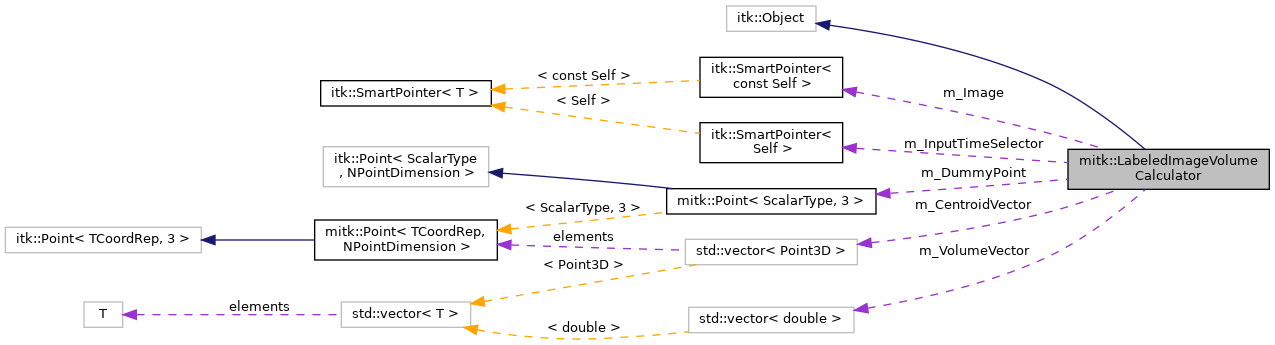

Collaboration diagram for mitk::LabeledImageVolumeCalculator:

Public Types
typedef std::vector< double >	VolumeVector
	Vector of per-label volume values. More...
typedef std::vector< Point3D >	PointVector
	Vector of per-label centroid points. More...

Public Member Functions
	mitkClassMacroItkParent (LabeledImageVolumeCalculator, itk::Object)
Pointer	Clone () const
virtual void	SetImage (const mitk::Image *_arg)
	Set the input image. More...
virtual void	Calculate ()
	Perform the volume and centroid calculation. More...
double	GetVolume (unsigned int label) const
	Get the volume for a specific label. More...
const Point3D &	GetCentroid (unsigned int label) const
	Get the centroid (center of mass) for a specific label. More...
const VolumeVector &	GetVolumes () const
	Get the vector of volumes for all labels. More...
const PointVector &	GetCentroids () const
	Get the vector of centroids for all labels. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	LabeledImageVolumeCalculator ()
	~LabeledImageVolumeCalculator () override
template<typename TPixel , unsigned int VImageDimension>
void	_InternalCalculateVolumes (itk::Image< TPixel, VImageDimension > *image, LabeledImageVolumeCalculator *volumeCalculator, BaseGeometry *geometry)

Protected Attributes
ImageTimeSelector::Pointer	m_InputTimeSelector
Image::ConstPointer	m_Image
VolumeVector	m_VolumeVector
PointVector	m_CentroidVector
Point3D	m_DummyPoint

Detailed Description

Calculates the volume and centroid for each label in a labeled image.

Labels are expected to be of an unsigned integer type. The class iterates over all voxels, groups them by label value, and computes each label's volume (voxel count * voxel volume) and centroid (center of mass).

Note

Currently only the first time step of the image is processed.

See also

mitk::Image

Definition at line 38 of file mitkLabeledImageVolumeCalculator.h.

Member Typedef Documentation

PointVector

typedef std::vector<Point3D> mitk::LabeledImageVolumeCalculator::PointVector

Vector of per-label centroid points.

Definition at line 44 of file mitkLabeledImageVolumeCalculator.h.

VolumeVector

typedef std::vector<double> mitk::LabeledImageVolumeCalculator::VolumeVector

Vector of per-label volume values.

Definition at line 42 of file mitkLabeledImageVolumeCalculator.h.

Constructor & Destructor Documentation

LabeledImageVolumeCalculator()

mitk::LabeledImageVolumeCalculator::LabeledImageVolumeCalculator ( )

protected

~LabeledImageVolumeCalculator()

mitk::LabeledImageVolumeCalculator::~LabeledImageVolumeCalculator ( )

overrideprotected

Member Function Documentation

_InternalCalculateVolumes()

template<typename TPixel , unsigned int VImageDimension>

void mitk::LabeledImageVolumeCalculator::_InternalCalculateVolumes ( itk::Image< TPixel, VImageDimension > *  image, LabeledImageVolumeCalculator *  volumeCalculator, BaseGeometry *  geometry  )

protected

Calculate()

virtual void mitk::LabeledImageVolumeCalculator::Calculate ( )

virtual

Perform the volume and centroid calculation.

Precondition

An input image must have been set via SetImage().

Clone()

Pointer mitk::LabeledImageVolumeCalculator::Clone

(

)

const

GetCentroid()

const Point3D& mitk::LabeledImageVolumeCalculator::GetCentroid

(

unsigned int

label

)

const

Get the centroid (center of mass) for a specific label.

Parameters

[in]

label

The label index.

Returns

The centroid point in world coordinates, or a zero point if the label does not exist.

GetCentroids()

const PointVector& mitk::LabeledImageVolumeCalculator::GetCentroids

(

)

const

Get the vector of centroids for all labels.

Returns

Const reference to the centroid vector.

GetVolume()

double mitk::LabeledImageVolumeCalculator::GetVolume

(

unsigned int

label

)

const

Get the volume for a specific label.

Parameters

[in]

label

The label index.

Returns

The volume in physical units, or 0.0 if the label does not exist.

GetVolumes()

const VolumeVector& mitk::LabeledImageVolumeCalculator::GetVolumes

(

)

const

Get the vector of volumes for all labels.

Returns

Const reference to the volume vector.

mitkClassMacroItkParent()

mitk::LabeledImageVolumeCalculator::mitkClassMacroItkParent	(	LabeledImageVolumeCalculator	,
		itk::Object
	)

New()

static Pointer mitk::LabeledImageVolumeCalculator::New ( )

static

SetImage()

virtual void mitk::LabeledImageVolumeCalculator::SetImage ( const mitk::Image *  _arg )

virtual

Set the input image.

Parameters

[in]

_arg

The labeled image to analyze.

Member Data Documentation

m_CentroidVector

PointVector mitk::LabeledImageVolumeCalculator::m_CentroidVector

protected

Definition at line 106 of file mitkLabeledImageVolumeCalculator.h.

m_DummyPoint

Point3D mitk::LabeledImageVolumeCalculator::m_DummyPoint

protected

Definition at line 108 of file mitkLabeledImageVolumeCalculator.h.

m_Image

Image::ConstPointer mitk::LabeledImageVolumeCalculator::m_Image

protected

Definition at line 103 of file mitkLabeledImageVolumeCalculator.h.

m_InputTimeSelector

ImageTimeSelector::Pointer mitk::LabeledImageVolumeCalculator::m_InputTimeSelector

protected

Definition at line 101 of file mitkLabeledImageVolumeCalculator.h.

m_VolumeVector

VolumeVector mitk::LabeledImageVolumeCalculator::m_VolumeVector

protected

Definition at line 105 of file mitkLabeledImageVolumeCalculator.h.

---

The documentation for this class was generated from the following file:

• mitkLabeledImageVolumeCalculator.h
