Internal class holding the mapper, actor, etc. for each of the 3 2D render windows. More...

#include <mitkLabelSetImageVtkMapper2D.h>

Inheritance diagram for mitk::LabelSetImageVtkMapper2D::LocalStorage:

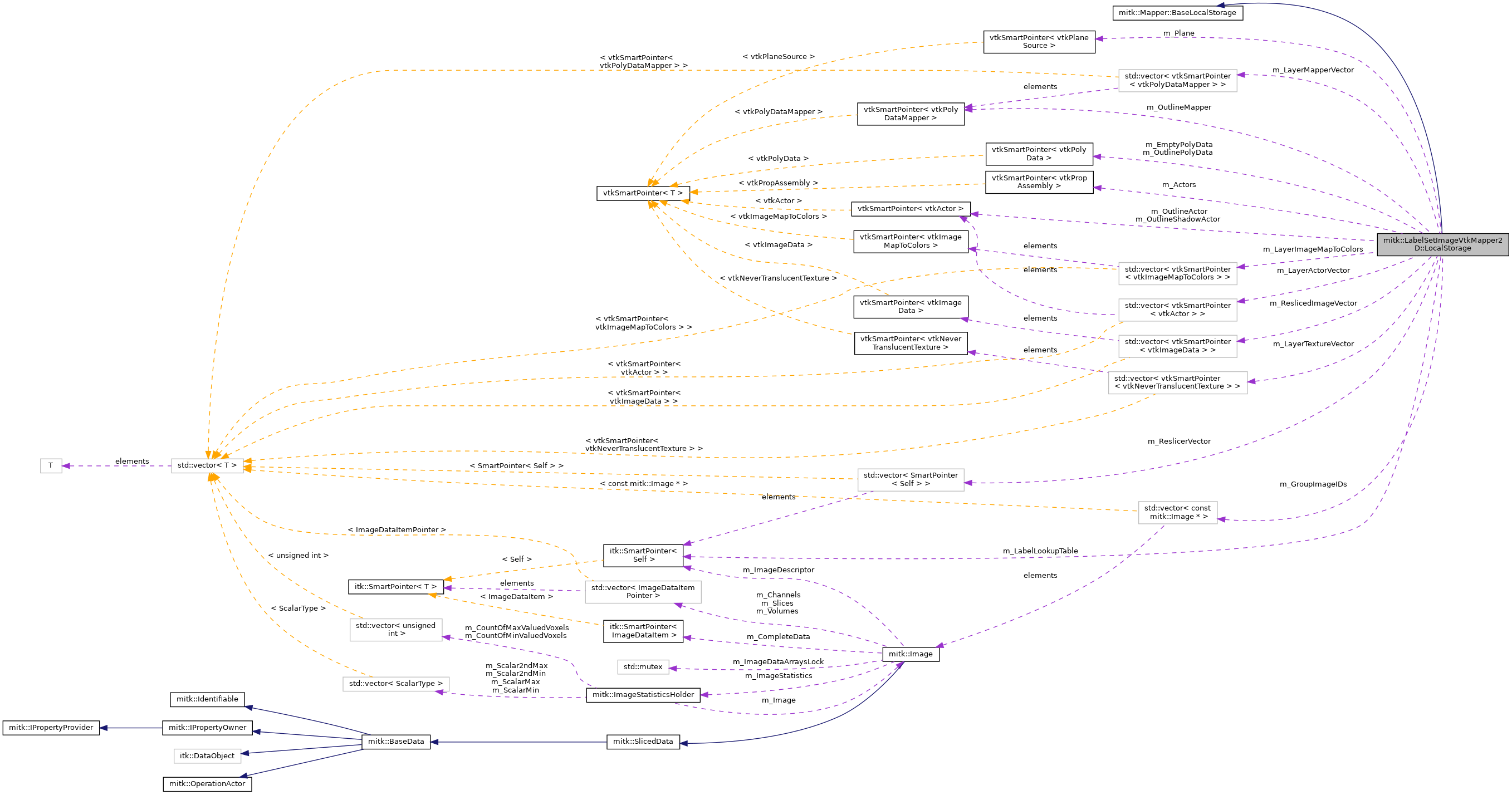

Collaboration diagram for mitk::LabelSetImageVtkMapper2D::LocalStorage:

[legend]

Public Member Functions
	LocalStorage ()
	Default constructor of the local storage. More...

	~LocalStorage () override
	Default destructor of the local storage. More...

Public Member Functions inherited from mitk::Mapper::BaseLocalStorage
	BaseLocalStorage ()=default

virtual	~BaseLocalStorage ()=default

	BaseLocalStorage (const BaseLocalStorage &)=delete

BaseLocalStorage &	operator= (const BaseLocalStorage &)=delete

bool	IsGenerateDataRequired (mitk::BaseRenderer renderer, mitk::Mapper mapper, mitk::DataNode *dataNode) const
	Check whether GenerateDataForRenderer() needs to be called. More...

void	UpdateGenerateDataTime ()
	Mark the stored data as up-to-date. More...

itk::TimeStamp &	GetLastGenerateDataTime ()
	Get a reference to the last-generate-data timestamp. More...

Public Attributes
vtkSmartPointer< vtkPropAssembly >	m_Actors
	Assembly of all VTK actors used for rendering. More...

std::vector< const Image * >	m_GroupImageIDs
	Vector containing the pointer of the currently used group images. More...

std::vector< vtkSmartPointer< vtkActor > >	m_LayerActorVector
	Vector of actors for each label group layer. More...

std::vector< vtkSmartPointer< vtkPolyDataMapper > >	m_LayerMapperVector
	Vector of mappers for each label group layer. More...

std::vector< vtkSmartPointer< vtkImageData > >	m_ReslicedImageVector
	Vector of resliced image data for each label group layer. More...

std::vector< vtkSmartPointer< vtkImageMapToColors > >	m_LayerImageMapToColors
	Vector of image-to-color mappers for each label group layer. More...

std::vector< vtkSmartPointer< vtkNeverTranslucentTexture > >	m_LayerTextureVector
	Vector of textures for each label group layer. More...

vtkSmartPointer< vtkPolyData >	m_EmptyPolyData
	Empty poly data used as a placeholder. More...

vtkSmartPointer< vtkPlaneSource >	m_Plane
	The plane source used for texture mapping. More...

std::vector< mitk::ExtractSliceFilter::Pointer >	m_ReslicerVector
	Vector of reslice filters for each label group layer. More...

vtkSmartPointer< vtkPolyData >	m_OutlinePolyData
	Poly data for the label outline. More...

vtkSmartPointer< vtkActor >	m_OutlineActor
	An actor for the outline. More...

vtkSmartPointer< vtkActor >	m_OutlineShadowActor
	An actor for the outline shadow. More...

vtkSmartPointer< vtkPolyDataMapper >	m_OutlineMapper
	A mapper for the outline. More...

itk::TimeStamp	m_LastDataUpdateTime
	Timestamp of last update of stored data. More...

itk::TimeStamp	m_LastPropertyUpdateTime
	Timestamp of last update of a property. More...

itk::TimeStamp	m_LastActiveLabelUpdateTime
	Timestamp of last update of the active label. More...

mitk::ScalarType *	m_mmPerPixel
	mmPerPixel relation between pixel and mm. (World spacing). More...

mitk::LookupTable::Pointer	m_LabelLookupTable
	Look up table for label colors. More...

mitk::PlaneGeometry::Pointer	m_WorldPlane
	The current world plane geometry. More...

bool	m_HasValidContent
	Flag indicating whether the local storage contains valid content. More...

mitk::TimeStepType	m_LastTimeStep
	The last time step that was rendered. More...

unsigned int	m_NumberOfLayers
	The number of label group layers. More...

MultiLabelSegmentation::LabelValueType	m_LastActiveLabelValue
	The label value of the last active label. More...

float	m_LastOpacityFactor
	The "opacity factor" preference value baked into the current LUT. More...

Additional Inherited Members
Protected Attributes inherited from mitk::Mapper::BaseLocalStorage
itk::TimeStamp	m_LastGenerateDataTime
	Timestamp of last update of stored data. More...

Detailed Description

Internal class holding the mapper, actor, etc. for each of the 3 2D render windows.

To render axial, coronal, and sagittal, the mapper is called three times. For performance reasons, the corresponding data for each view is saved in the internal helper class LocalStorage. This allows rendering n views with just 1 mitkMapper using n vtkMapper.

Definition at line 88 of file mitkLabelSetImageVtkMapper2D.h.

Constructor & Destructor Documentation

◆ LocalStorage()

mitk::LabelSetImageVtkMapper2D::LocalStorage::LocalStorage ( )

Default constructor of the local storage.

◆ ~LocalStorage()

mitk::LabelSetImageVtkMapper2D::LocalStorage::~LocalStorage ( )

override

Default destructor of the local storage.

Member Data Documentation

◆ m_Actors

vtkSmartPointer<vtkPropAssembly> mitk::LabelSetImageVtkMapper2D::LocalStorage::m_Actors

Assembly of all VTK actors used for rendering.

Definition at line 92 of file mitkLabelSetImageVtkMapper2D.h.

◆ m_EmptyPolyData

vtkSmartPointer<vtkPolyData> mitk::LabelSetImageVtkMapper2D::LocalStorage::m_EmptyPolyData

Empty poly data used as a placeholder.

Definition at line 114 of file mitkLabelSetImageVtkMapper2D.h.

◆ m_GroupImageIDs

std::vector<const Image*> mitk::LabelSetImageVtkMapper2D::LocalStorage::m_GroupImageIDs

Vector containing the pointer of the currently used group images.

IMPORTANT: This member must not be used to access any data. Its purpose is to allow checking if the order of the groups has changed in order to adapt the pipeline accordingly.

Definition at line 100 of file mitkLabelSetImageVtkMapper2D.h.
