#include <mitkClippedSurfaceBoundsCalculator.h>

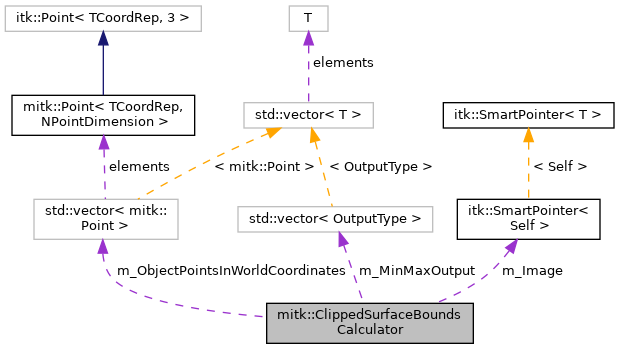

Collaboration diagram for mitk::ClippedSurfaceBoundsCalculator:

[legend]

Public Types
typedef std::vector< mitk::Point3D >	PointListType
	List of 3D world-coordinate points. More...

typedef std::pair< int, int >	OutputType
	Minimum (first) and maximum (second) slice index. More...

Public Member Functions
	ClippedSurfaceBoundsCalculator (const mitk::PlaneGeometry *geometry=nullptr, mitk::Image::Pointer image=nullptr)
	Construct from a PlaneGeometry and image. More...

	ClippedSurfaceBoundsCalculator (const mitk::BaseGeometry *geometry, mitk::Image::Pointer image)
	Construct from a BaseGeometry (e.g. SlicedGeometry3D) and image. More...

	ClippedSurfaceBoundsCalculator (const PointListType pointlist, mitk::Image::Pointer image)
	Construct from a list of world-coordinate points and image. More...

void	InitializeOutput ()
	Reset the output min/max indices to their initial (invalid) state. More...

virtual	~ClippedSurfaceBoundsCalculator ()

void	SetInput (const mitk::PlaneGeometry geometry, mitk::Image image)
	Set a PlaneGeometry and image as input. More...

void	SetInput (const mitk::BaseGeometry geometry, mitk::Image image)
	Set a BaseGeometry and image as input. More...

void	SetInput (const PointListType pointlist, mitk::Image *image)
	Set a list of world-coordinate points and image as input. More...

void	Update ()
	Request calculation. More...

OutputType	GetMinMaxSpatialDirectionX ()
	Get the min/max slice indices visible in the X direction. More...

OutputType	GetMinMaxSpatialDirectionY ()
	Get the min/max slice indices visible in the Y direction. More...

OutputType	GetMinMaxSpatialDirectionZ ()
	Get the min/max slice indices visible in the Z direction. More...

Protected Member Functions
void	CalculateIntersectionPoints (const mitk::PlaneGeometry *geometry)
	Calculate intersection points of the image bounding box edges with the given plane. More...

void	CalculateIntersectionPoints (PointListType pointList)
	Calculate bounding slice indices from a list of world-coordinate points. More...

void	EnforceImageBounds ()
	Clamp the resulting index coordinates so they do not exceed the image bounds. More...

Protected Attributes
mitk::PlaneGeometry::ConstPointer	m_PlaneGeometry
	The input plane geometry (if set). More...

mitk::BaseGeometry::ConstPointer	m_Geometry3D
	The input 3D geometry (if set). More...

mitk::Image::Pointer	m_Image
	The image whose bounds are calculated. More...

std::vector< mitk::Point3D >	m_ObjectPointsInWorldCoordinates
	World-coordinate points (if set). More...

std::vector< OutputType >	m_MinMaxOutput
	Min/max slice index results for each axis. More...

Detailed Description

Definition at line 41 of file mitkClippedSurfaceBoundsCalculator.h.

Member Typedef Documentation

◆ OutputType

typedef std::pair<int, int> mitk::ClippedSurfaceBoundsCalculator::OutputType

Minimum (first) and maximum (second) slice index.

Definition at line 110 of file mitkClippedSurfaceBoundsCalculator.h.

◆ PointListType

typedef std::vector<mitk::Point3D> mitk::ClippedSurfaceBoundsCalculator::PointListType

List of 3D world-coordinate points.

Definition at line 45 of file mitkClippedSurfaceBoundsCalculator.h.

Constructor & Destructor Documentation

◆ ClippedSurfaceBoundsCalculator() [1/3]

mitk::ClippedSurfaceBoundsCalculator::ClippedSurfaceBoundsCalculator	(	const mitk::PlaneGeometry *	geometry = `nullptr`,
		mitk::Image::Pointer	image = `nullptr`
	)

Construct from a PlaneGeometry and image.

Parameters

geometry	The clipping plane (may be nullptr).
image	The image whose slice bounds are computed (may be nullptr).

◆ ClippedSurfaceBoundsCalculator() [2/3]

mitk::ClippedSurfaceBoundsCalculator::ClippedSurfaceBoundsCalculator	(	const mitk::BaseGeometry *	geometry,
		mitk::Image::Pointer	image
	)

Construct from a BaseGeometry (e.g. SlicedGeometry3D) and image.

Parameters

geometry	The 3D geometry defining the clipping volume.
image	The image whose slice bounds are computed.

◆ ClippedSurfaceBoundsCalculator() [3/3]

mitk::ClippedSurfaceBoundsCalculator::ClippedSurfaceBoundsCalculator	(	const PointListType	pointlist,
		mitk::Image::Pointer	image
	)

Construct from a list of world-coordinate points and image.

Parameters

pointlist	Points whose bounding slice indices are determined.
image	The image whose slice bounds are computed.

◆ ~ClippedSurfaceBoundsCalculator()

virtual mitk::ClippedSurfaceBoundsCalculator::~ClippedSurfaceBoundsCalculator ( )

virtual

Member Function Documentation

◆ CalculateIntersectionPoints() [1/2]

void mitk::ClippedSurfaceBoundsCalculator::CalculateIntersectionPoints ( const mitk::PlaneGeometry * geometry )

protected

Calculate intersection points of the image bounding box edges with the given plane.

Parameters

geometry The plane geometry to intersect with.

◆ CalculateIntersectionPoints() [2/2]

void mitk::ClippedSurfaceBoundsCalculator::CalculateIntersectionPoints ( PointListType pointList )

protected

Calculate bounding slice indices from a list of world-coordinate points.

Parameters

pointList The points to convert to index coordinates.

◆ EnforceImageBounds()

void mitk::ClippedSurfaceBoundsCalculator::EnforceImageBounds ( )

protected

Clamp the resulting index coordinates so they do not exceed the image bounds.

◆ GetMinMaxSpatialDirectionX()

OutputType mitk::ClippedSurfaceBoundsCalculator::GetMinMaxSpatialDirectionX ( )

Get the min/max slice indices visible in the X direction.

Returns: A pair of (minimum, maximum) slice index in X.

◆ GetMinMaxSpatialDirectionY()

OutputType mitk::ClippedSurfaceBoundsCalculator::GetMinMaxSpatialDirectionY ( )

Get the min/max slice indices visible in the Y direction.

Returns: A pair of (minimum, maximum) slice index in Y.

◆ GetMinMaxSpatialDirectionZ()

OutputType mitk::ClippedSurfaceBoundsCalculator::GetMinMaxSpatialDirectionZ ( )

Get the min/max slice indices visible in the Z direction.

Returns: A pair of (minimum, maximum) slice index in Z.

◆ InitializeOutput()

void mitk::ClippedSurfaceBoundsCalculator::InitializeOutput ( )

Reset the output min/max indices to their initial (invalid) state.

◆ SetInput() [1/3]

void mitk::ClippedSurfaceBoundsCalculator::SetInput	(	const mitk::BaseGeometry *	geometry,
		mitk::Image *	image
	)

Set a BaseGeometry and image as input.

Parameters

geometry	The 3D geometry defining the clipping volume.
image	The image whose slice bounds are computed.

◆ SetInput() [2/3]

void mitk::ClippedSurfaceBoundsCalculator::SetInput	(	const mitk::PlaneGeometry *	geometry,
		mitk::Image *	image
	)

Set a PlaneGeometry and image as input.

Parameters

geometry	The clipping plane.
image	The image whose slice bounds are computed.

◆ SetInput() [3/3]

void mitk::ClippedSurfaceBoundsCalculator::SetInput	(	const PointListType	pointlist,
		mitk::Image *	image
	)

Set a list of world-coordinate points and image as input.

Parameters

pointlist	Points whose bounding slice indices are determined.
image	The image whose slice bounds are computed.

◆ Update()

void mitk::ClippedSurfaceBoundsCalculator::Update ( )

Request calculation.

How cut/visible slice indices are determined:

construct a bounding box of the image. This is the box that connect the outer voxel centers(!).
check the edges of this box.
intersect each edge with the plane geometry
- if the intersection point is within the image box, we update the visible/cut slice indices for all dimensions.
- else we ignore the cut

Member Data Documentation

◆ m_Geometry3D

mitk::BaseGeometry::ConstPointer mitk::ClippedSurfaceBoundsCalculator::m_Geometry3D

protected

The input 3D geometry (if set).

Definition at line 149 of file mitkClippedSurfaceBoundsCalculator.h.

◆ m_Image

mitk::Image::Pointer mitk::ClippedSurfaceBoundsCalculator::m_Image

protected

The image whose bounds are calculated.

Definition at line 150 of file mitkClippedSurfaceBoundsCalculator.h.

◆ m_MinMaxOutput

std::vector<OutputType> mitk::ClippedSurfaceBoundsCalculator::m_MinMaxOutput

protected

Min/max slice index results for each axis.

Definition at line 152 of file mitkClippedSurfaceBoundsCalculator.h.

◆ m_ObjectPointsInWorldCoordinates

std::vector<mitk::Point3D> mitk::ClippedSurfaceBoundsCalculator::m_ObjectPointsInWorldCoordinates

protected

World-coordinate points (if set).

Definition at line 151 of file mitkClippedSurfaceBoundsCalculator.h.

◆ m_PlaneGeometry

mitk::PlaneGeometry::ConstPointer mitk::ClippedSurfaceBoundsCalculator::m_PlaneGeometry

protected

The input plane geometry (if set).

Definition at line 148 of file mitkClippedSurfaceBoundsCalculator.h.

The documentation for this class was generated from the following file:

mitkClippedSurfaceBoundsCalculator.h
