List model that displays the layer stack for a specific render window with drag-and-drop support. More...

#include <QmitkRenderWindowDataStorageListModel.h>

Inheritance diagram for QmitkRenderWindowDataStorageListModel:

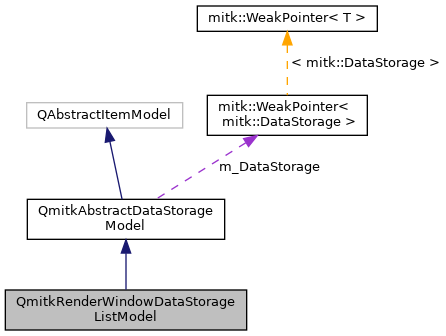

Collaboration diagram for QmitkRenderWindowDataStorageListModel:

[legend]

Public Member Functions
	QmitkRenderWindowDataStorageListModel (QObject *parent=nullptr)
	Construct the list model. More...

void	DataStorageChanged () override
	Called when the data storage has been changed. More...

void	NodePredicateChanged () override
	Called when the node predicate has been changed. Refreshes the model data. More...

void	NodeAdded (const mitk::DataNode *node) override
	Called when a data node has been added to the data storage. More...

void	NodeChanged (const mitk::DataNode *node) override
	Called when a data node has been changed. More...

void	NodeRemoved (const mitk::DataNode *node) override
	Called when a data node has been removed from the data storage. Refreshes the model. More...

QModelIndex	index (int row, int column, const QModelIndex &parent=QModelIndex()) const override
	Create a model index for the given row and column. More...

QModelIndex	parent (const QModelIndex &child) const override
	Return the parent index (always invalid, since this is a flat list model). More...

int	rowCount (const QModelIndex &parent=QModelIndex()) const override
	Return the number of rows (layers) in the model. More...

int	columnCount (const QModelIndex &parent=QModelIndex()) const override
	Return the number of columns (always 1). More...

QVariant	data (const QModelIndex &index, int role) const override
	Return data for the given index and role. More...

bool	setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole) override
	Set data for the given index and role (visibility toggling). More...

Qt::ItemFlags	flags (const QModelIndex &index) const override
	Return item flags for the given index. More...

Qt::DropActions	supportedDropActions () const override
	Return supported drop actions (Copy and Move). More...

Qt::DropActions	supportedDragActions () const override
	Return supported drag actions (Copy and Move). More...

QStringList	mimeTypes () const override
	Return the list of supported MIME types for drag-and-drop. More...

QMimeData *	mimeData (const QModelIndexList &indexes) const override
	Create MIME data for the given model indices. More...

bool	dropMimeData (const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent) override
	Handle dropped MIME data to reorder layers. More...

void	SetControlledRenderer (mitk::RenderWindowLayerUtilities::RendererVector controlledRenderer)
	Set the list of controlled renderers and initialize layer data for all nodes. More...

void	SetCurrentRenderer (mitk::BaseRenderer *baseRenderer)
	Set the current base renderer and refresh the model. More...

mitk::BaseRenderer::Pointer	GetCurrentRenderer () const
	Get the currently active base renderer. More...

void	AddDataNodeToAllRenderer (mitk::DataNode *dataNode)
	Insert the given data node into all controlled render windows at the top layer. More...

Public Member Functions inherited from QmitkAbstractDataStorageModel
	~QmitkAbstractDataStorageModel () override

void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage and registers node event listeners. More...

mitk::DataStorage::Pointer	GetDataStorage () const
	Returns a locked pointer to the current data storage. More...

void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
	Sets the node predicate and triggers a model update. More...

const mitk::NodePredicateBase *	GetNodePredicate () const
	Returns the currently set node predicate. More...

Additional Inherited Members
Protected Member Functions inherited from QmitkAbstractDataStorageModel
	QmitkAbstractDataStorageModel (QObject *parent=nullptr)

	QmitkAbstractDataStorageModel (mitk::DataStorage dataStorage, QObject parent=nullptr)

Protected Attributes inherited from QmitkAbstractDataStorageModel
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_NodePredicate

Detailed Description

List model that displays the layer stack for a specific render window with drag-and-drop support.

QmitkRenderWindowDataStorageListModel is a single-column list model derived from QmitkAbstractDataStorageModel. It shows data nodes assigned to a render window sorted by their layer property, with a visibility checkbox, node icon, and node name for each entry.

The model supports drag-and-drop of data node pointers for reordering layers. When a node is dropped onto another, the RenderWindowLayerController is used to move it to the target layer position. Newly added nodes are automatically inserted into all controlled render windows at the top layer position.

See also: QmitkAbstractDataStorageModel, QmitkDataStorageLayerStackModel, QmitkRenderWindowDataStorageInspector, mitk::RenderWindowLayerController, mitk::RenderWindowLayerUtilities

Definition at line 45 of file QmitkRenderWindowDataStorageListModel.h.

Constructor & Destructor Documentation

◆ QmitkRenderWindowDataStorageListModel()

QmitkRenderWindowDataStorageListModel::QmitkRenderWindowDataStorageListModel ( QObject * parent = nullptr )

Construct the list model.

Initializes the internal RenderWindowLayerController.

Parameters

[in] parent Optional parent QObject.

Member Function Documentation

◆ AddDataNodeToAllRenderer()

void QmitkRenderWindowDataStorageListModel::AddDataNodeToAllRenderer ( mitk::DataNode * dataNode )

Insert the given data node into all controlled render windows at the top layer.

Uses the RenderWindowLayerController to insert the node at the highest layer position in each managed render window.

Parameters

[in] dataNode The data node to insert.

◆ columnCount()

int QmitkRenderWindowDataStorageListModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

override

Return the number of columns (always 1).

Parameters

[in] parent The parent index. Must be invalid for a valid count; returns 0 if valid.

Returns: 1.

◆ data()

QVariant QmitkRenderWindowDataStorageListModel::data	(	const QModelIndex &	index,
		int	role
	)		const

override

Return data for the given index and role.

Supported roles:

Qt::CheckStateRole: Node visibility in the current renderer.
Qt::DisplayRole: Data node name.
Qt::ToolTipRole: "Name of the data node."
Qt::DecorationRole: Node type icon from QmitkNodeDescriptorManager.
Qt::UserRole / QmitkDataNodeRawPointerRole: Raw mitk::DataNode pointer.
QmitkDataNodeRole: mitk::DataNode::Pointer wrapped in a QVariant.

Parameters

[in]	index	The model index.
[in]	role	The data role.

Returns: The requested data, or an invalid QVariant.

◆ DataStorageChanged()

void QmitkRenderWindowDataStorageListModel::DataStorageChanged ( )

overridevirtual

Called when the data storage has been changed.

Updates the layer controller's data storage reference and refreshes the model.

Implements QmitkAbstractDataStorageModel.

◆ dropMimeData()

bool QmitkRenderWindowDataStorageListModel::dropMimeData	(	const QMimeData *	data,
		Qt::DropAction	action,
		int	row,
		int	column,
		const QModelIndex &	parent
	)

override

Handle dropped MIME data to reorder layers.

When data nodes are dropped onto a target item, uses the RenderWindowLayerController to move the dropped nodes to the layer position of the target.

Parameters

[in]	data	The MIME data containing serialized data node pointers.
[in]	action	The drop action.
[in]	row	The target row (unused).
[in]	column	The target column.
[in]	parent	The model index of the drop target.

Returns: true if the drop was successfully handled, false otherwise.

◆ flags()

Qt::ItemFlags QmitkRenderWindowDataStorageListModel::flags ( const QModelIndex & index ) const

override

Return item flags for the given index.

Valid items are enabled, selectable, checkable, draggable, and droppable. An invalid index is only droppable (to allow drops on empty space).

Parameters

[in] index The model index to query.

Returns: The item flags.

◆ GetCurrentRenderer()

mitk::BaseRenderer::Pointer QmitkRenderWindowDataStorageListModel::GetCurrentRenderer ( ) const

Get the currently active base renderer.

Returns: Smart pointer to the current mitk::BaseRenderer, or nullptr if none is set or it has expired.

◆ index()

QModelIndex QmitkRenderWindowDataStorageListModel::index	(	int	row,
		int	column,
		const QModelIndex &	parent = `QModelIndex()`
	)		const

override

Create a model index for the given row and column.

Parameters

[in]	row	The row number.
[in]	column	The column number (always 0 for this single-column model).
[in]	parent	The parent index (must be invalid for this flat model).

Returns: A valid QModelIndex if the position is within range, otherwise an invalid index.

◆ mimeData()

QMimeData* QmitkRenderWindowDataStorageListModel::mimeData ( const QModelIndexList & indexes ) const

override

Create MIME data for the given model indices.

Serializes the raw data node pointers from the selected indices into a QByteArray using the QmitkMimeTypes::DataNodePtrs format.

Parameters

[in] indexes The list of model indices to serialize.

Returns: Pointer to the created QMimeData. Ownership is transferred to the caller.

◆ mimeTypes()

QStringList QmitkRenderWindowDataStorageListModel::mimeTypes ( ) const

override

Return the list of supported MIME types for drag-and-drop.

Includes QmitkMimeTypes::DataNodePtrs in addition to the default MIME types.

Returns: List of supported MIME type strings.

◆ NodeAdded()

void QmitkRenderWindowDataStorageListModel::NodeAdded ( const mitk::DataNode * node )

overridevirtual

Called when a data node has been added to the data storage.

Inserts the new node into all controlled render windows at the top layer position, then refreshes the model.

Parameters

[in] node The data node that was added.

Implements QmitkAbstractDataStorageModel.

◆ NodeChanged()

void QmitkRenderWindowDataStorageListModel::NodeChanged ( const mitk::DataNode * node )

overridevirtual

Called when a data node has been changed.

Parameters

[in] node The data node that was changed.

Note: Currently a no-op because the NodeChanged event is sent too frequently.

Implements QmitkAbstractDataStorageModel.

◆ NodePredicateChanged()

void QmitkRenderWindowDataStorageListModel::NodePredicateChanged ( )

overridevirtual

Called when the node predicate has been changed. Refreshes the model data.

Implements QmitkAbstractDataStorageModel.

◆ NodeRemoved()

void QmitkRenderWindowDataStorageListModel::NodeRemoved ( const mitk::DataNode * node )

overridevirtual

Called when a data node has been removed from the data storage. Refreshes the model.

Parameters

[in] node The data node that was removed.

Implements QmitkAbstractDataStorageModel.

◆ parent()

QModelIndex QmitkRenderWindowDataStorageListModel::parent ( const QModelIndex & child ) const

override

Return the parent index (always invalid, since this is a flat list model).

Parameters

[in] child The child index (unused).

Returns: An invalid QModelIndex.

◆ rowCount()

int QmitkRenderWindowDataStorageListModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

override

Return the number of rows (layers) in the model.

Parameters

[in] parent The parent index. Must be invalid for a valid count; returns 0 if valid.

Returns: The number of data nodes in the current layer stack.

◆ SetControlledRenderer()

void QmitkRenderWindowDataStorageListModel::SetControlledRenderer ( mitk::RenderWindowLayerUtilities::RendererVector controlledRenderer )

Set the list of controlled renderers and initialize layer data for all nodes.

Iterates over all data nodes in the data storage and inserts each one into all controlled render windows via AddDataNodeToAllRenderer().

Parameters

[in] controlledRenderer Vector of base renderers to manage.

◆ SetCurrentRenderer()

void QmitkRenderWindowDataStorageListModel::SetCurrentRenderer ( mitk::BaseRenderer * baseRenderer )

Set the current base renderer and refresh the model.

Switches the model to display the layer stack of the given renderer.

Parameters

[in] baseRenderer The base renderer whose layer stack should be displayed.

◆ setData()

bool QmitkRenderWindowDataStorageListModel::setData	(	const QModelIndex &	index,
		const QVariant &	value,
		int	role = `Qt::EditRole`
	)

override

Set data for the given index and role (visibility toggling).

Only handles Qt::CheckStateRole to toggle the visibility of the data node in the current renderer. Triggers a render window update on success.

Parameters

[in]	index	The model index of the item to modify.
[in]	value	The new value (Qt::CheckState as int).
[in]	role	The data role (only Qt::CheckStateRole is handled).

Returns: true if the visibility was successfully changed, false otherwise.

◆ supportedDragActions()

Qt::DropActions QmitkRenderWindowDataStorageListModel::supportedDragActions ( ) const

override

Return supported drag actions (Copy and Move).

Returns: Qt::CopyAction | Qt::MoveAction.

◆ supportedDropActions()

Qt::DropActions QmitkRenderWindowDataStorageListModel::supportedDropActions ( ) const

override

Return supported drop actions (Copy and Move).

Returns: Qt::CopyAction | Qt::MoveAction.

The documentation for this class was generated from the following file:

QmitkRenderWindowDataStorageListModel.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ QmitkRenderWindowDataStorageListModel()

Member Function Documentation

◆ AddDataNodeToAllRenderer()

◆ columnCount()

◆ data()

◆ DataStorageChanged()

◆ dropMimeData()

◆ flags()

◆ GetCurrentRenderer()

◆ index()

◆ mimeData()

◆ mimeTypes()

◆ NodeAdded()

◆ NodeChanged()

◆ NodePredicateChanged()

◆ NodeRemoved()

◆ parent()

◆ rowCount()

◆ SetControlledRenderer()

◆ SetCurrentRenderer()

◆ setData()

◆ supportedDragActions()

◆ supportedDropActions()
