Table model that displays the render window layer stack for a specific renderer. More...

#include <QmitkDataStorageLayerStackModel.h>

Inheritance diagram for QmitkDataStorageLayerStackModel:

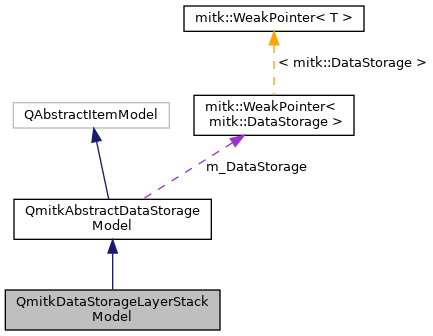

Collaboration diagram for QmitkDataStorageLayerStackModel:

[legend]

Public Member Functions
	QmitkDataStorageLayerStackModel (QObject *parent=nullptr)
	Construct the layer stack model. More...

void	DataStorageChanged () override
	Called when the data storage has been changed. Refreshes the model data. More...

void	NodePredicateChanged () override
	Called when the node predicate has been changed. Refreshes the model data. More...

void	NodeAdded (const mitk::DataNode *node) override
	Called when a data node has been added to the data storage. More...

void	NodeChanged (const mitk::DataNode *node) override
	Called when a data node has been changed. Refreshes the model data. More...

void	NodeRemoved (const mitk::DataNode *node) override
	Called when a data node has been removed from the data storage. Refreshes the model data. More...

void	SetCurrentRenderer (const std::string &rendererName)
	Set the current renderer by its name and refresh the layer stack. More...

mitk::BaseRenderer *	GetCurrentRenderer () const
	Get the currently active base renderer. More...

QModelIndex	index (int row, int column, const QModelIndex &parent) const
	Create a model index for the given row and column. More...

QModelIndex	parent (const QModelIndex &child) const
	Return the parent index (always invalid, since this is a flat table model). More...

Qt::ItemFlags	flags (const QModelIndex &index) const override
	Return item flags for the given index. More...

QVariant	headerData (int section, Qt::Orientation orientation, int role) const override
	Return header data for the table. More...

int	rowCount (const QModelIndex &parent=QModelIndex()) const override
	Return the number of rows (layers) in the model. More...

int	columnCount (const QModelIndex &parent=QModelIndex()) const override
	Return the number of columns (always 2: visibility and node name). More...

QVariant	data (const QModelIndex &index, int role) const override
	Return data for the given index and role. More...

bool	setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole) override
	Set data for the given index and role (visibility toggling). More...

Public Member Functions inherited from QmitkAbstractDataStorageModel
	~QmitkAbstractDataStorageModel () override

void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage and registers node event listeners. More...

mitk::DataStorage::Pointer	GetDataStorage () const
	Returns a locked pointer to the current data storage. More...

void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
	Sets the node predicate and triggers a model update. More...

const mitk::NodePredicateBase *	GetNodePredicate () const
	Returns the currently set node predicate. More...

Additional Inherited Members
Protected Member Functions inherited from QmitkAbstractDataStorageModel
	QmitkAbstractDataStorageModel (QObject *parent=nullptr)

	QmitkAbstractDataStorageModel (mitk::DataStorage dataStorage, QObject parent=nullptr)

Protected Attributes inherited from QmitkAbstractDataStorageModel
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_NodePredicate

Detailed Description

Table model that displays the render window layer stack for a specific renderer.

QmitkDataStorageLayerStackModel is a customized two-column table model derived from QmitkAbstractDataStorageModel. It displays data nodes assigned to a specific render window (base renderer) sorted by their layer property, with a visibility checkbox in the first column and the node name in the second column.

The model updates automatically when the data storage changes, nodes are modified or removed, or the current renderer is switched. It can be used in conjunction with a QmitkDataStorageSelectionConnector for selection synchronization.

See also: QmitkAbstractDataStorageModel, QmitkRenderWindowDataStorageListModel, QmitkRenderWindowDataStorageInspector, mitk::RenderWindowLayerUtilities

Definition at line 40 of file QmitkDataStorageLayerStackModel.h.

Constructor & Destructor Documentation

◆ QmitkDataStorageLayerStackModel()

QmitkDataStorageLayerStackModel::QmitkDataStorageLayerStackModel ( QObject * parent = nullptr )

Construct the layer stack model.

Parameters

[in] parent Optional parent QObject.

Member Function Documentation

◆ columnCount()

int QmitkDataStorageLayerStackModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

override

Return the number of columns (always 2: visibility and node name).

Parameters

[in] parent The parent index. Must be invalid for a valid count; returns 0 if valid.

Returns: 2.

◆ data()

QVariant QmitkDataStorageLayerStackModel::data	(	const QModelIndex &	index,
		int	role
	)		const

override

Return data for the given index and role.

Supported roles:

Qt::CheckStateRole (column 0): Node visibility in the current renderer.
Qt::DisplayRole (column 1): Data node name.
Qt::ToolTipRole: Descriptive tooltip for each column.
QmitkDataNodeRole: mitk::DataNode::Pointer wrapped in a QVariant.
QmitkDataNodeRawPointerRole: Raw mitk::DataNode pointer wrapped in a QVariant.

Parameters

[in]	index	The model index.
[in]	role	The data role.

Returns: The requested data, or an invalid QVariant.

◆ DataStorageChanged()

void QmitkDataStorageLayerStackModel::DataStorageChanged ( )

overridevirtual

Called when the data storage has been changed. Refreshes the model data.

Implements QmitkAbstractDataStorageModel.

◆ flags()

Qt::ItemFlags QmitkDataStorageLayerStackModel::flags ( const QModelIndex & index ) const

override

Return item flags for the given index.

Column 0 (visibility) has Qt::ItemIsUserCheckable in addition to enabled/selectable flags.

Parameters

[in] index The model index to query.

Returns: The item flags for the given index, or Qt::NoItemFlags if the index is invalid.

◆ GetCurrentRenderer()

mitk::BaseRenderer* QmitkDataStorageLayerStackModel::GetCurrentRenderer ( ) const

Get the currently active base renderer.

Returns: Pointer to the current mitk::BaseRenderer, or nullptr if none is set or it has expired.

◆ headerData()

QVariant QmitkDataStorageLayerStackModel::headerData	(	int	section,
		Qt::Orientation	orientation,
		int	role
	)		const

override

Return header data for the table.

Column 0 header is "Visibility", column 1 header is "Data node".

Parameters

[in]	section	The column number.
[in]	orientation	The header orientation (only Qt::Horizontal is handled).
[in]	role	The data role (only Qt::DisplayRole is handled).

Returns: The header text, or an invalid QVariant for unhandled parameters.

◆ index()

QModelIndex QmitkDataStorageLayerStackModel::index	(	int	row,
		int	column,
		const QModelIndex &	parent
	)		const

Create a model index for the given row and column.

Parameters

[in]	row	The row number.
[in]	column	The column number (0 = visibility, 1 = node name).
[in]	parent	The parent index (must be invalid for this flat model).

Returns: A valid QModelIndex if the row and column are within range, otherwise an invalid index.

◆ NodeAdded()

void QmitkDataStorageLayerStackModel::NodeAdded ( const mitk::DataNode * node )

overridevirtual

Called when a data node has been added to the data storage.

Parameters

[in] node The data node that was added.

Note: This is a no-op; layers are only added after an explicit user action.

Implements QmitkAbstractDataStorageModel.

◆ NodeChanged()

void QmitkDataStorageLayerStackModel::NodeChanged ( const mitk::DataNode * node )

overridevirtual

Called when a data node has been changed. Refreshes the model data.

Parameters

[in] node The data node that was changed.

Implements QmitkAbstractDataStorageModel.

◆ NodePredicateChanged()

void QmitkDataStorageLayerStackModel::NodePredicateChanged ( )

overridevirtual

Called when the node predicate has been changed. Refreshes the model data.

Implements QmitkAbstractDataStorageModel.

◆ NodeRemoved()

void QmitkDataStorageLayerStackModel::NodeRemoved ( const mitk::DataNode * node )

overridevirtual

Called when a data node has been removed from the data storage. Refreshes the model data.

Parameters

[in] node The data node that was removed.

Implements QmitkAbstractDataStorageModel.

◆ parent()

QModelIndex QmitkDataStorageLayerStackModel::parent ( const QModelIndex & child ) const

Return the parent index (always invalid, since this is a flat table model).

Parameters

[in] child The child index (unused).

Returns: An invalid QModelIndex.

◆ rowCount()

int QmitkDataStorageLayerStackModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

override

Return the number of rows (layers) in the model.

Parameters

[in] parent The parent index. Must be invalid for a valid count; returns 0 if valid.

Returns: The number of data nodes in the current layer stack.

◆ SetCurrentRenderer()

void QmitkDataStorageLayerStackModel::SetCurrentRenderer ( const std::string & rendererName )

Set the current renderer by its name and refresh the layer stack.

Looks up the base renderer by name and rebuilds the model to show only the layer stack for that renderer.

Parameters

[in] rendererName The name of the base renderer to display layers for.

Precondition: The data storage must be set and not expired.

◆ setData()

bool QmitkDataStorageLayerStackModel::setData	(	const QModelIndex &	index,
		const QVariant &	value,
		int	role = `Qt::EditRole`
	)

override

Set data for the given index and role (visibility toggling).

Only handles Qt::CheckStateRole to toggle the visibility of the data node in the current renderer. Triggers a render window update on success.

Parameters

[in]	index	The model index of the item to modify.
[in]	value	The new value (Qt::CheckState as int).
[in]	role	The data role (only Qt::CheckStateRole is handled).

Returns: true if the visibility was successfully changed, false otherwise.

The documentation for this class was generated from the following file:

QmitkDataStorageLayerStackModel.h
