QmitkRenderWindowDataStorageInspector Class Reference

Inspector widget for managing data node layers and view directions in MITK render windows. More...

#include <QmitkRenderWindowDataStorageInspector.h>

Inheritance diagram for QmitkRenderWindowDataStorageInspector:

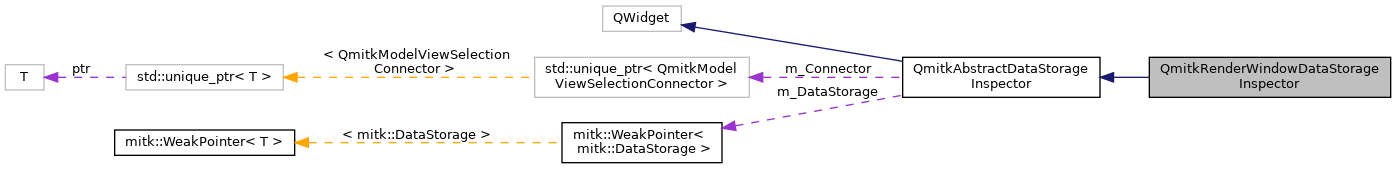

Collaboration diagram for QmitkRenderWindowDataStorageInspector:

Public Member Functions
	QmitkRenderWindowDataStorageInspector (QWidget *parent=nullptr)
	Construct the inspector widget. More...
	~QmitkRenderWindowDataStorageInspector () override
	Destructor. More...
QAbstractItemView *	GetView () override
	Get the underlying tree view widget. More...
const QAbstractItemView *	GetView () const override
	Get the underlying tree view widget (const version). More...
void	SetSelectionMode (SelectionMode mode) override
	Set the selection mode of the tree view. More...
SelectionMode	GetSelectionMode () const override
	Get the current selection mode of the tree view. More...
void	SetControlledRenderer (mitk::RenderWindowLayerUtilities::RendererVector controlledRenderer)
	Set the list of render windows controlled by this inspector. More...
void	SetActiveRenderWindow (const QString &renderWindowId)
	Set the currently active render window by its identifier string. More...
Public Member Functions inherited from QmitkAbstractDataStorageInspector
	~QmitkAbstractDataStorageInspector () override
void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage that will be used and monitored by this widget. More...
virtual void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
	Sets the node predicate and re-initializes the widget accordingly. More...
const mitk::NodePredicateBase *	GetNodePredicate () const
	Returns the currently set node predicate. More...
NodeList	GetSelectedNodes () const
	Returns the list of currently selected data nodes. More...
bool	GetSelectOnlyVisibleNodes () const
	Returns whether only visible nodes can be selected. More...

Additional Inherited Members
Public Types inherited from QmitkAbstractDataStorageInspector
using	NodeList = QList< mitk::DataNode::Pointer >
	Convenience type alias for a list of data node pointers. More...
using	SelectionMode = QAbstractItemView::SelectionMode
	Convenience type alias for the Qt selection mode. More...
Public Slots inherited from QmitkAbstractDataStorageInspector
void	SetSelectOnlyVisibleNodes (bool selectOnlyVisibleNodes)
	Controls whether selections are restricted to visible nodes only. More...
void	SetCurrentSelection (NodeList selectedNodes)
	Sets the given list of data nodes as the new selection. More...
Signals inherited from QmitkAbstractDataStorageInspector
void	CurrentSelectionChanged (NodeList nodes)
	Emitted when the set of selected nodes has changed. More...
Protected Slots inherited from QmitkAbstractDataStorageInspector
void	OnSelectionChanged (NodeList selectedNodes)
Protected Member Functions inherited from QmitkAbstractDataStorageInspector
	QmitkAbstractDataStorageInspector (QWidget *parent=nullptr)
Protected Attributes inherited from QmitkAbstractDataStorageInspector
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage
mitk::NodePredicateBase::ConstPointer	m_NodePredicate
std::unique_ptr< QmitkModelViewSelectionConnector >	m_Connector

Detailed Description

Inspector widget for managing data node layers and view directions in MITK render windows.

QmitkRenderWindowDataStorageInspector provides a GUI for manipulating the data node layer ordering within a specific render window, as well as switching the view direction (axial, coronal, sagittal, 3D) via radio buttons. It combines a tree view backed by a QmitkRenderWindowDataStorageTreeModel with radio buttons for view direction control.

Plugins or views that use this inspector must call SetControlledRenderer() to specify which render windows are managed, and SetActiveRenderWindow() to select the currently displayed render window.

The tree view supports drag-and-drop for reordering layers, extended row selection, and alternating row colors.

See also

QmitkAbstractDataStorageInspector, QmitkRenderWindowDataStorageTreeModel, QmitkRenderWindowDataStorageListModel, QmitkDataStorageLayerStackModel, mitk::RenderWindowLayerController, mitk::RenderWindowViewDirectionController

Definition at line 49 of file QmitkRenderWindowDataStorageInspector.h.

Constructor & Destructor Documentation

QmitkRenderWindowDataStorageInspector()

QmitkRenderWindowDataStorageInspector::QmitkRenderWindowDataStorageInspector

(

QWidget *

parent = nullptr

)

Construct the inspector widget.

Initializes the tree view, layer controller, and view direction controller. Sets up drag-and-drop, selection behavior, and radio button connections.

Parameters

[in]

parent

Optional parent widget.

~QmitkRenderWindowDataStorageInspector()

QmitkRenderWindowDataStorageInspector::~QmitkRenderWindowDataStorageInspector ( )

override

Destructor.

Member Function Documentation

GetSelectionMode()

SelectionMode QmitkRenderWindowDataStorageInspector::GetSelectionMode ( ) const

overridevirtual

Get the current selection mode of the tree view.

Returns

The current QAbstractItemView::SelectionMode of the tree view.

Implements QmitkAbstractDataStorageInspector.

GetView() [1/2]

const QAbstractItemView* QmitkRenderWindowDataStorageInspector::GetView ( ) const

overridevirtual

Get the underlying tree view widget (const version).

Returns

Const pointer to the QAbstractItemView (QTreeView) used by this inspector.

Implements QmitkAbstractDataStorageInspector.

GetView() [2/2]

QAbstractItemView* QmitkRenderWindowDataStorageInspector::GetView ( )

overridevirtual

Get the underlying tree view widget.

Returns

Pointer to the QAbstractItemView (QTreeView) used by this inspector.

Implements QmitkAbstractDataStorageInspector.

SetActiveRenderWindow()

void QmitkRenderWindowDataStorageInspector::SetActiveRenderWindow

(

const QString &

renderWindowId

)

Set the currently active render window by its identifier string.

Looks up the base renderer by name, updates the tree model to display its layer stack, and checks the radio button matching the renderer's default view direction.

Parameters

[in]

renderWindowId

The name / identifier of the render window to activate.

SetControlledRenderer()

void QmitkRenderWindowDataStorageInspector::SetControlledRenderer

(

mitk::RenderWindowLayerUtilities::RendererVector

controlledRenderer

)

Set the list of render windows controlled by this inspector.

Forwards the renderer vector to the tree model and the view direction controller.

Parameters

[in]

controlledRenderer

Vector of base renderers to manage.

SetSelectionMode()

void QmitkRenderWindowDataStorageInspector::SetSelectionMode ( SelectionMode  mode )

overridevirtual

Set the selection mode of the tree view.

Parameters

[in]

mode

The QAbstractItemView::SelectionMode to apply to the tree view.

Implements QmitkAbstractDataStorageInspector.

---

The documentation for this class was generated from the following file:

• QmitkRenderWindowDataStorageInspector.h
