Vtk-based 2D mapper for PointSet. More...

#include <mitkVtkGLMapperWrapper.h>

Inheritance diagram for mitk::VtkGLMapperWrapper:

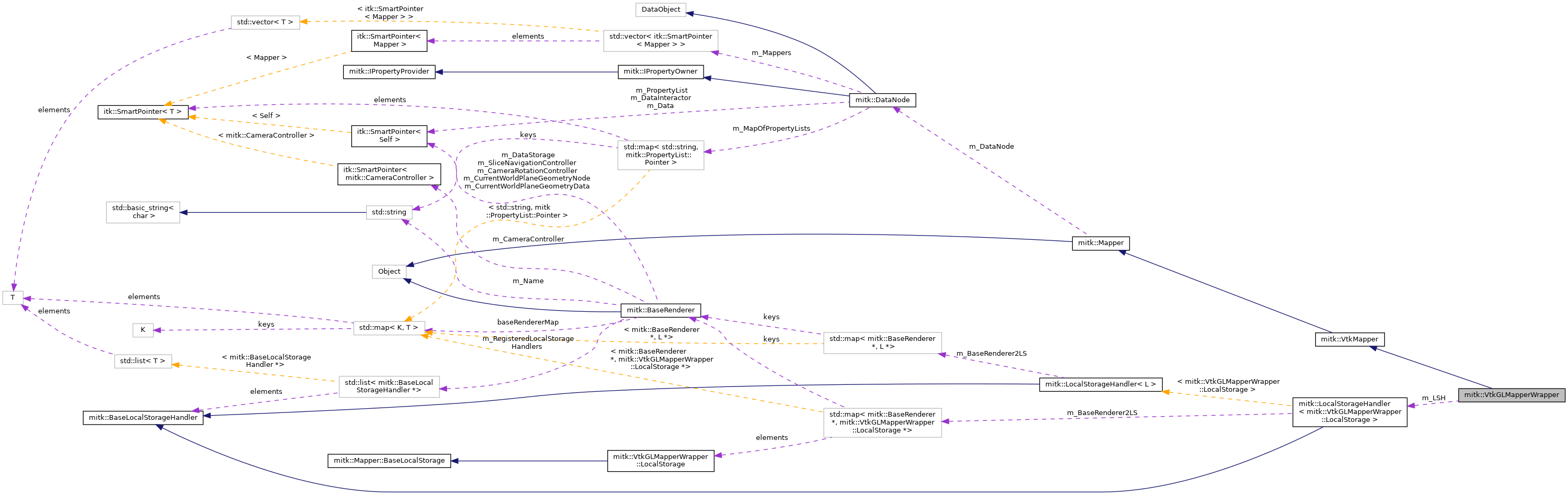

Collaboration diagram for mitk::VtkGLMapperWrapper:

[legend]

Classes
class	LocalStorage
	Internal class holding the mapper, actor, etc. for each of the 3 2D render windows. More...

Public Member Functions
	mitkClassMacro (VtkGLMapperWrapper, VtkMapper)

	mitkNewMacro1Param (Self, GLMapper::Pointer)

Pointer	Clone () const

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	returns the a prop assembly More...

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Generate the data needed for rendering into renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList. Called by mapper subclasses. More...

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determines which geometry should be rendered (opaque, translucent, volumetric, overlay) and calls the appropriate function. More...

void	Update (BaseRenderer *renderer) override
	Calls the time step of the input data for the specified renderer and checks whether the time step is valid and calls method GenerateDataForRenderer() More...

void	SetDataNode (DataNode *node) override
	Set the DataNode containing the data to map. More...

DataNode *	GetDataNode () const override
	Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid. More...

Public Member Functions inherited from mitk::VtkMapper
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

virtual bool	IsVtkBased () const override
	Returns whether this is an vtk-based mapper. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Checks visibility and renders the overlay. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Checks visibility and renders untransparent geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Checks visiblity and renders transparent geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Checks visibility and renders volumes. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Returns true if this mapper owns the specified vtkProp for the given BaseRenderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

virtual void	ApplyProperties (vtkActor actor, mitk::BaseRenderer renderer)
	Apply color and opacity properties read from the PropertyList. More...

void	ApplyShaderProperties (mitk::BaseRenderer *)

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release vtk-based graphics resources that are being consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
BaseData *	GetData () const
	Get the data to map. More...

virtual bool	GetColor (float rgb[3], BaseRenderer renderer, const char name="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

virtual bool	GetVisibility (bool &visible, BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty) More...

virtual bool	GetOpacity (float &opacity, BaseRenderer renderer, const char name="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

virtual bool	GetLevelWindow (LevelWindow &levelWindow, BaseRenderer renderer, const char name="levelwindow") const
	Convenience access method for color properties (instances of LevelWindoProperty) More...

virtual bool	IsVisible (BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

int	GetTimestep () const
	Returns the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const

Public Attributes
mitk::LocalStorageHandler< LocalStorage >	m_LSH
	The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows. More...

Protected Member Functions
	VtkGLMapperWrapper (GLMapper::Pointer mitkGLMapper)

	~VtkGLMapperWrapper () override

void	Enable2DOpenGL (mitk::BaseRenderer *)
	Enable2DOpenGL() and Disable2DOpenGL() are used to switch between 2D rendering (orthographic projection) and 3D rendering (perspective projection) More...

void	Disable2DOpenGL ()
	Initialize the VtkPropRenderer. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer) More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
GLMapper::Pointer	m_MitkGLMapper

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Additional Inherited Members
Public Types inherited from mitk::VtkMapper
typedef VtkMapper	Self

typedef Mapper	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::Mapper
typedef Mapper	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Member Functions inherited from mitk::VtkMapper
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::Mapper
static const char *	GetStaticNameOfClass ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper to node. More...

Detailed Description

Vtk-based 2D mapper for PointSet.

Definition at line 30 of file mitkVtkGLMapperWrapper.h.

Constructor & Destructor Documentation

◆ VtkGLMapperWrapper()

mitk::VtkGLMapperWrapper::VtkGLMapperWrapper ( GLMapper::Pointer mitkGLMapper )

protected

Definition at line 31 of file mitkVtkGLMapperWrapper.cpp.

References m_MitkGLMapper.

◆ ~VtkGLMapperWrapper()

mitk::VtkGLMapperWrapper::~VtkGLMapperWrapper ( )

overrideprotected

Definition at line 37 of file mitkVtkGLMapperWrapper.cpp.

Member Function Documentation

◆ ApplyColorAndOpacityProperties()

void mitk::VtkGLMapperWrapper::ApplyColorAndOpacityProperties	(	mitk::BaseRenderer *	renderer,
		vtkActor *	actor
	)

overridevirtual

Apply color and opacity properties read from the PropertyList. Called by mapper subclasses.

Reimplemented from mitk::VtkMapper.

Definition at line 55 of file mitkVtkGLMapperWrapper.cpp.

References m_MitkGLMapper.

◆ Clone()

Pointer mitk::VtkGLMapperWrapper::Clone ( ) const

◆ Disable2DOpenGL()

void mitk::VtkGLMapperWrapper::Disable2DOpenGL ( )

protected

Initialize the VtkPropRenderer.

Enable2DOpenGL() and Disable2DOpenGL() are used to switch between 2D rendering (orthographic projection) and 3D rendering (perspective projection)

Definition at line 127 of file mitkVtkGLMapperWrapper.cpp.

Referenced by MitkRender().

◆ Enable2DOpenGL()

void mitk::VtkGLMapperWrapper::Enable2DOpenGL ( mitk::BaseRenderer * )

protected

Enable2DOpenGL() and Disable2DOpenGL() are used to switch between 2D rendering (orthographic projection) and 3D rendering (perspective projection)

Definition at line 90 of file mitkVtkGLMapperWrapper.cpp.

Referenced by MitkRender().

◆ GenerateDataForRenderer()

void mitk::VtkGLMapperWrapper::GenerateDataForRenderer ( mitk::BaseRenderer * )

overridevirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 48 of file mitkVtkGLMapperWrapper.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), ls, mitk::VtkGLMapperWrapper::LocalStorage::m_GLMapperProp, m_LSH, and m_MitkGLMapper.

◆ GetDataNode()

mitk::DataNode * mitk::VtkGLMapperWrapper::GetDataNode ( ) const

overridevirtual

Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid.

Reimplemented from mitk::Mapper.

Definition at line 80 of file mitkVtkGLMapperWrapper.cpp.

References m_MitkGLMapper.

◆ GetVtkProp()

vtkProp * mitk::VtkGLMapperWrapper::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

returns the a prop assembly

Implements mitk::VtkMapper.

Definition at line 42 of file mitkVtkGLMapperWrapper.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), ls, mitk::VtkGLMapperWrapper::LocalStorage::m_GLMapperProp, and m_LSH.

◆ mitkClassMacro()

mitk::VtkGLMapperWrapper::mitkClassMacro	(	VtkGLMapperWrapper	,
		VtkMapper
	)

◆ mitkNewMacro1Param()

mitk::VtkGLMapperWrapper::mitkNewMacro1Param	(	Self	,
		GLMapper::Pointer
	)

◆ MitkRender()

void mitk::VtkGLMapperWrapper::MitkRender	(	mitk::BaseRenderer *	renderer,
		mitk::VtkPropRenderer::RenderType	type
	)

overridevirtual

Determines which geometry should be rendered (opaque, translucent, volumetric, overlay) and calls the appropriate function.

Called by mitk::VtkPropRenderer::Render

Reimplemented from mitk::VtkMapper.

Definition at line 60 of file mitkVtkGLMapperWrapper.cpp.

References Disable2DOpenGL(), Enable2DOpenGL(), and mitk::VtkPropRenderer::Opaque.

◆ SetDataNode()

void mitk::VtkGLMapperWrapper::SetDataNode ( DataNode * _arg )

overridevirtual

Set the DataNode containing the data to map.

Reimplemented from mitk::Mapper.

Definition at line 75 of file mitkVtkGLMapperWrapper.cpp.

References m_MitkGLMapper.

◆ Update()

void mitk::VtkGLMapperWrapper::Update ( mitk::BaseRenderer * renderer )

overridevirtual

Calls the time step of the input data for the specified renderer and checks whether the time step is valid and calls method GenerateDataForRenderer()

Reimplemented from mitk::Mapper.

Definition at line 69 of file mitkVtkGLMapperWrapper.cpp.

References m_MitkGLMapper, and Update().

Member Data Documentation

◆ m_LSH

mitk::LocalStorageHandler<LocalStorage> mitk::VtkGLMapperWrapper::m_LSH

The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows.

Definition at line 67 of file mitkVtkGLMapperWrapper.h.

Referenced by GenerateDataForRenderer(), and GetVtkProp().

◆ m_MitkGLMapper

GLMapper::Pointer mitk::VtkGLMapperWrapper::m_MitkGLMapper

protected

Definition at line 70 of file mitkVtkGLMapperWrapper.h.

Referenced by ApplyColorAndOpacityProperties(), GenerateDataForRenderer(), GetDataNode(), SetDataNode(), Update(), and VtkGLMapperWrapper().

The documentation for this class was generated from the following files:
