This is an abstract superclass for delivering USImages. Each subclass must implement the method mitk::USImageSource::GetNextRawImage(). The public method mitk::USImageSource::GetNextImage() can the be used to get the next image from the image source. This image will be filtered by the filter set with mitk::USImageSource::SetImageFilter(). More...
#include <mitkUSImageSource.h>
Public Member Functions | |
| mitkClassMacroItkParent (USImageSource, itk::Object) | |
| virtual mitk::BasicCombinationOpenCVImageFilter::Pointer | GetImageFilter () |
| void | PushFilter (AbstractOpenCVImageFilter::Pointer filter) |
| bool | RemoveFilter (AbstractOpenCVImageFilter::Pointer filter) |
| bool | GetIsFilterInThePipeline (AbstractOpenCVImageFilter::Pointer filter) |
| std::vector< mitk::Image::Pointer > | GetNextImage () |
| Retrieves the next frame. This will typically be the next frame in a file or the last cached file in a device. The image is filtered if a filter was set by mitk::USImageSource::SetImageFilter(). More... | |
Static Public Attributes | |
| static const char * | IMAGE_PROPERTY_IDENTIFIER |
Protected Member Functions | |
| USImageSource () | |
| ~USImageSource () override | |
| virtual void | GetNextRawImage (std::vector< cv::Mat > &) |
| Set the given OpenCV image matrix to the next image received from the device or file. More... | |
| virtual void | GetNextRawImage (std::vector< mitk::Image::Pointer > &)=0 |
| Set mitk::Image to the next image received from the device or file. This method must be implemented in every subclass. More... | |
Protected Attributes | |
| mitk::OpenCVToMitkImageFilter::Pointer | m_OpenCVToMitkFilter |
| Used to convert from OpenCV Images to MITK Images. More... | |
| mitk::ImageToOpenCVImageFilter::Pointer | m_MitkToOpenCVFilter |
| Used to convert from MITK Images to OpenCV Images. More... | |
Detailed Description
This is an abstract superclass for delivering USImages. Each subclass must implement the method mitk::USImageSource::GetNextRawImage(). The public method mitk::USImageSource::GetNextImage() can the be used to get the next image from the image source. This image will be filtered by the filter set with mitk::USImageSource::SetImageFilter().
Definition at line 37 of file mitkUSImageSource.h.
Constructor & Destructor Documentation
◆ USImageSource()
|
protected |
Definition at line 18 of file mitkUSImageSource.cpp.
◆ ~USImageSource()
|
overrideprotected |
Definition at line 27 of file mitkUSImageSource.cpp.
Member Function Documentation
◆ GetImageFilter()
|
virtual |
◆ GetIsFilterInThePipeline()
| bool mitk::USImageSource::GetIsFilterInThePipeline | ( | AbstractOpenCVImageFilter::Pointer | filter | ) |
Definition at line 41 of file mitkUSImageSource.cpp.
◆ GetNextImage()
| std::vector< mitk::Image::Pointer > mitk::USImageSource::GetNextImage | ( | ) |
Retrieves the next frame. This will typically be the next frame in a file or the last cached file in a device. The image is filtered if a filter was set by mitk::USImageSource::SetImageFilter().
- Returns
- pointer to the next USImage (filtered if set)
Definition at line 46 of file mitkUSImageSource.cpp.
References GetNextRawImage(), IMAGE_PROPERTY_IDENTIFIER, m_OpenCVToMitkFilter, mitk::IntProperty::New(), and mitk::Image::New().
◆ GetNextRawImage() [1/2]
|
protectedvirtual |
Set the given OpenCV image matrix to the next image received from the device or file.
The standard implementation calls the overloaded function with an mitk::Image and converts this image to OpenCV then. One should reimplement this method for a better performance if an image filter is set.
Reimplemented in mitk::USImageVideoSource.
Definition at line 97 of file mitkUSImageSource.cpp.
References m_MitkToOpenCVFilter, and mitk::ImageToOpenCVImageFilter::New().
Referenced by GetNextImage().
◆ GetNextRawImage() [2/2]
|
protectedpure virtual |
Set mitk::Image to the next image received from the device or file. This method must be implemented in every subclass.

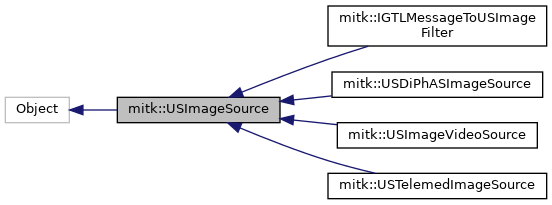

Implemented in mitk::USImageVideoSource, mitk::USDiPhASImageSource, mitk::IGTLMessageToUSImageFilter, and mitk::USTelemedImageSource.
◆ mitkClassMacroItkParent()
| mitk::USImageSource::mitkClassMacroItkParent | ( | USImageSource | , |
| itk::Object | |||
| ) |
◆ PushFilter()
| void mitk::USImageSource::PushFilter | ( | AbstractOpenCVImageFilter::Pointer | filter | ) |
Definition at line 31 of file mitkUSImageSource.cpp.
Referenced by mitk::USImageVideoSource::SetColorOutput(), and mitk::USImageVideoSource::SetRegionOfInterest().
◆ RemoveFilter()
| bool mitk::USImageSource::RemoveFilter | ( | AbstractOpenCVImageFilter::Pointer | filter | ) |
Definition at line 36 of file mitkUSImageSource.cpp.
Referenced by mitk::USImageVideoSource::RemoveRegionOfInterest(), and mitk::USImageVideoSource::SetColorOutput().
Member Data Documentation
◆ IMAGE_PROPERTY_IDENTIFIER
|
static |
Definition at line 40 of file mitkUSImageSource.h.
Referenced by GetNextImage().
◆ m_MitkToOpenCVFilter
|
protected |
Used to convert from MITK Images to OpenCV Images.
Definition at line 85 of file mitkUSImageSource.h.
Referenced by GetNextRawImage().
◆ m_OpenCVToMitkFilter
|
protected |
Used to convert from OpenCV Images to MITK Images.
Definition at line 81 of file mitkUSImageSource.h.
Referenced by GetNextImage(), and mitk::USImageVideoSource::GetNextRawImage().
The documentation for this class was generated from the following files:
