mitk::ImageToOpenCVImageFilter Class Reference

A pseudo-filter for creating OpenCV images from MITK images with the option of copying data or referencing it. More...

#include <mitkImageToOpenCVImageFilter.h>

Inheritance diagram for mitk::ImageToOpenCVImageFilter:

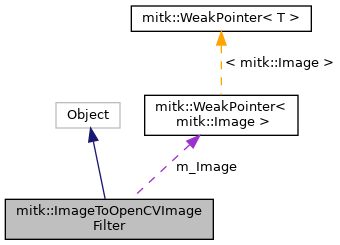

Collaboration diagram for mitk::ImageToOpenCVImageFilter:

Public Types
typedef itk::RGBPixel< unsigned char >	UCRGBPixelType
typedef itk::RGBPixel< unsigned short >	USRGBPixelType
typedef itk::RGBPixel< float >	FloatRGBPixelType
typedef itk::RGBPixel< double >	DoubleRGBPixelType

Public Member Functions
	mitkClassMacroItkParent (ImageToOpenCVImageFilter, itk::Object)
Pointer	Clone () const
void	SetImage (mitk::Image *_Image)
	set the input MITK image More...
mitk::Image *	GetImage ()
	get the input MITK image More...
bool	CheckImage (mitk::Image *image)
	get the input MITK image More...
cv::Mat	GetOpenCVMat ()
void	SetInputFromTimeSlice (Image::Pointer mitkImage, int timeStep, int slice)
	Convenient method to set a certain slice of a 3D or 4D mitk::Image as input to convert it to an openCV image. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
template<typename TPixel , unsigned int VImageDimension>
void	ItkImageProcessing (itk::Image< TPixel, VImageDimension > *image)
	ImageToOpenCVImageFilter ()
	~ImageToOpenCVImageFilter () override

Protected Attributes
mitk::WeakPointer< mitk::Image >	m_Image
cv::Mat	m_OpenCVImage

Detailed Description

A pseudo-filter for creating OpenCV images from MITK images with the option of copying data or referencing it.

Definition at line 31 of file mitkImageToOpenCVImageFilter.h.

Member Typedef Documentation

DoubleRGBPixelType

typedef itk::RGBPixel< double > mitk::ImageToOpenCVImageFilter::DoubleRGBPixelType

Definition at line 37 of file mitkImageToOpenCVImageFilter.h.

FloatRGBPixelType

typedef itk::RGBPixel< float > mitk::ImageToOpenCVImageFilter::FloatRGBPixelType

Definition at line 36 of file mitkImageToOpenCVImageFilter.h.

UCRGBPixelType

typedef itk::RGBPixel< unsigned char > mitk::ImageToOpenCVImageFilter::UCRGBPixelType

Definition at line 34 of file mitkImageToOpenCVImageFilter.h.

USRGBPixelType

typedef itk::RGBPixel< unsigned short > mitk::ImageToOpenCVImageFilter::USRGBPixelType

Definition at line 35 of file mitkImageToOpenCVImageFilter.h.

Constructor & Destructor Documentation

ImageToOpenCVImageFilter()

mitk::ImageToOpenCVImageFilter::ImageToOpenCVImageFilter ( )

protected

Definition at line 21 of file mitkImageToOpenCVImageFilter.cpp.

References mitk::ImageSliceSelector::New().

~ImageToOpenCVImageFilter()

mitk::ImageToOpenCVImageFilter::~ImageToOpenCVImageFilter ( )

overrideprotected

Definition at line 26 of file mitkImageToOpenCVImageFilter.cpp.

Member Function Documentation

CheckImage()

bool mitk::ImageToOpenCVImageFilter::CheckImage

(

mitk::Image *


)

get the input MITK image

Definition at line 42 of file mitkImageToOpenCVImageFilter.cpp.

References mitk::Image::GetDimension(), and MITK_WARN.

Referenced by GetOpenCVMat().

Clone()

Pointer mitk::ImageToOpenCVImageFilter::Clone

(

)

const

GetImage()

Image * mitk::ImageToOpenCVImageFilter::GetImage

(

void

)

get the input MITK image

Definition at line 36 of file mitkImageToOpenCVImageFilter.cpp.

References mitk::WeakPointer< T >::Lock(), and m_Image.

GetOpenCVMat()

cv::Mat mitk::ImageToOpenCVImageFilter::GetOpenCVMat

(

)

RUNS the conversion and returns the produced image as cv::Mat.

Returns

the produced OpenCVImage or an empty image if an error occured

Definition at line 57 of file mitkImageToOpenCVImageFilter.cpp.

References AccessFixedTypeByItk, CheckImage(), image, ItkImageProcessing(), mitk::WeakPointer< T >::Lock(), m_Image, m_OpenCVImage, and MITK_ACCESSBYITK_PIXEL_TYPES_SEQ.

ItkImageProcessing()

template<typename TPixel , unsigned int VImageDimension>

void mitk::ImageToOpenCVImageFilter::ItkImageProcessing ( itk::Image< TPixel, VImageDimension > *  image )

protected

the actual templated conversion method

Definition at line 80 of file mitkImageToOpenCVImageFilter.cpp.

References m_OpenCVImage.

Referenced by GetOpenCVMat().

mitkClassMacroItkParent()

mitk::ImageToOpenCVImageFilter::mitkClassMacroItkParent	(	ImageToOpenCVImageFilter	,
		itk::Object
	)

New()

static Pointer mitk::ImageToOpenCVImageFilter::New ( )

static

Referenced by mitk::USImageSource::GetNextRawImage(), and mitk::ToFDebugHelper::ToFDebugHelper::ShowCVDistanceImage().

SetImage()

void mitk::ImageToOpenCVImageFilter::SetImage

(

mitk::Image *

_Image

)

set the input MITK image

Definition at line 31 of file mitkImageToOpenCVImageFilter.cpp.

References m_Image.

Referenced by SetInputFromTimeSlice().

SetInputFromTimeSlice()

void mitk::ImageToOpenCVImageFilter::SetInputFromTimeSlice	(	Image::Pointer	mitkImage,
		int	timeStep,
		int	slice
	)

Convenient method to set a certain slice of a 3D or 4D mitk::Image as input to convert it to an openCV image.

This methods sets the input. Call GetOpenCVMat() to get the image.

Parameters

mitkImage	- the image that should be converted to an openCVImage
timeStep	- the time step, which is converted to openCV
slice	- the slice which is converted to openCV

Definition at line 85 of file mitkImageToOpenCVImageFilter.cpp.

References SetImage().

Member Data Documentation

m_Image

mitk::WeakPointer<mitk::Image> mitk::ImageToOpenCVImageFilter::m_Image

protected

Saves if the filter should copy the data or just reference it

Definition at line 86 of file mitkImageToOpenCVImageFilter.h.

Referenced by GetImage(), GetOpenCVMat(), and SetImage().

m_OpenCVImage

cv::Mat mitk::ImageToOpenCVImageFilter::m_OpenCVImage

protected

Definition at line 87 of file mitkImageToOpenCVImageFilter.h.

Referenced by GetOpenCVMat(), and ItkImageProcessing().

---

The documentation for this class was generated from the following files:

• mitkImageToOpenCVImageFilter.h
• mitkImageToOpenCVImageFilter.cpp
