mitk::USDiPhASImageSource Class Reference

Implementation of mitk::USImageSource for DiPhAS API devices. The method mitk::USImageSource::GetNextRawImage() is implemented for getting images from the DiPhAS API. More...

#include <mitkUSDiPhASImageSource.h>

Inheritance diagram for mitk::USDiPhASImageSource:
Inheritance graph
[legend]

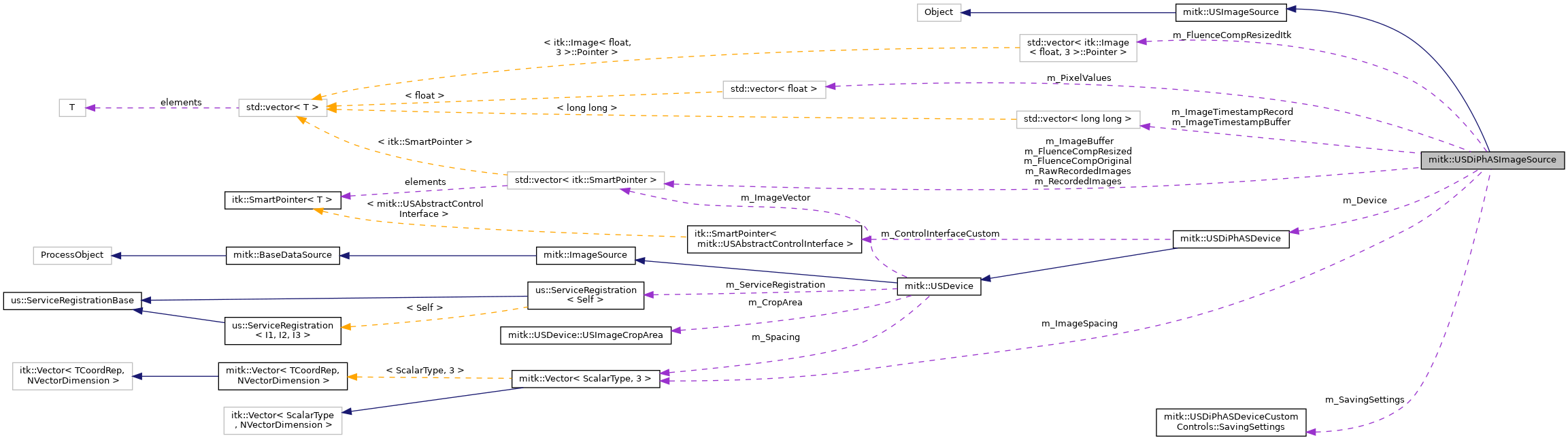

Collaboration diagram for mitk::USDiPhASImageSource:
Collaboration graph
[legend]

Public Types

typedef itk::Image< float, 3 > itkFloatImageType

typedef mitk::USDiPhASDeviceCustomControls::DataType DataType

typedef mitk::USDiPhASDeviceCustomControls::SavingSettings SavingSettings


Public Member Functions

 mitkClassMacro (USDiPhASImageSource, USImageSource)

 mitkNewMacro1Param (Self, mitk::USDiPhASDevice *)

Pointer Clone () const

virtual void GetNextRawImage (std::vector< mitk::Image::Pointer > &) override

void ImageDataCallback (short *rfDataChannelData, int &channelDataChannelsPerDataset, int &channelDataSamplesPerChannel, int &channelDataTotalDatasets, short *rfDataArrayBeamformed, int &beamformedLines, int &beamformedSamples, int &beamformedTotalDatasets, unsigned char *imageData, int &imageWidth, int &imageHeight, int &imagePixelFormat, int &imageSetsTotal, double &timeStamp)

void SetGUIOutput (std::function< void(QString)> out)

void SetRecordingStatus (bool record)

void SetSavingSettings (SavingSettings settings)

void SetVerticalSpacing (float mm)

void ModifyDataType (DataType dataT)

void ModifyUseBModeFilter (bool isSet)

void ModifyScatteringCoefficient (int coeff)

void ModifyCompensateForScattering (bool useIt)

void ModifyEnergyCompensation (bool compensate)

void UpdateImageGeometry ()

- Public Member Functions inherited from mitk::USImageSource
 mitkClassMacroItkParent (USImageSource, itk::Object)

virtual mitk::BasicCombinationOpenCVImageFilter::Pointer GetImageFilter ()

void PushFilter (AbstractOpenCVImageFilter::Pointer filter)

bool RemoveFilter (AbstractOpenCVImageFilter::Pointer filter)

bool GetIsFilterInThePipeline (AbstractOpenCVImageFilter::Pointer filter)

std::vector< mitk::Image::Pointer > GetNextImage ()
 Retrieves the next frame. This will typically be the next frame in a file or the last cached file in a device. The image is filtered if a filter was set by mitk::USImageSource::SetImageFilter(). More...


Protected Member Functions

void SetDataType (DataType dataT)

void SetUseBModeFilter (bool isSet)

 USDiPhASImageSource (mitk::USDiPhASDevice *device)

virtual ~USDiPhASImageSource ()

mitk::Image::Pointer ApplyBmodeFilter (mitk::Image::Pointer image, bool useLogFilter=false)

mitk::Image::Pointer CutOffTop (mitk::Image::Pointer image, int cutOffSize=165)

mitk::Image::Pointer ResampleOutputVertical (mitk::Image::Pointer image, float verticalSpacing=0.1)

mitk::Image::Pointer ApplyScatteringCompensation (mitk::Image::Pointer inputImage, int scatteringCoefficient)

mitk::Image::Pointer ApplyResampling (mitk::Image::Pointer inputImage, mitk::Vector3D outputSpacing, unsigned int outputSize[3])

mitk::Image::Pointer MultiplyImage (mitk::Image::Pointer inputImage, double value)

void OrderImagesInterleaved (Image::Pointer PAImage, Image::Pointer USImage, std::vector< Image::Pointer > recordedList, bool raw)

void OrderImagesUltrasound (Image::Pointer USImage, std::vector< Image::Pointer > recordedList)

void GetPixelValues (itk::Index< 3 > pixel, std::vector< float > &values)

float GetPixelValue (itk::Index< 3 > pixel)

- Protected Member Functions inherited from mitk::USImageSource
 USImageSource ()

 ~USImageSource () override

virtual void GetNextRawImage (std::vector< cv::Mat > &)
 Set the given OpenCV image matrix to the next image received from the device or file. More...


Protected Attributes

std::vector< mitk::Image::Pointer > m_RecordedImages

std::vector< mitk::Image::Pointer > m_RawRecordedImages

std::vector< long long > m_ImageTimestampRecord

std::vector< long long > m_ImageTimestampBuffer

long long m_CurrentImageTimestamp

bool m_CurrentlyRecording

mitk::OphirPyro::Pointer m_Pyro

bool m_PyroConnected

std::vector< Image::Pointer > m_FluenceCompOriginal

std::vector< Image::Pointer > m_FluenceCompResized

std::vector< itk::Image< float, 3 >::Pointer > m_FluenceCompResizedItk

std::vector< mitk::Image::Pointer > m_ImageBuffer

int m_LastWrittenImage

int m_BufferSize

unsigned int m_ImageDimensions [3]

mitk::Vector3D m_ImageSpacing

std::vector< float > m_PixelValues

mitk::USDiPhASDevice * m_Device

std::function< void(QString)> m_GUIOutput

SavingSettings m_SavingSettings

float m_StartTime

bool m_UseGUIOutPut

BeamformerStateInfoNative m_BeamformerInfos

bool m_UseBModeFilter

bool m_DataTypeModified

DataType m_DataTypeNext

bool m_UseBModeFilterModified

bool m_UseBModeFilterNext

float m_VerticalSpacing

float m_VerticalSpacingNext

bool m_VerticalSpacingModified

int m_ScatteringCoefficient

int m_ScatteringCoefficientNext

bool m_ScatteringCoefficientModified

bool m_CompensateForScattering

bool m_CompensateForScatteringNext

bool m_CompensateForScatteringModified

bool m_CompensateEnergy

bool m_CompensateEnergyNext

bool m_CompensateEnergyModified

DataType m_DataType

- Protected Attributes inherited from mitk::USImageSource
mitk::OpenCVToMitkImageFilter::Pointer m_OpenCVToMitkFilter
 Used to convert from OpenCV Images to MITK Images. More...

mitk::ImageToOpenCVImageFilter::Pointer m_MitkToOpenCVFilter
 Used to convert from MITK Images to OpenCV Images. More...


Additional Inherited Members

- Static Public Attributes inherited from mitk::USImageSource
static const char * IMAGE_PROPERTY_IDENTIFIER


Detailed Description

Implementation of mitk::USImageSource for DiPhAS API devices. The method mitk::USImageSource::GetNextRawImage() is implemented for getting images from the DiPhAS API.

The image data is given to this class from the DiPhAS API by calling a callback method that writes the image data to an mitk::image

Definition at line 45 of file mitkUSDiPhASImageSource.h.

Member Typedef Documentation

◆ DataType

typedef mitk::USDiPhASDeviceCustomControls::DataType mitk::USDiPhASImageSource::DataType

Definition at line 54 of file mitkUSDiPhASImageSource.h.

◆ itkFloatImageType

typedef itk::Image< float, 3 > mitk::USDiPhASImageSource::itkFloatImageType

Definition at line 51 of file mitkUSDiPhASImageSource.h.

◆ SavingSettings

typedef mitk::USDiPhASDeviceCustomControls::SavingSettings mitk::USDiPhASImageSource::SavingSettings

Definition at line 55 of file mitkUSDiPhASImageSource.h.

Constructor & Destructor Documentation

◆ USDiPhASImageSource()

mitk::USDiPhASImageSource::USDiPhASImageSource ( mitk::USDiPhASDevice *  device)
protected

Definition at line 37 of file mitkUSDiPhASImageSource.cpp.

References m_BufferSize, m_FluenceCompOriginal, m_FluenceCompResized, m_FluenceCompResizedItk, m_ImageBuffer, m_ImageTimestampBuffer, m_LastWrittenImage, and mitk::Image::New().

◆ ~USDiPhASImageSource()

mitk::USDiPhASImageSource::~USDiPhASImageSource ( )
protectedvirtual

Definition at line 81 of file mitkUSDiPhASImageSource.cpp.

References m_Pyro, m_PyroConnected, and MITK_INFO.

Member Function Documentation

◆ ApplyBmodeFilter()

mitk::Image::Pointer mitk::USDiPhASImageSource::ApplyBmodeFilter ( mitk::Image::Pointer  image,
bool  useLogFilter = false
)
protected

Definition at line 287 of file mitkUSDiPhASImageSource.cpp.

References mitk::CastToItkImage(), and mitk::GrabItkImageMemory().

Referenced by GetNextRawImage(), and GetPixelValues().

◆ ApplyResampling()

mitk::Image::Pointer mitk::USDiPhASImageSource::ApplyResampling ( mitk::Image::Pointer  inputImage,
mitk::Vector3D  outputSpacing,
unsigned int  outputSize[3]
)
protected

Definition at line 380 of file mitkUSDiPhASImageSource.cpp.

References mitk::CastToItkImage(), and mitk::GrabItkImageMemory().

Referenced by GetNextRawImage().

◆ ApplyScatteringCompensation()

mitk::Image::Pointer mitk::USDiPhASImageSource::ApplyScatteringCompensation ( mitk::Image::Pointer  inputImage,
int  scatteringCoefficient
)
protected

Definition at line 366 of file mitkUSDiPhASImageSource.cpp.

References mitk::CastToItkImage(), mitk::GrabItkImageMemory(), m_FluenceCompResizedItk, and m_ScatteringCoefficient.

Referenced by GetNextRawImage().

◆ Clone()

Pointer mitk::USDiPhASImageSource::Clone ( ) const

◆ CutOffTop()

mitk::Image::Pointer mitk::USDiPhASImageSource::CutOffTop ( mitk::Image::Pointer  image,
int  cutOffSize = 165
)
protected

Definition at line 318 of file mitkUSDiPhASImageSource.cpp.

References mitk::CastToItkImage(), and mitk::GrabItkImageMemory().

Referenced by GetNextRawImage().

◆ GetNextRawImage()

void mitk::USDiPhASImageSource::GetNextRawImage ( std::vector< mitk::Image::Pointer > &  imageVector)
overridevirtual

Implementation of the superclass method. Returns the pointer to the mitk::Image filled by DiPhAS API callback.

Implements mitk::USImageSource.

Definition at line 90 of file mitkUSDiPhASImageSource.cpp.

References ApplyBmodeFilter(), ApplyResampling(), ApplyScatteringCompensation(), mitk::CastToItkImage(), CutOffTop(), mitk::USDiPhASDevice::GetScanMode(), mitk::GrabItkImageMemory(), image, m_CompensateEnergy, m_CompensateEnergyModified, m_CompensateEnergyNext, m_CompensateForScattering, m_CompensateForScatteringModified, m_CompensateForScatteringNext, m_DataType, m_DataTypeModified, m_DataTypeNext, m_Device, m_FluenceCompOriginal, m_FluenceCompResized, m_FluenceCompResizedItk, m_ImageBuffer, m_ImageTimestampBuffer, m_LastWrittenImage, m_Pyro, m_ScatteringCoefficient, m_ScatteringCoefficientModified, m_ScatteringCoefficientNext, m_UseBModeFilter, m_UseBModeFilterModified, m_UseBModeFilterNext, m_VerticalSpacing, m_VerticalSpacingModified, m_VerticalSpacingNext, MITK_INFO, MultiplyImage(), mitk::Image::New(), ResampleOutputVertical(), SetDataType(), SetUseBModeFilter(), and UpdateImageGeometry().

◆ GetPixelValue()

float mitk::USDiPhASImageSource::GetPixelValue ( itk::Index< 3 >  pixel)
protected

◆ GetPixelValues()

void mitk::USDiPhASImageSource::GetPixelValues ( itk::Index< 3 >  pixel,
std::vector< float > &  values
)
protected

Definition at line 841 of file mitkUSDiPhASImageSource.cpp.

References ApplyBmodeFilter(), image, and m_RecordedImages.

Referenced by SetRecordingStatus().

◆ ImageDataCallback()

void mitk::USDiPhASImageSource::ImageDataCallback ( short *  rfDataChannelData,
int &  channelDataChannelsPerDataset,
int &  channelDataSamplesPerChannel,
int &  channelDataTotalDatasets,
short *  rfDataArrayBeamformed,
int &  beamformedLines,
int &  beamformedSamples,
int &  beamformedTotalDatasets,
unsigned char *  imageData,
int &  imageWidth,
int &  imageHeight,
int &  imagePixelFormat,
int &  imageSetsTotal,
double &  timeStamp
)

The API calls this function to pass the image data to the user; here the m_Image is updated

Definition at line 426 of file mitkUSDiPhASImageSource.cpp.

References mitk::USDiPhASDevice::GetScanMode(), image, line, m_BufferSize, m_CurrentImageTimestamp, m_CurrentlyRecording, m_DataType, m_DataTypeModified, m_Device, m_ImageBuffer, m_ImageDimensions, m_ImageSpacing, m_ImageTimestampBuffer, m_ImageTimestampRecord, m_LastWrittenImage, m_Pyro, m_PyroConnected, m_RawRecordedImages, m_RecordedImages, m_SavingSettings, MITK_INFO, mitk::OphirPyro::New(), mitk::Image::New(), offset, and mitk::USDiPhASDeviceCustomControls::SavingSettings::saveRaw.

Referenced by WrapperImageDataCallback().

◆ mitkClassMacro()

mitk::USDiPhASImageSource::mitkClassMacro ( USDiPhASImageSource  ,
USImageSource
)

◆ mitkNewMacro1Param()

mitk::USDiPhASImageSource::mitkNewMacro1Param ( Self  ,
mitk::USDiPhASDevice *
)

◆ ModifyCompensateForScattering()

void mitk::USDiPhASImageSource::ModifyCompensateForScattering ( bool  useIt)

Definition at line 650 of file mitkUSDiPhASImageSource.cpp.

References m_CompensateForScatteringModified, and m_CompensateForScatteringNext.

Referenced by mitk::USDiPhASCustomControls::OnSetCompensateScattering().

◆ ModifyDataType()

void mitk::USDiPhASImageSource::ModifyDataType ( DataType  dataT)

Definition at line 632 of file mitkUSDiPhASImageSource.cpp.

References m_DataTypeModified, and m_DataTypeNext.

◆ ModifyEnergyCompensation()

void mitk::USDiPhASImageSource::ModifyEnergyCompensation ( bool  compensate)

Definition at line 656 of file mitkUSDiPhASImageSource.cpp.

References m_CompensateEnergyModified, and m_CompensateEnergyNext.

Referenced by mitk::USDiPhASCustomControls::OnSetCompensateEnergy().

◆ ModifyScatteringCoefficient()

void mitk::USDiPhASImageSource::ModifyScatteringCoefficient ( int  coeff)

Definition at line 644 of file mitkUSDiPhASImageSource.cpp.

References m_ScatteringCoefficientModified, and m_ScatteringCoefficientNext.

Referenced by mitk::USDiPhASCustomControls::OnSetScatteringCoefficient().

◆ ModifyUseBModeFilter()

void mitk::USDiPhASImageSource::ModifyUseBModeFilter ( bool  isSet)

Definition at line 638 of file mitkUSDiPhASImageSource.cpp.

References m_UseBModeFilterModified, and m_UseBModeFilterNext.

Referenced by mitk::USDiPhASCustomControls::OnSetUseBModeFilter().

◆ MultiplyImage()

mitk::Image::Pointer mitk::USDiPhASImageSource::MultiplyImage ( mitk::Image::Pointer  inputImage,
double  value
)
protected

Definition at line 412 of file mitkUSDiPhASImageSource.cpp.

References mitk::CastToItkImage(), and mitk::GrabItkImageMemory().

Referenced by GetNextRawImage().

◆ OrderImagesInterleaved()

void mitk::USDiPhASImageSource::OrderImagesInterleaved ( Image::Pointer  PAImage,
Image::Pointer  USImage,
std::vector< Image::Pointer >  recordedList,
bool  raw
)
protected

Definition at line 852 of file mitkUSDiPhASImageSource.cpp.

References mitk::USDiPhASDevice::GetScanMode(), m_DataType, and m_Device.

Referenced by SetRecordingStatus().

◆ OrderImagesUltrasound()

void mitk::USDiPhASImageSource::OrderImagesUltrasound ( Image::Pointer  USImage,
std::vector< Image::Pointer >  recordedList
)
protected

Definition at line 900 of file mitkUSDiPhASImageSource.cpp.

References mitk::USDiPhASDevice::GetScanMode(), m_DataType, and m_Device.

Referenced by SetRecordingStatus().

◆ ResampleOutputVertical()

mitk::Image::Pointer mitk::USDiPhASImageSource::ResampleOutputVertical ( mitk::Image::Pointer  image,
float  verticalSpacing = 0.1
)
protected

Definition at line 338 of file mitkUSDiPhASImageSource.cpp.

References mitk::CastToItkImage(), and mitk::GrabItkImageMemory().

Referenced by GetNextRawImage().

◆ SetDataType()

void mitk::USDiPhASImageSource::SetDataType ( DataType  dataT)
protected

Definition at line 662 of file mitkUSDiPhASImageSource.cpp.

References mitk::USDiPhASDevice::GetScanMode(), m_DataType, m_Device, and MITK_INFO.

Referenced by GetNextRawImage().

◆ SetGUIOutput()

void mitk::USDiPhASImageSource::SetGUIOutput ( std::function< void(QString)>  out)

Definition at line 680 of file mitkUSDiPhASImageSource.cpp.

References m_GUIOutput, m_StartTime, and m_UseGUIOutPut.

Referenced by mitk::USDiPhASCustomControls::passGUIOut().

◆ SetRecordingStatus()

void mitk::USDiPhASImageSource::SetRecordingStatus ( bool  record)

This starts or ends the recording session

Definition at line 714 of file mitkUSDiPhASImageSource.cpp.

References GetPixelValues(), mitk::USDiPhASDevice::GetScanMode(), m_CurrentlyRecording, m_Device, m_ImageTimestampRecord, m_PixelValues, m_Pyro, m_RawRecordedImages, m_RecordedImages, m_SavingSettings, mitk::Image::New(), OrderImagesInterleaved(), OrderImagesUltrasound(), replaceAll(), mitk::IOUtil::Save(), mitk::USDiPhASDeviceCustomControls::SavingSettings::saveBeamformed, mitk::USDiPhASDeviceCustomControls::SavingSettings::saveRaw, and mitk::USDiPhASDevice::UpdateScanmode().

Referenced by mitk::USDiPhASCustomControls::OnSetRecord().

◆ SetSavingSettings()

void mitk::USDiPhASImageSource::SetSavingSettings ( SavingSettings  settings)

Definition at line 698 of file mitkUSDiPhASImageSource.cpp.

References m_SavingSettings.

Referenced by mitk::USDiPhASCustomControls::OnSetSavingSettings().

◆ SetUseBModeFilter()

void mitk::USDiPhASImageSource::SetUseBModeFilter ( bool  isSet)
protected

Definition at line 687 of file mitkUSDiPhASImageSource.cpp.

References m_UseBModeFilter.

Referenced by GetNextRawImage().

◆ SetVerticalSpacing()

void mitk::USDiPhASImageSource::SetVerticalSpacing ( float  mm)

Definition at line 692 of file mitkUSDiPhASImageSource.cpp.

References m_VerticalSpacingModified, and m_VerticalSpacingNext.

Referenced by mitk::USDiPhASCustomControls::OnSetVerticalSpacing().

◆ UpdateImageGeometry()

void mitk::USDiPhASImageSource::UpdateImageGeometry ( )

Sets the spacing used in the image based on the informations of the ScanMode in USDiPhAS Device

Definition at line 602 of file mitkUSDiPhASImageSource.cpp.

References mitk::USDiPhASDevice::GetScanMode(), m_DataType, m_Device, m_ImageSpacing, and MITK_INFO.

Referenced by GetNextRawImage().

Member Data Documentation

◆ m_BeamformerInfos

BeamformerStateInfoNative mitk::USDiPhASImageSource::m_BeamformerInfos
protected

Definition at line 160 of file mitkUSDiPhASImageSource.h.

◆ m_BufferSize

int mitk::USDiPhASImageSource::m_BufferSize
protected

Definition at line 127 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback(), and USDiPhASImageSource().

◆ m_CompensateEnergy

bool mitk::USDiPhASImageSource::m_CompensateEnergy
protected

Definition at line 181 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage().

◆ m_CompensateEnergyModified

bool mitk::USDiPhASImageSource::m_CompensateEnergyModified
protected

Definition at line 183 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyEnergyCompensation().

◆ m_CompensateEnergyNext

bool mitk::USDiPhASImageSource::m_CompensateEnergyNext
protected

Definition at line 182 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyEnergyCompensation().

◆ m_CompensateForScattering

bool mitk::USDiPhASImageSource::m_CompensateForScattering
protected

Definition at line 177 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage().

◆ m_CompensateForScatteringModified

bool mitk::USDiPhASImageSource::m_CompensateForScatteringModified
protected

Definition at line 179 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyCompensateForScattering().

◆ m_CompensateForScatteringNext

bool mitk::USDiPhASImageSource::m_CompensateForScatteringNext
protected

Definition at line 178 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyCompensateForScattering().

◆ m_CurrentImageTimestamp

long long mitk::USDiPhASImageSource::m_CurrentImageTimestamp
protected

Definition at line 116 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback().

◆ m_CurrentlyRecording

bool mitk::USDiPhASImageSource::m_CurrentlyRecording
protected

Definition at line 117 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback(), and SetRecordingStatus().

◆ m_DataType

DataType mitk::USDiPhASImageSource::m_DataType
protected

Definition at line 185 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), ImageDataCallback(), OrderImagesInterleaved(), OrderImagesUltrasound(), SetDataType(), and UpdateImageGeometry().

◆ m_DataTypeModified

bool mitk::USDiPhASImageSource::m_DataTypeModified
protected

Definition at line 163 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), ImageDataCallback(), and ModifyDataType().

◆ m_DataTypeNext

DataType mitk::USDiPhASImageSource::m_DataTypeNext
protected

Definition at line 164 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyDataType().

◆ m_Device

mitk::USDiPhASDevice* mitk::USDiPhASImageSource::m_Device
protected

Definition at line 147 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), ImageDataCallback(), OrderImagesInterleaved(), OrderImagesUltrasound(), SetDataType(), SetRecordingStatus(), and UpdateImageGeometry().

◆ m_FluenceCompOriginal

std::vector<Image::Pointer> mitk::USDiPhASImageSource::m_FluenceCompOriginal
protected

Definition at line 121 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and USDiPhASImageSource().

◆ m_FluenceCompResized

std::vector<Image::Pointer> mitk::USDiPhASImageSource::m_FluenceCompResized
protected

Definition at line 122 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and USDiPhASImageSource().

◆ m_FluenceCompResizedItk

std::vector<itk::Image<float, 3>::Pointer> mitk::USDiPhASImageSource::m_FluenceCompResizedItk
protected

Definition at line 123 of file mitkUSDiPhASImageSource.h.

Referenced by ApplyScatteringCompensation(), GetNextRawImage(), and USDiPhASImageSource().

◆ m_GUIOutput

std::function<void(QString)> mitk::USDiPhASImageSource::m_GUIOutput
protected

This is a callback to pass text data to the GUI.

Definition at line 150 of file mitkUSDiPhASImageSource.h.

Referenced by SetGUIOutput().

◆ m_ImageBuffer

std::vector<mitk::Image::Pointer> mitk::USDiPhASImageSource::m_ImageBuffer
protected

Definition at line 125 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), ImageDataCallback(), and USDiPhASImageSource().

◆ m_ImageDimensions

unsigned int mitk::USDiPhASImageSource::m_ImageDimensions[3]
protected

Definition at line 129 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback().

◆ m_ImageSpacing

mitk::Vector3D mitk::USDiPhASImageSource::m_ImageSpacing
protected

Definition at line 130 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback(), and UpdateImageGeometry().

◆ m_ImageTimestampBuffer

std::vector<long long> mitk::USDiPhASImageSource::m_ImageTimestampBuffer
protected

Definition at line 115 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), ImageDataCallback(), and USDiPhASImageSource().

◆ m_ImageTimestampRecord

std::vector<long long> mitk::USDiPhASImageSource::m_ImageTimestampRecord
protected

Definition at line 114 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback(), and SetRecordingStatus().

◆ m_LastWrittenImage

int mitk::USDiPhASImageSource::m_LastWrittenImage
protected

Definition at line 126 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), ImageDataCallback(), and USDiPhASImageSource().

◆ m_PixelValues

std::vector<float> mitk::USDiPhASImageSource::m_PixelValues
protected

Definition at line 145 of file mitkUSDiPhASImageSource.h.

Referenced by SetRecordingStatus().

◆ m_Pyro

mitk::OphirPyro::Pointer mitk::USDiPhASImageSource::m_Pyro
protected

Definition at line 118 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), ImageDataCallback(), SetRecordingStatus(), and ~USDiPhASImageSource().

◆ m_PyroConnected

bool mitk::USDiPhASImageSource::m_PyroConnected
protected

Definition at line 119 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback(), and ~USDiPhASImageSource().

◆ m_RawRecordedImages

std::vector<mitk::Image::Pointer> mitk::USDiPhASImageSource::m_RawRecordedImages
protected

Definition at line 113 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback(), and SetRecordingStatus().

◆ m_RecordedImages

std::vector<mitk::Image::Pointer> mitk::USDiPhASImageSource::m_RecordedImages
protected

This vector holds all the images we record, if recording is set to active.

Definition at line 112 of file mitkUSDiPhASImageSource.h.

Referenced by GetPixelValues(), ImageDataCallback(), and SetRecordingStatus().

◆ m_SavingSettings

SavingSettings mitk::USDiPhASImageSource::m_SavingSettings
protected

Variables for management of current state.

Definition at line 155 of file mitkUSDiPhASImageSource.h.

Referenced by ImageDataCallback(), SetRecordingStatus(), and SetSavingSettings().

◆ m_ScatteringCoefficient

int mitk::USDiPhASImageSource::m_ScatteringCoefficient
protected

Definition at line 173 of file mitkUSDiPhASImageSource.h.

Referenced by ApplyScatteringCompensation(), and GetNextRawImage().

◆ m_ScatteringCoefficientModified

bool mitk::USDiPhASImageSource::m_ScatteringCoefficientModified
protected

Definition at line 175 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyScatteringCoefficient().

◆ m_ScatteringCoefficientNext

int mitk::USDiPhASImageSource::m_ScatteringCoefficientNext
protected

Definition at line 174 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyScatteringCoefficient().

◆ m_StartTime

float mitk::USDiPhASImageSource::m_StartTime
protected

Definition at line 157 of file mitkUSDiPhASImageSource.h.

Referenced by SetGUIOutput().

◆ m_UseBModeFilter

bool mitk::USDiPhASImageSource::m_UseBModeFilter
protected

Definition at line 161 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and SetUseBModeFilter().

◆ m_UseBModeFilterModified

bool mitk::USDiPhASImageSource::m_UseBModeFilterModified
protected

Definition at line 166 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyUseBModeFilter().

◆ m_UseBModeFilterNext

bool mitk::USDiPhASImageSource::m_UseBModeFilterNext
protected

Definition at line 167 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and ModifyUseBModeFilter().

◆ m_UseGUIOutPut

bool mitk::USDiPhASImageSource::m_UseGUIOutPut
protected

Definition at line 158 of file mitkUSDiPhASImageSource.h.

Referenced by SetGUIOutput().

◆ m_VerticalSpacing

float mitk::USDiPhASImageSource::m_VerticalSpacing
protected

Definition at line 169 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage().

◆ m_VerticalSpacingModified

bool mitk::USDiPhASImageSource::m_VerticalSpacingModified
protected

Definition at line 171 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and SetVerticalSpacing().

◆ m_VerticalSpacingNext

float mitk::USDiPhASImageSource::m_VerticalSpacingNext
protected

Definition at line 170 of file mitkUSDiPhASImageSource.h.

Referenced by GetNextRawImage(), and SetVerticalSpacing().

The documentation for this class was generated from the following files:
