#include <mitkUSDiPhASDevice.h>

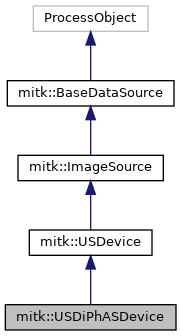

Inheritance diagram for mitk::USDiPhASDevice:

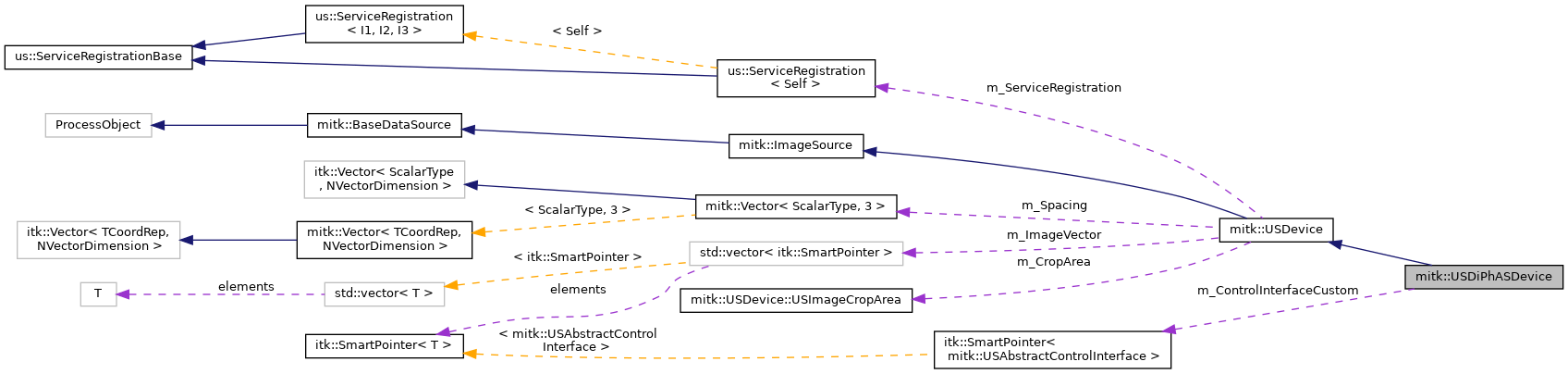

Collaboration diagram for mitk::USDiPhASDevice:

[legend]

Public Member Functions
	mitkClassMacro (USDiPhASDevice, mitk::USDevice)

	mitkNewMacro2Param (Self, std::string, std::string)

virtual std::string	GetDeviceClass ()
	Returns the class of the device. More...

virtual USControlInterfaceProbes::Pointer	GetControlInterfaceProbes ()
	Default getter for the probes control interface. Has to be implemented in a subclass if a probes control interface is available. Default implementation returns null. More...

virtual itk::SmartPointer< USAbstractControlInterface >	GetControlInterfaceCustom ()
	Default getter for the custom control interface. Has to be implemented in a subclass if a custom control interface is available. Default implementation returns null. More...

virtual bool	OnInitialization ()
	Is called during the initialization process. There is nothing done on the initialization of a mik::USDiPhASDevive object. More...

virtual bool	OnConnection ()
	Is called during the connection process. Connect to the DiPhAS API. More...

virtual bool	OnDisconnection ()
	Is called during the disconnection process. Deactivate and remove all DiPhAS API controls. A disconnect from the DiPhAS API is not possible for which reason the hardware stays in connected state even after calling this method. More...

virtual bool	OnActivation ()
	Is called during the activation process. After this method is finished, the device is generating images in b mode. Changing scanning mode is possible afterwards by using the appropriate control interfaces. More...

virtual bool	OnDeactivation ()
	Is called during the deactivation process. After a call to this method the device is connected, but not producing images anymore. More...

virtual void	OnFreeze (bool freeze)
	Changes scan state of the device if freeze is toggeled in mitk::USDevice. More...

USImageSource::Pointer	GetUSImageSource ()

ScanModeNative &	GetScanMode ()

void	UpdateScanmode ()

void	MessageCallback (const char *message)

void	SetBursts (int bursts)

void	SetInterleaved (bool interleaved)

bool	IsInterleaved ()

Public Member Functions inherited from mitk::USDevice
	mitkClassMacro (USDevice, mitk::ImageSource)

virtual void	SetSpawnAcquireThread (bool _arg)

virtual bool	GetSpawnAcquireThread ()

	mitkNewMessage2Macro (PropertyChanged, const std::string &, const std::string &)
	Event for being notified about changes of the micro service properties. This event can be used if no micro service context is available. More...

virtual itk::SmartPointer< USControlInterfaceBMode >	GetControlInterfaceBMode ()
	Default getter for the b mode control interface. Has to be implemented in a subclass if a b mode control interface is available. Default implementation returns null. More...

virtual itk::SmartPointer< USControlInterfaceDoppler >	GetControlInterfaceDoppler ()
	Default getter for the doppler control interface. Has to be implemented in a subclass if a doppler control interface is available. Default implementation returns null. More...

bool	Initialize ()
	Changes device state to mitk::USDevice::State_Initialized. During initialization the virtual method mitk::USDevice::OnInitialization will be called. If this method returns false the initialization process will be canceled. Otherwise the mitk::USDevice is registered in a micro service. More...

bool	Connect ()
	Connects this device. A connected device is ready to deliver images (i.e. be Activated). A Connected Device can be active. A disconnected Device cannot be active. Internally calls onConnect and then registers the device with the service. A device usually should override the OnConnection() method, but never the Connect() method, since this will possibly exclude the device from normal service management. The exact flow of events is: 0. Check if the device is already connected. If yes, return true anyway, but don't do anything. More...

void	ConnectAsynchron ()

bool	Disconnect ()
	Works analogously to mitk::USDevice::Connect(). Don't override this Method, but onDisconnection instead. More...

bool	Activate ()
	Activates this device. After the activation process, the device will start to produce images. This Method will fail, if the device is not connected. More...

void	Deactivate ()
	Deactivates this device. After the deactivation process, the device will no longer produce images, but still be connected. More...

virtual void	SetIsFreezed (bool freeze)
	Can toggle if ultrasound image is currently updated or freezed. More...

virtual bool	GetIsFreezed ()

void	PushFilter (AbstractOpenCVImageFilter::Pointer filter)

void	PushFilterIfNotPushedBefore (AbstractOpenCVImageFilter::Pointer filter)

bool	RemoveFilter (AbstractOpenCVImageFilter::Pointer filter)

void	ProbeChanged (std::string probename)
	To be called when the used probe changed. Will update the service properties. More...

void	DepthChanged (double depth)
	To be called when the scanning depth of the probe changed. Will update the service properties. More...

void	UpdateServiceProperty (std::string key, std::string value)
	Given property is updated in the device micro service. This method is mainly for being used by the control interface superclasses. You do not need to call it by yoursefs in your concrete control interface classes. More...

void	UpdateServiceProperty (std::string key, double value)

void	UpdateServiceProperty (std::string key, bool value)

bool	GetIsInitialized ()
	True, if the device object is created and initialized, false otherwise. More...

bool	GetIsActive ()
	True, if the device is currently generating image data, false otherwise. More...

bool	GetIsConnected ()
	True, if the device is currently ready to start transmitting image data or is already transmitting image data. A disconnected device cannot be activated. More...

mitk::USDevice::USImageCropArea	GetCropArea ()

unsigned int	GetSizeOfImageVector ()

std::string	GetDeviceManufacturer ()
	Deprecated -> use GetManufacturer() instead. More...

std::string	GetDeviceModel ()
	Deprecated -> use GetName() instead. More...

std::string	GetDeviceComment ()
	Deprecated -> use GetCommend() instead. More...

virtual std::string	GetManufacturer ()

virtual std::string	GetName ()

virtual std::string	GetComment ()

void	SetManufacturer (std::string manufacturer)

void	SetName (std::string name)

void	SetComment (std::string comment)

virtual DeviceStates	GetDeviceState ()

virtual us::ServiceProperties	GetServiceProperties ()

void	GrabImage ()

virtual std::vector< mitk::USProbe::Pointer >	GetAllProbes ()=0
	Returns all probes for this device or an empty vector it no probes were set Returns a std::vector of all probes that exist for this device if there were probes set while creating or modifying this USVideoDevice. Otherwise it returns an empty vector. Therefore always check if vector is filled, before using it! More...

virtual void	DeleteAllProbes ()
	Cleans the std::vector containing all configured probes. More...

virtual mitk::USProbe::Pointer	GetCurrentProbe ()=0
	Return current active probe for this USDevice Returns a pointer to the probe that is currently in use. If there were probes set while creating or modifying this USDevice. Returns null otherwise. More...

virtual void	AddNewProbe (mitk::USProbe::Pointer)
	adds a new probe to the device More...

virtual mitk::USProbe::Pointer	GetProbeByName (std::string name)=0
	get the probe by its name Returns a pointer to the probe identified by the given name. If no probe of given name exists for this Device 0 is returned. More...

virtual void	RemoveProbeByName (std::string)
	Removes the Probe with the given name. More...

virtual void	SetDefaultProbeAsCurrentProbe ()
	Sets the first existing probe or the default probe of the ultrasound device as the current probe of it. More...

virtual void	SetCurrentProbe (std::string)
	Sets the probe with the given name as current probe if the named probe exists. More...

virtual void	SetSpacing (double xSpacing, double ySpacing)

Public Member Functions inherited from mitk::ImageSource
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

OutputType *	GetOutput ()
	Get the output data of this image source object. More...

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Make a DataObject of the correct type to used as the specified output. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()

virtual const vtkImageData *	GetVtkImageData () const

Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Public Attributes
BeamformingParametersInterleaved_OA_US	paramsInterleaved

BeamformingParametersPlaneWaveCompound	paramsPlaneWave

Protected Member Functions
	USDiPhASDevice (std::string manufacturer, std::string model)

virtual	~USDiPhASDevice ()

void	InitializeScanMode ()

void	UpdateTransmitEvents ()

Protected Member Functions inherited from mitk::USDevice
virtual void	SetImageVector (std::vector< mitk::Image::Pointer > vec)

void	ProvideViaOIGTL ()
	Registers an OpenIGTLink device as a microservice so that we can send the images of this device via the network. More...

void	DisableOIGTL ()
	Deregisters the microservices for OpenIGTLink. More...

us::ServiceProperties	ConstructServiceProperties ()
	This Method constructs the service properties which can later be used to register the object with the Microservices Return service properties. More...

void	UnregisterOnService ()
	Remove this device from the micro service. More...

	USDevice (std::string manufacturer, std::string model)
	Enforces minimal Metadata to be set. More...

	USDevice (mitk::USImageMetadata::Pointer metadata)
	Constructs a device with the given Metadata. Make sure the Metadata contains meaningful content! More...

	~USDevice () override

void	GenerateData () override
	Grabs the next frame from the Video input. This method is called internally, whenever Update() is invoked by an Output. More...

std::string	GetServicePropertyLabel ()

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()

	~BaseDataSource () override

Protected Attributes
USDiPhASProbesControls::Pointer	m_ControlsProbes

itk::SmartPointer< USAbstractControlInterface >	m_ControlInterfaceCustom

mitk::USDiPhASImageSource::Pointer	m_ImageSource

bool	m_IsRunning

ScanModeNative	m_ScanMode

int	m_BurstHalfwaveClockCount

Beamforming	m_CurrentBeamformingAlgorithm

bool	m_Interleaved

Protected Attributes inherited from mitk::USDevice
itk::ConditionVariable::Pointer	m_FreezeBarrier

itk::SimpleMutexLock	m_FreezeMutex

itk::MultiThreader::Pointer	m_MultiThreader
	itk::MultiThreader used for thread handling More...

itk::FastMutexLock::Pointer	m_ImageMutex
	mutex for images provided by the image source More...

int	m_ThreadID
	ID of the started thread. More...

std::vector< mitk::Image::Pointer >	m_ImageVector

mitk::Vector3D	m_Spacing

mitk::IGTLServer::Pointer	m_IGTLServer

mitk::IGTLMessageProvider::Pointer	m_IGTLMessageProvider

mitk::ImageToIGTLMessageFilter::Pointer	m_ImageToIGTLMsgFilter

bool	m_IsFreezed

DeviceStates	m_DeviceState

USImageCropArea	m_CropArea

unsigned int	m_NumberOfOutputs

us::ServiceProperties	m_ServiceProperties
	Properties of the device's Microservice. More...

us::ServiceRegistration< Self >	m_ServiceRegistration
	The device's ServiceRegistration object that allows to modify it's Microservice registraton details. More...

Additional Inherited Members
Public Types inherited from mitk::USDevice
enum	DeviceStates { State_NoState, State_Initialized, State_Connected, State_Activated }

Public Types inherited from mitk::ImageSource
typedef ImageSource	Self

typedef BaseDataSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self

typedef itk::ProcessObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef BaseData	OutputType

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Static Public Member Functions inherited from mitk::USDevice
static mitk::USDevice::PropertyKeys	GetPropertyKeys ()

Static Public Member Functions inherited from mitk::ImageSource
static const char *	GetStaticNameOfClass ()

static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Static Protected Member Functions inherited from mitk::USDevice
static ITK_THREAD_RETURN_TYPE	Acquire (void *pInfoStruct)

static ITK_THREAD_RETURN_TYPE	ConnectThread (void *pInfoStruct)

Static Protected Member Functions inherited from mitk::ImageSource
static ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Definition at line 46 of file mitkUSDiPhASDevice.h.

Constructor & Destructor Documentation

◆ USDiPhASDevice()

mitk::USDiPhASDevice::USDiPhASDevice	(	std::string	manufacturer,
		std::string	model
	)

protected

Constructs a mitk::USDiPhASDevice object by given manufacturer and model string. These strings are just for labeling the device in the micro service.

Control interfaces and image source are available directly after construction. Registration at the micro service happens not before initialization method was called.

Definition at line 16 of file mitkUSDiPhASDevice.cpp.

References mitk::USDevice::m_NumberOfOutputs, and mitk::ImageSource::MakeOutput().

◆ ~USDiPhASDevice()

mitk::USDiPhASDevice::~USDiPhASDevice ( )

protectedvirtual

Definition at line 31 of file mitkUSDiPhASDevice.cpp.

Member Function Documentation

◆ GetControlInterfaceCustom()

mitk::USAbstractControlInterface::Pointer mitk::USDiPhASDevice::GetControlInterfaceCustom ( )

virtual

Default getter for the custom control interface. Has to be implemented in a subclass if a custom control interface is available. Default implementation returns null.

Returns: null pointer

Reimplemented from mitk::USDevice.

Definition at line 47 of file mitkUSDiPhASDevice.cpp.

References m_ControlInterfaceCustom.

◆ GetControlInterfaceProbes()

mitk::USControlInterfaceProbes::Pointer mitk::USDiPhASDevice::GetControlInterfaceProbes ( )

virtual

Default getter for the probes control interface. Has to be implemented in a subclass if a probes control interface is available. Default implementation returns null.

Returns: null pointer

Reimplemented from mitk::USDevice.

Definition at line 42 of file mitkUSDiPhASDevice.cpp.

References m_ControlsProbes.

◆ GetDeviceClass()

std::string mitk::USDiPhASDevice::GetDeviceClass ( )

virtual

Returns the class of the device.

Implements mitk::USDevice.

Definition at line 37 of file mitkUSDiPhASDevice.cpp.

◆ GetScanMode()

ScanModeNative & mitk::USDiPhASDevice::GetScanMode ( )

Returns: Returns the currently used scanmode of this device

Definition at line 57 of file mitkUSDiPhASDevice.cpp.

References m_ScanMode.

◆ GetUSImageSource()

mitk::USImageSource::Pointer mitk::USDiPhASDevice::GetUSImageSource ( )

virtual

Returns: Returns the current image source of this device.

Implements mitk::USDevice.

Definition at line 52 of file mitkUSDiPhASDevice.cpp.

References m_ImageSource.

Referenced by mitk::USDiPhASCustomControls::OnSetCompensateEnergy(), mitk::USDiPhASCustomControls::OnSetCompensateScattering(), mitk::USDiPhASCustomControls::OnSetDataType(), mitk::USDiPhASCustomControls::OnSetRecord(), mitk::USDiPhASCustomControls::OnSetSavingSettings(), mitk::USDiPhASCustomControls::OnSetScatteringCoefficient(), mitk::USDiPhASCustomControls::OnSetUseBModeFilter(), mitk::USDiPhASCustomControls::OnSetVerticalSpacing(), and mitk::USDiPhASCustomControls::passGUIOut().

◆ InitializeScanMode()

void mitk::USDiPhASDevice::InitializeScanMode ( )

protected

The DiPhAS API expects callback functions to pass both status messages and the processed images to the user. The message callback is here, the data itself is given directly to the image source. This method sets up the scanmode at the begining

Definition at line 199 of file mitkUSDiPhASDevice.cpp.

References m_ScanMode, SetInterleaved(), and UpdateTransmitEvents().

Referenced by OnConnection().

◆ IsInterleaved()

bool mitk::USDiPhASDevice::IsInterleaved ( )

Definition at line 273 of file mitkUSDiPhASDevice.cpp.

References m_Interleaved.

Referenced by mitk::USDiPhASCustomControls::OnSetSpeedOfSound().

◆ MessageCallback()

void mitk::USDiPhASDevice::MessageCallback ( const char * message )

This method forwards messages from the API to the user

Definition at line 263 of file mitkUSDiPhASDevice.cpp.

References MITK_INFO.

Referenced by WrapperMessageCallback().

◆ mitkClassMacro()

mitk::USDiPhASDevice::mitkClassMacro	(	USDiPhASDevice	,
		mitk::USDevice
	)

◆ mitkNewMacro2Param()

mitk::USDiPhASDevice::mitkNewMacro2Param	(	Self	,
		std::string	,
		std::string
	)

◆ OnActivation()

bool mitk::USDiPhASDevice::OnActivation ( )

virtual

Is called during the activation process. After this method is finished, the device is generating images in b mode. Changing scanning mode is possible afterwards by using the appropriate control interfaces.

Returns: always true

Exceptions

mitk::Exception if something goes wrong at the API calls

Implements mitk::USDevice.

Definition at line 119 of file mitkUSDiPhASDevice.cpp.

References m_ControlsProbes, m_IsRunning, and MITK_WARN.

◆ OnConnection()

bool mitk::USDiPhASDevice::OnConnection ( )

virtual

Is called during the connection process. Connect to the DiPhAS API.

Returns: true if successfull, false if no device is connected to the pc

Exceptions

mitk::Exception if something goes wrong at the API calls

Implements mitk::USDevice.

Definition at line 96 of file mitkUSDiPhASDevice.cpp.

References InitializeScanMode(), m_ImageSource, m_ScanMode, WrapperImageDataCallback(), and WrapperMessageCallback().

◆ OnDeactivation()

bool mitk::USDiPhASDevice::OnDeactivation ( )

virtual

Is called during the deactivation process. After a call to this method the device is connected, but not producing images anymore.

Returns: always true

Exceptions

mitk::Exception if something goes wrong at the API calls

Implements mitk::USDevice.

Definition at line 138 of file mitkUSDiPhASDevice.cpp.

References m_IsRunning.

◆ OnDisconnection()

bool mitk::USDiPhASDevice::OnDisconnection ( )

virtual

Is called during the disconnection process. Deactivate and remove all DiPhAS API controls. A disconnect from the DiPhAS API is not possible for which reason the hardware stays in connected state even after calling this method.
