Implementation of mitk::USImageSource for Telemed API devices. The method mitk::USImageSource::GetNextRawImage() is implemented for getting images from the Telemed API. More...

#include <mitkUSTelemedImageSource.h>

Inheritance diagram for mitk::USTelemedImageSource:

[legend]

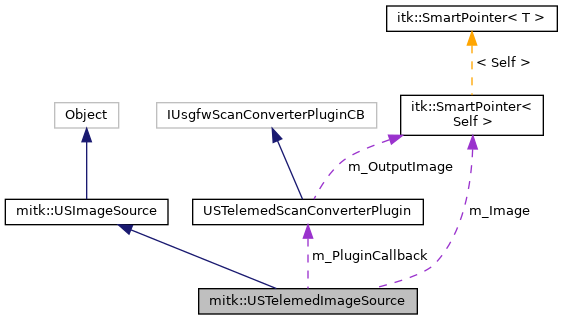

Collaboration diagram for mitk::USTelemedImageSource:

[legend]

Public Member Functions
	mitkClassMacro (USTelemedImageSource, USImageSource)

Pointer	Clone () const

virtual void	GetNextRawImage (std::vector< mitk::Image::Pointer > &)

void	UpdateImageGeometry ()

bool	CreateAndConnectConverterPlugin (Usgfw2Lib::IUsgDataView *, Usgfw2Lib::tagScanMode)
	Connect this object to the Telemed API. This method is for being used by mitk::USTelemedDevice. More...

Public Member Functions inherited from mitk::USImageSource
	mitkClassMacroItkParent (USImageSource, itk::Object)

virtual mitk::BasicCombinationOpenCVImageFilter::Pointer	GetImageFilter ()

void	PushFilter (AbstractOpenCVImageFilter::Pointer filter)

bool	RemoveFilter (AbstractOpenCVImageFilter::Pointer filter)

bool	GetIsFilterInThePipeline (AbstractOpenCVImageFilter::Pointer filter)

std::vector< mitk::Image::Pointer >	GetNextImage ()
	Retrieves the next frame. This will typically be the next frame in a file or the last cached file in a device. The image is filtered if a filter was set by mitk::USImageSource::SetImageFilter(). More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	USTelemedImageSource ()

virtual	~USTelemedImageSource ()

Protected Member Functions inherited from mitk::USImageSource
	USImageSource ()

	~USImageSource () override

virtual void	GetNextRawImage (std::vector< cv::Mat > &)
	Set the given OpenCV image matrix to the next image received from the device or file. More...

Protected Attributes
Usgfw2Lib::IUsgScanConverterPlugin *	m_Plugin

USTelemedScanConverterPlugin *	m_PluginCallback

Usgfw2Lib::IUsgDataView *	m_UsgDataView

Usgfw2Lib::IUsgImageProperties *	m_ImageProperties

Usgfw2Lib::IUsgDepth *	m_DepthProperties

long	m_OldnXPelsPerUnit

long	m_OldnYPelsPerUnit

mitk::Image::Pointer	m_Image

itk::FastMutexLock::Pointer	m_ImageMutex

Protected Attributes inherited from mitk::USImageSource
mitk::OpenCVToMitkImageFilter::Pointer	m_OpenCVToMitkFilter
	Used to convert from OpenCV Images to MITK Images. More...

mitk::ImageToOpenCVImageFilter::Pointer	m_MitkToOpenCVFilter
	Used to convert from MITK Images to OpenCV Images. More...

Additional Inherited Members
Static Public Attributes inherited from mitk::USImageSource
static const char *	IMAGE_PROPERTY_IDENTIFIER

Detailed Description

Implementation of mitk::USImageSource for Telemed API devices. The method mitk::USImageSource::GetNextRawImage() is implemented for getting images from the Telemed API.

A method for connecting this ImageSource to the Telemed API is implemented (mitk::USTelemedImageSource::CreateAndConnectConverterPlugin()). This method is available for being used by mitk::USTelemedDevice.

Definition at line 32 of file mitkUSTelemedImageSource.h.

Constructor & Destructor Documentation

◆ USTelemedImageSource()

mitk::USTelemedImageSource::USTelemedImageSource ( )

protected

Definition at line 18 of file mitkUSTelemedImageSource.cpp.

◆ ~USTelemedImageSource()

mitk::USTelemedImageSource::~USTelemedImageSource ( )

protectedvirtual

Definition at line 33 of file mitkUSTelemedImageSource.cpp.

References m_DepthProperties, m_ImageProperties, m_Plugin, m_PluginCallback, and SAFE_RELEASE.

Member Function Documentation

◆ Clone()

Pointer mitk::USTelemedImageSource::Clone ( ) const

◆ CreateAndConnectConverterPlugin()

bool mitk::USTelemedImageSource::CreateAndConnectConverterPlugin	(	Usgfw2Lib::IUsgDataView *	usgDataView,
		Usgfw2Lib::tagScanMode	scanMode
	)

Connect this object to the Telemed API. This method is for being used by mitk::USTelemedDevice.

Definition at line 101 of file mitkUSTelemedImageSource.cpp.

References CREATE_TelemedControl, mitk::telemed::CreateUsgControl(), m_DepthProperties, m_Image, m_ImageMutex, m_ImageProperties, m_Plugin, m_PluginCallback, m_UsgDataView, MITK_ERROR, SAFE_RELEASE, USTelemedScanConverterPlugin::SetOutputImage(), and USTelemedScanConverterPlugin::SetScanConverterPlugin().

◆ GetNextRawImage()

void mitk::USTelemedImageSource::GetNextRawImage ( std::vector< mitk::Image::Pointer > & imageVector )

virtual

Implementation of the superclass method. Returns the pointer to the mitk::Image filled by Telemed API callback.

Implements mitk::USImageSource.

Definition at line 41 of file mitkUSTelemedImageSource.cpp.

References m_Image, m_ImageMutex, m_ImageProperties, m_OldnXPelsPerUnit, m_OldnYPelsPerUnit, mitk::Image::New(), and UpdateImageGeometry().

◆ mitkClassMacro()

mitk::USTelemedImageSource::mitkClassMacro	(	USTelemedImageSource	,
		USImageSource
	)

◆ New()

static Pointer mitk::USTelemedImageSource::New ( )

static

◆ UpdateImageGeometry()

void mitk::USTelemedImageSource::UpdateImageGeometry ( )

Updates the geometry of the current image from the API. Is used internally when a new image is initialized, but also needs to be called if, e.g., the zoom factor is changed.

Definition at line 75 of file mitkUSTelemedImageSource.cpp.

References m_DepthProperties, m_Image, m_ImageMutex, m_ImageProperties, MITK_DEBUG, and MITK_WARN.

Referenced by GetNextRawImage().
