#include <mitkTubeGraphDataInteractor.h>

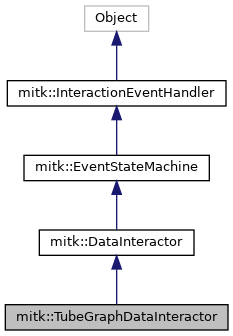

Inheritance diagram for mitk::TubeGraphDataInteractor:

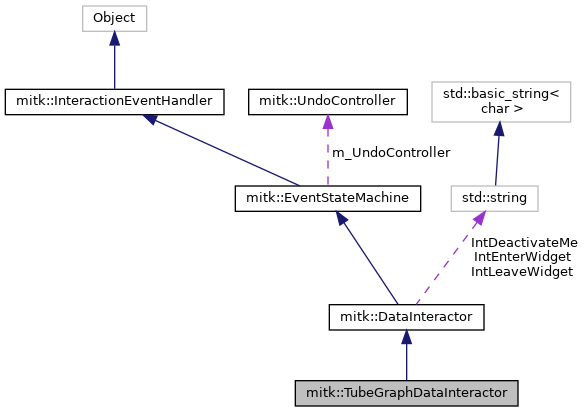

Collaboration diagram for mitk::TubeGraphDataInteractor:

[legend]

Public Types
enum	ActivationMode { None, Single, ToRoot, ToPeriphery, Points, Multiple }

enum	ActionMode { AttributationMode, AnnotationMode, EditMode, RootMode, InformationMode }

Public Types inherited from mitk::DataInteractor
typedef DataInteractor	Self

typedef EventStateMachine	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::EventStateMachine
typedef EventStateMachine	Self

typedef InteractionEventHandler	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, TActionFunctor * >	ActionFunctionsMapType

typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Types inherited from mitk::InteractionEventHandler
typedef InteractionEventHandler	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
	mitkClassMacro (TubeGraphDataInteractor, DataInteractor)

void	SetActivationMode (const ActivationMode &activationMode)

ActivationMode	GetActivationMode ()

void	SetActionMode (const ActionMode &actionMode)

ActionMode	GetActionMode ()

void	ResetPickedTubes ()

mitk::Point3D	GetLastPickedPosition ()

Public Member Functions inherited from mitk::DataInteractor
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

DataNode *	GetDataNode () const

virtual void	SetDataNode (DataNode *dataNode)

int	GetLayer () const

ProcessEventMode	GetMode () const

Public Member Functions inherited from mitk::EventStateMachine
bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Loads XML resource. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)

void	EnableUndo (bool enable)
	Enables or disabled Undo. More...

void	EnableInteraction (bool enable)
	Enables/disables the state machine. In un-enabled state it won't react to any events. More...

Public Member Functions inherited from mitk::InteractionEventHandler
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::DataInteractor
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::EventStateMachine
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::InteractionEventHandler
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	TubeGraphDataInteractor ()

	~TubeGraphDataInteractor () override

void	ConnectActionsAndFunctions () override

void	DataNodeChanged () override

virtual bool	CheckOverTube (const InteractionEvent *)

virtual void	SelectTube (StateMachineAction , InteractionEvent )

virtual void	DeselectTube (StateMachineAction , InteractionEvent )

void	SelectTubesByActivationModus ()

void	UpdateActivation ()

Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()

	~DataInteractor () override

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, TActionFunctor *functor)

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

virtual bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor (if modified by the SlicesCoordinator) to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Additional Inherited Members
Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe

static const std::string	IntLeaveWidget

static const std::string	IntEnterWidget

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Definition at line 35 of file mitkTubeGraphDataInteractor.h.

Member Enumeration Documentation

◆ ActionMode

enum mitk::TubeGraphDataInteractor::ActionMode

Enumerator
AttributationMode
AnnotationMode
EditMode
RootMode
InformationMode

Definition at line 62 of file mitkTubeGraphDataInteractor.h.

◆ ActivationMode

enum mitk::TubeGraphDataInteractor::ActivationMode

Describes, which activation modes are available based on the currently picked tube:

None means "no tube is active"
Single means "only the picked tube is active"
ToRoot means "all tubes from the picked on down to the root of the tube graph are active"
ToPeriphery means "all tubes included in the subgraph of the currently picked vessel are active"
Points means "shortes path between two picked tubes are active"
Multiple means "all picked tubes are active"

Enumerator
None
Single
ToRoot
ToPeriphery
Points
Multiple

Definition at line 52 of file mitkTubeGraphDataInteractor.h.

Constructor & Destructor Documentation

◆ TubeGraphDataInteractor()

mitk::TubeGraphDataInteractor::TubeGraphDataInteractor ( )

protected

Definition at line 27 of file mitkTubeGraphDataInteractor.cpp.

References mitk::None.

◆ ~TubeGraphDataInteractor()

mitk::TubeGraphDataInteractor::~TubeGraphDataInteractor ( )

overrideprotected

Definition at line 35 of file mitkTubeGraphDataInteractor.cpp.

Member Function Documentation

◆ CheckOverTube()

bool mitk::TubeGraphDataInteractor::CheckOverTube ( const InteractionEvent * interactionEvent )

protectedvirtual

Initializes the movement, stores starting position.

Definition at line 67 of file mitkTubeGraphDataInteractor.cpp.

References mitk::TubeGraph::ErrorId.

Referenced by ConnectActionsAndFunctions().

◆ ConnectActionsAndFunctions()

void mitk::TubeGraphDataInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Here actions strings from the loaded state machine pattern are mapped to functions of the DataInteractor. These functions are called when an action from the state machine pattern is executed.

Reimplemented from mitk::DataInteractor.

Definition at line 37 of file mitkTubeGraphDataInteractor.cpp.

References CheckOverTube(), CONNECT_CONDITION, CONNECT_FUNCTION, DeselectTube(), and SelectTube().
