mitk::OpenCVVideoSource Class Reference

#include <mitkOpenCVVideoSource.h>

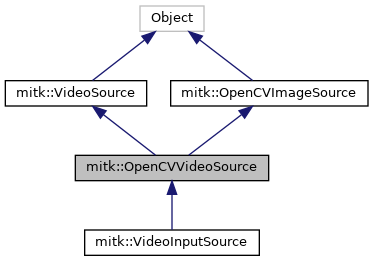

Inheritance diagram for mitk::OpenCVVideoSource:

Collaboration diagram for mitk::OpenCVVideoSource:

Public Types
typedef itk::RGBPixel< unsigned char >	CharPixelType
typedef itk::FixedArray< float, 3 >	HSVPixelType
typedef itk::Image< CharPixelType, 2 >	RGBPixelImageType
typedef itk::Image< HSVPixelType, 2 >	HSVPixelImageType
typedef itk::ImageRegionIterator< RGBPixelImageType >	RGBConstIteratorType
typedef itk::ImageRegionIterator< HSVPixelImageType >	HSVConstIteratorType

Public Member Functions
	mitkClassMacro (OpenCVVideoSource, VideoSource)
Pointer	Clone () const
virtual void	SetVideoFileInput (const char *filename, bool repeatVideo, bool useCVCAMLib=false)
virtual void	SetVideoCameraInput (int cameraindex, bool useCVCAMLib=false)
virtual double	GetVideoCaptureProperty (int property_id)
virtual int	SetVideoCaptureProperty (int property_id, double value)
virtual void	GetCurrentFrameAsOpenCVImage (IplImage *image)
cv::Mat	GetImage () override
virtual const IplImage *	GetCurrentFrame ()
virtual void	GetCurrentFrameAsItkHSVPixelImage (HSVPixelImageType::Pointer &Image)
void	FetchFrame () override
unsigned char *	GetVideoTexture () override
void	StartCapturing () override
void	StopCapturing () override
virtual IplImage *	FlipImage (IplImage *input)
virtual void	EnableOnlineImageUndistortion (mitk::Point3D focal, mitk::Point3D principal, mitk::Point4D distortion)
virtual void	DisableOnlineImageUndistortion ()
virtual bool	OnlineImageUndistortionEnabled () const
void	PauseCapturing () override
virtual std::string	GetVideoFileName () const
virtual void	SetEnableXAxisFlip (bool enable)
virtual void	SetEnableYAxisFlip (bool enable)
virtual short	GetGrabbingDeviceNumber () const
virtual bool	GetRepeatVideo ()
virtual void	SetRepeatVideo (bool _arg)
Public Member Functions inherited from mitk::VideoSource
	mitkClassMacroItkParent (VideoSource, itk::Object)
virtual bool	IsCapturingEnabled () const
virtual int	GetImageWidth ()
virtual int	GetImageHeight ()
virtual unsigned long	GetFrameCount () const
virtual bool	GetCapturePaused () const
Public Member Functions inherited from mitk::OpenCVImageSource
	mitkClassMacroItkParent (OpenCVImageSource, itk::Object)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	OpenCVVideoSource ()
	~OpenCVVideoSource () override
void	Reset ()
void	UpdateVideoTexture ()
void	sleep (unsigned int ms)
void	RGBtoHSV (float r, float g, float b, float &h, float &s, float &v)
Protected Member Functions inherited from mitk::VideoSource
	VideoSource ()
	~VideoSource () override

Protected Attributes
CvCapture *	m_VideoCapture
IplImage *	m_CurrentImage
unsigned char *	m_CurrentVideoTexture
IplImage *	m_PauseImage
std::string	m_VideoFileName
	saves the video file name (is empty if a grabbing device is used or if this is not initialized) More...
short	m_GrabbingDeviceNumber
	saves the grabbing device number (is -1 if a videofilename is used or if this is not initialized) More...
bool	m_RepeatVideo
bool	m_UseCVCAMLib
bool	m_UndistortImage
mitk::UndistortCameraImage::Pointer	m_UndistortCameraImage
bool	m_FlipXAxisEnabled
bool	m_FlipYAxisEnabled
Protected Attributes inherited from mitk::VideoSource
unsigned char *	m_CurrentVideoTexture
int	m_CaptureWidth
int	m_CaptureHeight
bool	m_CapturingInProcess
unsigned long	m_FrameCount
bool	m_CapturePaused

Detailed Description

Interface for acquiring video data using Intel's OPENCV library. Video data may either be provided from a file or a grabbing device. At the moment, OPENCV includes two separated modules for this grabbing, but only HighGui is used here. Initialize via SetVideoFileInput() or SetVideoCameraInput(), start processing with StartCapturing();

Definition at line 39 of file mitkOpenCVVideoSource.h.

Member Typedef Documentation

CharPixelType

typedef itk::RGBPixel< unsigned char > mitk::OpenCVVideoSource::CharPixelType

Definition at line 43 of file mitkOpenCVVideoSource.h.

HSVConstIteratorType

typedef itk::ImageRegionIterator< HSVPixelImageType > mitk::OpenCVVideoSource::HSVConstIteratorType

Definition at line 48 of file mitkOpenCVVideoSource.h.

HSVPixelImageType

typedef itk::Image<HSVPixelType,2> mitk::OpenCVVideoSource::HSVPixelImageType

Definition at line 46 of file mitkOpenCVVideoSource.h.

HSVPixelType

typedef itk::FixedArray<float,3> mitk::OpenCVVideoSource::HSVPixelType

Definition at line 44 of file mitkOpenCVVideoSource.h.

RGBConstIteratorType

typedef itk::ImageRegionIterator< RGBPixelImageType > mitk::OpenCVVideoSource::RGBConstIteratorType

Definition at line 47 of file mitkOpenCVVideoSource.h.

RGBPixelImageType

typedef itk::Image< CharPixelType , 2 > mitk::OpenCVVideoSource::RGBPixelImageType

Definition at line 45 of file mitkOpenCVVideoSource.h.

Constructor & Destructor Documentation

OpenCVVideoSource()

mitk::OpenCVVideoSource::OpenCVVideoSource ( )

protected

Definition at line 17 of file mitkOpenCVVideoSource.cpp.

~OpenCVVideoSource()

mitk::OpenCVVideoSource::~OpenCVVideoSource ( )

overrideprotected

Definition at line 31 of file mitkOpenCVVideoSource.cpp.

References Reset().

Member Function Documentation

Clone()

Pointer mitk::OpenCVVideoSource::Clone

(

)

const

DisableOnlineImageUndistortion()

void mitk::OpenCVVideoSource::DisableOnlineImageUndistortion ( )

virtual

Definition at line 263 of file mitkOpenCVVideoSource.cpp.

References m_UndistortImage.

EnableOnlineImageUndistortion()

void mitk::OpenCVVideoSource::EnableOnlineImageUndistortion ( mitk::Point3D  focal, mitk::Point3D  principal, mitk::Point4D  distortion  )

virtual

Definition at line 249 of file mitkOpenCVVideoSource.cpp.

References FetchFrame(), mitk::VideoSource::m_CaptureHeight, mitk::VideoSource::m_CaptureWidth, m_UndistortCameraImage, m_UndistortImage, and mitk::UndistortCameraImage::New().

FetchFrame()

void mitk::OpenCVVideoSource::FetchFrame ( )

overridevirtual

assigns the grabbing devices for acquiring the next frame. in this base implementation it does nothing except incrementing m_FrameCount

Reimplemented from mitk::VideoSource.

Reimplemented in mitk::VideoInputSource.

Definition at line 117 of file mitkOpenCVVideoSource.cpp.

References GetVideoCaptureProperty(), mitk::VideoSource::m_CaptureHeight, mitk::VideoSource::m_CapturePaused, mitk::VideoSource::m_CaptureWidth, mitk::VideoSource::m_CapturingInProcess, m_CurrentImage, mitk::VideoSource::m_FrameCount, m_RepeatVideo, m_UndistortCameraImage, m_UndistortImage, m_VideoCapture, m_VideoFileName, MITK_DEBUG, MITK_INFO, and SetVideoCaptureProperty().

Referenced by EnableOnlineImageUndistortion(), GetCurrentFrameAsItkHSVPixelImage(), and GetVideoTexture().

FlipImage()

IplImage * mitk::OpenCVVideoSource::FlipImage ( IplImage *  input )

virtual

Definition at line 363 of file mitkOpenCVVideoSource.cpp.

References m_FlipXAxisEnabled, and m_FlipYAxisEnabled.

Referenced by GetVideoTexture().

GetCurrentFrame()

const IplImage * mitk::OpenCVVideoSource::GetCurrentFrame ( )

virtual

Definition at line 100 of file mitkOpenCVVideoSource.cpp.

References m_CurrentImage.

Referenced by QmitkOpenCVVideoControls::NewFrameAvailable().

GetCurrentFrameAsItkHSVPixelImage()

void mitk::OpenCVVideoSource::GetCurrentFrameAsItkHSVPixelImage ( HSVPixelImageType::Pointer &  Image )

virtual

Definition at line 269 of file mitkOpenCVVideoSource.cpp.

References FetchFrame(), mitk::VideoSource::m_CaptureHeight, mitk::VideoSource::m_CaptureWidth, m_CurrentImage, and RGBtoHSV().

GetCurrentFrameAsOpenCVImage()

void mitk::OpenCVVideoSource::GetCurrentFrameAsOpenCVImage ( IplImage *  image )

virtual

Definition at line 105 of file mitkOpenCVVideoSource.cpp.

References m_CurrentImage.

GetGrabbingDeviceNumber()

virtual short mitk::OpenCVVideoSource::GetGrabbingDeviceNumber ( ) const

virtual

Returns the GrabbingDeviceNumber (maybe -1 if a video file is used)

Referenced by QmitkOpenCVVideoControls::SetVideoBackground().

GetImage()

cv::Mat mitk::OpenCVVideoSource::GetImage ( void  )

overridevirtual

Returns

a copy of the image as opencv 2 Mat

Implements mitk::OpenCVImageSource.

Definition at line 90 of file mitkOpenCVVideoSource.cpp.

References m_CurrentImage.

GetRepeatVideo()

virtual bool mitk::OpenCVVideoSource::GetRepeatVideo ( )

virtual

GetVideoCaptureProperty()

double mitk::OpenCVVideoSource::GetVideoCaptureProperty ( int  property_id )

virtual

Definition at line 62 of file mitkOpenCVVideoSource.cpp.

References m_VideoCapture.

Referenced by FetchFrame(), QmitkOpenCVVideoControls::NewFrameAvailable(), and QmitkOpenCVVideoControls::on_VideoProgressSlider_sliderReleased().

GetVideoFileName()

virtual std::string mitk::OpenCVVideoSource::GetVideoFileName ( ) const

virtual

Returns the video file name (maybe empty if a grabbing device is used)

Referenced by QmitkOpenCVVideoControls::SetVideoBackground().

GetVideoTexture()

unsigned char * mitk::OpenCVVideoSource::GetVideoTexture ( )

overridevirtual

Returns

a pointer to the image data array for opengl rendering.

Implements mitk::VideoSource.

Definition at line 73 of file mitkOpenCVVideoSource.cpp.

References FetchFrame(), FlipImage(), m_CurrentImage, m_CurrentVideoTexture, m_FlipXAxisEnabled, m_FlipYAxisEnabled, and UpdateVideoTexture().

mitkClassMacro()

mitk::OpenCVVideoSource::mitkClassMacro	(	OpenCVVideoSource	,
		VideoSource
	)

New()

static Pointer mitk::OpenCVVideoSource::New ( )

static

OnlineImageUndistortionEnabled()

bool mitk::OpenCVVideoSource::OnlineImageUndistortionEnabled ( ) const

virtual

Returns

true if image undistorsion is enabled

Definition at line 223 of file mitkOpenCVVideoSource.cpp.

References m_UndistortCameraImage.

PauseCapturing()

void mitk::OpenCVVideoSource::PauseCapturing ( )

overridevirtual

toggles m_CapturePaused In Subclasses this function can be overwritten to take measurs to provide a pause image, BUT DO NOT FORGET TO TOGGLE m_CapturePaused

Reimplemented from mitk::VideoSource.

Definition at line 228 of file mitkOpenCVVideoSource.cpp.

References mitk::VideoSource::m_CapturePaused, m_CurrentImage, m_PauseImage, m_UndistortCameraImage, and m_UndistortImage.

Referenced by QmitkOpenCVVideoControls::on_PlayButton_clicked(), QmitkOpenCVVideoControls::on_VideoProgressSlider_sliderPressed(), QmitkOpenCVVideoControls::on_VideoProgressSlider_sliderReleased(), and QmitkOpenCVVideoControls::Play().

Reset()

void mitk::OpenCVVideoSource::Reset ( void  )

protected

Resets the whole class for capturing from a new device

Definition at line 387 of file mitkOpenCVVideoSource.cpp.

References mitk::VideoSource::m_CaptureHeight, mitk::VideoSource::m_CapturePaused, mitk::VideoSource::m_CaptureWidth, m_CurrentImage, m_CurrentVideoTexture, mitk::VideoSource::m_FrameCount, m_GrabbingDeviceNumber, m_PauseImage, m_UseCVCAMLib, m_VideoCapture, m_VideoFileName, and StopCapturing().

Referenced by SetVideoCameraInput(), SetVideoFileInput(), and ~OpenCVVideoSource().

RGBtoHSV()

void mitk::OpenCVVideoSource::RGBtoHSV ( float  r, float  g, float  b, float &  h, float &  s, float &  v  )

protected

Definition at line 312 of file mitkOpenCVVideoSource.cpp.

Referenced by GetCurrentFrameAsItkHSVPixelImage().

SetEnableXAxisFlip()

void mitk::OpenCVVideoSource::SetEnableXAxisFlip ( bool  enable )

virtual

Definition at line 413 of file mitkOpenCVVideoSource.cpp.

References m_FlipXAxisEnabled.

SetEnableYAxisFlip()

void mitk::OpenCVVideoSource::SetEnableYAxisFlip ( bool  enable )

virtual

Definition at line 419 of file mitkOpenCVVideoSource.cpp.

References m_FlipXAxisEnabled.

SetRepeatVideo()

virtual void mitk::OpenCVVideoSource::SetRepeatVideo ( bool  _arg )

virtual

Referenced by QmitkOpenCVVideoControls::on_RepeatVideoButton_clicked(), and QmitkOpenCVVideoControls::Play().

SetVideoCameraInput()

void mitk::OpenCVVideoSource::SetVideoCameraInput ( int  cameraindex, bool  useCVCAMLib = false  )

virtual

Reimplemented in mitk::VideoInputSource.

Definition at line 50 of file mitkOpenCVVideoSource.cpp.

References m_GrabbingDeviceNumber, m_VideoCapture, MITK_ERROR, and Reset().

Referenced by QmitkOpenCVVideoControls::Play().

SetVideoCaptureProperty()

int mitk::OpenCVVideoSource::SetVideoCaptureProperty ( int  property_id, double  value  )

virtual

Definition at line 67 of file mitkOpenCVVideoSource.cpp.

References m_VideoCapture.

Referenced by FetchFrame(), and QmitkOpenCVVideoControls::on_VideoProgressSlider_sliderReleased().

SetVideoFileInput()

void mitk::OpenCVVideoSource::SetVideoFileInput ( const char *  filename, bool  repeatVideo, bool  useCVCAMLib = false  )

virtual

Reimplemented in mitk::VideoInputSource.

Definition at line 36 of file mitkOpenCVVideoSource.cpp.

References m_RepeatVideo, m_VideoCapture, m_VideoFileName, MITK_WARN, and Reset().

Referenced by QmitkOpenCVVideoControls::Play().

sleep()

void mitk::OpenCVVideoSource::sleep ( unsigned int  ms )

protected

StartCapturing()

void mitk::OpenCVVideoSource::StartCapturing ( )

overridevirtual

advices this class to start the video capturing. in this base implementation: toggles m_CapturingInProcess, resets m_FrameCount ATTENTION: this should be also done in subclasses overwriting this method

Reimplemented from mitk::VideoSource.

Reimplemented in mitk::VideoInputSource.

Definition at line 209 of file mitkOpenCVVideoSource.cpp.

References mitk::VideoSource::m_CapturingInProcess, and m_VideoCapture.

Referenced by QmitkOpenCVVideoControls::Play().

StopCapturing()

void mitk::OpenCVVideoSource::StopCapturing ( )

overridevirtual

advices this class to stop the video capturing. in this base implementation: toggles m_CapturingInProcess, resets m_FrameCount ATTENTION: this should be also done in subclasses overwriting this method

Reimplemented from mitk::VideoSource.

Reimplemented in mitk::VideoInputSource.

Definition at line 217 of file mitkOpenCVVideoSource.cpp.

References mitk::VideoSource::m_CapturePaused, and mitk::VideoSource::m_CapturingInProcess.

Referenced by Reset(), and QmitkOpenCVVideoControls::Stop().

UpdateVideoTexture()

void mitk::OpenCVVideoSource::UpdateVideoTexture ( )

protected

Definition at line 168 of file mitkOpenCVVideoSource.cpp.

References mitk::VideoSource::m_CaptureHeight, mitk::VideoSource::m_CaptureWidth, m_CurrentImage, and m_CurrentVideoTexture.

Referenced by GetVideoTexture().

Member Data Documentation

m_CurrentImage

IplImage* mitk::OpenCVVideoSource::m_CurrentImage

protected

Definition at line 161 of file mitkOpenCVVideoSource.h.

Referenced by mitk::VideoInputSource::FetchFrame(), FetchFrame(), GetCurrentFrame(), GetCurrentFrameAsItkHSVPixelImage(), GetCurrentFrameAsOpenCVImage(), GetImage(), GetVideoTexture(), PauseCapturing(), Reset(), UpdateVideoTexture(), and mitk::VideoInputSource::VideoInputSource().

m_CurrentVideoTexture

unsigned char* mitk::OpenCVVideoSource::m_CurrentVideoTexture

protected

Definition at line 162 of file mitkOpenCVVideoSource.h.

Referenced by GetVideoTexture(), Reset(), and UpdateVideoTexture().

m_FlipXAxisEnabled

bool mitk::OpenCVVideoSource::m_FlipXAxisEnabled

protected

Flag to enable or disable video flipping by X Axis.

Definition at line 187 of file mitkOpenCVVideoSource.h.

Referenced by FlipImage(), GetVideoTexture(), SetEnableXAxisFlip(), and SetEnableYAxisFlip().

m_FlipYAxisEnabled

bool mitk::OpenCVVideoSource::m_FlipYAxisEnabled

protected

Flag to enable or disable video flipping by Y Axis.

Definition at line 192 of file mitkOpenCVVideoSource.h.

Referenced by FlipImage(), and GetVideoTexture().

m_GrabbingDeviceNumber

short mitk::OpenCVVideoSource::m_GrabbingDeviceNumber

protected

saves the grabbing device number (is -1 if a videofilename is used or if this is not initialized)

Definition at line 172 of file mitkOpenCVVideoSource.h.

Referenced by Reset(), and SetVideoCameraInput().

m_PauseImage

IplImage* mitk::OpenCVVideoSource::m_PauseImage

protected

Definition at line 164 of file mitkOpenCVVideoSource.h.

Referenced by PauseCapturing(), and Reset().

m_RepeatVideo

bool mitk::OpenCVVideoSource::m_RepeatVideo

protected

Definition at line 175 of file mitkOpenCVVideoSource.h.

Referenced by FetchFrame(), and SetVideoFileInput().

m_UndistortCameraImage

mitk::UndistortCameraImage::Pointer mitk::OpenCVVideoSource::m_UndistortCameraImage

protected

Definition at line 182 of file mitkOpenCVVideoSource.h.

Referenced by EnableOnlineImageUndistortion(), mitk::VideoInputSource::FetchFrame(), FetchFrame(), OnlineImageUndistortionEnabled(), and PauseCapturing().

m_UndistortImage

bool mitk::OpenCVVideoSource::m_UndistortImage

protected

Definition at line 181 of file mitkOpenCVVideoSource.h.

Referenced by DisableOnlineImageUndistortion(), EnableOnlineImageUndistortion(), mitk::VideoInputSource::FetchFrame(), FetchFrame(), PauseCapturing(), and mitk::VideoInputSource::VideoInputSource().

m_UseCVCAMLib

bool mitk::OpenCVVideoSource::m_UseCVCAMLib

protected

Definition at line 178 of file mitkOpenCVVideoSource.h.

Referenced by Reset().

m_VideoCapture

CvCapture* mitk::OpenCVVideoSource::m_VideoCapture

protected

Definition at line 158 of file mitkOpenCVVideoSource.h.

Referenced by FetchFrame(), GetVideoCaptureProperty(), Reset(), SetVideoCameraInput(), SetVideoCaptureProperty(), SetVideoFileInput(), and StartCapturing().

m_VideoFileName

std::string mitk::OpenCVVideoSource::m_VideoFileName

protected

saves the video file name (is empty if a grabbing device is used or if this is not initialized)

Definition at line 168 of file mitkOpenCVVideoSource.h.

Referenced by FetchFrame(), Reset(), and SetVideoFileInput().

---

The documentation for this class was generated from the following files:

• mitkOpenCVVideoSource.h
• mitkOpenCVVideoSource.cpp
