#include <mitkVideoInputSource.h>
Public Member Functions | |
| mitkClassMacro (VideoInputSource, OpenCVVideoSource) | |
| Pointer | Clone () const |
| void | FetchFrame () |
| void | StartCapturing () |
| void | StopCapturing () |
| void | SetVideoCameraInput (int cameraindex, bool useCVCAMLib) |
| void | SetVideoFileInput (const char *filename, bool repeatVideo, bool useCVCAMLib) |
| virtual bool | GetShowSettingsWindow () const |
| virtual void | SetShowSettingsWindow (bool _arg) |
| virtual bool | GetVideoInput () |

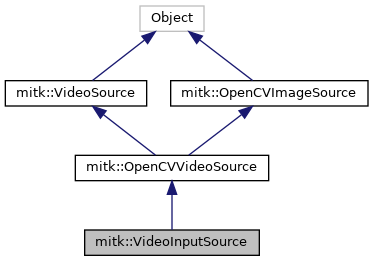

 Public Member Functions inherited from mitk::OpenCVVideoSource | |
| mitkClassMacro (OpenCVVideoSource, VideoSource) | |
| Pointer | Clone () const |
| virtual double | GetVideoCaptureProperty (int property_id) |
| virtual int | SetVideoCaptureProperty (int property_id, double value) |
| virtual void | GetCurrentFrameAsOpenCVImage (IplImage *image) |
| cv::Mat | GetImage () override |
| virtual const IplImage * | GetCurrentFrame () |
| virtual void | GetCurrentFrameAsItkHSVPixelImage (HSVPixelImageType::Pointer &Image) |
| unsigned char * | GetVideoTexture () override |
| virtual IplImage * | FlipImage (IplImage *input) |
| virtual void | EnableOnlineImageUndistortion (mitk::Point3D focal, mitk::Point3D principal, mitk::Point4D distortion) |
| virtual void | DisableOnlineImageUndistortion () |
| virtual bool | OnlineImageUndistortionEnabled () const |
| void | PauseCapturing () override |
| virtual std::string | GetVideoFileName () const |
| virtual void | SetEnableXAxisFlip (bool enable) |
| virtual void | SetEnableYAxisFlip (bool enable) |
| virtual short | GetGrabbingDeviceNumber () const |
| virtual bool | GetRepeatVideo () |
| virtual void | SetRepeatVideo (bool _arg) |
| Public Member Functions inherited from mitk::VideoSource | |
| mitkClassMacroItkParent (VideoSource, itk::Object) | |
| virtual bool | IsCapturingEnabled () const |
| virtual int | GetImageWidth () |
| virtual int | GetImageHeight () |
| virtual unsigned long | GetFrameCount () const |
| virtual bool | GetCapturePaused () const |
| Public Member Functions inherited from mitk::OpenCVImageSource | |
| mitkClassMacroItkParent (OpenCVImageSource, itk::Object) | |
Static Public Member Functions | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::OpenCVVideoSource | |
| static Pointer | New () |
Protected Member Functions | |
| VideoInputSource () | |
| virtual | ~VideoInputSource () |
| Protected Member Functions inherited from mitk::OpenCVVideoSource | |
| OpenCVVideoSource () | |
| ~OpenCVVideoSource () override | |
| void | Reset () |
| void | UpdateVideoTexture () |
| void | sleep (unsigned int ms) |
| void | RGBtoHSV (float r, float g, float b, float &h, float &s, float &v) |
| Protected Member Functions inherited from mitk::VideoSource | |
| VideoSource () | |
| ~VideoSource () override | |
Protected Attributes | |
| videoInput * | m_VideoInput |
| int | m_DeviceNumber |
| int | m_CaptureSize |
| unsigned char * | m_CurrentVideoTexture |
| bool | m_ShowSettingsWindow |
| Protected Attributes inherited from mitk::OpenCVVideoSource | |
| CvCapture * | m_VideoCapture |
| IplImage * | m_CurrentImage |
| unsigned char * | m_CurrentVideoTexture |
| IplImage * | m_PauseImage |
| std::string | m_VideoFileName |
| saves the video file name (is empty if a grabbing device is used or if this is not initialized) More... | |
| short | m_GrabbingDeviceNumber |
| saves the grabbing device number (is -1 if a videofilename is used or if this is not initialized) More... | |
| bool | m_RepeatVideo |
| bool | m_UseCVCAMLib |
| bool | m_UndistortImage |
| mitk::UndistortCameraImage::Pointer | m_UndistortCameraImage |
| bool | m_FlipXAxisEnabled |
| bool | m_FlipYAxisEnabled |
| Protected Attributes inherited from mitk::VideoSource | |
| unsigned char * | m_CurrentVideoTexture |
| int | m_CaptureWidth |
| int | m_CaptureHeight |
| bool | m_CapturingInProcess |
| unsigned long | m_FrameCount |
| bool | m_CapturePaused |
Additional Inherited Members | |
| Public Types inherited from mitk::OpenCVVideoSource | |
| typedef itk::RGBPixel< unsigned char > | CharPixelType |
| typedef itk::FixedArray< float, 3 > | HSVPixelType |
| typedef itk::Image< CharPixelType, 2 > | RGBPixelImageType |
| typedef itk::Image< HSVPixelType, 2 > | HSVPixelImageType |
| typedef itk::ImageRegionIterator< RGBPixelImageType > | RGBConstIteratorType |
| typedef itk::ImageRegionIterator< HSVPixelImageType > | HSVConstIteratorType |
Detailed Description
Definition at line 25 of file mitkVideoInputSource.h.
Constructor & Destructor Documentation
◆ VideoInputSource()
|
protected |
Definition at line 19 of file mitkVideoInputSource.cpp.
References mitk::VideoSource::m_CaptureHeight, m_CaptureSize, mitk::VideoSource::m_CaptureWidth, mitk::VideoSource::m_CapturingInProcess, mitk::OpenCVVideoSource::m_CurrentImage, m_CurrentVideoTexture, m_DeviceNumber, mitk::OpenCVVideoSource::m_UndistortImage, and m_VideoInput.
◆ ~VideoInputSource()
|
protectedvirtual |
Definition at line 39 of file mitkVideoInputSource.cpp.
References mitk::VideoSource::m_CapturingInProcess, m_DeviceNumber, and m_VideoInput.
Member Function Documentation
◆ Clone()
| Pointer mitk::VideoInputSource::Clone | ( | ) | const |
◆ FetchFrame()
|
virtual |
assigns the grabbing devices for acquiring the next frame. in this base implementation it does nothing except incrementing m_FrameCount
Reimplemented from mitk::OpenCVVideoSource.
Definition at line 46 of file mitkVideoInputSource.cpp.
References mitk::VideoSource::m_CaptureHeight, mitk::VideoSource::m_CapturePaused, mitk::VideoSource::m_CaptureWidth, mitk::VideoSource::m_CapturingInProcess, mitk::OpenCVVideoSource::m_CurrentImage, m_DeviceNumber, mitk::OpenCVVideoSource::m_UndistortCameraImage, mitk::OpenCVVideoSource::m_UndistortImage, and m_VideoInput.
◆ GetShowSettingsWindow()
|
virtual |
◆ GetVideoInput()
|
virtual |
◆ mitkClassMacro()
| mitk::VideoInputSource::mitkClassMacro | ( | VideoInputSource | , |
| OpenCVVideoSource | |||
| ) |
◆ New()
|
static |
◆ SetShowSettingsWindow()
|
virtual |
◆ SetVideoCameraInput()
|
virtual |
Reimplemented from mitk::OpenCVVideoSource.
Definition at line 106 of file mitkVideoInputSource.cpp.
References m_DeviceNumber.
◆ SetVideoFileInput()
|
virtual |
Reimplemented from mitk::OpenCVVideoSource.
Definition at line 110 of file mitkVideoInputSource.cpp.
◆ StartCapturing()
|
virtual |
advices this class to start the video capturing. in this base implementation: toggles m_CapturingInProcess, resets m_FrameCount ATTENTION: this should be also done in subclasses overwriting this method
Reimplemented from mitk::OpenCVVideoSource.
Definition at line 68 of file mitkVideoInputSource.cpp.
References mitk::VideoSource::m_CaptureHeight, m_CaptureSize, mitk::VideoSource::m_CaptureWidth, mitk::VideoSource::m_CapturingInProcess, m_DeviceNumber, m_ShowSettingsWindow, m_VideoInput, MITK_INFO, and MITK_WARN.
◆ StopCapturing()
|
virtual |
advices this class to stop the video capturing. in this base implementation: toggles m_CapturingInProcess, resets m_FrameCount ATTENTION: this should be also done in subclasses overwriting this method
Reimplemented from mitk::OpenCVVideoSource.
Definition at line 98 of file mitkVideoInputSource.cpp.
References mitk::VideoSource::m_CapturingInProcess, m_DeviceNumber, m_VideoInput, and MITK_INFO.
Member Data Documentation
◆ m_CaptureSize
|
protected |
Definition at line 59 of file mitkVideoInputSource.h.
Referenced by StartCapturing(), and VideoInputSource().
◆ m_CurrentVideoTexture
|
protected |
Definition at line 62 of file mitkVideoInputSource.h.
Referenced by VideoInputSource().
◆ m_DeviceNumber
|
protected |
Definition at line 58 of file mitkVideoInputSource.h.
Referenced by FetchFrame(), SetVideoCameraInput(), StartCapturing(), StopCapturing(), VideoInputSource(), and ~VideoInputSource().
◆ m_ShowSettingsWindow
|
protected |
Show vendor specific settings window?
Definition at line 67 of file mitkVideoInputSource.h.
Referenced by StartCapturing().
◆ m_VideoInput
|
protected |
Definition at line 57 of file mitkVideoInputSource.h.
Referenced by FetchFrame(), StartCapturing(), StopCapturing(), VideoInputSource(), and ~VideoInputSource().
The documentation for this class was generated from the following files:
