mitk::NonBlockingAlgorithm Class Reference

#include <mitkNonBlockingAlgorithm.h>

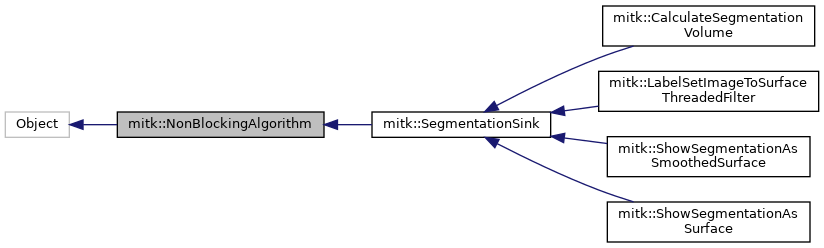

Inheritance diagram for mitk::NonBlockingAlgorithm:
Inheritance graph
[legend]

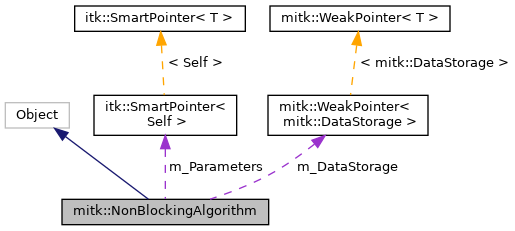

Collaboration diagram for mitk::NonBlockingAlgorithm:
Collaboration graph
[legend]

Classes

class  ThreadParameters


Public Member Functions

 mitkClassMacroItkParent (NonBlockingAlgorithm, itk::Object)

void SetDataStorage (DataStorage &storage)

DataStorage * GetDataStorage ()

template<typename T >
void SetParameter (const char *parameter, const T &value)
 For any kind of normal types. More...

template<typename T >
void SetPointerParameter (const char *parameter, const itk::SmartPointer< T > &value)
 For any kind of smart pointers. More...

void SetPointerParameter (const char *parameter, BaseData *value)
 For any kind of BaseData, like Image, Surface, etc. Will be stored inside some SmartPointerProperty. More...

template<typename TPixel , unsigned int VImageDimension>
void SetItkImageAsMITKImagePointerParameter (const char *parameter, itk::Image< TPixel, VImageDimension > *itkImage)
 For any kind of ITK images (C pointers) More...

template<typename TPixel , unsigned int VImageDimension>
void SetItkImageAsMITKImagePointerParameter (const char *parameter, const itk::SmartPointer< itk::Image< TPixel, VImageDimension >> &itkImage)
 For any kind of ITK images (smartpointers) More...

template<typename T >
void GetParameter (const char *parameter, T &value) const

template<typename T >
void GetPointerParameter (const char *parameter, itk::SmartPointer< T > &value) const

virtual void Reset ()

void StartAlgorithm ()

void StartBlockingAlgorithm ()

void StopAlgorithm ()

void TriggerParameterModified (const itk::EventObject &)

void ThreadedUpdateSuccessful (const itk::EventObject &)

void ThreadedUpdateFailed (const itk::EventObject &)


Protected Member Functions

 NonBlockingAlgorithm ()

 ~NonBlockingAlgorithm () override

void DefineTriggerParameter (const char *)

void UnDefineTriggerParameter (const char *)

virtual void Initialize (const NonBlockingAlgorithm *other=nullptr)

virtual bool ReadyToRun ()

virtual bool ThreadedUpdateFunction ()

virtual void ThreadedUpdateSuccessful ()

virtual void ThreadedUpdateFailed ()


Protected Attributes

PropertyList::Pointer m_Parameters

WeakPointer< DataStorage > m_DataStorage


Detailed Description

Invokes ResultsAvailable with each new result

done centralize use of itk::MultiThreader in this class

Definition at line 79 of file mitkNonBlockingAlgorithm.h.

Constructor & Destructor Documentation

◆ NonBlockingAlgorithm()

mitk::NonBlockingAlgorithm::NonBlockingAlgorithm ( )
protected

Definition at line 20 of file mitkNonBlockingAlgorithm.cpp.

References m_Parameters, and mitk::PropertyList::New().

◆ ~NonBlockingAlgorithm()

mitk::NonBlockingAlgorithm::~NonBlockingAlgorithm ( )
overrideprotected

Definition at line 27 of file mitkNonBlockingAlgorithm.cpp.

Member Function Documentation

◆ DefineTriggerParameter()

void mitk::NonBlockingAlgorithm::DefineTriggerParameter ( const char *  parameter)
protected

Definition at line 50 of file mitkNonBlockingAlgorithm.cpp.

References m_Parameters, and TriggerParameterModified().

◆ GetDataStorage()

DataStorage * mitk::NonBlockingAlgorithm::GetDataStorage ( )

Definition at line 29 of file mitkNonBlockingAlgorithm.cpp.

References m_DataStorage.

◆ GetParameter()

template<typename T >
void mitk::NonBlockingAlgorithm::GetParameter ( const char *  parameter,
T &  value
) const
inline

Definition at line 152 of file mitkNonBlockingAlgorithm.h.

References mitk::GenericProperty< T >::GetValue().

Referenced by mitk::ShowSegmentationAsSmoothedSurface::Initialize(), mitk::SegmentationSink::Initialize(), mitk::ShowSegmentationAsSurface::Initialize(), mitk::LabelSetImageToSurfaceThreadedFilter::ThreadedUpdateFunction(), mitk::ShowSegmentationAsSurface::ThreadedUpdateFunction(), and mitk::ShowSegmentationAsSurface::ThreadedUpdateSuccessful().

◆ GetPointerParameter()

template<typename T >
void mitk::NonBlockingAlgorithm::GetPointerParameter ( const char *  parameter,
itk::SmartPointer< T > &  value
) const
inline

Definition at line 173 of file mitkNonBlockingAlgorithm.h.

References mitk::SmartPointerProperty::GetSmartPointer().

Referenced by mitk::SegmentationSink::GetGroupNode(), mitk::SegmentationSink::Initialize(), mitk::SegmentationSink::LookForPointerTargetBelowGroupNode(), mitk::CalculateSegmentationVolume::ReadyToRun(), mitk::SegmentationSink::ReadyToRun(), mitk::LabelSetImageToSurfaceThreadedFilter::ReadyToRun(), mitk::ShowSegmentationAsSurface::ReadyToRun(), mitk::CalculateSegmentationVolume::ThreadedUpdateFunction(), mitk::LabelSetImageToSurfaceThreadedFilter::ThreadedUpdateFunction(), mitk::ShowSegmentationAsSurface::ThreadedUpdateFunction(), mitk::LabelSetImageToSurfaceThreadedFilter::ThreadedUpdateSuccessful(), and mitk::ShowSegmentationAsSurface::ThreadedUpdateSuccessful().

◆ Initialize()

void mitk::NonBlockingAlgorithm::Initialize ( const NonBlockingAlgorithm *  other = nullptr)
protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::LabelSetImageToSurfaceThreadedFilter, mitk::SegmentationSink, and mitk::ShowSegmentationAsSmoothedSurface.

Definition at line 30 of file mitkNonBlockingAlgorithm.cpp.

References SetPointerParameter().

Referenced by Reset().

◆ mitkClassMacroItkParent()

mitk::NonBlockingAlgorithm::mitkClassMacroItkParent ( NonBlockingAlgorithm  ,
itk::Object
)

◆ ReadyToRun()

bool mitk::NonBlockingAlgorithm::ReadyToRun ( )
protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::LabelSetImageToSurfaceThreadedFilter, mitk::SegmentationSink, mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSmoothedSurface.

Definition at line 163 of file mitkNonBlockingAlgorithm.cpp.

Referenced by StartAlgorithm().

◆ Reset()

void mitk::NonBlockingAlgorithm::Reset ( )
virtual

Definition at line 79 of file mitkNonBlockingAlgorithm.cpp.

References Initialize().

◆ SetDataStorage()

void mitk::NonBlockingAlgorithm::SetDataStorage ( DataStorage &  storage)

Definition at line 28 of file mitkNonBlockingAlgorithm.cpp.

References m_DataStorage.

◆ SetItkImageAsMITKImagePointerParameter() [1/2]

template<typename TPixel , unsigned int VImageDimension>
void mitk::NonBlockingAlgorithm::SetItkImageAsMITKImagePointerParameter ( const char *  parameter,
itk::Image< TPixel, VImageDimension > *  itkImage
)
inline

For any kind of ITK images (C pointers)

Definition at line 126 of file mitkNonBlockingAlgorithm.h.

References mitk::ImportItkImage(), and mitk::Image::New().

◆ SetItkImageAsMITKImagePointerParameter() [2/2]

template<typename TPixel , unsigned int VImageDimension>
void mitk::NonBlockingAlgorithm::SetItkImageAsMITKImagePointerParameter ( const char *  parameter,
const itk::SmartPointer< itk::Image< TPixel, VImageDimension >> &  itkImage
)
inline

For any kind of ITK images (smartpointers)

Definition at line 138 of file mitkNonBlockingAlgorithm.h.

References mitk::ImportItkImage(), and mitk::Image::New().

◆ SetParameter()

template<typename T >
void mitk::NonBlockingAlgorithm::SetParameter ( const char *  parameter,
const T &  value
)
inline

For any kind of normal types.

Definition at line 98 of file mitkNonBlockingAlgorithm.h.

Referenced by mitk::SegmentationSink::Initialize(), and mitk::ShowSegmentationAsSurface::Initialize().

◆ SetPointerParameter() [1/2]

template<typename T >
void mitk::NonBlockingAlgorithm::SetPointerParameter ( const char *  parameter,
const itk::SmartPointer< T > &  value
)
inline

For any kind of smart pointers.

Definition at line 108 of file mitkNonBlockingAlgorithm.h.

References mitk::SmartPointerProperty::New().

Referenced by mitk::SegmentationSink::Initialize(), and Initialize().

◆ SetPointerParameter() [2/2]

void mitk::NonBlockingAlgorithm::SetPointerParameter ( const char *  parameter,
BaseData *  value
)

For any kind of BaseData, like Image, Surface, etc. Will be stored inside some SmartPointerProperty.

Definition at line 43 of file mitkNonBlockingAlgorithm.cpp.

References m_Parameters, and mitk::SmartPointerProperty::New().

◆ StartAlgorithm()

void mitk::NonBlockingAlgorithm::StartAlgorithm ( )

Definition at line 86 of file mitkNonBlockingAlgorithm.cpp.

References mitk::NonBlockingAlgorithm::ThreadParameters::m_Algorithm, and ReadyToRun().

Referenced by StartBlockingAlgorithm(), and TriggerParameterModified().

◆ StartBlockingAlgorithm()

void mitk::NonBlockingAlgorithm::StartBlockingAlgorithm ( )

Definition at line 80 of file mitkNonBlockingAlgorithm.cpp.

References StartAlgorithm(), and StopAlgorithm().

◆ StopAlgorithm()

void mitk::NonBlockingAlgorithm::StopAlgorithm ( )

Definition at line 107 of file mitkNonBlockingAlgorithm.cpp.

References mitk::CallbackFromGUIThread::CallThisFromGUIThread(), mitk::CallbackFromGUIThread::GetInstance(), mitk::NonBlockingAlgorithm::ThreadParameters::m_Algorithm, ThreadedUpdateFailed(), and ThreadedUpdateSuccessful().

Referenced by StartBlockingAlgorithm().

◆ ThreadedUpdateFailed() [1/2]

void mitk::NonBlockingAlgorithm::ThreadedUpdateFailed ( const itk::EventObject &  )

Definition at line 187 of file mitkNonBlockingAlgorithm.cpp.

References mitk::NonBlockingAlgorithm::ThreadParameters::m_Algorithm, and ThreadedUpdateFailed().

◆ ThreadedUpdateFailed() [2/2]

void mitk::NonBlockingAlgorithm::ThreadedUpdateFailed ( )
protectedvirtual

Definition at line 197 of file mitkNonBlockingAlgorithm.cpp.

Referenced by StopAlgorithm(), and ThreadedUpdateFailed().

◆ ThreadedUpdateFunction()

bool mitk::NonBlockingAlgorithm::ThreadedUpdateFunction ( )
protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::LabelSetImageToSurfaceThreadedFilter, mitk::SegmentationSink, mitk::CalculateSegmentationVolume, and mitk::ShowSegmentationAsSmoothedSurface.

Definition at line 168 of file mitkNonBlockingAlgorithm.cpp.

◆ ThreadedUpdateSuccessful() [1/2]

void mitk::NonBlockingAlgorithm::ThreadedUpdateSuccessful ( const itk::EventObject &  )

Definition at line 170 of file mitkNonBlockingAlgorithm.cpp.

References mitk::NonBlockingAlgorithm::ThreadParameters::m_Algorithm, and ThreadedUpdateSuccessful().

◆ ThreadedUpdateSuccessful() [2/2]

void mitk::NonBlockingAlgorithm::ThreadedUpdateSuccessful ( )
protectedvirtual

Reimplemented in mitk::ShowSegmentationAsSurface, mitk::LabelSetImageToSurfaceThreadedFilter, and mitk::ShowSegmentationAsSmoothedSurface.

Definition at line 180 of file mitkNonBlockingAlgorithm.cpp.

Referenced by StopAlgorithm(), and ThreadedUpdateSuccessful().

◆ TriggerParameterModified()

void mitk::NonBlockingAlgorithm::TriggerParameterModified ( const itk::EventObject &  )

Definition at line 162 of file mitkNonBlockingAlgorithm.cpp.

References StartAlgorithm().

Referenced by DefineTriggerParameter().

◆ UnDefineTriggerParameter()

void mitk::NonBlockingAlgorithm::UnDefineTriggerParameter ( const char *  parameter)
protected

Definition at line 63 of file mitkNonBlockingAlgorithm.cpp.

References m_Parameters, and MITK_ERROR.

Referenced by mitk::SegmentationSink::Initialize().

Member Data Documentation

◆ m_DataStorage

WeakPointer<DataStorage> mitk::NonBlockingAlgorithm::m_DataStorage
protected

Definition at line 228 of file mitkNonBlockingAlgorithm.h.

Referenced by GetDataStorage(), mitk::SegmentationSink::InsertBelowGroupNode(), mitk::SegmentationSink::LookForPointerTargetBelowGroupNode(), and SetDataStorage().

◆ m_Parameters

PropertyList::Pointer mitk::NonBlockingAlgorithm::m_Parameters
protected

Definition at line 226 of file mitkNonBlockingAlgorithm.h.

Referenced by DefineTriggerParameter(), NonBlockingAlgorithm(), SetPointerParameter(), and UnDefineTriggerParameter().

The documentation for this class was generated from the following files:
