mitk::SmartPointerProperty Class Reference

Property containing a smart-pointer. More...

#include <mitkSmartPointerProperty.h>

Inheritance diagram for mitk::SmartPointerProperty:

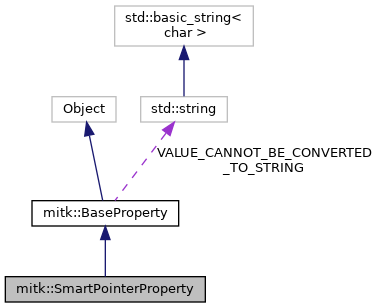

Collaboration diagram for mitk::SmartPointerProperty:

Public Types
typedef SmartPointerProperty	Self
typedef BaseProperty	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::Object::Pointer	ValueType
Public Types inherited from mitk::BaseProperty
typedef BaseProperty	Self
typedef itk::Object	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override
virtual const char *	GetClassName () const
Pointer	Clone () const
itk::Object::Pointer	GetSmartPointer () const
ValueType	GetValue () const
void	SetSmartPointer (itk::Object *)
void	SetValue (const ValueType &)
std::string	GetValueAsString () const override
	mainly for XML output More...
Public Member Functions inherited from mitk::BaseProperty
Pointer	Clone () const
bool	operator== (const BaseProperty &property) const
	Subclasses must implement IsEqual(const BaseProperty&) to support comparison. More...
BaseProperty &	operator= (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...
bool	AssignProperty (const BaseProperty &property)
	Assigns property to this BaseProperty instance. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
static Pointer	New (itk::Object *_arg)
static void	PostProcessXMLReading ()
static unsigned int	GetReferenceCountFor (itk::Object *)
	Return the number of SmartPointerProperties that reference the object given as parameter. More...
static std::string	GetReferenceUIDFor (itk::Object *)
static void	RegisterPointerTarget (itk::Object *, const std::string uid)
Static Public Member Functions inherited from mitk::BaseProperty
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	SmartPointerProperty (itk::Object *=nullptr)
	SmartPointerProperty (const SmartPointerProperty &)
Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()
	BaseProperty (const BaseProperty &other)
	~BaseProperty () override

Protected Attributes
itk::Object::Pointer	m_SmartPointer

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value if a property which can not be returned as string. More...

Detailed Description

Property containing a smart-pointer.

Definition at line 34 of file mitkSmartPointerProperty.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::SmartPointerProperty::ConstPointer

Definition at line 37 of file mitkSmartPointerProperty.h.

Pointer

typedef itk::SmartPointer<Self> mitk::SmartPointerProperty::Pointer

Definition at line 37 of file mitkSmartPointerProperty.h.

Self

typedef SmartPointerProperty mitk::SmartPointerProperty::Self

Definition at line 37 of file mitkSmartPointerProperty.h.

Superclass

typedef BaseProperty mitk::SmartPointerProperty::Superclass

Definition at line 37 of file mitkSmartPointerProperty.h.

ValueType

typedef itk::Object::Pointer mitk::SmartPointerProperty::ValueType

Definition at line 40 of file mitkSmartPointerProperty.h.

Constructor & Destructor Documentation

SmartPointerProperty() [1/2]

mitk::SmartPointerProperty::SmartPointerProperty ( itk::Object *  pointer = nullptr )

protected

Definition at line 75 of file mitkSmartPointerProperty.cpp.

References SetSmartPointer().

SmartPointerProperty() [2/2]

mitk::SmartPointerProperty::SmartPointerProperty ( const SmartPointerProperty &  other )

protected

Definition at line 80 of file mitkSmartPointerProperty.cpp.

Member Function Documentation

Clone()

Pointer mitk::SmartPointerProperty::Clone

(

)

const

GetClassHierarchy()

virtual std::vector<std::string> mitk::SmartPointerProperty::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::BaseProperty.

Definition at line 37 of file mitkSmartPointerProperty.h.

GetClassName()

virtual const char* mitk::SmartPointerProperty::GetClassName ( ) const

virtual

Reimplemented from mitk::BaseProperty.

GetReferenceCountFor()

unsigned int mitk::SmartPointerProperty::GetReferenceCountFor ( itk::Object *  object )

static

Return the number of SmartPointerProperties that reference the object given as parameter.

Returns

The number of SmartPointerProperties that point to

Parameters

object

Definition at line 35 of file mitkSmartPointerProperty.cpp.

GetReferenceUIDFor()

std::string mitk::SmartPointerProperty::GetReferenceUIDFor ( itk::Object *  object )

static

Definition at line 52 of file mitkSmartPointerProperty.cpp.

References m_SmartPointer.

GetSmartPointer()

itk::Object::Pointer mitk::SmartPointerProperty::GetSmartPointer

(

)

const

Definition at line 85 of file mitkSmartPointerProperty.cpp.

References m_SmartPointer.

Referenced by mitk::NonBlockingAlgorithm::GetPointerParameter(), and GetValue().

GetStaticNameOfClass()

static const char* mitk::SmartPointerProperty::GetStaticNameOfClass ( )

inlinestatic

Definition at line 37 of file mitkSmartPointerProperty.h.

GetValue()

itk::Object::Pointer mitk::SmartPointerProperty::GetValue

(

)

const

Definition at line 90 of file mitkSmartPointerProperty.cpp.

References GetSmartPointer().

GetValueAsString()

std::string mitk::SmartPointerProperty::GetValueAsString ( ) const

overridevirtual

mainly for XML output

Reimplemented from mitk::BaseProperty.

Definition at line 123 of file mitkSmartPointerProperty.cpp.

References m_SmartPointer.

New() [1/2]

static Pointer mitk::SmartPointerProperty::New ( )

static

Referenced by mitk::PlaneGeometryDataVtkMapper3D::GenerateDataForRenderer(), mitk::KinectV2Device::GetAllImages(), mitkSurfaceVtkMapper3DTest(), QmitkToFSurfaceGenerationWidget::OnRGBTextureCheckBoxChecked(), and mitk::NonBlockingAlgorithm::SetPointerParameter().

New() [2/2]

static Pointer mitk::SmartPointerProperty::New ( itk::Object *  _arg )

inlinestatic

Definition at line 40 of file mitkSmartPointerProperty.h.

PostProcessXMLReading()

void mitk::SmartPointerProperty::PostProcessXMLReading ( )

static

Definition at line 21 of file mitkSmartPointerProperty.cpp.

RegisterPointerTarget()

void mitk::SmartPointerProperty::RegisterPointerTarget ( itk::Object *  object, const std::string  uid  )

static

Definition at line 47 of file mitkSmartPointerProperty.cpp.

SetSmartPointer()

void mitk::SmartPointerProperty::SetSmartPointer

(

itk::Object *

pointer

)

Definition at line 95 of file mitkSmartPointerProperty.cpp.

References mitk::UIDGenerator::GetUID(), and m_SmartPointer.

Referenced by SetValue(), and SmartPointerProperty().

SetValue()

void mitk::SmartPointerProperty::SetValue

(

const ValueType &

value

)

Definition at line 118 of file mitkSmartPointerProperty.cpp.

References SetSmartPointer().

Member Data Documentation

m_SmartPointer

itk::Object::Pointer mitk::SmartPointerProperty::m_SmartPointer

protected

Definition at line 66 of file mitkSmartPointerProperty.h.

Referenced by GetReferenceUIDFor(), GetSmartPointer(), GetValueAsString(), and SetSmartPointer().

---

The documentation for this class was generated from the following files:

• mitkSmartPointerProperty.h
• mitkSmartPointerProperty.cpp
