Alternative Vtk-based 3D mapper for mitk::PointSet. More...

#include <mitkEnhancedPointSetVtkMapper3D.h>

Inheritance diagram for mitk::EnhancedPointSetVtkMapper3D:

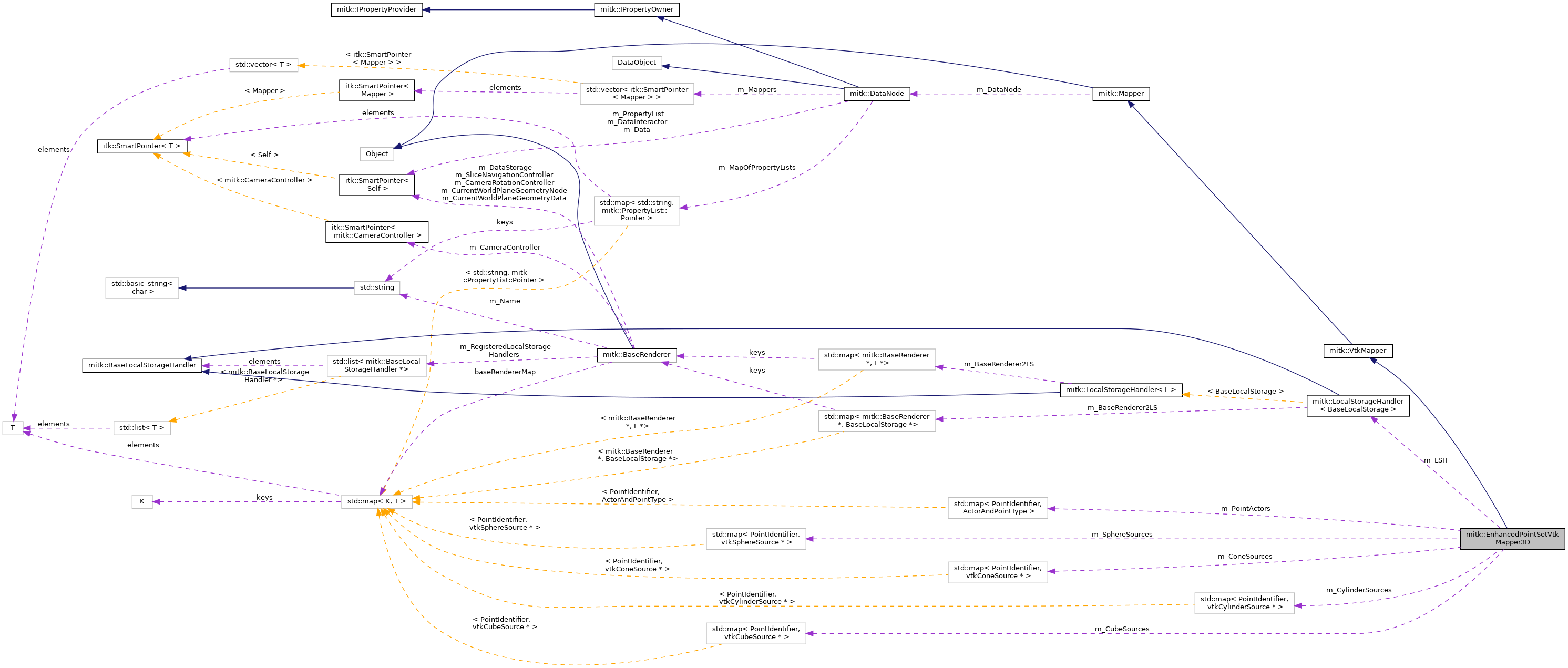

Collaboration diagram for mitk::EnhancedPointSetVtkMapper3D:

[legend]

Public Member Functions
	mitkClassMacro (EnhancedPointSetVtkMapper3D, VtkMapper)

Pointer	Clone () const

virtual const mitk::PointSet *	GetInput ()

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override

void	UpdateVtkTransform (mitk::BaseRenderer *renderer) override
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

Public Member Functions inherited from mitk::VtkMapper
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

virtual bool	IsVtkBased () const override
	Returns whether this is an vtk-based mapper. More...

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determines which geometry should be rendered (opaque, translucent, volumetric, overlay) and calls the appropriate function. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Checks visibility and renders the overlay. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Checks visibility and renders untransparent geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Checks visiblity and renders transparent geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Checks visibility and renders volumes. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Returns true if this mapper owns the specified vtkProp for the given BaseRenderer. More...

virtual void	ApplyProperties (vtkActor actor, mitk::BaseRenderer renderer)
	Apply color and opacity properties read from the PropertyList. More...

void	ApplyShaderProperties (mitk::BaseRenderer *)

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release vtk-based graphics resources that are being consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid. More...

BaseData *	GetData () const
	Get the data to map. More...

virtual bool	GetColor (float rgb[3], BaseRenderer renderer, const char name="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

virtual bool	GetVisibility (bool &visible, BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty) More...

virtual bool	GetOpacity (float &opacity, BaseRenderer renderer, const char name="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

virtual bool	GetLevelWindow (LevelWindow &levelWindow, BaseRenderer renderer, const char name="levelwindow") const
	Convenience access method for color properties (instances of LevelWindoProperty) More...

virtual bool	IsVisible (BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

virtual void	Update (BaseRenderer *renderer)
	Calls the time step of the input data for the specified renderer and checks whether the time step is valid and calls method GenerateDataForRenderer() More...

int	GetTimestep () const
	Returns the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)

Static Public Member Functions inherited from mitk::VtkMapper
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::Mapper
static const char *	GetStaticNameOfClass ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper to node. More...

Public Attributes
LocalStorageHandler< BaseLocalStorage >	m_LSH

Protected Types
typedef mitk::PointSet::PointIdentifier	PointIdentifier

typedef std::map< PointIdentifier, vtkSphereSource * >	SphereSourceMap

typedef std::map< PointIdentifier, vtkCubeSource * >	CubeSourceMap

typedef std::map< PointIdentifier, vtkConeSource * >	ConeSourceMap

typedef std::map< PointIdentifier, vtkCylinderSource * >	CylinderSourceMap

typedef std::pair< vtkActor *, mitk::PointSpecificationType >	ActorAndPointType

typedef std::map< PointIdentifier, ActorAndPointType >	ActorMap

Protected Member Functions
	EnhancedPointSetVtkMapper3D ()

	~EnhancedPointSetVtkMapper3D () override

void	RemoveEntryFromSourceMaps (mitk::PointSet::PointIdentifier pointID)

void	DeleteVtkObject (vtkObject *o)

void	UpdateVtkObjects ()

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Generate the data needed for rendering into renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList. Called by mapper subclasses. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer) More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
SphereSourceMap	m_SphereSources

CubeSourceMap	m_CubeSources

ConeSourceMap	m_ConeSources

CylinderSourceMap	m_CylinderSources

ActorMap	m_PointActors

vtkActor *	m_Contour

vtkTubeFilter *	m_ContourSource

vtkAssembly *	m_PropAssembly

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Additional Inherited Members
Public Types inherited from mitk::VtkMapper
typedef VtkMapper	Self

typedef Mapper	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::Mapper
typedef Mapper	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Detailed Description

Alternative Vtk-based 3D mapper for mitk::PointSet.

This class renders mitk::PointSet objects in 3D views. It resembles the standard mitk::PointSetVtkMapper3D, but is designed to enable single points to be rendered with individual appearances.

Instead of assembling one vtkPolyData object containing all points, a list of VTK source objects (spheres, cubes, cones, ...) is maintained. Therefore, the application can change the appearance and/or type of a specific point at runtime, without having to rebuild the

You should use this class instead of the standard mapper if you

change the PointSet very often (by adding or removing points)
need different representations for points (+++)
want to change the point representation frequently (+++)

Note: the class is still in experimental stage, and the points above marked with (+++) are not yet working correctly. Also, drawing lines between points (contour mode) is not yet supported. The class will be extended so that point representations are stored in a lookup table, which is indexed by point data from the rendered PointSet.

This mapper requires the PointData container to be the same size as the point container.

See also: PointSetVtkMapper3D

Definition at line 63 of file mitkEnhancedPointSetVtkMapper3D.h.

Member Typedef Documentation

◆ ActorAndPointType

typedef std::pair<vtkActor *, mitk::PointSpecificationType> mitk::EnhancedPointSetVtkMapper3D::ActorAndPointType

protected

Definition at line 102 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ ActorMap

typedef std::map<PointIdentifier, ActorAndPointType> mitk::EnhancedPointSetVtkMapper3D::ActorMap

protected

Definition at line 103 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ ConeSourceMap

typedef std::map<PointIdentifier, vtkConeSource *> mitk::EnhancedPointSetVtkMapper3D::ConeSourceMap

protected

Definition at line 99 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ CubeSourceMap

typedef std::map<PointIdentifier, vtkCubeSource *> mitk::EnhancedPointSetVtkMapper3D::CubeSourceMap

protected

Definition at line 98 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ CylinderSourceMap

typedef std::map<PointIdentifier, vtkCylinderSource *> mitk::EnhancedPointSetVtkMapper3D::CylinderSourceMap

protected

Definition at line 100 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ PointIdentifier

typedef mitk::PointSet::PointIdentifier mitk::EnhancedPointSetVtkMapper3D::PointIdentifier

protected

Definition at line 96 of file mitkEnhancedPointSetVtkMapper3D.h.

◆ SphereSourceMap

typedef std::map<PointIdentifier, vtkSphereSource *> mitk::EnhancedPointSetVtkMapper3D::SphereSourceMap

protected

Definition at line 97 of file mitkEnhancedPointSetVtkMapper3D.h.

Constructor & Destructor Documentation

◆ EnhancedPointSetVtkMapper3D()

mitk::EnhancedPointSetVtkMapper3D::EnhancedPointSetVtkMapper3D ( )

protected

Definition at line 48 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References m_Contour, m_ContourSource, and m_PropAssembly.

◆ ~EnhancedPointSetVtkMapper3D()

mitk::EnhancedPointSetVtkMapper3D::~EnhancedPointSetVtkMapper3D ( )

overrideprotected

Definition at line 60 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References m_Contour, m_ContourSource, and m_PropAssembly.

Member Function Documentation

◆ ApplyColorAndOpacityProperties()

void mitk::EnhancedPointSetVtkMapper3D::ApplyColorAndOpacityProperties	(	mitk::BaseRenderer *	renderer,
		vtkActor *	actor
	)

overrideprotectedvirtual

Apply color and opacity properties read from the PropertyList. Called by mapper subclasses.

Reimplemented from mitk::VtkMapper.

Definition at line 180 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References mitk::DataNode::GetColor(), mitk::Mapper::GetDataNode(), mitk::DataNode::GetFloatProperty(), GetInput(), mitk::DataNode::GetOpacity(), mitk::PointSet::GetPointSet(), mitk::DataNode::GetProperty(), mitk::GenericLookupTable< T >::GetTableValue(), mitk::Mapper::GetTimestep(), mitk::DataNode::IsVisible(), m_ConeSources, m_CubeSources, m_CylinderSources, m_PointActors, m_SphereSources, mitk::PTCORNER, mitk::PTEDGE, mitk::PTEND, mitk::PTSTART, mitk::PTUNDEFINED, and UpdateVtkObjects().

Referenced by GenerateDataForRenderer().

◆ Clone()

Pointer mitk::EnhancedPointSetVtkMapper3D::Clone ( ) const

◆ DeleteVtkObject()

void mitk::EnhancedPointSetVtkMapper3D::DeleteVtkObject ( vtkObject * o )

protected

Definition at line 393 of file mitkEnhancedPointSetVtkMapper3D.cpp.

◆ GenerateDataForRenderer()

void mitk::EnhancedPointSetVtkMapper3D::GenerateDataForRenderer ( mitk::BaseRenderer * )

overrideprotectedvirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

Definition at line 346 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References ApplyColorAndOpacityProperties(), mitk::Mapper::GetDataNode(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::Mapper::BaseLocalStorage::IsGenerateDataRequired(), ls, m_LSH, and UpdateVtkObjects().

◆ GetInput()

const mitk::PointSet * mitk::EnhancedPointSetVtkMapper3D::GetInput ( void )

virtual

Definition at line 43 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References mitk::DataNode::GetData(), and mitk::Mapper::GetDataNode().

Referenced by ApplyColorAndOpacityProperties(), and UpdateVtkObjects().

◆ GetVtkProp()

vtkProp * mitk::EnhancedPointSetVtkMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Implements mitk::VtkMapper.

Definition at line 55 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References m_PropAssembly.

◆ mitkClassMacro()

mitk::EnhancedPointSetVtkMapper3D::mitkClassMacro	(	EnhancedPointSetVtkMapper3D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::EnhancedPointSetVtkMapper3D::New ( )

static

◆ RemoveEntryFromSourceMaps()

void mitk::EnhancedPointSetVtkMapper3D::RemoveEntryFromSourceMaps ( mitk::PointSet::PointIdentifier pointID )

protected

Definition at line 399 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References m_ConeSources, m_CubeSources, m_CylinderSources, m_PointActors, m_SphereSources, mitk::PTCORNER, mitk::PTEDGE, mitk::PTEND, mitk::PTSTART, and mitk::PTUNDEFINED.

Referenced by UpdateVtkObjects().

◆ SetDefaultProperties()

void mitk::EnhancedPointSetVtkMapper3D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Definition at line 372 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References mitk::DataNode::AddProperty(), mitk::BoolProperty::New(), mitk::IntProperty::New(), mitk::FloatProperty::New(), mitk::StringProperty::New(), and mitk::ColorProperty::New().

◆ UpdateVtkObjects()

void mitk::EnhancedPointSetVtkMapper3D::UpdateVtkObjects ( )

protected

Definition at line 80 of file mitkEnhancedPointSetVtkMapper3D.cpp.

References GetInput(), mitk::PointSet::GetPointSet(), mitk::Mapper::GetTimestep(), m_ConeSources, m_CubeSources, m_CylinderSources, m_PointActors, m_PropAssembly, m_SphereSources, mitk::PTCORNER, mitk::PTEDGE, mitk::PTEND, mitk::PTSTART, mitk::PTUNDEFINED, and RemoveEntryFromSourceMaps().

Referenced by ApplyColorAndOpacityProperties(), and GenerateDataForRenderer().

◆ UpdateVtkTransform()

void mitk::EnhancedPointSetVtkMapper3D::UpdateVtkTransform ( mitk::BaseRenderer * renderer )

overridevirtual

Set the vtkTransform of the m_Prop3D for the current time step of renderer.

Called by mitk::VtkPropRenderer::Update before rendering. This method will transform all actors (e.g. of an vtkAssembly) according the geometry.

Warning: This method transforms only props which derive from vtkProp3D. Make sure to use vtkAssembly, if you have multiple props. vtkPropAssembly does not work, since it derives from vtkProp.

Reimplemented from mitk::VtkMapper.

Definition at line 360 of file mitkEnhancedPointSetVtkMapper3D.cpp.
