Basic interaction methods for mitk::GeometryData. More...

#include <mitkBoundingShapeInteractor.h>

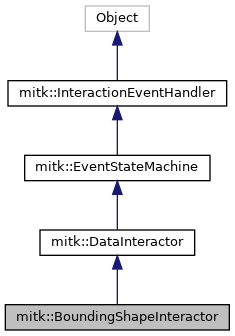

Inheritance diagram for mitk::BoundingShapeInteractor:

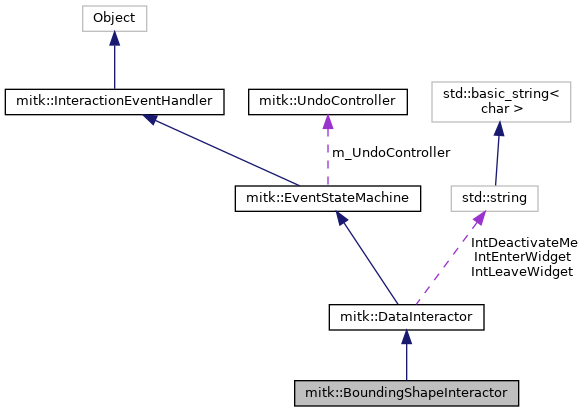

Collaboration diagram for mitk::BoundingShapeInteractor:

[legend]

Public Member Functions
	mitkClassMacro (BoundingShapeInteractor, DataInteractor)

Pointer	Clone () const

void	SetDataNode (DataNode *dataNode) override

void	SetRotationEnabled (bool rotationEnabled)

Public Member Functions inherited from mitk::DataInteractor
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

DataNode *	GetDataNode () const

int	GetLayer () const

ProcessEventMode	GetMode () const

Public Member Functions inherited from mitk::EventStateMachine
bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Loads XML resource. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)

void	EnableUndo (bool enable)
	Enables or disabled Undo. More...

void	EnableInteraction (bool enable)
	Enables/disables the state machine. In un-enabled state it won't react to any events. More...

Public Member Functions inherited from mitk::InteractionEventHandler
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::DataInteractor
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::EventStateMachine
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::InteractionEventHandler
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	BoundingShapeInteractor ()

	~BoundingShapeInteractor () override

void	ConnectActionsAndFunctions () override

void	DataNodeChanged () override
	Called when a DataNode has been set/changed. More...

void	HandlePositionChanged (const InteractionEvent *interactionEvent, Point3D &center)

virtual bool	CheckOverObject (const InteractionEvent *)
	Checks if the mouse pointer is over the object. More...

virtual bool	CheckOverHandles (const InteractionEvent *interactionEvent)
	Checks if the mouse pointer is over one of the assigned handles. More...

virtual void	SelectObject (StateMachineAction , InteractionEvent )
	Called if the mouse pointer is over the object indicated by a color change. More...

virtual void	DeselectObject (StateMachineAction , InteractionEvent )
	Called if the mouse pointer leaves the area of the object. More...

virtual void	SelectHandle (StateMachineAction , InteractionEvent )
	Called if the mouse pointer is over one of the handles indicated by a color change. More...

virtual void	TranslateObject (StateMachineAction , InteractionEvent )
	Performs a translation of the object relative to the mouse movement. More...

virtual void	ScaleObject (StateMachineAction , InteractionEvent )
	Performs a object shape change by influencing the scaling of the initial bounding box. More...

virtual void	InitInteraction (StateMachineAction , InteractionEvent interactionEvent)
	Initializes the movement, stores starting position. More...

virtual void	DeselectHandles (StateMachineAction , InteractionEvent interactionEvent)
	Deselects all Handles at the end of interaction. More...

virtual void	RestoreNodeProperties ()
	Restore default properties of bounding box and handles. More...

bool	InitMembers (InteractionEvent *interactionEvent)
	Initializes member variables. More...

Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()

	~DataInteractor () override

void	ConnectActionsAndFunctions () override
	Overwrite this function to connect actions from StateMachine description with functions. More...

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, TActionFunctor *functor)

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

virtual bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor (if modified by the SlicesCoordinator) to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Additional Inherited Members
Public Types inherited from mitk::DataInteractor
typedef DataInteractor	Self

typedef EventStateMachine	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::EventStateMachine
typedef EventStateMachine	Self

typedef InteractionEventHandler	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, TActionFunctor * >	ActionFunctionsMapType

typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Types inherited from mitk::InteractionEventHandler
typedef InteractionEventHandler	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe

static const std::string	IntLeaveWidget

static const std::string	IntEnterWidget

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Basic interaction methods for mitk::GeometryData.

Inherit from DataInteratcor, this provides functionality of a state machine and configurable inputs.

Definition at line 38 of file mitkBoundingShapeInteractor.h.

Constructor & Destructor Documentation

◆ BoundingShapeInteractor()

mitk::BoundingShapeInteractor::BoundingShapeInteractor ( )

protected

Definition at line 65 of file mitkBoundingShapeInteractor.cpp.

◆ ~BoundingShapeInteractor()

mitk::BoundingShapeInteractor::~BoundingShapeInteractor ( )

overrideprotected

Definition at line 69 of file mitkBoundingShapeInteractor.cpp.

References RestoreNodeProperties().

Member Function Documentation

◆ CheckOverHandles()

bool mitk::BoundingShapeInteractor::CheckOverHandles ( const InteractionEvent * interactionEvent )

protectedvirtual

Checks if the mouse pointer is over one of the assigned handles.

Definition at line 242 of file mitkBoundingShapeInteractor.cpp.

References activeHandleIdPropertyName, mitk::GetCornerPoints(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::BaseRenderer::GetDisplaySizeInMM(), mitk::RenderingManager::GetInstance(), mitk::DataNode::GetProperty(), mitk::DataNode::GetPropertyList(), mitk::BaseRenderer::GetScaleFactorMMPerDisplayUnit(), mitk::InteractionEvent::GetSender(), HandlePositionChanged(), mitk::IntProperty::New(), mitk::RenderingManager::RequestUpdateAll(), mitk::PropertyList::SetProperty(), and mitk::BaseRenderer::WorldToDisplay().

Referenced by ConnectActionsAndFunctions().

◆ CheckOverObject()

bool mitk::BoundingShapeInteractor::CheckOverObject ( const InteractionEvent * interactionEvent )

protectedvirtual

Checks if the mouse pointer is over the object.

Definition at line 195 of file mitkBoundingShapeInteractor.cpp.

References mitk::BaseRenderer::DisplayToWorld(), mitk::DataNode::GetData(), mitk::DataInteractor::GetDataNode(), mitk::InteractionEvent::GetSender(), and mitk::BaseRenderer::GetTimeStep().

Referenced by ConnectActionsAndFunctions().

◆ Clone()

Pointer mitk::BoundingShapeInteractor::Clone ( ) const

◆ ConnectActionsAndFunctions()

void mitk::BoundingShapeInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Here actions strings from the loaded state machine pattern are mapped to functions of the DataInteractor. These functions are called when an action from the state machine pattern is executed.

Reimplemented from mitk::EventStateMachine.

Definition at line 75 of file mitkBoundingShapeInteractor.cpp.

References CheckOverHandles(), CheckOverObject(), CONNECT_CONDITION, CONNECT_FUNCTION, DeselectHandles(), DeselectObject(), InitInteraction(), ScaleObject(), SelectHandle(), SelectObject(), and TranslateObject().
