IGT Fiducial Registration Widget. More...

#include <QmitkFiducialRegistrationWidget.h>

Inheritance diagram for QmitkFiducialRegistrationWidget:

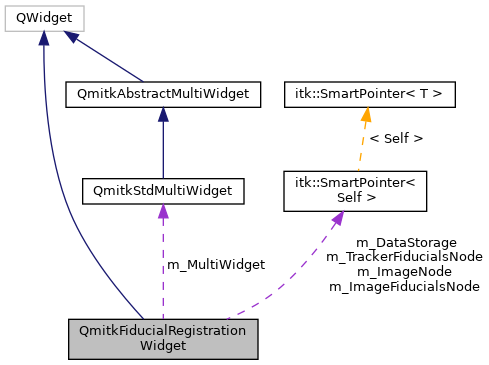

Collaboration diagram for QmitkFiducialRegistrationWidget:

[legend]

Public Types
enum	WidgetAppearanceMode { FIDUCIALMODE, LANDMARKMODE }
	enumeration to specify the appearance of the widget. 'FIDUCIALMODE' is likely to be used for (tracking) fiducial based registration purposes 'LANDMARKMODE' can be used for any kind of landmark based registration (source landmarks -> target/reference landmarks) More...

Signals
void	AddedTrackingFiducial ()
	signal if a world instrument position was added to a tracking space fiducial More...

void	AddedImageFiducial ()
	signal if an image position was added to a image space fiducial More...

void	PerformFiducialRegistration ()
	signal if all fiducial were added and registration can be performed More...

void	FindFiducialCorrespondences (bool on)
	signal if automatic correspondences search is toggled More...

Public Member Functions
	QmitkFiducialRegistrationWidget (QWidget *parent)

	~QmitkFiducialRegistrationWidget () override

void	setImageNode (mitk::DataNode::Pointer i)

void	setTrackerNavigationData (mitk::NavigationData::Pointer t)

void	setDataStorage (mitk::DataStorage::Pointer d)

void	SetWidgetAppearanceMode (WidgetAppearanceMode widgetMode)
	set the appearance mode of this widget 'FIDUCIALMODE' adapts the widget for (tracking) fiducial based registration purposes 'LANDMARKMODE' adapts the widget for landmark based registration (source landmarks -> target/reference landmarks) More...

void	SetMultiWidget (QmitkStdMultiWidget *multiWidget)
	(Deprecated method. Multiwidget is not required any more.) Set the default stdMultiWidget (needed for the PointListwidget) More...

void	AddSliceNavigationController (mitk::SliceNavigationController *snc)
	add the slice navigation controller to be used to move the crosshair to the actual point position More...

void	SetImageFiducialsNode (mitk::DataNode::Pointer imageFiducialsNode)
	specify data tree node for the image fiducials More...

void	SetTrackerFiducialsNode (mitk::DataNode::Pointer trackerFiducialsNode)
	specify data tree node for the tracker fiducials More...

mitk::DataNode::Pointer	GetImageFiducialsNode ()
	returns data tree node for the image fiducials More...

mitk::DataNode::Pointer	GetTrackerFiducialsNode ()
	returns data tree node for the tracker fiducials More...

void	SetQualityDisplayText (QString text)
	sets specific text on the UI (useful to display FRE/TRE...) More...

void	SetSourceLandmarkName (QString sourceLandmarkName)
	Specify the name of the source landmarks. Will be used for label and button. More...

void	SetTargetLandmarkName (QString targetLandmarkName)
	Specify the name of the source landmarks. Will be used for label and button. More...

bool	UseICPIsChecked ()
	returns true if automatic correspondences search is activated else false More...

void	HideStaticRegistrationRadioButton (bool on)
	show or hide "static Fiducial Registration" radio button in the UI More...

void	HideContinousRegistrationRadioButton (bool on)
	show or hide "hybrid continuous Fiducial Registration" radio button in the UI More...

void	HideFiducialRegistrationGroupBox ()
	show or hide "Fiducial Registration method" groupbox in the UI, depending on the visibility of the radio buttons More...

void	HideUseICPRegistrationCheckbox (bool on)
	show or hide "Find fiducial correspondences (needs 6+ fiducial pairs)" check box in the UI More...

void	HideImageFiducialButton (bool on)
	show or hide "Add image fiducial" button in the UI More...

void	HideTrackingFiducialButton (bool on)
	show or hide "Add tracking fiducial" button in the UI More...

void	AdjustButtonSpacing ()
	Rearrange spacing when buttons are turned on or off. More...

Protected Slots
void	DisableEditButtonRegistrationImagePoints (bool)
	Disables the edit button of the widget RegistrationImagePoints if the activated variable is true. More...

void	DisableEditButtonRegistrationTrackingPoints (bool)
	Disables the edit button of the widget RegistrationTrackingPoints if the activated variable is true. More...

void	AddTrackerPoint ()

void	Register ()

Protected Member Functions
void	CreateQtPartControl (QWidget *parent)

void	CreateConnections ()

bool	CheckRegistrationInitialization ()

Protected Attributes
Ui::QmitkFiducialRegistrationWidget *	m_Controls
	gui widget More...

QmitkStdMultiWidget *	m_MultiWidget

mitk::DataNode::Pointer	m_ImageFiducialsNode

mitk::DataNode::Pointer	m_TrackerFiducialsNode

mitk::DataStorage::Pointer	m_DataStorage

mitk::NavigationData::Pointer	m_TrackerNavigationData

mitk::DataNode::Pointer	m_ImageNode

mitk::NavigationData::Pointer	m_T_ObjectReg

Detailed Description

IGT Fiducial Registration Widget.

Widget used to set fiducial landmarks in the image and to confirm the corresponding landmarks on the world object (patient/phantom).

The widget can add tracker fiducials and perform the registration internally. To enable this functionaltity the methods SetDataStorage(), setTrackerNavigationData() and setImageNode() needs to be called before.

If Registration should be handled from outside the class the methods SetImageFiducialsNode() and SetTrackerFiducialsNode() must be called, otherwise the QmitkPointListWidget can not work. If SetDataStorage() is not called the widget does nothing internally.

See also: IGT

Definition at line 34 of file QmitkFiducialRegistrationWidget.h.

Member Enumeration Documentation

◆ WidgetAppearanceMode

enum QmitkFiducialRegistrationWidget::WidgetAppearanceMode

enumeration to specify the appearance of the widget. 'FIDUCIALMODE' is likely to be used for (tracking) fiducial based registration purposes 'LANDMARKMODE' can be used for any kind of landmark based registration (source landmarks -> target/reference landmarks)

Enumerator
FIDUCIALMODE
LANDMARKMODE

Definition at line 58 of file QmitkFiducialRegistrationWidget.h.

Constructor & Destructor Documentation

◆ QmitkFiducialRegistrationWidget()

QmitkFiducialRegistrationWidget::QmitkFiducialRegistrationWidget ( QWidget * parent )

Definition at line 29 of file QmitkFiducialRegistrationWidget.cpp.

References CreateQtPartControl().

◆ ~QmitkFiducialRegistrationWidget()

QmitkFiducialRegistrationWidget::~QmitkFiducialRegistrationWidget ( )

override

Definition at line 36 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls, m_DataStorage, m_ImageFiducialsNode, and m_TrackerFiducialsNode.

Member Function Documentation

◆ AddedImageFiducial

void QmitkFiducialRegistrationWidget::AddedImageFiducial ( )

signal

signal if an image position was added to a image space fiducial

Referenced by CreateConnections().

◆ AddedTrackingFiducial

void QmitkFiducialRegistrationWidget::AddedTrackingFiducial ( )

signal

signal if a world instrument position was added to a tracking space fiducial

Referenced by CreateConnections().

◆ AddSliceNavigationController()

void QmitkFiducialRegistrationWidget::AddSliceNavigationController ( mitk::SliceNavigationController * snc )

add the slice navigation controller to be used to move the crosshair to the actual point position

Definition at line 171 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

◆ AddTrackerPoint

void QmitkFiducialRegistrationWidget::AddTrackerPoint ( )

protectedslot

Definition at line 296 of file QmitkFiducialRegistrationWidget.cpp.

References m_DataStorage, m_TrackerFiducialsNode, m_TrackerNavigationData, and MITK_WARN.

Referenced by CreateConnections().

◆ AdjustButtonSpacing()

void QmitkFiducialRegistrationWidget::AdjustButtonSpacing ( )

Rearrange spacing when buttons are turned on or off.

Definition at line 229 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

Referenced by HideImageFiducialButton(), and HideTrackingFiducialButton().

◆ CheckRegistrationInitialization()

bool QmitkFiducialRegistrationWidget::CheckRegistrationInitialization ( )

protected

Definition at line 304 of file QmitkFiducialRegistrationWidget.cpp.

References m_DataStorage, m_ImageFiducialsNode, m_TrackerFiducialsNode, and MITK_WARN.

Referenced by Register().

◆ CreateConnections()

void QmitkFiducialRegistrationWidget::CreateConnections ( )

protected

Definition at line 68 of file QmitkFiducialRegistrationWidget.cpp.

References AddedImageFiducial(), AddedTrackingFiducial(), AddTrackerPoint(), DisableEditButtonRegistrationImagePoints(), DisableEditButtonRegistrationTrackingPoints(), FindFiducialCorrespondences(), m_Controls, PerformFiducialRegistration(), and Register().

Referenced by CreateQtPartControl().

◆ CreateQtPartControl()

void QmitkFiducialRegistrationWidget::CreateQtPartControl ( QWidget * parent )

protected

Definition at line 49 of file QmitkFiducialRegistrationWidget.cpp.

References CreateConnections(), and m_Controls.

Referenced by QmitkFiducialRegistrationWidget().

◆ DisableEditButtonRegistrationImagePoints

void QmitkFiducialRegistrationWidget::DisableEditButtonRegistrationImagePoints ( bool activated )

protectedslot

Disables the edit button of the widget RegistrationImagePoints if the activated variable is true.

Definition at line 82 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

Referenced by CreateConnections().

◆ DisableEditButtonRegistrationTrackingPoints

void QmitkFiducialRegistrationWidget::DisableEditButtonRegistrationTrackingPoints ( bool activated )

protectedslot

Disables the edit button of the widget RegistrationTrackingPoints if the activated variable is true.

Definition at line 86 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

Referenced by CreateConnections().

◆ FindFiducialCorrespondences

void QmitkFiducialRegistrationWidget::FindFiducialCorrespondences ( bool on )

signal

signal if automatic correspondences search is toggled

Referenced by CreateConnections().

◆ GetImageFiducialsNode()

mitk::DataNode::Pointer QmitkFiducialRegistrationWidget::GetImageFiducialsNode ( )

returns data tree node for the image fiducials

Definition at line 177 of file QmitkFiducialRegistrationWidget.cpp.

References m_ImageFiducialsNode.

◆ GetTrackerFiducialsNode()

mitk::DataNode::Pointer QmitkFiducialRegistrationWidget::GetTrackerFiducialsNode ( )

returns data tree node for the tracker fiducials

Definition at line 182 of file QmitkFiducialRegistrationWidget.cpp.

References m_TrackerFiducialsNode.

◆ HideContinousRegistrationRadioButton()

void QmitkFiducialRegistrationWidget::HideContinousRegistrationRadioButton ( bool on )

show or hide "hybrid continuous Fiducial Registration" radio button in the UI

Definition at line 193 of file QmitkFiducialRegistrationWidget.cpp.

References HideFiducialRegistrationGroupBox(), and m_Controls.

Referenced by SetWidgetAppearanceMode().

◆ HideFiducialRegistrationGroupBox()

void QmitkFiducialRegistrationWidget::HideFiducialRegistrationGroupBox ( )

show or hide "Fiducial Registration method" groupbox in the UI, depending on the visibility of the radio buttons

Definition at line 199 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

Referenced by HideContinousRegistrationRadioButton(), HideStaticRegistrationRadioButton(), and SetWidgetAppearanceMode().

◆ HideImageFiducialButton()

void QmitkFiducialRegistrationWidget::HideImageFiducialButton ( bool on )

show or hide "Add image fiducial" button in the UI

Definition at line 216 of file QmitkFiducialRegistrationWidget.cpp.

References AdjustButtonSpacing(), and m_Controls.

Referenced by SetWidgetAppearanceMode().

◆ HideStaticRegistrationRadioButton()

void QmitkFiducialRegistrationWidget::HideStaticRegistrationRadioButton ( bool on )

show or hide "static Fiducial Registration" radio button in the UI

Definition at line 187 of file QmitkFiducialRegistrationWidget.cpp.

References HideFiducialRegistrationGroupBox(), and m_Controls.

Referenced by SetWidgetAppearanceMode().

◆ HideTrackingFiducialButton()

void QmitkFiducialRegistrationWidget::HideTrackingFiducialButton ( bool on )

show or hide "Add tracking fiducial" button in the UI

Definition at line 223 of file QmitkFiducialRegistrationWidget.cpp.

References AdjustButtonSpacing(), and m_Controls.

◆ HideUseICPRegistrationCheckbox()

void QmitkFiducialRegistrationWidget::HideUseICPRegistrationCheckbox ( bool on )

show or hide "Find fiducial correspondences (needs 6+ fiducial pairs)" check box in the UI

Definition at line 211 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

Referenced by SetWidgetAppearanceMode().

◆ PerformFiducialRegistration

void QmitkFiducialRegistrationWidget::PerformFiducialRegistration ( )

signal

signal if all fiducial were added and registration can be performed

Referenced by CreateConnections().

◆ Register

void QmitkFiducialRegistrationWidget::Register ( )

protectedslot

◆ setDataStorage()

void QmitkFiducialRegistrationWidget::setDataStorage ( mitk::DataStorage::Pointer d )

Sets the data storage. This is required is the widget shoul add tracker points and perform registrations internally. When not setting the data storage the widget can still be used by reacting on the signals and do custom actions outside.

Definition at line 275 of file QmitkFiducialRegistrationWidget.cpp.

References m_DataStorage, m_ImageFiducialsNode, m_TrackerFiducialsNode, mitk::DataNode::New(), mitk::PointSet::New(), SetImageFiducialsNode(), and SetTrackerFiducialsNode().

◆ SetImageFiducialsNode()

void QmitkFiducialRegistrationWidget::SetImageFiducialsNode ( mitk::DataNode::Pointer imageFiducialsNode )

specify data tree node for the image fiducials

Definition at line 134 of file QmitkFiducialRegistrationWidget.cpp.

References FRW_WARN, m_Controls, m_MultiWidget, and MITK_DEBUG.

Referenced by setDataStorage().

◆ setImageNode()

void QmitkFiducialRegistrationWidget::setImageNode ( mitk::DataNode::Pointer i )

Adds the image node which is transformed after "register" is clicked.

Definition at line 265 of file QmitkFiducialRegistrationWidget.cpp.

References m_ImageNode.

◆ SetMultiWidget()

void QmitkFiducialRegistrationWidget::SetMultiWidget ( QmitkStdMultiWidget * multiWidget )

(Deprecated method. Multiwidget is not required any more.) Set the default stdMultiWidget (needed for the PointListwidget)

Definition at line 166 of file QmitkFiducialRegistrationWidget.cpp.

References m_MultiWidget.

◆ SetQualityDisplayText()

void QmitkFiducialRegistrationWidget::SetQualityDisplayText ( QString text )

sets specific text on the UI (useful to display FRE/TRE...)

Definition at line 119 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

Referenced by Register().

◆ SetSourceLandmarkName()

void QmitkFiducialRegistrationWidget::SetSourceLandmarkName ( QString sourceLandmarkName )

Specify the name of the source landmarks. Will be used for label and button.

Example: sourceLandmarkName="CT" will result in group box title "CT landmarks" and button text "Add CT landmark".

Definition at line 243 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

◆ SetTargetLandmarkName()

void QmitkFiducialRegistrationWidget::SetTargetLandmarkName ( QString targetLandmarkName )

Specify the name of the source landmarks. Will be used for label and button.

Example: targetLandmarkName="CT" will result in group box title "CT landmarks" and button text "Add CT landmark".

Definition at line 254 of file QmitkFiducialRegistrationWidget.cpp.

References m_Controls.

◆ SetTrackerFiducialsNode()

void QmitkFiducialRegistrationWidget::SetTrackerFiducialsNode ( mitk::DataNode::Pointer trackerFiducialsNode )

specify data tree node for the tracker fiducials

Definition at line 150 of file QmitkFiducialRegistrationWidget.cpp.

References FRW_WARN, m_Controls, m_MultiWidget, and MITK_DEBUG.

Referenced by setDataStorage().

◆ setTrackerNavigationData()

void QmitkFiducialRegistrationWidget::setTrackerNavigationData ( mitk::NavigationData::Pointer t )

Adds the tracker navigation data which is used when "add current instrument position" is clicked.

Definition at line 270 of file QmitkFiducialRegistrationWidget.cpp.

References m_TrackerNavigationData.

◆ SetWidgetAppearanceMode()

void QmitkFiducialRegistrationWidget::SetWidgetAppearanceMode ( WidgetAppearanceMode widgetMode )

set the appearance mode of this widget 'FIDUCIALMODE' adapts the widget for (tracking) fiducial based registration purposes 'LANDMARKMODE' adapts the widget for landmark based registration (source landmarks -> target/reference landmarks)

Definition at line 91 of file QmitkFiducialRegistrationWidget.cpp.

References FIDUCIALMODE, HideContinousRegistrationRadioButton(), HideFiducialRegistrationGroupBox(), HideImageFiducialButton(), HideStaticRegistrationRadioButton(), HideUseICPRegistrationCheckbox(), LANDMARKMODE, and m_Controls.
