mitk::SegSliceOperation Class Reference

An Operation for applying an edited 2D slice to a group of a MultiLabelSegmentation. More...

#include <mitkSegSliceOperation.h>

Inheritance diagram for mitk::SegSliceOperation:

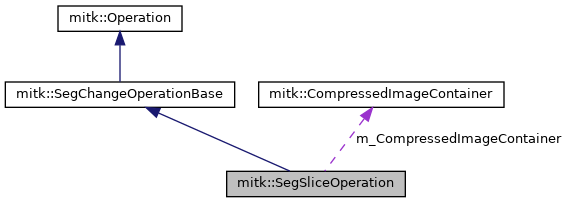

Collaboration diagram for mitk::SegSliceOperation:

Public Member Functions
	mitkClassMacro (SegSliceOperation, SegChangeOperationBase)
	SegSliceOperation (MultiLabelSegmentation *segmentation, MultiLabelSegmentation::GroupIndexType groupID, const Image *slice, const TimeStepType timestep, const PlaneGeometry *planeGeometry)
	Construct a slice operation. More...
	~SegSliceOperation () override=default
bool	IsValid () const override
	Check if it is a valid operation. More...
Image::Pointer	GetSlice () const
	Get the slice that is applied in the operation. More...
TimeStepType	GetTimeStep () const
	Get the time step the operation should be applied on. More...
const PlaneGeometry *	GetSlicePlaneGeometry () const
	Get the plane where the slice has to be applied in the volume. More...
MultiLabelSegmentation::GroupIndexType	GetGroupID () const
	Get the group index of the group image that should be modified. More...
Public Member Functions inherited from mitk::SegChangeOperationBase
	mitkClassMacro (SegChangeOperationBase, Operation)
	~SegChangeOperationBase () override=default
bool	IsValid () const override
	Check whether the operation is still valid (i.e., the segmentation still exists). More...
mitk::MultiLabelSegmentation::Pointer	GetSegmentation ()
	Get the target segmentation (mutable). More...
const mitk::MultiLabelSegmentation::ConstPointer	GetSegmentation () const
	Get the target segmentation (const). More...
Public Member Functions inherited from mitk::Operation
	mitkClassMacroNoParent (Operation) virtual bool IsValid() const
	Check whether this operation is still valid and can be executed. More...
virtual	~Operation ()=default
	Virtual destructor. More...
OperationType	GetOperationType ()
	Get the type identifier of this operation. More...

Protected Attributes
MultiLabelSegmentation::GroupIndexType	m_GroupID
TimeStepType	m_TimeStep
CompressedImageContainer	m_CompressedImageContainer
PlaneGeometry::ConstPointer	m_PlaneGeometry
mitk::BaseGeometry::ConstPointer	m_GuardReferenceGeometry
Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType
	The type identifier for this operation. More...

Additional Inherited Members
Protected Member Functions inherited from mitk::SegChangeOperationBase
	SegChangeOperationBase (mitk::MultiLabelSegmentation *segmentation, OperationType operationType)
	SegChangeOperationBase (SegChangeOperationBase &&)=default
SegChangeOperationBase &	operator= (const SegChangeOperationBase &)=default
SegChangeOperationBase &	operator= (SegChangeOperationBase &&)=default
Protected Member Functions inherited from mitk::Operation
	Operation (OperationType operationType)
	Construct an operation with the given type. More...
	Operation (const Operation &)=default
	Operation (Operation &&)=default
Operation &	operator= (const Operation &)=default
Operation &	operator= (Operation &&)=default

Detailed Description

An Operation for applying an edited 2D slice to a group of a MultiLabelSegmentation.

See also

SegChangeOperationApplier

This Operation stores a 2D slice together with its plane geometry, time step, and target group index, enabling undo-redo for slice-based segmentation edits.

Definition at line 31 of file mitkSegSliceOperation.h.

Constructor & Destructor Documentation

SegSliceOperation()

mitk::SegSliceOperation::SegSliceOperation	(	MultiLabelSegmentation *	segmentation,
		MultiLabelSegmentation::GroupIndexType	groupID,
		const Image *	slice,
		const TimeStepType	timestep,
		const PlaneGeometry *	planeGeometry
	)

Construct a slice operation.

Parameters

segmentation	The target segmentation.
groupID	The group index of the group image to modify.
slice	The 2D slice image to apply.
timestep	The time step at which the slice should be applied.
planeGeometry	The plane geometry defining the slice position and orientation in the volume.

~SegSliceOperation()

mitk::SegSliceOperation::~SegSliceOperation ( )

overridedefault

Member Function Documentation

GetGroupID()

MultiLabelSegmentation::GroupIndexType mitk::SegSliceOperation::GetGroupID

(

)

const

Get the group index of the group image that should be modified.

GetSlice()

Image::Pointer mitk::SegSliceOperation::GetSlice

(

)

const

Get the slice that is applied in the operation.

GetSlicePlaneGeometry()

const PlaneGeometry* mitk::SegSliceOperation::GetSlicePlaneGeometry

(

)

const

Get the plane where the slice has to be applied in the volume.

GetTimeStep()

TimeStepType mitk::SegSliceOperation::GetTimeStep

(

)

const

Get the time step the operation should be applied on.

IsValid()

bool mitk::SegSliceOperation::IsValid ( ) const

override

Check if it is a valid operation.

mitkClassMacro()

mitk::SegSliceOperation::mitkClassMacro	(	SegSliceOperation	,
		SegChangeOperationBase
	)

Member Data Documentation

m_CompressedImageContainer

CompressedImageContainer mitk::SegSliceOperation::m_CompressedImageContainer

protected

Definition at line 65 of file mitkSegSliceOperation.h.

m_GroupID

MultiLabelSegmentation::GroupIndexType mitk::SegSliceOperation::m_GroupID

protected

Definition at line 63 of file mitkSegSliceOperation.h.

m_GuardReferenceGeometry

mitk::BaseGeometry::ConstPointer mitk::SegSliceOperation::m_GuardReferenceGeometry

protected

Ensures that the reference geometry of the plane geometry is not deleted to soon see bug T12338.

Definition at line 69 of file mitkSegSliceOperation.h.

m_PlaneGeometry

PlaneGeometry::ConstPointer mitk::SegSliceOperation::m_PlaneGeometry

protected

Definition at line 66 of file mitkSegSliceOperation.h.

m_TimeStep

TimeStepType mitk::SegSliceOperation::m_TimeStep

protected

Definition at line 64 of file mitkSegSliceOperation.h.

---

The documentation for this class was generated from the following file:

• mitkSegSliceOperation.h
