Common base class for both 2D and 3D ROI mapper local storages. More...

#include <mitkROIMapperLocalStorage.h>

Inheritance diagram for mitk::ROIMapperLocalStorage:

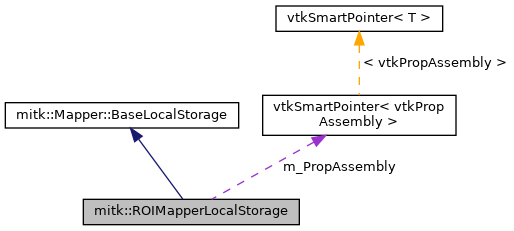

Collaboration diagram for mitk::ROIMapperLocalStorage:

[legend]

Public Member Functions
	ROIMapperLocalStorage ()

	~ROIMapperLocalStorage () override

vtkPropAssembly *	GetPropAssembly () const
	Get the VTK prop assembly containing all rendered ROI actors. More...

void	SetPropAssembly (vtkPropAssembly *propAssembly)
	Set the VTK prop assembly. More...

TimePointType	GetLastTimePoint () const
	Get the time point that was last used for rendering. More...

void	SetLastTimePoint (TimePointType timePoint)
	Set the last rendered time point. More...

Public Member Functions inherited from mitk::Mapper::BaseLocalStorage
	BaseLocalStorage ()=default

virtual	~BaseLocalStorage ()=default

	BaseLocalStorage (const BaseLocalStorage &)=delete

BaseLocalStorage &	operator= (const BaseLocalStorage &)=delete

bool	IsGenerateDataRequired (mitk::BaseRenderer renderer, mitk::Mapper mapper, mitk::DataNode *dataNode) const
	Check whether GenerateDataForRenderer() needs to be called. More...

void	UpdateGenerateDataTime ()
	Mark the stored data as up-to-date. More...

itk::TimeStamp &	GetLastGenerateDataTime ()
	Get a reference to the last-generate-data timestamp. More...

Protected Attributes
vtkSmartPointer< vtkPropAssembly >	m_PropAssembly

TimePointType	m_LastTimePoint

Protected Attributes inherited from mitk::Mapper::BaseLocalStorage
itk::TimeStamp	m_LastGenerateDataTime
	Timestamp of last update of stored data. More...

Detailed Description

Common base class for both 2D and 3D ROI mapper local storages.

Stores per-renderer state shared by ROIMapper2D and ROIMapper3D, including the VTK prop assembly that aggregates all rendered ROI element actors and the last rendered time point for caching purposes.

See also: ROIMapper2D, ROIMapper3D

Definition at line 33 of file mitkROIMapperLocalStorage.h.

Constructor & Destructor Documentation

◆ ROIMapperLocalStorage()

mitk::ROIMapperLocalStorage::ROIMapperLocalStorage ( )

◆ ~ROIMapperLocalStorage()

mitk::ROIMapperLocalStorage::~ROIMapperLocalStorage ( )

override

Member Function Documentation

◆ GetLastTimePoint()

TimePointType mitk::ROIMapperLocalStorage::GetLastTimePoint ( ) const

Get the time point that was last used for rendering.

Returns: The last rendered time point.

◆ GetPropAssembly()

vtkPropAssembly* mitk::ROIMapperLocalStorage::GetPropAssembly ( ) const

Get the VTK prop assembly containing all rendered ROI actors.

Returns: Pointer to the prop assembly. Never nullptr after construction.

◆ SetLastTimePoint()

void mitk::ROIMapperLocalStorage::SetLastTimePoint ( TimePointType timePoint )

Set the last rendered time point.

Parameters

[in] timePoint The time point value to store.

◆ SetPropAssembly()

void mitk::ROIMapperLocalStorage::SetPropAssembly ( vtkPropAssembly * propAssembly )

Set the VTK prop assembly.

Parameters

[in] propAssembly The new prop assembly to store.

Member Data Documentation

◆ m_LastTimePoint

TimePointType mitk::ROIMapperLocalStorage::m_LastTimePoint

protected

Definition at line 69 of file mitkROIMapperLocalStorage.h.

◆ m_PropAssembly

vtkSmartPointer<vtkPropAssembly> mitk::ROIMapperLocalStorage::m_PropAssembly
