Single-valued cost function computing the normalized sum of squared differences. More...

#include <mitkNormalizedSumOfSquaredDifferencesFitCostFunction.h>

Inheritance diagram for mitk::NormalizedSumOfSquaredDifferencesFitCostFunction:

[legend]

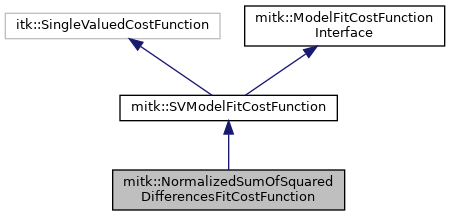

Collaboration diagram for mitk::NormalizedSumOfSquaredDifferencesFitCostFunction:

[legend]

Public Types
typedef NormalizedSumOfSquaredDifferencesFitCostFunction	Self

typedef mitk::SVModelFitCostFunction	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::SignalType	SignalType

Public Types inherited from mitk::SVModelFitCostFunction
typedef SVModelFitCostFunction	Self

typedef itk::SingleValuedCostFunction	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef ModelFitCostFunctionInterface::SignalType	SignalType

typedef Superclass::MeasureType	MeasureType

typedef Superclass::DerivativeType	DerivativeType

Public Types inherited from mitk::ModelFitCostFunctionInterface
typedef ModelFitCostFunctionInterface	Self

typedef itk::Array< double >	SignalType
	Type representing the observed signal values. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
MeasureType	CalcMeasure (const ParametersType &parameters, const SignalType &signal) const override

	NormalizedSumOfSquaredDifferencesFitCostFunction ()

	~NormalizedSumOfSquaredDifferencesFitCostFunction () override

Protected Member Functions inherited from mitk::SVModelFitCostFunction
	SVModelFitCostFunction ()

	~SVModelFitCostFunction () override

Protected Member Functions inherited from mitk::ModelFitCostFunctionInterface
	ModelFitCostFunctionInterface ()

virtual	~ModelFitCostFunctionInterface ()

Additional Inherited Members
Public Member Functions inherited from mitk::SVModelFitCostFunction
void	SetSample (const SignalType &sampleSet) override
	Sets the observed sample signal. More...

MeasureType	GetValue (const ParametersType &parameter) const override
	Computes the scalar cost value for the given parameters. More...

void	GetDerivative (const ParametersType &parameters, DerivativeType &derivative) const override
	Computes the derivative of the cost function numerically via finite differences. More...

unsigned int	GetNumberOfParameters (void) const override
	Returns the number of model parameters. More...

	mitkOverrideSetConstObjectMacro (Model, ModelBase)

	mitkOverrideGetConstObjectMacro (Model, ModelBase)

virtual void	SetDerivativeStepLength (double _arg)

virtual double	GetDerivativeStepLength () const

Public Member Functions inherited from mitk::ModelFitCostFunctionInterface
virtual void	SetModel (const ModelBase *model)=0
	Sets the model instance to be used for cost evaluation. More...

virtual const ModelBase *	GetModel () const =0
	Returns the model instance currently used for cost evaluation. More...

Protected Attributes inherited from mitk::SVModelFitCostFunction
SignalType	m_Sample

Detailed Description

Single-valued cost function computing the normalized sum of squared differences.

Computes the sum of squared differences between model output and the observed signal, normalized by the number of sample points. This provides a cost value that is independent of the number of time points.
