mitk::ModelFitCostFunctionInterface Class Reference

Interface class that is implemented by all cost functions used in model fitting. More...

#include <mitkModelFitCostFunctionInterface.h>

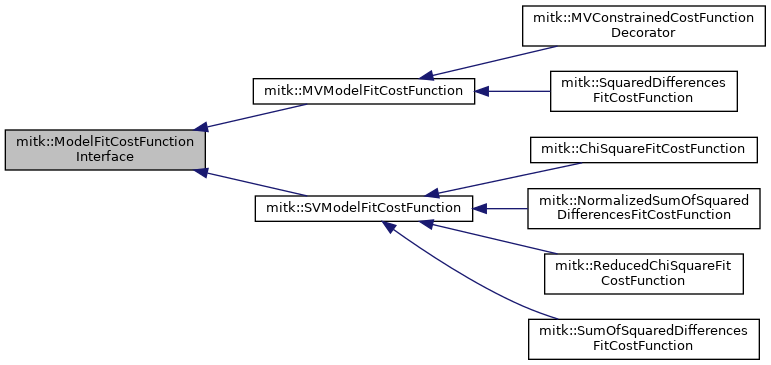

Inheritance diagram for mitk::ModelFitCostFunctionInterface:

Public Types
typedef ModelFitCostFunctionInterface	Self
typedef itk::Array< double >	SignalType
	Type representing the observed signal values. More...

Public Member Functions
virtual void	SetSample (const SignalType &sampleSet)=0
	Sets the observed sample signal that the model will be fitted against. More...
virtual void	SetModel (const ModelBase *model)=0
	Sets the model instance to be used for cost evaluation. More...
virtual const ModelBase *	GetModel () const =0
	Returns the model instance currently used for cost evaluation. More...

Protected Member Functions
	ModelFitCostFunctionInterface ()
virtual	~ModelFitCostFunctionInterface ()

Detailed Description

Interface class that is implemented by all cost functions used in model fitting.

This interface defines the common API for cost functions that evaluate how well a model fits observed data. Implementations compute a cost/measure based on the difference between the model signal and the observed sample signal.

See also

SVModelFitCostFunction, MVModelFitCostFunction

Definition at line 32 of file mitkModelFitCostFunctionInterface.h.

Member Typedef Documentation

Self

typedef ModelFitCostFunctionInterface mitk::ModelFitCostFunctionInterface::Self

Definition at line 36 of file mitkModelFitCostFunctionInterface.h.

SignalType

typedef itk::Array<double> mitk::ModelFitCostFunctionInterface::SignalType

Type representing the observed signal values.

Definition at line 39 of file mitkModelFitCostFunctionInterface.h.

Constructor & Destructor Documentation

ModelFitCostFunctionInterface()

mitk::ModelFitCostFunctionInterface::ModelFitCostFunctionInterface ( )

inlineprotected

Definition at line 61 of file mitkModelFitCostFunctionInterface.h.

~ModelFitCostFunctionInterface()

virtual mitk::ModelFitCostFunctionInterface::~ModelFitCostFunctionInterface ( )

inlineprotectedvirtual

Definition at line 65 of file mitkModelFitCostFunctionInterface.h.

Member Function Documentation

GetModel()

virtual const ModelBase* mitk::ModelFitCostFunctionInterface::GetModel ( ) const

pure virtual

Returns the model instance currently used for cost evaluation.

Returns

Const pointer to the current model.

SetModel()

virtual void mitk::ModelFitCostFunctionInterface::SetModel ( const ModelBase *  model )

pure virtual

Sets the model instance to be used for cost evaluation.

Parameters

[in]

model

Pointer to the model to evaluate.

SetSample()

virtual void mitk::ModelFitCostFunctionInterface::SetSample ( const SignalType &  sampleSet )

pure virtual

Sets the observed sample signal that the model will be fitted against.

Parameters

[in]

sampleSet

The observed signal values.

Implemented in mitk::SVModelFitCostFunction, and mitk::MVModelFitCostFunction.

---

The documentation for this class was generated from the following file:

• mitkModelFitCostFunctionInterface.h
