mitk::MovieGeneratorWin32 Class Reference

Win32-specific implementation of MovieGenerator using Video for Windows (VFW). More...

#include <mitkMovieGeneratorWin32.h>

Inheritance diagram for mitk::MovieGeneratorWin32:

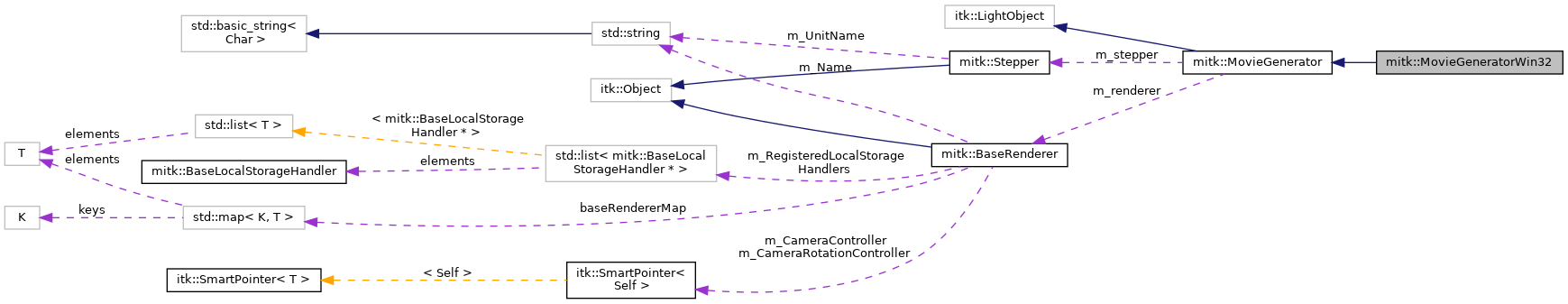

Collaboration diagram for mitk::MovieGeneratorWin32:

Public Member Functions
	mitkClassMacro (MovieGeneratorWin32, MovieGenerator)
Pointer	Clone () const
virtual void	SetFileName (const char *fileName)
	Set the output filename for the AVI movie. More...
Public Member Functions inherited from mitk::MovieGenerator
	mitkClassMacroItkParent (MovieGenerator, itk::LightObject)
virtual void	SetStepper (Stepper *stepper)
	Set the stepper used to control movie generation. More...
virtual void	SetRenderer (BaseRenderer *renderer)
	Set the renderer whose render window will be captured. More...
virtual bool	WriteMovie ()
	Generate a movie by iterating through all stepper steps. More...
virtual bool	WriteCurrentFrameToMovie ()
	Capture a single frame and add it to the movie. More...
virtual void	ReleaseMovieWriter ()
	Release the movie writer resources after using WriteCurrentFrameToMovie(). More...
virtual void	SetFrameRate (unsigned int rate)
	Set the frame rate of the output movie. More...
unsigned int	GetFrameRate ()
	Get the frame rate of the output movie. More...

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::MovieGenerator
static Pointer	New (void)
	Factory method returning a platform-specific MovieGenerator. More...

Protected Member Functions
	MovieGeneratorWin32 ()
void	InitBitmapHeader ()
	reads out size of current OpenGL context and stores it More...
virtual bool	InitGenerator ()
	called directly before the first frame is added More...
virtual bool	AddFrame (void *data)
	used to add a frame More...
virtual bool	TerminateGenerator ()
	called after the last frame is added More...
Protected Member Functions inherited from mitk::MovieGenerator
	MovieGenerator ()
	default constructor More...

Protected Attributes
_bstr_t	m_sFile
	name of output file More...
BITMAPINFOHEADER	m_bih
	structure contains information for a single stream More...
_bstr_t	m_sError
	last error string More...
Protected Attributes inherited from mitk::MovieGenerator
char	m_fileName [1024]
	stores the movie filename More...
Stepper *	m_stepper
	stores the used stepper More...
BaseRenderer *	m_renderer
	stores the uses renderer More...
int	m_width
	InitGenerator() stores movie size in those variables. More...
int	m_height
bool	m_initialized
unsigned int	m_FrameRate

Detailed Description

Win32-specific implementation of MovieGenerator using Video for Windows (VFW).

This class implements the MovieGenerator interface on Windows platforms using the Video for Windows (VFW) API. It captures frames from an OpenGL context and writes them to an AVI file. A compression codec dialog is presented to the user during initialization.

See also

MovieGenerator

Definition at line 40 of file mitkMovieGeneratorWin32.h.

Constructor & Destructor Documentation

MovieGeneratorWin32()

mitk::MovieGeneratorWin32::MovieGeneratorWin32 ( )

protected

Member Function Documentation

AddFrame()

virtual bool mitk::MovieGeneratorWin32::AddFrame ( void *  data )

protectedvirtual

used to add a frame

Implements mitk::MovieGenerator.

Clone()

Pointer mitk::MovieGeneratorWin32::Clone

(

)

const

InitBitmapHeader()

void mitk::MovieGeneratorWin32::InitBitmapHeader ( )

protected

reads out size of current OpenGL context and stores it

InitGenerator()

virtual bool mitk::MovieGeneratorWin32::InitGenerator ( )

protectedvirtual

called directly before the first frame is added

Implements mitk::MovieGenerator.

mitkClassMacro()

mitk::MovieGeneratorWin32::mitkClassMacro	(	MovieGeneratorWin32	,
		MovieGenerator
	)

New()

static Pointer mitk::MovieGeneratorWin32::New ( )

static

SetFileName()

virtual void mitk::MovieGeneratorWin32::SetFileName ( const char *  fileName )

virtual

Set the output filename for the AVI movie.

Parameters

[in]

fileName

Path to the output AVI file.

Reimplemented from mitk::MovieGenerator.

TerminateGenerator()

virtual bool mitk::MovieGeneratorWin32::TerminateGenerator ( )

protectedvirtual

called after the last frame is added

Implements mitk::MovieGenerator.

Member Data Documentation

m_bih

BITMAPINFOHEADER mitk::MovieGeneratorWin32::m_bih

protected

structure contains information for a single stream

Definition at line 72 of file mitkMovieGeneratorWin32.h.

m_sError

_bstr_t mitk::MovieGeneratorWin32::m_sError

protected

last error string

Definition at line 75 of file mitkMovieGeneratorWin32.h.

m_sFile

_bstr_t mitk::MovieGeneratorWin32::m_sFile

protected

name of output file

Definition at line 69 of file mitkMovieGeneratorWin32.h.

---

The documentation for this class was generated from the following file:

• mitkMovieGeneratorWin32.h
