Abstract base class for recording movies from OpenGL render windows. More...

#include <mitkMovieGenerator.h>

Inheritance diagram for mitk::MovieGenerator:

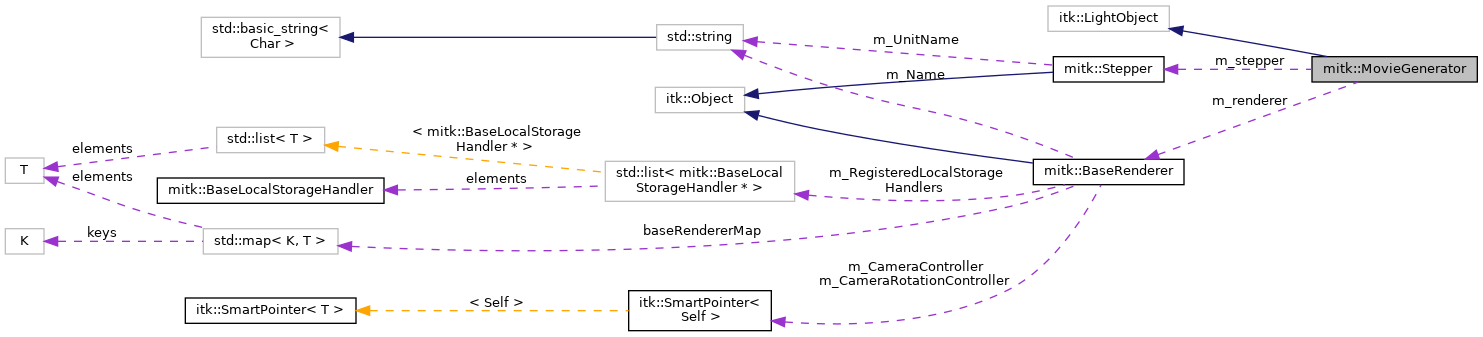

Collaboration diagram for mitk::MovieGenerator:

[legend]

Public Member Functions
	mitkClassMacroItkParent (MovieGenerator, itk::LightObject)

virtual void	SetStepper (Stepper *stepper)
	Set the stepper used to control movie generation. More...

virtual void	SetRenderer (BaseRenderer *renderer)
	Set the renderer whose render window will be captured. More...

virtual void	SetFileName (const char *fileName)
	Set the output filename for the movie. More...

virtual bool	WriteMovie ()
	Generate a movie by iterating through all stepper steps. More...

virtual bool	WriteCurrentFrameToMovie ()
	Capture a single frame and add it to the movie. More...

virtual void	ReleaseMovieWriter ()
	Release the movie writer resources after using WriteCurrentFrameToMovie(). More...

virtual void	SetFrameRate (unsigned int rate)
	Set the frame rate of the output movie. More...

unsigned int	GetFrameRate ()
	Get the frame rate of the output movie. More...

Static Public Member Functions
static Pointer	New (void)
	Factory method returning a platform-specific MovieGenerator. More...

Protected Member Functions
	MovieGenerator ()
	default constructor More...

virtual bool	InitGenerator ()=0
	called directly before the first frame is added, determines movie size from renderer More...

virtual bool	AddFrame (void *data)=0
	used to add a frame More...

virtual bool	TerminateGenerator ()=0
	called after the last frame is added More...

Protected Attributes
char	m_fileName [1024]
	stores the movie filename More...

Stepper *	m_stepper
	stores the used stepper More...

BaseRenderer *	m_renderer
	stores the uses renderer More...

int	m_width
	InitGenerator() stores movie size in those variables. More...

int	m_height

bool	m_initialized

unsigned int	m_FrameRate

Detailed Description

Abstract base class for recording movies from OpenGL render windows.

MovieGenerator provides the infrastructure for capturing frames from a BaseRenderer and assembling them into a movie file. It supports two modes:

Stepper-driven: Iterates through all steps of a Stepper and captures each frame.
Frame-by-frame: Each call to WriteCurrentFrameToMovie() captures a single frame.

Platform-specific subclasses (e.g., MovieGeneratorWin32) implement the actual video encoding via platform APIs.

See also: MovieGeneratorWin32; Stepper; BaseRenderer

Definition at line 39 of file mitkMovieGenerator.h.

Constructor & Destructor Documentation

◆ MovieGenerator()

mitk::MovieGenerator::MovieGenerator ( )

protected

default constructor

Member Function Documentation

◆ AddFrame()

virtual bool mitk::MovieGenerator::AddFrame ( void * data )

protectedpure virtual

used to add a frame

Implemented in mitk::MovieGeneratorWin32.

◆ GetFrameRate()

unsigned int mitk::MovieGenerator::GetFrameRate ( )

Get the frame rate of the output movie.

Returns: The frame rate in frames per second.

◆ InitGenerator()

virtual bool mitk::MovieGenerator::InitGenerator ( )

protectedpure virtual

called directly before the first frame is added, determines movie size from renderer

Implemented in mitk::MovieGeneratorWin32.

◆ mitkClassMacroItkParent()

mitk::MovieGenerator::mitkClassMacroItkParent	(	MovieGenerator	,
		itk::LightObject
	)

◆ New()

static Pointer mitk::MovieGenerator::New ( void )

static

Factory method returning a platform-specific MovieGenerator.

Returns: Smart pointer to a MovieGenerator instance (Win32 or Linux).

◆ ReleaseMovieWriter()

virtual void mitk::MovieGenerator::ReleaseMovieWriter ( )

virtual

Release the movie writer resources after using WriteCurrentFrameToMovie().

◆ SetFileName()

virtual void mitk::MovieGenerator::SetFileName ( const char * fileName )

inlinevirtual

Set the output filename for the movie.

Parameters

[in] fileName Path to the output movie file.

Reimplemented in mitk::MovieGeneratorWin32.

Definition at line 66 of file mitkMovieGenerator.h.

◆ SetFrameRate()

virtual void mitk::MovieGenerator::SetFrameRate ( unsigned int rate )

virtual

Set the frame rate of the output movie.

Parameters

[in] rate Frames per second (default: 20).

◆ SetRenderer()

virtual void mitk::MovieGenerator::SetRenderer ( BaseRenderer * renderer )

inlinevirtual

Set the renderer whose render window will be captured.

Parameters

[in] renderer The BaseRenderer to record from.

Definition at line 60 of file mitkMovieGenerator.h.

◆ SetStepper()

virtual void mitk::MovieGenerator::SetStepper ( Stepper * stepper )

inlinevirtual

Set the stepper used to control movie generation.

Parameters

[in] stepper The Stepper that drives frame iteration.

Definition at line 54 of file mitkMovieGenerator.h.

◆ TerminateGenerator()

virtual bool mitk::MovieGenerator::TerminateGenerator ( )

protectedpure virtual

called after the last frame is added

Implemented in mitk::MovieGeneratorWin32.

◆ WriteCurrentFrameToMovie()

virtual bool mitk::MovieGenerator::WriteCurrentFrameToMovie ( )

virtual

Capture a single frame and add it to the movie.

This method does not use a Stepper. Initialization occurs on the first call. Renderer and FileName must be set before calling this method.

Returns: True if the frame was successfully added.

◆ WriteMovie()

virtual bool mitk::MovieGenerator::WriteMovie ( )

virtual

Generate a movie by iterating through all stepper steps.

Uses the configured Stepper and Renderer to capture frames from the active OpenGL context and assemble them into a movie file.

Precondition: Stepper and Renderer must be set.

Returns: True if the movie was successfully written.

Member Data Documentation

◆ m_fileName

char mitk::MovieGenerator::m_fileName[1024]

protected

stores the movie filename

Definition at line 120 of file mitkMovieGenerator.h.

◆ m_FrameRate

unsigned int mitk::MovieGenerator::m_FrameRate

protected

Definition at line 133 of file mitkMovieGenerator.h.

◆ m_height

int mitk::MovieGenerator::m_height

protected

Definition at line 129 of file mitkMovieGenerator.h.

◆ m_initialized

bool mitk::MovieGenerator::m_initialized

protected

Definition at line 131 of file mitkMovieGenerator.h.

◆ m_renderer

BaseRenderer* mitk::MovieGenerator::m_renderer

protected

stores the uses renderer

Definition at line 126 of file mitkMovieGenerator.h.

◆ m_stepper

Stepper* mitk::MovieGenerator::m_stepper

protected

stores the used stepper

Definition at line 123 of file mitkMovieGenerator.h.

◆ m_width

int mitk::MovieGenerator::m_width

protected

InitGenerator() stores movie size in those variables.

Definition at line 129 of file mitkMovieGenerator.h.

The documentation for this class was generated from the following file:

mitkMovieGenerator.h
