mitk::MVConstrainedCostFunctionDecorator Class Reference

This class is used to add constraints to any multi valued model fit cost function. More...

#include <mitkMVConstrainedCostFunctionDecorator.h>

Inheritance diagram for mitk::MVConstrainedCostFunctionDecorator:

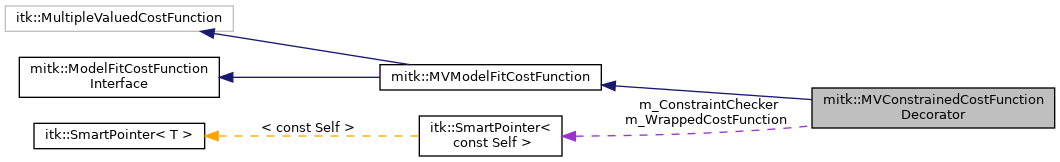

Collaboration diagram for mitk::MVConstrainedCostFunctionDecorator:

Public Types
typedef MVConstrainedCostFunctionDecorator	Self
typedef mitk::MVModelFitCostFunction	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::SignalType	SignalType
typedef ConstraintCheckerBase::PenaltyValueType	PenaltyValueType
Public Types inherited from mitk::MVModelFitCostFunction
typedef MVModelFitCostFunction	Self
typedef itk::MultipleValuedCostFunction	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef ModelFitCostFunctionInterface::SignalType	SignalType
typedef Superclass::MeasureType	MeasureType
typedef Superclass::DerivativeType	DerivativeType
Public Types inherited from mitk::ModelFitCostFunctionInterface
typedef ModelFitCostFunctionInterface	Self
typedef itk::Array< double >	SignalType
	Type representing the observed signal values. More...

Public Member Functions
virtual void	SetWrappedCostFunction (const MVModelFitCostFunction *_arg)
virtual const MVModelFitCostFunction *	GetWrappedCostFunction ()
virtual void	SetConstraintChecker (const ConstraintCheckerBase *_arg)
virtual const ConstraintCheckerBase *	GetConstraintChecker ()
virtual void	SetFailureThreshold (PenaltyValueType _arg)
virtual PenaltyValueType	GetFailureThreshold () const
virtual void	SetActivateFailureThreshold (bool _arg)
virtual bool	GetActivateFailureThreshold () const
virtual unsigned int	GetEvaluationCount () const
double	GetPenaltyRatio () const
double	GetFailureRatio () const
ParametersType::size_type	GetFailedParameter () const
Public Member Functions inherited from mitk::MVModelFitCostFunction
void	SetSample (const SignalType &sampleSet) override
	Sets the observed sample signal. More...
MeasureType	GetValue (const ParametersType &parameter) const override
	Computes the cost value vector for the given parameters. More...
void	GetDerivative (const ParametersType &parameters, DerivativeType &derivative) const override
	Computes the Jacobian matrix numerically via finite differences. More...
unsigned int	GetNumberOfValues (void) const override
	Returns the number of values (residuals) returned by GetValue(). More...
unsigned int	GetNumberOfParameters (void) const override
	Returns the number of model parameters. More...
	mitkOverrideSetConstObjectMacro (Model, ModelBase)
	mitkOverrideGetConstObjectMacro (Model, ModelBase)
virtual void	SetDerivativeStepLength (double _arg)
virtual double	GetDerivativeStepLength () const
Public Member Functions inherited from mitk::ModelFitCostFunctionInterface
virtual void	SetModel (const ModelBase *model)=0
	Sets the model instance to be used for cost evaluation. More...
virtual const ModelBase *	GetModel () const =0
	Returns the model instance currently used for cost evaluation. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
MeasureType	CalcMeasure (const ParametersType &parameters, const SignalType &signal) const override
	MVConstrainedCostFunctionDecorator ()
	~MVConstrainedCostFunctionDecorator () override
Protected Member Functions inherited from mitk::MVModelFitCostFunction
	MVModelFitCostFunction ()
	~MVModelFitCostFunction () override
Protected Member Functions inherited from mitk::ModelFitCostFunctionInterface
	ModelFitCostFunctionInterface ()
virtual	~ModelFitCostFunctionInterface ()

Protected Attributes
ConstraintCheckerBase::ConstPointer	m_ConstraintChecker
MVModelFitCostFunction::ConstPointer	m_WrappedCostFunction
PenaltyValueType	m_FailureThreshold
bool	m_ActivateFailureThreshold
unsigned int	m_EvaluationCount
unsigned int	m_PenaltyCount
unsigned int	m_FailureCount
ParametersType::size_type	m_LastFailedParameter
Protected Attributes inherited from mitk::MVModelFitCostFunction
SignalType	m_Sample

Detailed Description

This class is used to add constraints to any multi valued model fit cost function.

MVConstrainedCostFunctionDecorator is used to extend a given cost function with the functionality to regard given constraints for the measure. To add this functionality to a cost function, instantiate the decorator, set the wrapped cost function (that will be extended) and set a constraint checker that defines the type of constraints.
The decorator has a failure threshold. An evaluation can always be accounted as a failure if the sum of penalties given by the checker is greater or equal to the threshold. If the evaluation is a failure the wrapped cost function will not be evaluated. Otherwise the penalty will be added to every measure of the cost function.

Definition at line 37 of file mitkMVConstrainedCostFunctionDecorator.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer< const Self > mitk::MVConstrainedCostFunctionDecorator::ConstPointer

Definition at line 44 of file mitkMVConstrainedCostFunctionDecorator.h.

PenaltyValueType

typedef ConstraintCheckerBase::PenaltyValueType mitk::MVConstrainedCostFunctionDecorator::PenaltyValueType

Definition at line 49 of file mitkMVConstrainedCostFunctionDecorator.h.

Pointer

typedef itk::SmartPointer< Self > mitk::MVConstrainedCostFunctionDecorator::Pointer

Definition at line 43 of file mitkMVConstrainedCostFunctionDecorator.h.

Self

typedef MVConstrainedCostFunctionDecorator mitk::MVConstrainedCostFunctionDecorator::Self

Definition at line 41 of file mitkMVConstrainedCostFunctionDecorator.h.

SignalType

typedef Superclass::SignalType mitk::MVConstrainedCostFunctionDecorator::SignalType

Definition at line 48 of file mitkMVConstrainedCostFunctionDecorator.h.

Superclass

typedef mitk::MVModelFitCostFunction mitk::MVConstrainedCostFunctionDecorator::Superclass

Definition at line 42 of file mitkMVConstrainedCostFunctionDecorator.h.

Constructor & Destructor Documentation

MVConstrainedCostFunctionDecorator()

mitk::MVConstrainedCostFunctionDecorator::MVConstrainedCostFunctionDecorator ( )

inlineprotected

Definition at line 81 of file mitkMVConstrainedCostFunctionDecorator.h.

~MVConstrainedCostFunctionDecorator()

mitk::MVConstrainedCostFunctionDecorator::~MVConstrainedCostFunctionDecorator ( )

inlineoverrideprotected

Definition at line 86 of file mitkMVConstrainedCostFunctionDecorator.h.

Member Function Documentation

CalcMeasure()

MeasureType mitk::MVConstrainedCostFunctionDecorator::CalcMeasure ( const ParametersType &  parameters, const SignalType &  signal  ) const

overrideprotectedvirtual

Implements mitk::MVModelFitCostFunction.

GetActivateFailureThreshold()

virtual bool mitk::MVConstrainedCostFunctionDecorator::GetActivateFailureThreshold ( ) const

virtual

GetConstraintChecker()

virtual const ConstraintCheckerBase* mitk::MVConstrainedCostFunctionDecorator::GetConstraintChecker ( )

virtual

GetEvaluationCount()

virtual unsigned int mitk::MVConstrainedCostFunctionDecorator::GetEvaluationCount ( ) const

virtual

Returns the number of evaluations done by the cost function instance since creation.

GetFailedParameter()

ParametersType::size_type mitk::MVConstrainedCostFunctionDecorator::GetFailedParameter

(

)

const

Returns the index of the first (in terms of index position) failed parameter in the last failed evaluation.

GetFailureRatio()

double mitk::MVConstrainedCostFunctionDecorator::GetFailureRatio

(

)

const

Returns the ration between evaluations that where beyond the failure thershold and all evaluation since creation of the instance. 0.0 means no evaluation was a failure (but some may be penalized); 1.0 all evaluations were failures.

GetFailureThreshold()

virtual PenaltyValueType mitk::MVConstrainedCostFunctionDecorator::GetFailureThreshold ( ) const

virtual

GetPenaltyRatio()

double mitk::MVConstrainedCostFunctionDecorator::GetPenaltyRatio

(

)

const

Returns the ration between evaluations that were penaltized and all evaluation since creation of the instance. 0.0 means no evaluation was penalized; 1.0 all evaluations were. (evaluations that hit the failure threshold count as penalized too.)

GetWrappedCostFunction()

virtual const MVModelFitCostFunction* mitk::MVConstrainedCostFunctionDecorator::GetWrappedCostFunction ( )

virtual

New()

static Pointer mitk::MVConstrainedCostFunctionDecorator::New ( )

static

SetActivateFailureThreshold()

virtual void mitk::MVConstrainedCostFunctionDecorator::SetActivateFailureThreshold ( bool  _arg )

virtual

SetConstraintChecker()

virtual void mitk::MVConstrainedCostFunctionDecorator::SetConstraintChecker ( const ConstraintCheckerBase *  _arg )

virtual

SetFailureThreshold()

virtual void mitk::MVConstrainedCostFunctionDecorator::SetFailureThreshold ( PenaltyValueType  _arg )

virtual

SetWrappedCostFunction()

virtual void mitk::MVConstrainedCostFunctionDecorator::SetWrappedCostFunction ( const MVModelFitCostFunction *  _arg )

virtual

Member Data Documentation

m_ActivateFailureThreshold

bool mitk::MVConstrainedCostFunctionDecorator::m_ActivateFailureThreshold

protected

Definition at line 91 of file mitkMVConstrainedCostFunctionDecorator.h.

m_ConstraintChecker

ConstraintCheckerBase::ConstPointer mitk::MVConstrainedCostFunctionDecorator::m_ConstraintChecker

protected

Definition at line 88 of file mitkMVConstrainedCostFunctionDecorator.h.

m_EvaluationCount

unsigned int mitk::MVConstrainedCostFunctionDecorator::m_EvaluationCount

mutableprotected

Definition at line 92 of file mitkMVConstrainedCostFunctionDecorator.h.

m_FailureCount

unsigned int mitk::MVConstrainedCostFunctionDecorator::m_FailureCount

mutableprotected

Definition at line 94 of file mitkMVConstrainedCostFunctionDecorator.h.

m_FailureThreshold

PenaltyValueType mitk::MVConstrainedCostFunctionDecorator::m_FailureThreshold

protected

Definition at line 90 of file mitkMVConstrainedCostFunctionDecorator.h.

m_LastFailedParameter

ParametersType::size_type mitk::MVConstrainedCostFunctionDecorator::m_LastFailedParameter

mutableprotected

Definition at line 95 of file mitkMVConstrainedCostFunctionDecorator.h.

m_PenaltyCount

unsigned int mitk::MVConstrainedCostFunctionDecorator::m_PenaltyCount

mutableprotected

Definition at line 93 of file mitkMVConstrainedCostFunctionDecorator.h.

m_WrappedCostFunction

MVModelFitCostFunction::ConstPointer mitk::MVConstrainedCostFunctionDecorator::m_WrappedCostFunction

protected

Definition at line 89 of file mitkMVConstrainedCostFunctionDecorator.h.

---

The documentation for this class was generated from the following file:

• mitkMVConstrainedCostFunctionDecorator.h
