mitk::ImageSerializer Class Reference

Serializes mitk::Image for mitk::SceneIO. More...

#include <mitkImageSerializer.h>

Inheritance diagram for mitk::ImageSerializer:

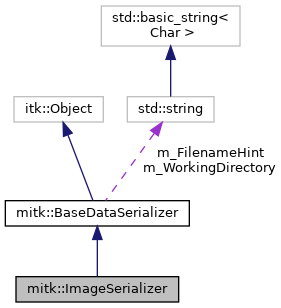

Collaboration diagram for mitk::ImageSerializer:

Public Member Functions
	mitkClassMacro (ImageSerializer, BaseDataSerializer)
Pointer	Clone () const
std::string	Serialize () override
	Serialize the Image object to a .nrrd file. More...
Public Member Functions inherited from mitk::BaseDataSerializer
	mitkClassMacroItkParent (BaseDataSerializer, itk::Object)
virtual void	SetFilenameHint (const char *_arg)
	Sets a hint for the output filename (without path or extension). More...
virtual const char *	GetFilenameHint () const
	Returns the current filename hint. More...
virtual void	SetWorkingDirectory (const char *_arg)
	Sets the working directory where serialized files will be stored. More...
virtual const char *	GetWorkingDirectory () const
	Returns the current working directory for serialized files. More...
virtual void	SetData (const BaseData *_arg)
	Sets the BaseData object to be serialized. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	ImageSerializer ()
	~ImageSerializer () override
Protected Member Functions inherited from mitk::BaseDataSerializer
	BaseDataSerializer ()
	~BaseDataSerializer () override
std::string	GetUniqueFilenameInWorkingDirectory ()

Additional Inherited Members
Protected Attributes inherited from mitk::BaseDataSerializer
std::string	m_FilenameHint
std::string	m_WorkingDirectory
BaseData::ConstPointer	m_Data

Detailed Description

Serializes mitk::Image for mitk::SceneIO.

Writes the Image object to a NRRD file (.nrrd) in the configured working directory using mitk::IOUtil. The filename is composed from a unique prefix and the filename hint.

See also

BaseDataSerializer, SceneIO, Image

Definition at line 29 of file mitkImageSerializer.h.

Constructor & Destructor Documentation

ImageSerializer()

mitk::ImageSerializer::ImageSerializer ( )

protected

~ImageSerializer()

mitk::ImageSerializer::~ImageSerializer ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::ImageSerializer::Clone

(

)

const

mitkClassMacro()

mitk::ImageSerializer::mitkClassMacro	(	ImageSerializer	,
		BaseDataSerializer
	)

New()

static Pointer mitk::ImageSerializer::New ( )

static

Serialize()

std::string mitk::ImageSerializer::Serialize ( )

overridevirtual

Serialize the Image object to a .nrrd file.

Casts the stored BaseData to mitk::Image and writes it to disk in NRRD format.

Returns

The filename (without path) of the created file, or an empty string on failure.

Precondition

The Data must be set and must be castable to mitk::Image.

The WorkingDirectory must be set.

Reimplemented from mitk::BaseDataSerializer.

---

The documentation for this class was generated from the following file:

• mitkImageSerializer.h
