mitk::BaseDataSerializer Class Reference

Base class for objects that serialize BaseData types to files. More...

#include <mitkBaseDataSerializer.h>

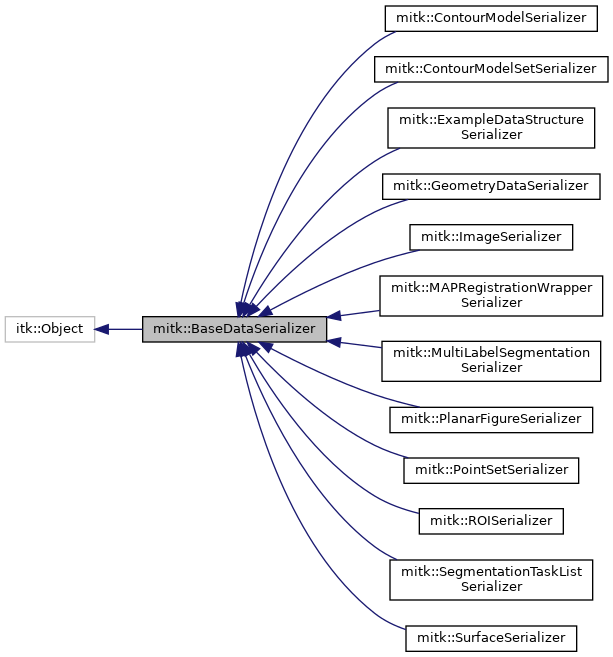

Inheritance diagram for mitk::BaseDataSerializer:

Collaboration diagram for mitk::BaseDataSerializer:

Public Member Functions
	mitkClassMacroItkParent (BaseDataSerializer, itk::Object)
virtual void	SetFilenameHint (const char *_arg)
	Sets a hint for the output filename (without path or extension). More...
virtual const char *	GetFilenameHint () const
	Returns the current filename hint. More...
virtual void	SetWorkingDirectory (const char *_arg)
	Sets the working directory where serialized files will be stored. More...
virtual const char *	GetWorkingDirectory () const
	Returns the current working directory for serialized files. More...
virtual void	SetData (const BaseData *_arg)
	Sets the BaseData object to be serialized. More...
virtual std::string	Serialize ()
	Serializes the previously set BaseData object to a file. More...

Protected Member Functions
	BaseDataSerializer ()
	~BaseDataSerializer () override
std::string	GetUniqueFilenameInWorkingDirectory ()

Protected Attributes
std::string	m_FilenameHint
std::string	m_WorkingDirectory
BaseData::ConstPointer	m_Data

Detailed Description

Base class for objects that serialize BaseData types to files.

Provides the interface for serializing mitk::BaseData-derived objects into files on disk. Sub-classes must implement the actual serialization logic.

The naming convention for sub-classes must follow this pattern:

* If the class derived from BaseData is called GreenData
* Then the serializer for this class must be called GreenDataSerializer
*

Sub-classes are discovered at runtime through the ITK object factory mechanism. Use the MITK_REGISTER_SERIALIZER macro to register a new serializer.

See also

BasePropertySerializer, PropertyListSerializer, SceneIO, MITK_REGISTER_SERIALIZER

Definition at line 41 of file mitkBaseDataSerializer.h.

Constructor & Destructor Documentation

BaseDataSerializer()

mitk::BaseDataSerializer::BaseDataSerializer ( )

protected

~BaseDataSerializer()

mitk::BaseDataSerializer::~BaseDataSerializer ( )

overrideprotected

Member Function Documentation

GetFilenameHint()

virtual const char* mitk::BaseDataSerializer::GetFilenameHint ( ) const

virtual

Returns the current filename hint.

GetUniqueFilenameInWorkingDirectory()

std::string mitk::BaseDataSerializer::GetUniqueFilenameInWorkingDirectory ( )

protected

GetWorkingDirectory()

virtual const char* mitk::BaseDataSerializer::GetWorkingDirectory ( ) const

virtual

Returns the current working directory for serialized files.

mitkClassMacroItkParent()

mitk::BaseDataSerializer::mitkClassMacroItkParent	(	BaseDataSerializer	,
		itk::Object
	)

Serialize()

virtual std::string mitk::BaseDataSerializer::Serialize ( )

virtual

Serializes the previously set BaseData object to a file.

The base implementation logs the request and returns an empty string. Sub-classes must override this method to perform the actual serialization, writing data to a file in the working directory.

Returns

The filename (without path) of the newly created file, or an empty string if serialization failed or is not implemented.

Precondition

The Data object must be set via SetData().

The WorkingDirectory must be set via SetWorkingDirectory().

Reimplemented in mitk::SegmentationTaskListSerializer, mitk::SurfaceSerializer, mitk::PointSetSerializer, mitk::ImageSerializer, mitk::GeometryDataSerializer, mitk::ROISerializer, mitk::PlanarFigureSerializer, mitk::MultiLabelSegmentationSerializer, mitk::MAPRegistrationWrapperSerializer, mitk::ContourModelSetSerializer, mitk::ContourModelSerializer, and mitk::ExampleDataStructureSerializer.

SetData()

virtual void mitk::BaseDataSerializer::SetData ( const BaseData *  _arg )

virtual

Sets the BaseData object to be serialized.

Parameters

[in]

_arg

Pointer to the BaseData object.

SetFilenameHint()

virtual void mitk::BaseDataSerializer::SetFilenameHint ( const char *  _arg )

virtual

Sets a hint for the output filename (without path or extension).

SetWorkingDirectory()

virtual void mitk::BaseDataSerializer::SetWorkingDirectory ( const char *  _arg )

virtual

Sets the working directory where serialized files will be stored.

Member Data Documentation

m_Data

BaseData::ConstPointer mitk::BaseDataSerializer::m_Data

protected

Definition at line 85 of file mitkBaseDataSerializer.h.

m_FilenameHint

std::string mitk::BaseDataSerializer::m_FilenameHint

protected

Definition at line 83 of file mitkBaseDataSerializer.h.

m_WorkingDirectory

std::string mitk::BaseDataSerializer::m_WorkingDirectory

protected

Definition at line 84 of file mitkBaseDataSerializer.h.

---

The documentation for this class was generated from the following file:

• mitkBaseDataSerializer.h
