mitk::GizmoObjectFactory Class Reference

Registers mappers and assigns default properties for mitk::Gizmo. More...

#include <mitkGizmoObjectFactory.h>

Inheritance diagram for mitk::GizmoObjectFactory:

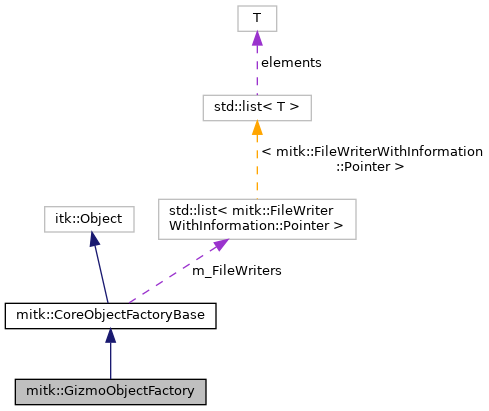

Collaboration diagram for mitk::GizmoObjectFactory:

Public Member Functions
	mitkClassMacro (GizmoObjectFactory, CoreObjectFactoryBase)
Pointer	Clone () const
mitk::Mapper::Pointer	CreateMapper (mitk::DataNode *node, MapperSlotId slotId) override
	Create a mapper for the given node if it contains a Gizmo. More...
void	SetDefaultProperties (mitk::DataNode *node) override
	Assign default rendering properties for Gizmo nodes. More...
Public Member Functions inherited from mitk::CoreObjectFactoryBase
	mitkClassMacroItkParent (CoreObjectFactoryBase, itk::Object)
virtual const char *	GetITKSourceVersion () const
	Get the ITK source version string. More...
virtual const char *	GetDescription () const
	Get a human-readable description of this factory. More...

Static Public Member Functions
static Pointer	New ()

Detailed Description

Registers mappers and assigns default properties for mitk::Gizmo.

This class is still required by MITK to register custom mappers. Micro-service registration for IO happens in GizmoActivator.

Definition at line 30 of file mitkGizmoObjectFactory.h.

Member Function Documentation

Clone()

Pointer mitk::GizmoObjectFactory::Clone

(

)

const

CreateMapper()

mitk::Mapper::Pointer mitk::GizmoObjectFactory::CreateMapper ( mitk::DataNode *  node, MapperSlotId  slotId  )

overridevirtual

Create a mapper for the given node if it contains a Gizmo.

Parameters

node	The data node to create a mapper for.
slotId	The mapper slot (2D or 3D).

Returns

A mapper instance, or nullptr if not applicable.

Implements mitk::CoreObjectFactoryBase.

mitkClassMacro()

mitk::GizmoObjectFactory::mitkClassMacro	(	GizmoObjectFactory	,
		CoreObjectFactoryBase
	)

New()

static Pointer mitk::GizmoObjectFactory::New ( )

static

SetDefaultProperties()

void mitk::GizmoObjectFactory::SetDefaultProperties ( mitk::DataNode *  node )

overridevirtual

Assign default rendering properties for Gizmo nodes.

Parameters

node	The data node to set default properties on.

Implements mitk::CoreObjectFactoryBase.

---

The documentation for this class was generated from the following file:

• mitkGizmoObjectFactory.h
