QmitkTransferFunctionGeneratorWidget Class Reference

Widget for generating transfer functions via presets, threshold, and bell modes. More...

#include <QmitkTransferFunctionGeneratorWidget.h>

Inheritance diagram for QmitkTransferFunctionGeneratorWidget:
Inheritance graph
[legend]

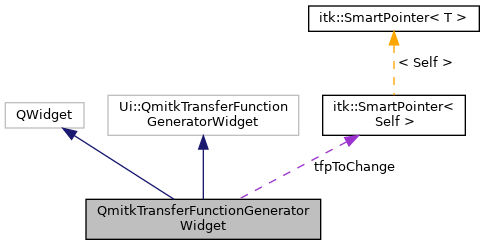

Collaboration diagram for QmitkTransferFunctionGeneratorWidget:
Collaboration graph
[legend]

Public Slots

void OnSavePreset ()
 Save the current transfer function to an XML file. More...

void OnLoadPreset ()
 Load a transfer function from an XML file. More...

void OnDeltaLevelWindow (int dx, int dy)
 Update the bell-shaped transfer function based on crosshair drag. More...

void OnDeltaThreshold (int dx, int dy)
 Update the threshold transfer function based on crosshair drag. More...


Signals

void SignalTransferFunctionModeChanged (int mode)
 Emitted when a preset is selected from the combo box. More...

void SignalUpdateCanvas ()
 Emitted when the transfer function canvas should be refreshed. More...


Public Member Functions

 QmitkTransferFunctionGeneratorWidget (QWidget *parent=nullptr, Qt::WindowFlags f={})
 Construct the transfer function generator widget. More...

 ~QmitkTransferFunctionGeneratorWidget () override
 Destructor. More...

void SetDataNode (mitk::DataNode *node, mitk::TimeStepType timestep=0)
 Set the data node whose transfer function to generate/modify. More...

int AddPreset (const QString &presetName)
 Add a named preset to the presets combo box. More...

void SetPresetsTabEnabled (bool enable)
 Enable or disable the presets tab. More...

void SetThresholdTabEnabled (bool enable)
 Enable or disable the threshold tab. More...

void SetBellTabEnabled (bool enable)
 Enable or disable the bell (level/window) tab. More...


Protected Slots

void OnPreset (int mode)


Protected Member Functions

double ScaleDelta (int d) const


Protected Attributes

std::unique_ptr< Ui::QmitkTransferFunctionGeneratorWidget > m_Controls

mitk::TransferFunctionProperty::Pointer tfpToChange

double histoMinimum

double histoMaximum

double thPos

double thDelta

double deltaScale

double deltaMax

double deltaMin

const mitk::Image::HistogramType * histoGramm

QString presetFileName


Detailed Description

Widget for generating transfer functions via presets, threshold, and bell modes.

Provides a tabbed interface with three transfer function generation modes:

  • Presets: Load/save transfer function XML files and select named presets.
  • Threshold: Interactive threshold-based transfer function using crosshair drag.
  • Bell: Interactive bell-shaped (level/window) transfer function using crosshair drag.

The widget operates on the "TransferFunction" property of a mitk::DataNode.

See also
QmitkTransferFunctionWidget, QmitkCrossWidget

Definition at line 43 of file QmitkTransferFunctionGeneratorWidget.h.

Constructor & Destructor Documentation

◆ QmitkTransferFunctionGeneratorWidget()

QmitkTransferFunctionGeneratorWidget::QmitkTransferFunctionGeneratorWidget ( QWidget *  parent = nullptr,
Qt::WindowFlags  f = {}
)

Construct the transfer function generator widget.

Parameters
[in]parentThe parent widget.
[in]fWindow flags.

◆ ~QmitkTransferFunctionGeneratorWidget()

QmitkTransferFunctionGeneratorWidget::~QmitkTransferFunctionGeneratorWidget ( )
override

Destructor.

Member Function Documentation

◆ AddPreset()

int QmitkTransferFunctionGeneratorWidget::AddPreset ( const QString &  presetName)

Add a named preset to the presets combo box.

Parameters
[in]presetNameThe display name for the preset.
Returns
The index of the added item in the combo box.

◆ OnDeltaLevelWindow

void QmitkTransferFunctionGeneratorWidget::OnDeltaLevelWindow ( int  dx,
int  dy
)
slot

Update the bell-shaped transfer function based on crosshair drag.

Parameters
[in]dxHorizontal delta (shifts center position).
[in]dyVertical delta (changes width).

◆ OnDeltaThreshold

void QmitkTransferFunctionGeneratorWidget::OnDeltaThreshold ( int  dx,
int  dy
)
slot

Update the threshold transfer function based on crosshair drag.

Parameters
[in]dxHorizontal delta (shifts threshold position).
[in]dyVertical delta (changes width).

◆ OnLoadPreset

void QmitkTransferFunctionGeneratorWidget::OnLoadPreset ( )
slot

Load a transfer function from an XML file.

◆ OnPreset

void QmitkTransferFunctionGeneratorWidget::OnPreset ( int  mode)
protectedslot

◆ OnSavePreset

void QmitkTransferFunctionGeneratorWidget::OnSavePreset ( )
slot

Save the current transfer function to an XML file.

◆ ScaleDelta()

double QmitkTransferFunctionGeneratorWidget::ScaleDelta ( int  d) const
protected

◆ SetBellTabEnabled()

void QmitkTransferFunctionGeneratorWidget::SetBellTabEnabled ( bool  enable)

Enable or disable the bell (level/window) tab.

Parameters
[in]enableTrue to enable.

◆ SetDataNode()

void QmitkTransferFunctionGeneratorWidget::SetDataNode ( mitk::DataNode *  node,
mitk::TimeStepType  timestep = 0
)

Set the data node whose transfer function to generate/modify.

Parameters
[in]nodeThe data node (image or unstructured grid).
[in]timestepThe time step for multi-timepoint data.

◆ SetPresetsTabEnabled()

void QmitkTransferFunctionGeneratorWidget::SetPresetsTabEnabled ( bool  enable)

Enable or disable the presets tab.

Parameters
[in]enableTrue to enable.

◆ SetThresholdTabEnabled()

void QmitkTransferFunctionGeneratorWidget::SetThresholdTabEnabled ( bool  enable)

Enable or disable the threshold tab.

Parameters
[in]enableTrue to enable.

◆ SignalTransferFunctionModeChanged

void QmitkTransferFunctionGeneratorWidget::SignalTransferFunctionModeChanged ( int  mode)
signal

Emitted when a preset is selected from the combo box.

Parameters
[in]modeThe index of the selected preset.

◆ SignalUpdateCanvas

void QmitkTransferFunctionGeneratorWidget::SignalUpdateCanvas ( )
signal

Emitted when the transfer function canvas should be refreshed.

Member Data Documentation

◆ deltaMax

double QmitkTransferFunctionGeneratorWidget::deltaMax
protected

Definition at line 136 of file QmitkTransferFunctionGeneratorWidget.h.

◆ deltaMin

double QmitkTransferFunctionGeneratorWidget::deltaMin
protected

Definition at line 137 of file QmitkTransferFunctionGeneratorWidget.h.

◆ deltaScale

double QmitkTransferFunctionGeneratorWidget::deltaScale
protected

Definition at line 135 of file QmitkTransferFunctionGeneratorWidget.h.

◆ histoGramm

const mitk::Image::HistogramType* QmitkTransferFunctionGeneratorWidget::histoGramm
protected

Definition at line 139 of file QmitkTransferFunctionGeneratorWidget.h.

◆ histoMaximum

double QmitkTransferFunctionGeneratorWidget::histoMaximum
protected

Definition at line 130 of file QmitkTransferFunctionGeneratorWidget.h.

◆ histoMinimum

double QmitkTransferFunctionGeneratorWidget::histoMinimum
protected

Definition at line 129 of file QmitkTransferFunctionGeneratorWidget.h.

◆ m_Controls

std::unique_ptr<Ui::QmitkTransferFunctionGeneratorWidget> QmitkTransferFunctionGeneratorWidget::m_Controls
protected

Definition at line 126 of file QmitkTransferFunctionGeneratorWidget.h.

◆ presetFileName

QString QmitkTransferFunctionGeneratorWidget::presetFileName
protected

Definition at line 141 of file QmitkTransferFunctionGeneratorWidget.h.

◆ tfpToChange

mitk::TransferFunctionProperty::Pointer QmitkTransferFunctionGeneratorWidget::tfpToChange
protected

Definition at line 127 of file QmitkTransferFunctionGeneratorWidget.h.

◆ thDelta

double QmitkTransferFunctionGeneratorWidget::thDelta
protected

Definition at line 133 of file QmitkTransferFunctionGeneratorWidget.h.

◆ thPos

double QmitkTransferFunctionGeneratorWidget::thPos
protected

Definition at line 132 of file QmitkTransferFunctionGeneratorWidget.h.

The documentation for this class was generated from the following file:
