Read-only QLabel that displays a numeric MITK property value. More...

#include <QmitkNumberPropertyView.h>

Inheritance diagram for QmitkNumberPropertyView:

[legend]

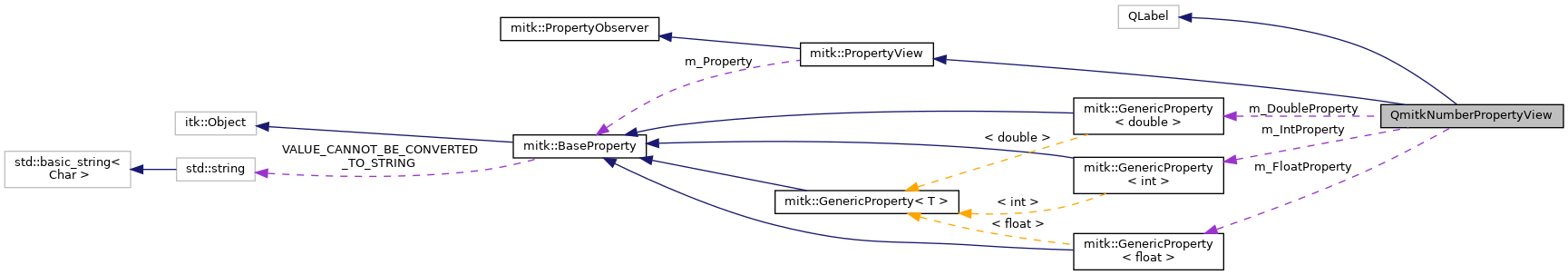

Collaboration diagram for QmitkNumberPropertyView:

[legend]

Public Member Functions
	QmitkNumberPropertyView (const mitk::IntProperty property, QWidget parent)
	Construct a view for an integer property. More...

	QmitkNumberPropertyView (const mitk::FloatProperty property, QWidget parent)
	Construct a view for a float property. More...

	QmitkNumberPropertyView (const mitk::DoubleProperty property, QWidget parent)
	Construct a view for a double property. More...

	~QmitkNumberPropertyView () override
	Destructor. More...

short	decimalPlaces () const
	Get the number of decimal places displayed. More...

void	setDecimalPlaces (short places)
	Set the number of decimal places to display. More...

QString	suffix () const
	Get the current text suffix. More...

void	setSuffix (const QString &suffix)
	Set a text suffix appended to the displayed value. More...

bool	showPercent () const
	Check whether values are displayed as percentages. More...

void	setShowPercent (bool show)
	Enable or disable percentage display (value multiplied by 100, "%" suffix). More...

Public Member Functions inherited from mitk::PropertyView
	PropertyView (const mitk::BaseProperty *property)
	Constructor. Begins observing the given property. More...

	~PropertyView () override
	Destructor. Removes the ITK observer from the property. More...

void	OnModified (const itk::EventObject &e)
	Callback for itk::ModifiedEvent on the observed property. More...

void	OnDelete (const itk::EventObject &e)
	Callback for itk::DeleteEvent on the observed property. More...

Public Member Functions inherited from mitk::PropertyObserver
	PropertyObserver ()
	Constructor. More...

virtual	~PropertyObserver ()
	Virtual destructor. More...

Protected Member Functions
void	initialize ()

void	PropertyChanged () override
	Called when the observed property value has changed. More...

void	PropertyRemoved () override
	Called when the observed property is about to be deleted. More...

void	DisplayNumber ()

Protected Member Functions inherited from mitk::PropertyObserver
void	BeginModifyProperty ()
	Marks the beginning of a self-initiated property modification. More...

void	EndModifyProperty ()
	Marks the end of a self-initiated property modification. More...

Protected Attributes
union {
const mitk::GenericProperty< int > * m_IntProperty

const mitk::GenericProperty< float > * m_FloatProperty

const mitk::GenericProperty< double > * m_DoubleProperty

};

const int	m_DataType

short	m_DecimalPlaces

QString	m_Suffix
	-1 indicates "no limit to decimal places" More...

double	m_DisplayFactor

Protected Attributes inherited from mitk::PropertyView
const mitk::BaseProperty *	m_Property
	The observed property (read-only). More...

Protected Attributes inherited from mitk::PropertyObserver
unsigned long	m_ModifiedTag
	ITK observer tag for the ModifiedEvent. More...

unsigned long	m_DeleteTag
	ITK observer tag for the DeleteEvent. More...

bool	m_SelfCall
	Guard flag to prevent re-entrant notification. More...

Properties
short	decimalPlaces

QString	suffix

bool	showPercent

Detailed Description

Read-only QLabel that displays a numeric MITK property value.

Observes an mitk::IntProperty, mitk::FloatProperty, or mitk::DoubleProperty and displays its current value as text. Supports configurable decimal places, a text suffix, and percentage display mode. If the property is removed, "n/a" is shown.

See also: QmitkNumberPropertyEditor, QmitkNumberPropertySlider, QmitkPropertyViewFactory

Definition at line 30 of file QmitkNumberPropertyView.h.

Constructor & Destructor Documentation

◆ QmitkNumberPropertyView() [1/3]

QmitkNumberPropertyView::QmitkNumberPropertyView	(	const mitk::IntProperty *	property,
		QWidget *	parent
	)

Construct a view for an integer property.

Parameters

[in]	property	The int property to observe.
[in]	parent	The parent widget.

◆ QmitkNumberPropertyView() [2/3]

QmitkNumberPropertyView::QmitkNumberPropertyView	(	const mitk::FloatProperty *	property,
		QWidget *	parent
	)

Construct a view for a float property.

Parameters

[in]	property	The float property to observe.
[in]	parent	The parent widget.

◆ QmitkNumberPropertyView() [3/3]

QmitkNumberPropertyView::QmitkNumberPropertyView	(	const mitk::DoubleProperty *	property,
		QWidget *	parent
	)

Construct a view for a double property.

Parameters

[in]	property	The double property to observe.
[in]	parent	The parent widget.

◆ ~QmitkNumberPropertyView()

QmitkNumberPropertyView::~QmitkNumberPropertyView ( )

override

Destructor.

Member Function Documentation

◆ decimalPlaces()

short QmitkNumberPropertyView::decimalPlaces ( ) const

Get the number of decimal places displayed.

Returns: The decimal places count.

◆ DisplayNumber()

void QmitkNumberPropertyView::DisplayNumber ( )

protected

◆ initialize()

void QmitkNumberPropertyView::initialize ( )

protected

◆ PropertyChanged()

void QmitkNumberPropertyView::PropertyChanged ( )

overrideprotectedvirtual

Called when the observed property value has changed.

Implements mitk::PropertyObserver.

◆ PropertyRemoved()

void QmitkNumberPropertyView::PropertyRemoved ( )

overrideprotectedvirtual

Called when the observed property is about to be deleted.

Implements mitk::PropertyObserver.

◆ setDecimalPlaces()

void QmitkNumberPropertyView::setDecimalPlaces ( short places )

Set the number of decimal places to display.

Parameters

[in] places The number of decimal places.

◆ setShowPercent()

void QmitkNumberPropertyView::setShowPercent ( bool show )

Enable or disable percentage display (value multiplied by 100, "%" suffix).

Parameters

[in] show True to enable percentage mode.

◆ setSuffix()

void QmitkNumberPropertyView::setSuffix ( const QString & suffix )

Set a text suffix appended to the displayed value.

Parameters

[in] suffix The suffix string (e.g. " mm").

◆ showPercent()

bool QmitkNumberPropertyView::showPercent ( ) const

Check whether values are displayed as percentages.

Returns: True if percentage mode is active.

◆ suffix()

QString QmitkNumberPropertyView::suffix ( ) const

Get the current text suffix.

Returns: The suffix string.

Member Data Documentation

◆

union { ... }

◆ m_DataType

const int QmitkNumberPropertyView::m_DataType

protected

Definition at line 112 of file QmitkNumberPropertyView.h.

◆ m_DecimalPlaces

short QmitkNumberPropertyView::m_DecimalPlaces

protected

Definition at line 114 of file QmitkNumberPropertyView.h.

◆ m_DisplayFactor

double QmitkNumberPropertyView::m_DisplayFactor

protected

Definition at line 116 of file QmitkNumberPropertyView.h.

◆ m_DoubleProperty

const mitk::GenericProperty<double>* QmitkNumberPropertyView::m_DoubleProperty

Definition at line 109 of file QmitkNumberPropertyView.h.

◆ m_FloatProperty

const mitk::GenericProperty<float>* QmitkNumberPropertyView::m_FloatProperty

Definition at line 108 of file QmitkNumberPropertyView.h.

◆ m_IntProperty

const mitk::GenericProperty<int>* QmitkNumberPropertyView::m_IntProperty

Definition at line 107 of file QmitkNumberPropertyView.h.

◆ m_Suffix

QString QmitkNumberPropertyView::m_Suffix

protected

-1 indicates "no limit to decimal places"

Definition at line 115 of file QmitkNumberPropertyView.h.

Property Documentation

◆ decimalPlaces

short QmitkNumberPropertyView::decimalPlaces

readwrite

Definition at line 1 of file QmitkNumberPropertyView.h.

◆ showPercent

bool QmitkNumberPropertyView::showPercent

readwrite

Definition at line 1 of file QmitkNumberPropertyView.h.

◆ suffix

QString QmitkNumberPropertyView::suffix

readwrite

Definition at line 1 of file QmitkNumberPropertyView.h.

The documentation for this class was generated from the following file:

QmitkNumberPropertyView.h
