A QSpinBox that edits numeric MITK properties (int, float, double). More...

#include <QmitkNumberPropertyEditor.h>

Inheritance diagram for QmitkNumberPropertyEditor:

[legend]

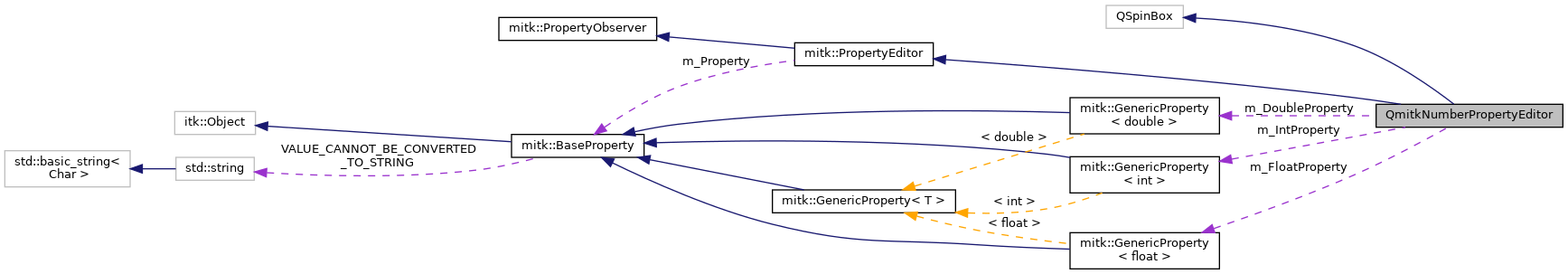

Collaboration diagram for QmitkNumberPropertyEditor:

[legend]

Public Member Functions
	QmitkNumberPropertyEditor (mitk::IntProperty property, QWidget parent)
	Construct an editor for an integer property. More...

	QmitkNumberPropertyEditor (mitk::FloatProperty property, QWidget parent)
	Construct an editor for a float property. More...

	QmitkNumberPropertyEditor (mitk::DoubleProperty property, QWidget parent)
	Construct an editor for a double property. More...

	~QmitkNumberPropertyEditor () override
	Destructor. More...

short	getDecimalPlaces () const
	Get the number of decimal places shown. More...

void	setDecimalPlaces (short places)
	Set the number of decimal places (only effective for float/double properties). More...

bool	getShowPercent () const
	Check whether values are displayed as percentages. More...

void	setShowPercent (bool showPercent)
	Enable or disable percentage display (e.g. 0.5 displayed as 50%). More...

int	minValue () const
	Get the minimum allowed value. More...

void	setMinValue (int value)
	Set the minimum allowed value. More...

int	maxValue () const
	Get the maximum allowed value. More...

void	setMaxValue (int value)
	Set the maximum allowed value. More...

double	doubleValue () const
	Get the current value as a double. More...

void	setDoubleValue (double value)
	Set the current value from a double. More...

Public Member Functions inherited from mitk::PropertyEditor
	PropertyEditor (mitk::BaseProperty *property)
	Constructor. Begins observing the given property. More...

	~PropertyEditor () override
	Destructor. Removes the ITK observer from the property. More...

void	OnModified (const itk::EventObject &e)
	Callback for itk::ModifiedEvent on the observed property. More...

void	OnDelete (const itk::EventObject &e)
	Callback for itk::DeleteEvent on the observed property. More...

Public Member Functions inherited from mitk::PropertyObserver
	PropertyObserver ()
	Constructor. More...

virtual	~PropertyObserver ()
	Virtual destructor. More...

Protected Slots
void	onValueChanged (int)

Protected Member Functions
void	initialize ()

QString	textFromValue (int) const override

int	valueFromText (const QString &) const override

void	PropertyChanged () override
	Called when the observed property value has changed. More...

void	PropertyRemoved () override
	Called when the observed property is about to be deleted. More...

void	DisplayNumber ()

Protected Member Functions inherited from mitk::PropertyObserver
void	BeginModifyProperty ()
	Marks the beginning of a self-initiated property modification. More...

void	EndModifyProperty ()
	Marks the end of a self-initiated property modification. More...

Protected Attributes
union {
mitk::GenericProperty< int > * m_IntProperty

mitk::GenericProperty< float > * m_FloatProperty

mitk::GenericProperty< double > * m_DoubleProperty

};

const int	m_DataType

short	m_DecimalPlaces

double	m_FactorPropertyToSpinbox

double	m_FactorSpinboxToDisplay

bool	m_ShowPercents

Protected Attributes inherited from mitk::PropertyEditor
mitk::BaseProperty *	m_Property
	The observed property (read-write). More...

Protected Attributes inherited from mitk::PropertyObserver
unsigned long	m_ModifiedTag
	ITK observer tag for the ModifiedEvent. More...

unsigned long	m_DeleteTag
	ITK observer tag for the DeleteEvent. More...

bool	m_SelfCall
	Guard flag to prevent re-entrant notification. More...

Properties
short	decimalPlaces

bool	showPercent

int	minValue

int	maxValue

Detailed Description

A QSpinBox that edits numeric MITK properties (int, float, double).

Provides a spinbox editor that bidirectionally synchronizes with an mitk::IntProperty, mitk::FloatProperty, or mitk::DoubleProperty. Supports configurable decimal places, percentage display mode, and min/max ranges. Internally converts between the property's floating-point value and the spinbox's integer-based value using scale factors.

See also: QmitkNumberPropertySlider, QmitkNumberPropertyView, QmitkPropertyViewFactory

Definition at line 31 of file QmitkNumberPropertyEditor.h.

Constructor & Destructor Documentation

◆ QmitkNumberPropertyEditor() [1/3]

QmitkNumberPropertyEditor::QmitkNumberPropertyEditor	(	mitk::IntProperty *	property,
		QWidget *	parent
	)

Construct an editor for an integer property.

Parameters

[in]	property	The int property to edit.
[in]	parent	The parent widget.

◆ QmitkNumberPropertyEditor() [2/3]

QmitkNumberPropertyEditor::QmitkNumberPropertyEditor	(	mitk::FloatProperty *	property,
		QWidget *	parent
	)

Construct an editor for a float property.

Parameters

[in]	property	The float property to edit.
[in]	parent	The parent widget.

◆ QmitkNumberPropertyEditor() [3/3]

QmitkNumberPropertyEditor::QmitkNumberPropertyEditor	(	mitk::DoubleProperty *	property,
		QWidget *	parent
	)

Construct an editor for a double property.

Parameters

[in]	property	The double property to edit.
[in]	parent	The parent widget.

◆ ~QmitkNumberPropertyEditor()

QmitkNumberPropertyEditor::~QmitkNumberPropertyEditor ( )

override

Destructor.

Member Function Documentation

◆ DisplayNumber()

void QmitkNumberPropertyEditor::DisplayNumber ( )

protected

◆ doubleValue()

double QmitkNumberPropertyEditor::doubleValue ( ) const

Get the current value as a double.

Returns: The property value.

◆ getDecimalPlaces()

short QmitkNumberPropertyEditor::getDecimalPlaces ( ) const

Get the number of decimal places shown.

Returns: The decimal places count.

◆ getShowPercent()

bool QmitkNumberPropertyEditor::getShowPercent ( ) const

Check whether values are displayed as percentages.

Returns: True if percentage mode is active.

◆ initialize()

void QmitkNumberPropertyEditor::initialize ( )

protected

◆ maxValue()

int QmitkNumberPropertyEditor::maxValue ( ) const

Get the maximum allowed value.

Returns: The maximum value.

◆ minValue()

int QmitkNumberPropertyEditor::minValue ( ) const

Get the minimum allowed value.

Returns: The minimum value.

◆ onValueChanged

void QmitkNumberPropertyEditor::onValueChanged ( int )

protectedslot

◆ PropertyChanged()

void QmitkNumberPropertyEditor::PropertyChanged ( )

overrideprotectedvirtual

Called when the observed property value has changed.

Implements mitk::PropertyObserver.

◆ PropertyRemoved()

void QmitkNumberPropertyEditor::PropertyRemoved ( )

overrideprotectedvirtual

Called when the observed property is about to be deleted.

Implements mitk::PropertyObserver.

◆ setDecimalPlaces()

void QmitkNumberPropertyEditor::setDecimalPlaces ( short places )

Set the number of decimal places (only effective for float/double properties).

Parameters

[in] places The number of decimal places.

◆ setDoubleValue()

void QmitkNumberPropertyEditor::setDoubleValue ( double value )

Set the current value from a double.

Parameters

[in] value The value to set.

◆ setMaxValue()

void QmitkNumberPropertyEditor::setMaxValue ( int value )

Set the maximum allowed value.

Parameters

[in] value The maximum value.

◆ setMinValue()

void QmitkNumberPropertyEditor::setMinValue ( int value )

Set the minimum allowed value.

Parameters

[in] value The minimum value.

◆ setShowPercent()

void QmitkNumberPropertyEditor::setShowPercent ( bool showPercent )

Enable or disable percentage display (e.g. 0.5 displayed as 50%).

Parameters

[in] showPercent True to enable percentage mode.

◆ textFromValue()

QString QmitkNumberPropertyEditor::textFromValue ( int ) const

overrideprotected

◆ valueFromText()

int QmitkNumberPropertyEditor::valueFromText ( const QString & ) const

overrideprotected

Member Data Documentation

◆

union { ... }

◆ m_DataType

const int QmitkNumberPropertyEditor::m_DataType

protected

Definition at line 141 of file QmitkNumberPropertyEditor.h.

◆ m_DecimalPlaces

short QmitkNumberPropertyEditor::m_DecimalPlaces

protected

Definition at line 143 of file QmitkNumberPropertyEditor.h.

◆ m_DoubleProperty

mitk::GenericProperty<double>* QmitkNumberPropertyEditor::m_DoubleProperty

Definition at line 138 of file QmitkNumberPropertyEditor.h.

◆ m_FactorPropertyToSpinbox

double QmitkNumberPropertyEditor::m_FactorPropertyToSpinbox

protected

Definition at line 144 of file QmitkNumberPropertyEditor.h.

◆ m_FactorSpinboxToDisplay

double QmitkNumberPropertyEditor::m_FactorSpinboxToDisplay

protected

Definition at line 145 of file QmitkNumberPropertyEditor.h.

◆ m_FloatProperty

mitk::GenericProperty<float>* QmitkNumberPropertyEditor::m_FloatProperty

Definition at line 137 of file QmitkNumberPropertyEditor.h.

◆ m_IntProperty

mitk::GenericProperty<int>* QmitkNumberPropertyEditor::m_IntProperty

Definition at line 136 of file QmitkNumberPropertyEditor.h.

◆ m_ShowPercents

bool QmitkNumberPropertyEditor::m_ShowPercents

protected

Definition at line 146 of file QmitkNumberPropertyEditor.h.

Property Documentation

◆ decimalPlaces

short QmitkNumberPropertyEditor::decimalPlaces

readwrite

Definition at line 1 of file QmitkNumberPropertyEditor.h.

◆ maxValue

int QmitkNumberPropertyEditor::maxValue

readwrite

Definition at line 1 of file QmitkNumberPropertyEditor.h.

◆ minValue

int QmitkNumberPropertyEditor::minValue

readwrite

Definition at line 1 of file QmitkNumberPropertyEditor.h.

◆ showPercent

bool QmitkNumberPropertyEditor::showPercent

readwrite

Definition at line 1 of file QmitkNumberPropertyEditor.h.

The documentation for this class was generated from the following file:

QmitkNumberPropertyEditor.h
