Displays all or a subset (defined by a predicate) of nodes of the Data Storage. More...

#include <QmitkDataStorageComboBox.h>

Inheritance diagram for QmitkDataStorageComboBox:

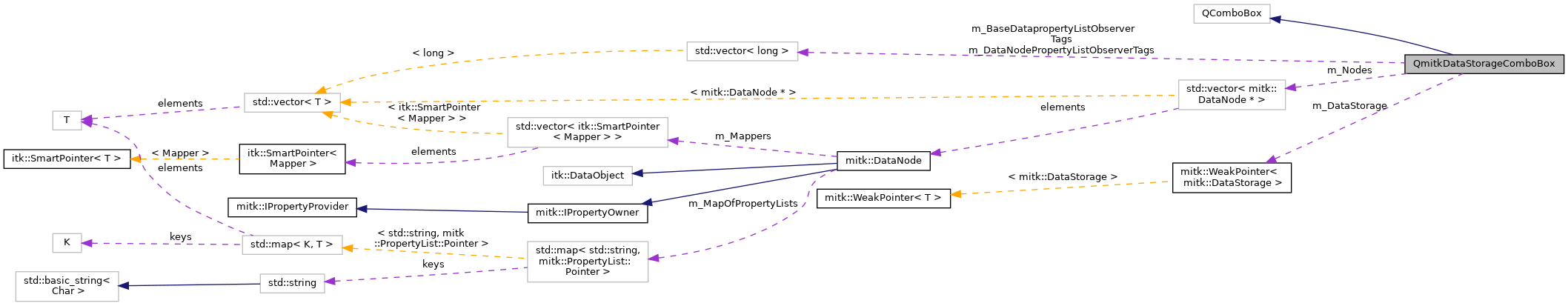

Collaboration diagram for QmitkDataStorageComboBox:

[legend]

Public Slots
void	SetSelectedNode (const mitk::DataNode::Pointer &node)
	Slot for signal when user wants to set a node as current selected node. More...

Signals
void	OnSelectionChanged (const mitk::DataNode *)
	Throw a signal when the data node selection changed. More...

Public Member Functions
	QmitkDataStorageComboBox (QWidget *parent=nullptr, bool autoSelectNewNodes=false)
	Ctor for an empty combobox. Use setDataStorage and setPredicate afterwards. More...

	QmitkDataStorageComboBox (mitk::DataStorage dataStorage, const mitk::NodePredicateBase predicate, QWidget *parent=nullptr, bool autoSelectNewNodes=false)
	Ctor for constructing QmitkDataStorageComboBox with given DataStorageComboBox and given predicate. More...

	~QmitkDataStorageComboBox () override
	Standard Dtor. Nothing to do here. More...

virtual int	Find (const mitk::DataNode *dataNode) const
	Searches for a given node and returns a valid index or -1 if the node was not found. More...

mitk::DataStorage::Pointer	GetDataStorage () const
	Get the DataStorage this ComboBox listens to. More...

const mitk::NodePredicateBase::ConstPointer	GetPredicate () const
	Return the predicate (may be nullptr) that is responsible for the dataNode selection of this ComboBox. More...

virtual mitk::DataNode::Pointer	GetNode (int index) const
	Returns the dataNode at Index index or 0 if the index is out of bounds. More...

virtual mitk::DataNode::Pointer	GetSelectedNode () const
	Returns the selected dataNode or 0 if there is none. More...

mitk::DataStorage::SetOfObjects::ConstPointer	GetNodes () const
	Returns all nodes that are stored in this combobox. More...

virtual bool	GetAutoSelectNewItems ()

void	SetDataStorage (mitk::DataStorage *dataStorage)
	Set the DataStorage this ComboBox should listen to. More...

void	SetPredicate (const mitk::NodePredicateBase *predicate)
	Set the predicate for this ComboBox. (QmitkDataStorageComboBox is now owner of the predicate) More...

virtual void	AddNode (const mitk::DataNode *dataNode)

virtual void	RemoveNode (int index)

virtual void	RemoveNode (const mitk::DataNode *dataNode)

virtual void	SetNode (int index, const mitk::DataNode *dataNode)

virtual void	SetNode (const mitk::DataNode dataNode, const mitk::DataNode otherDataNode)

virtual void	SetAutoSelectNewItems (bool autoSelectNewItems)

virtual void	OnPropertyListChanged (const itk::Object *caller, const itk::EventObject &event)
	Called when the name property of the node was modified. More...

Protected Slots
void	OnCurrentIndexChanged (int)
	Slot for signal when the user selects another item. More...

Protected Member Functions
bool	HasIndex (unsigned int index) const
	Checks if the given index is within the range of the m_Nodes vector. More...

virtual void	InsertNode (int index, const mitk::DataNode *dataNode)
	Inserts a new node at the given index. If the index does not exist, the data node is simply appended to the combobox. More...

void	Init ()
	Init-function this class with the given data storage and predicate. This function is called by all ctors. More...

virtual void	Reset ()
	Reset function whenever data storage or predicate changes. More...

void	RemoveNodeAndPropertyLists (int index)
	Remove the node at the given index and unregister its property list observers. More...

virtual void	UpdateComboBoxText (const mitk::PropertyList *)
	Update the combo box display text when a node's property list changes. More...

Protected Attributes
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_Predicate
	Holds the predicate that is responsible for the dataNode selection of this ComboBox. If the predicate is 0, every dataNode will be selected. More...

std::vector< mitk::DataNode * >	m_Nodes

std::vector< long >	m_DataNodePropertyListObserverTags
	Holds the tags of the data node property observers. More...

std::vector< long >	m_BaseDatapropertyListObserverTags
	Holds the tags of the base data property observers. More...

bool	m_BlockEvents
	Event function guard. Each function which is called by an event mechanism first checks if this is true in order to avoid endless loops. More...

bool	m_AutoSelectNewNodes
	If set to "true" new Nodes will be automatically selected. More...

Detailed Description

Displays all or a subset (defined by a predicate) of nodes of the Data Storage.

Author: Michael Mueller

Version: 4.0

Date: 2009-02-09

Definition at line 44 of file QmitkDataStorageComboBox.h.

Constructor & Destructor Documentation

◆ QmitkDataStorageComboBox() [1/2]

QmitkDataStorageComboBox::QmitkDataStorageComboBox	(	QWidget *	parent = `nullptr`,
		bool	autoSelectNewNodes = `false`
	)

Ctor for an empty combobox. Use setDataStorage and setPredicate afterwards.

◆ QmitkDataStorageComboBox() [2/2]

QmitkDataStorageComboBox::QmitkDataStorageComboBox	(	mitk::DataStorage *	dataStorage,
		const mitk::NodePredicateBase *	predicate,
		QWidget *	parent = `nullptr`,
		bool	autoSelectNewNodes = `false`
	)

Ctor for constructing QmitkDataStorageComboBox with given DataStorageComboBox and given predicate.

◆ ~QmitkDataStorageComboBox()

QmitkDataStorageComboBox::~QmitkDataStorageComboBox ( )

override

Standard Dtor. Nothing to do here.

Member Function Documentation

◆ AddNode()

virtual void QmitkDataStorageComboBox::AddNode ( const mitk::DataNode * dataNode )

virtual

Adds a node to the ComboBox. Gets called every time a DataStorage Add Event was thrown.

◆ Find()

virtual int QmitkDataStorageComboBox::Find ( const mitk::DataNode * dataNode ) const

virtual

Searches for a given node and returns a valid index or -1 if the node was not found.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

◆ GetAutoSelectNewItems()

virtual bool QmitkDataStorageComboBox::GetAutoSelectNewItems ( )

virtual

Returns the AutoSelectNewItems.

See also: SetAutoSelectNewItems

◆ GetDataStorage()

mitk::DataStorage::Pointer QmitkDataStorageComboBox::GetDataStorage ( ) const

Get the DataStorage this ComboBox listens to.

◆ GetNode()

virtual mitk::DataNode::Pointer QmitkDataStorageComboBox::GetNode ( int index ) const

virtual

Returns the dataNode at Index index or 0 if the index is out of bounds.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

◆ GetNodes()

mitk::DataStorage::SetOfObjects::ConstPointer QmitkDataStorageComboBox::GetNodes ( ) const

Returns all nodes that are stored in this combobox.

◆ GetPredicate()

const mitk::NodePredicateBase::ConstPointer QmitkDataStorageComboBox::GetPredicate ( ) const

Return the predicate (may be nullptr) that is responsible for the dataNode selection of this ComboBox.

◆ GetSelectedNode()

virtual mitk::DataNode::Pointer QmitkDataStorageComboBox::GetSelectedNode ( ) const

virtual

Returns the selected dataNode or 0 if there is none.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

◆ HasIndex()

bool QmitkDataStorageComboBox::HasIndex ( unsigned int index ) const

protected

Checks if the given index is within the range of the m_Nodes vector.

◆ Init()

void QmitkDataStorageComboBox::Init ( )

protected

Init-function this class with the given data storage and predicate. This function is called by all ctors.

◆ InsertNode()

virtual void QmitkDataStorageComboBox::InsertNode	(	int	index,
		const mitk::DataNode *	dataNode
	)

protectedvirtual

Inserts a new node at the given index. If the index does not exist, the data node is simply appended to the combobox.

This function is used by AddNode() and SetNode() because they just to the same:

If node is replaced (that is when index exists), the itk::Event observer will be removed
Check Node against Predicate
Register for itk::Events on the node
Insert Node and show in combobox

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

◆ OnCurrentIndexChanged

void QmitkDataStorageComboBox::OnCurrentIndexChanged ( int )

protectedslot

Slot for signal when the user selects another item.

◆ OnPropertyListChanged()

virtual void QmitkDataStorageComboBox::OnPropertyListChanged	(	const itk::Object *	caller,
		const itk::EventObject &	event
	)

virtual

Called when the name property of the node was modified.

◆ OnSelectionChanged

void QmitkDataStorageComboBox::OnSelectionChanged ( const mitk::DataNode * )

signal

Throw a signal when the data node selection changed.

◆ RemoveNode() [1/2]

virtual void QmitkDataStorageComboBox::RemoveNode ( const mitk::DataNode * dataNode )

virtual

Removes a node from the ComboBox. Gets called when a DataStorage Remove Event was thrown.

◆ RemoveNode() [2/2]

virtual void QmitkDataStorageComboBox::RemoveNode ( int index )

virtual

Removes a node from the ComboBox at a specified index (if the index exists). Gets called when a DataStorage Remove Event was thrown.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

◆ RemoveNodeAndPropertyLists()

void QmitkDataStorageComboBox::RemoveNodeAndPropertyLists ( int index )

protected

Remove the node at the given index and unregister its property list observers.

◆ Reset()

virtual void QmitkDataStorageComboBox::Reset ( )

protectedvirtual

Reset function whenever data storage or predicate changes.

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

◆ SetAutoSelectNewItems()

virtual void QmitkDataStorageComboBox::SetAutoSelectNewItems ( bool autoSelectNewItems )

virtual

Sets AutoSelectNewItems flag. If set to true new Nodes will be automatically selected. Default is false.

◆ SetDataStorage()

void QmitkDataStorageComboBox::SetDataStorage ( mitk::DataStorage * dataStorage )

Set the DataStorage this ComboBox should listen to.

If DataStorage is 0 nothing will be shown. If DataStorage is reset the combobox will be reset.

◆ SetNode() [1/2]

virtual void QmitkDataStorageComboBox::SetNode	(	const mitk::DataNode *	dataNode,
		const mitk::DataNode *	otherDataNode
	)

virtual

Replaces a dataNode in the combobox by an otherDataNode. Internally the method just calls SetNode(unsigned int, mitk::DataNode*)

◆ SetNode() [2/2]

virtual void QmitkDataStorageComboBox::SetNode	(	int	index,
		const mitk::DataNode *	dataNode
	)

virtual

Set a dataNode in the ComboBox at the specified index (if the index exists). Internally the method just calls RemoveNode(unsigned int)

Reimplemented in QmitkDataStorageComboBoxWithSelectNone.

◆ SetPredicate()

void QmitkDataStorageComboBox::SetPredicate ( const mitk::NodePredicateBase * predicate )

Set the predicate for this ComboBox. (QmitkDataStorageComboBox is now owner of the predicate)

If predicate is nullptr all nodes will be selected. If predicate changes the whole combobox will be reset.

◆ SetSelectedNode

void QmitkDataStorageComboBox::SetSelectedNode ( const mitk::DataNode::Pointer & node )

slot

Slot for signal when user wants to set a node as current selected node.

◆ UpdateComboBoxText()

virtual void QmitkDataStorageComboBox::UpdateComboBoxText ( const mitk::PropertyList * )

protectedvirtual

Update the combo box display text when a node's property list changes.

Member Data Documentation

◆ m_AutoSelectNewNodes

bool QmitkDataStorageComboBox::m_AutoSelectNewNodes

protected

If set to "true" new Nodes will be automatically selected.

Definition at line 234 of file QmitkDataStorageComboBox.h.

◆ m_BaseDatapropertyListObserverTags

std::vector<long> QmitkDataStorageComboBox::m_BaseDatapropertyListObserverTags

protected

Holds the tags of the base data property observers.

Definition at line 225 of file QmitkDataStorageComboBox.h.

◆ m_BlockEvents

bool QmitkDataStorageComboBox::m_BlockEvents

protected

Event function guard. Each function which is called by an event mechanism first checks if this is true in order to avoid endless loops.

Definition at line 230 of file QmitkDataStorageComboBox.h.

◆ m_DataNodePropertyListObserverTags

std::vector<long> QmitkDataStorageComboBox::m_DataNodePropertyListObserverTags

protected

Holds the tags of the data node property observers.

Definition at line 220 of file QmitkDataStorageComboBox.h.

◆ m_DataStorage

mitk::WeakPointer<mitk::DataStorage> QmitkDataStorageComboBox::m_DataStorage

protected

Pointer to the DataStorage from which the nodes are selected (remember: in BlueBerry there might be more than one DataStorage).

Definition at line 204 of file QmitkDataStorageComboBox.h.

◆ m_Nodes

std::vector<mitk::DataNode *> QmitkDataStorageComboBox::m_Nodes

protected

Holds all selected Nodes. Don't hold smart pointer as we are in a GUI class.

Definition at line 215 of file QmitkDataStorageComboBox.h.

◆ m_Predicate

mitk::NodePredicateBase::ConstPointer QmitkDataStorageComboBox::m_Predicate

protected

Holds the predicate that is responsible for the dataNode selection of this ComboBox. If the predicate is 0, every dataNode will be selected.

Definition at line 210 of file QmitkDataStorageComboBox.h.

The documentation for this class was generated from the following file:

QmitkDataStorageComboBox.h

Public Slots

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ QmitkDataStorageComboBox() [1/2]

◆ QmitkDataStorageComboBox() [2/2]

◆ ~QmitkDataStorageComboBox()

Member Function Documentation

◆ AddNode()

◆ Find()

◆ GetAutoSelectNewItems()

◆ GetDataStorage()

◆ GetNode()

◆ GetNodes()

◆ GetPredicate()

◆ GetSelectedNode()

◆ HasIndex()

◆ Init()

◆ InsertNode()

◆ OnCurrentIndexChanged

◆ OnPropertyListChanged()

◆ OnSelectionChanged

◆ RemoveNode() [1/2]

◆ RemoveNode() [2/2]

◆ RemoveNodeAndPropertyLists()

◆ Reset()

◆ SetAutoSelectNewItems()

◆ SetDataStorage()

◆ SetNode() [1/2]

◆ SetNode() [2/2]

◆ SetPredicate()

◆ SetSelectedNode

◆ UpdateComboBoxText()

Member Data Documentation

◆ m_AutoSelectNewNodes

◆ m_BaseDatapropertyListObserverTags

◆ m_BlockEvents

◆ m_DataNodePropertyListObserverTags

◆ m_DataStorage

◆ m_Nodes

◆ m_Predicate
