derives out of two identical sized MITK images the oxygen saturation and return one MITK image as result. Furthermore it is possible to set settings that the result shows just SO2 values above a threshold, or above a input value for Hb, HbO2 to get just a oxygen saturation image of interessting structures. More...

#include <mitkPASpectralUnmixingSO2.h>

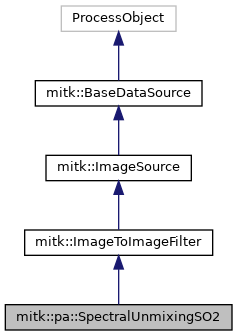

Inheritance diagram for mitk::pa::SpectralUnmixingSO2:

[legend]

Collaboration diagram for mitk::pa::SpectralUnmixingSO2:

[legend]

Public Member Functions
	mitkClassMacro (SpectralUnmixingSO2, mitk::ImageToImageFilter)

virtual void	AddSO2Settings (int value)
	AddSO2Settings takes integers and writes them at the end of the m_SO2Settings vector. More...

virtual void	Verbose (bool verbose)
	Verbose gives more information to the console. Default value is false. More...

Public Member Functions inherited from mitk::ImageToImageFilter
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

virtual void	SetInput (const InputImageType *image)

virtual void	SetInput (unsigned int, const InputImageType *image)

InputImageType *	GetInput (void)

InputImageType *	GetInput (unsigned int idx)

const InputImageType *	GetInput (void) const

const InputImageType *	GetInput (unsigned int idx) const

Public Member Functions inherited from mitk::ImageSource
Pointer	Clone () const

OutputType *	GetOutput ()
	Get the output data of this image source object. More...

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Make a DataObject of the correct type to used as the specified output. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual vtkImageData *	GetVtkImageData ()

virtual const vtkImageData *	GetVtkImageData () const

Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageToImageFilter
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::ImageSource
static const char *	GetStaticNameOfClass ()

static Pointer	New ()
	Method for creation through the object factory. More...

Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	SpectralUnmixingSO2 ()
	Constructor sets number of input images to two and number of output images to one, respectively. More...

	~SpectralUnmixingSO2 () override

Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()

	~ImageToImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	GenerateInputRequestedRegion () override

Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()

	~ImageSource () override

void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...

virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...

void	PrepareOutputs () override
	This method is intentionally left blank. More...

virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...

virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can can provide an implementation for BeforeThreadedGenerateData(). More...

virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can can provide an implementation for AfterThreadedGenerateData(). More...

virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()

	~BaseDataSource () override

Protected Attributes
std::vector< int >	m_SO2Settings

bool	m_Verbose

Additional Inherited Members
Public Types inherited from mitk::ImageToImageFilter
typedef ImageToImageFilter	Self

typedef ImageSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::OutputImageRegionType	OutputImageRegionType

typedef mitk::Image	InputImageType

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef SlicedData::RegionType	InputImageRegionType

Public Types inherited from mitk::ImageSource
typedef ImageSource	Self

typedef BaseDataSource	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...

typedef OutputImageType	OutputType

typedef OutputImageType::Pointer	OutputImagePointer

typedef SlicedData::RegionType	OutputImageRegionType

Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self

typedef itk::ProcessObject	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef BaseData	OutputType

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Static Protected Member Functions inherited from mitk::ImageSource
static ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...

Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

derives out of two identical sized MITK images the oxygen saturation and return one MITK image as result. Furthermore it is possible to set settings that the result shows just SO2 values above a threshold, or above a input value for Hb, HbO2 to get just a oxygen saturation image of interessting structures.

Input: The input has to be two 3D MITK images. The order of the inputs matter! The first input has to be the Hb image the second input has to be the HbO2 image. The settings are integer values. The SO2 threshold therefore is percentage value.

Output: The output will be one MITK image. Where one can see the oxygen saturation of all pixels above the set threholds. If a pixel is below a threhold or NAN then the value will be set to zero.

UPDATE: SO2 Filter will get an second output, the total hemoglobin value with ->GetOutput(1).

Definition at line 41 of file mitkPASpectralUnmixingSO2.h.
