Implementation of mitk::USControlInterfaceProbes for DiPhAS ultrasound devices. See documentation of mitk::USControlInterfaceProbes for a description of the interface methods. This class has to be implemented for the USDevice but the DiPhAS API does not support multiple devices. Therefore there will be just one probe at all times. More...

#include <mitkUSDiPhASProbesControls.h>

Inheritance diagram for mitk::USDiPhASProbesControls:

[legend]

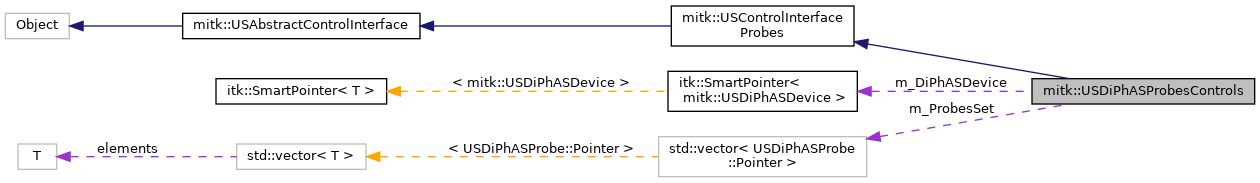

Collaboration diagram for mitk::USDiPhASProbesControls:

[legend]

Public Member Functions
	mitkClassMacro (USDiPhASProbesControls, USControlInterfaceProbes)

	mitkNewMacro1Param (Self, itk::SmartPointer< USDiPhASDevice >)

virtual void	SetIsActive (bool)

virtual bool	GetIsActive ()

virtual std::vector< USProbe::Pointer >	GetProbeSet ()

virtual void	OnSelectProbe (unsigned int index)
	Virtual method which is called inside mitk::USControlInterfaceProbes::SelectProbe(). Implement this method to handle the actual selecting of the probe at the device api. More...

virtual void	OnSelectProbe (USProbe::Pointer probe)
	Virtual method which is called inside mitk::USControlInterfaceProbes::SelectProbe(). Implement this method to handle the actual selecting of the probe at the device api. More...

virtual USProbe::Pointer	GetSelectedProbe ()

virtual unsigned int	GetProbesCount () const

void	ProbeRemoved (unsigned int index)

void	ProbeAdded (unsigned int index)

Public Member Functions inherited from mitk::USControlInterfaceProbes
	mitkClassMacro (USControlInterfaceProbes, USAbstractControlInterface)

void	SelectProbe (unsigned int index)

void	SelectProbe (USProbe::Pointer probe)

Public Member Functions inherited from mitk::USAbstractControlInterface
	mitkClassMacroItkParent (USAbstractControlInterface, itk::Object)

Protected Member Functions
	USDiPhASProbesControls (itk::SmartPointer< USDiPhASDevice > device)

virtual	~USDiPhASProbesControls ()

bool	CreateProbesCollection ()

void	CreateProbesSet ()

Protected Member Functions inherited from mitk::USControlInterfaceProbes
	USControlInterfaceProbes (itk::SmartPointer< USDevice > device)

	~USControlInterfaceProbes () override

Protected Member Functions inherited from mitk::USAbstractControlInterface
	USAbstractControlInterface (itk::SmartPointer< USDevice > device)

	~USAbstractControlInterface () override

Protected Attributes
bool	m_IsActive

unsigned int	m_SelectedProbeIndex

std::vector< USDiPhASProbe::Pointer >	m_ProbesSet

itk::SmartPointer< USDiPhASDevice >	m_DiPhASDevice

Protected Attributes inherited from mitk::USAbstractControlInterface
itk::WeakPointer< USDevice >	m_Device

Detailed Description

Implementation of mitk::USControlInterfaceProbes for DiPhAS ultrasound devices. See documentation of mitk::USControlInterfaceProbes for a description of the interface methods. This class has to be implemented for the USDevice but the DiPhAS API does not support multiple devices. Therefore there will be just one probe at all times.

Definition at line 31 of file mitkUSDiPhASProbesControls.h.

Constructor & Destructor Documentation

◆ USDiPhASProbesControls()

mitk::USDiPhASProbesControls::USDiPhASProbesControls ( itk::SmartPointer< USDiPhASDevice > device )

protected

Constructs an empty object. DiPhAS device has to be set after constructing by calling mitk::USDiPhASProbesControls::SetDiPhASDevice before the object can be used.

Definition at line 18 of file mitkUSDiPhASProbesControls.cpp.

◆ ~USDiPhASProbesControls()

mitk::USDiPhASProbesControls::~USDiPhASProbesControls ( )

protectedvirtual

Definition at line 24 of file mitkUSDiPhASProbesControls.cpp.

Member Function Documentation

◆ CreateProbesCollection()

bool mitk::USDiPhASProbesControls::CreateProbesCollection ( )

protected

Create collection object (DiPhAS API) for the API device.

◆ CreateProbesSet()

void mitk::USDiPhASProbesControls::CreateProbesSet ( )

protected

Create vector of mitk::USDiPhASProbe objects from the DiPhAS API probe collection. Hence mitk::USDiPhASProbesControls::CreateProbesCollection has to be called before.

Definition at line 106 of file mitkUSDiPhASProbesControls.cpp.

References m_DiPhASDevice, m_ProbesSet, and mitk::USProbe::New().

Referenced by ProbeAdded(), and SetIsActive().

◆ GetIsActive()

bool mitk::USDiPhASProbesControls::GetIsActive ( )

virtual

Method must be implemented in every control interface to tell the caller if the interface is currently activated or deactivated.

Returns: whether the control interface is active or not

Implements mitk::USAbstractControlInterface.

Definition at line 35 of file mitkUSDiPhASProbesControls.cpp.

References m_IsActive.

◆ GetProbesCount()

unsigned int mitk::USDiPhASProbesControls::GetProbesCount ( ) const

virtual

Returns: number of probes currently available at the ultrasound device

Implements mitk::USControlInterfaceProbes.

Definition at line 83 of file mitkUSDiPhASProbesControls.cpp.

References m_ProbesSet.

◆ GetProbeSet()

std::vector< mitk::USProbe::Pointer > mitk::USDiPhASProbesControls::GetProbeSet ( )

virtual

Returns: vector of all probes currently available at the ultrasound device

Implements mitk::USControlInterfaceProbes.

Definition at line 40 of file mitkUSDiPhASProbesControls.cpp.

References m_ProbesSet.

◆ GetSelectedProbe()

mitk::USProbe::Pointer mitk::USDiPhASProbesControls::GetSelectedProbe ( )

virtual

Returns: Ultrasound probe which is currently selected as the active probe.

Implements mitk::USControlInterfaceProbes.

Definition at line 69 of file mitkUSDiPhASProbesControls.cpp.

References m_ProbesSet, m_SelectedProbeIndex, MITK_ERROR, and mitkThrow.

◆ mitkClassMacro()

mitk::USDiPhASProbesControls::mitkClassMacro	(	USDiPhASProbesControls	,
		USControlInterfaceProbes
	)

◆ mitkNewMacro1Param()

mitk::USDiPhASProbesControls::mitkNewMacro1Param	(	Self	,
		itk::SmartPointer< USDiPhASDevice >
	)

◆ OnSelectProbe() [1/2]

void mitk::USDiPhASProbesControls::OnSelectProbe ( unsigned int index )

virtual

Virtual method which is called inside mitk::USControlInterfaceProbes::SelectProbe(). Implement this method to handle the actual selecting of the probe at the device api.

Parameters

index index of the probe to be selected

Implements mitk::USControlInterfaceProbes.

Definition at line 52 of file mitkUSDiPhASProbesControls.cpp.

References m_ProbesSet, m_SelectedProbeIndex, MITK_ERROR, and mitkThrow.

◆ OnSelectProbe() [2/2]

virtual void mitk::USDiPhASProbesControls::OnSelectProbe ( USProbe::Pointer probe )

virtual

Virtual method which is called inside mitk::USControlInterfaceProbes::SelectProbe(). Implement this method to handle the actual selecting of the probe at the device api.

Parameters

probe pointer to probe to be selected

Implements mitk::USControlInterfaceProbes.
