Right now, the US Probe is only a fancy name for a string. Later, it could handle probe specific parameters like the current frequency etc. It is able to compare itself to other probes for device managment though. More...

#include <mitkUSProbe.h>

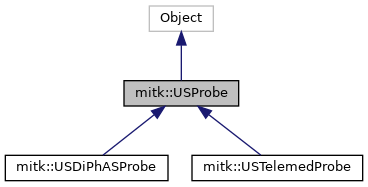

Inheritance diagram for mitk::USProbe:

[legend]

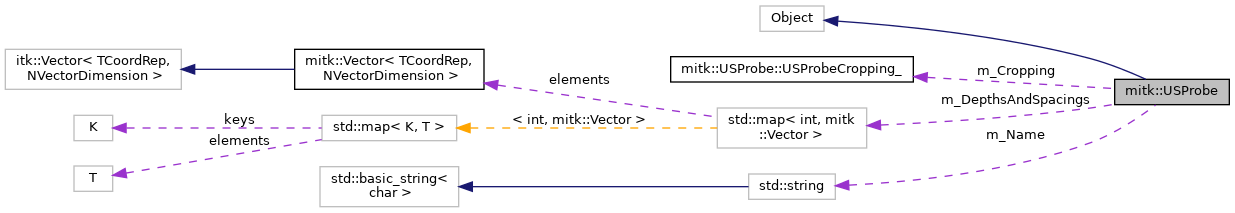

Collaboration diagram for mitk::USProbe:

[legend]

Classes
struct	USProbeCropping_
	Struct to define a probe specific ultrasound image cropping. More...

Public Types
typedef struct mitk::USProbe::USProbeCropping_	USProbeCropping
	Struct to define a probe specific ultrasound image cropping. More...

Public Member Functions
	mitkClassMacroItkParent (USProbe, itk::Object)

Pointer	Clone () const

	mitkNewMacro1Param (Self, std::string)

void	SetProbeCropping (unsigned int top, unsigned int bottom, unsigned int left, unsigned int right)
	Sets the probe cropping. More...

USProbeCropping	GetProbeCropping ()

bool	IsEqualToProbe (mitk::USProbe::Pointer probe)
	Compares this probe to another probe and returns true if they are equal in terms of name AND NAME ONLY be sure to sufficiently extend this method along with further capabilities probes. More...

void	SetDepthAndSpacing (int depth, Vector3D spacing)
	Sets a scanning depth of the probe and the associated spacing. More...

std::map< int, Vector3D >	GetDepthsAndSpacing ()
	Gets all scanning depths and the associates spacings of the probe as an std::map with depth as key (represented by an int) and spacing as value (represented by a Vector3D) More...

void	SetDepth (int depth)
	Sets a scanning depth of the probe with the default spacing (1,1,1). Exact spacing needs to be calibrated. More...

void	RemoveDepth (int depthToRemove)
	Removes the given depth of the probe, if it exists. More...

void	SetSpacingForGivenDepth (int givenDepth, Vector3D spacing)

Vector3D	GetSpacingForGivenDepth (int givenDepth)
	Returns the spacing that is associated to the given depth of the probe. If spacing was not calibrated or if depth does not exist for this probe the default spacing (1,1,1) is returned. More...

bool	IsDepthAndSpacingEmpty ()
	Checks, whether the std::map m_DepthAndSpacings contains at least one depth element or not. More...

virtual std::string	GetName ()

virtual void	SetName (std::string _arg)

virtual double	GetCurrentDepth ()

virtual void	SetCurrentDepth (double _arg)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	USProbe ()

	USProbe (std::string identifier)

	~USProbe () override

Protected Attributes
std::string	m_Name

double	m_CurrentDepth

std::map< int, Vector3D >	m_DepthsAndSpacings

USProbeCropping	m_Cropping

Detailed Description

Right now, the US Probe is only a fancy name for a string. Later, it could handle probe specific parameters like the current frequency etc. It is able to compare itself to other probes for device managment though.

Documentation

Definition at line 30 of file mitkUSProbe.h.

Member Typedef Documentation

◆ USProbeCropping

typedef struct mitk::USProbe::USProbeCropping_ mitk::USProbe::USProbeCropping

Struct to define a probe specific ultrasound image cropping.

Constructor & Destructor Documentation

◆ USProbe() [1/2]

mitk::USProbe::USProbe ( )

protected

Definition at line 16 of file mitkUSProbe.cpp.

◆ USProbe() [2/2]

mitk::USProbe::USProbe ( std::string identifier )

protected

Definition at line 20 of file mitkUSProbe.cpp.

◆ ~USProbe()

mitk::USProbe::~USProbe ( )

overrideprotected

Definition at line 25 of file mitkUSProbe.cpp.

Member Function Documentation

◆ Clone()

Pointer mitk::USProbe::Clone ( ) const

◆ GetCurrentDepth()

virtual double mitk::USProbe::GetCurrentDepth ( )

virtual

◆ GetDepthsAndSpacing()

std::map< int, mitk::Vector3D > mitk::USProbe::GetDepthsAndSpacing ( )

Gets all scanning depths and the associates spacings of the probe as an std::map with depth as key (represented by an int) and spacing as value (represented by a Vector3D)

Definition at line 53 of file mitkUSProbe.cpp.

References m_DepthsAndSpacings.

◆ GetName()

virtual std::string mitk::USProbe::GetName ( )

virtual

◆ GetProbeCropping()

mitk::USProbe::USProbeCropping mitk::USProbe::GetProbeCropping ( )

Definition at line 37 of file mitkUSProbe.cpp.

References m_Cropping.

◆ GetSpacingForGivenDepth()

mitk::Vector3D mitk::USProbe::GetSpacingForGivenDepth ( int givenDepth )

Returns the spacing that is associated to the given depth of the probe. If spacing was not calibrated or if depth does not exist for this probe the default spacing (1,1,1) is returned.

Definition at line 80 of file mitkUSProbe.cpp.

References m_DepthsAndSpacings.

◆ IsDepthAndSpacingEmpty()

bool mitk::USProbe::IsDepthAndSpacingEmpty ( )

Checks, whether the std::map m_DepthAndSpacings contains at least one depth element or not.

Returns: True, if the the std::map m_DepthAndSpacings does not contain at least one depth element, else false.

Definition at line 99 of file mitkUSProbe.cpp.

References m_DepthsAndSpacings.

◆ IsEqualToProbe()

bool mitk::USProbe::IsEqualToProbe ( mitk::USProbe::Pointer probe )

Compares this probe to another probe and returns true if they are equal in terms of name AND NAME ONLY be sure to sufficiently extend this method along with further capabilities probes.

Definition at line 42 of file mitkUSProbe.cpp.

References m_Name.

◆ mitkClassMacroItkParent()

mitk::USProbe::mitkClassMacroItkParent	(	USProbe	,
		itk::Object
	)

◆ mitkNewMacro1Param()

mitk::USProbe::mitkNewMacro1Param	(	Self	,
		std::string
	)

◆ New()

static Pointer mitk::USProbe::New ( )

static

Referenced by mitk::USTelemedProbesControls::CreateProbesSet(), mitk::USDiPhASProbesControls::CreateProbesSet(), mitk::USDeviceReaderXML::ExtractProbe(), QmitkUSNewVideoDeviceWidget::OnAddNewProbeClicked(), QmitkUSNewVideoDeviceWidget::OnClickedDone(), QmitkUSNewVideoDeviceWidget::OnClickedFinishedEditing(), mitk::USDeviceReaderXML::ReadUltrasoundDeviceConfiguration(), mitk::USIGTLDevice::SetDefaultProbeAsCurrentProbe(), mitk::USVideoDevice::SetDefaultProbeAsCurrentProbe(), and mitk::USDevicePersistence::StringToUSProbe().

◆ RemoveDepth()

void mitk::USProbe::RemoveDepth ( int depthToRemove )

Removes the given depth of the probe, if it exists.

Definition at line 68 of file mitkUSProbe.cpp.

References m_DepthsAndSpacings.

◆ SetCurrentDepth()

virtual void mitk::USProbe::SetCurrentDepth ( double _arg )

virtual

◆ SetDepth()

void mitk::USProbe::SetDepth ( int depth )

Sets a scanning depth of the probe with the default spacing (1,1,1). Exact spacing needs to be calibrated.

Definition at line 58 of file mitkUSProbe.cpp.

References m_DepthsAndSpacings.

◆ SetDepthAndSpacing()

void mitk::USProbe::SetDepthAndSpacing	(	int	depth,
		mitk::Vector3D	spacing
	)

Sets a scanning depth of the probe and the associated spacing.

Definition at line 48 of file mitkUSProbe.cpp.

References m_DepthsAndSpacings.

◆ SetName()

virtual void mitk::USProbe::SetName ( std::string _arg )

virtual

Referenced by mitk::USDiPhASProbe::USDiPhASProbe(), and mitk::USTelemedProbe::USTelemedProbe().

◆ SetProbeCropping()

void mitk::USProbe::SetProbeCropping	(	unsigned int	top,
		unsigned int	bottom,
		unsigned int	left,
		unsigned int	right
	)

Sets the probe cropping.

Definition at line 29 of file mitkUSProbe.cpp.

References mitk::USProbe::USProbeCropping_::bottom, mitk::USProbe::USProbeCropping_::left, m_Cropping, mitk::USProbe::USProbeCropping_::right, and mitk::USProbe::USProbeCropping_::top.

◆ SetSpacingForGivenDepth()

void mitk::USProbe::SetSpacingForGivenDepth	(	int	givenDepth,
		Vector3D	spacing
	)

\ brief Sets the spacing associated to the given depth of the probe. Spacing needs to be calibrated.

Definition at line 73 of file mitkUSProbe.cpp.

References m_DepthsAndSpacings.

Member Data Documentation

◆ m_Cropping

USProbeCropping mitk::USProbe::m_Cropping

protected

Definition at line 123 of file mitkUSProbe.h.

Referenced by GetProbeCropping(), and SetProbeCropping().

◆ m_CurrentDepth

double mitk::USProbe::m_CurrentDepth

protected

Definition at line 118 of file mitkUSProbe.h.

◆ m_DepthsAndSpacings

std::map<int, Vector3D> mitk::USProbe::m_DepthsAndSpacings

protected

Definition at line 121 of file mitkUSProbe.h.

Referenced by GetDepthsAndSpacing(), GetSpacingForGivenDepth(), IsDepthAndSpacingEmpty(), RemoveDepth(), SetDepth(), SetDepthAndSpacing(), and SetSpacingForGivenDepth().

◆ m_Name

std::string mitk::USProbe::m_Name

protected

Definition at line 117 of file mitkUSProbe.h.

Referenced by IsEqualToProbe().
