#include <mitkTubeGraphVtkMapper3D.h>

Inheritance diagram for mitk::TubeGraphVtkMapper3D:

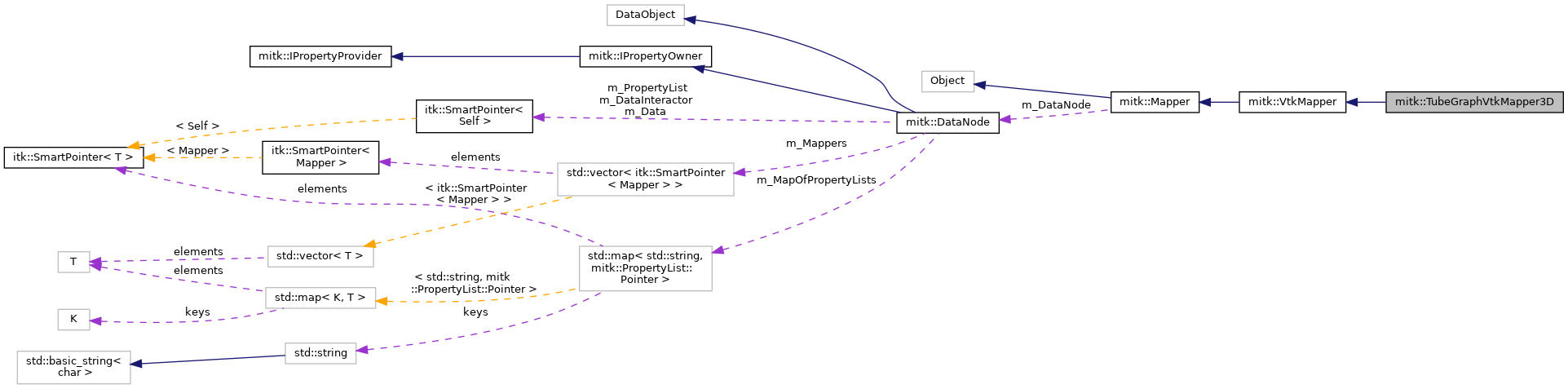

Collaboration diagram for mitk::TubeGraphVtkMapper3D:

[legend]

Public Types
typedef TubeGraph::EdgeDescriptorType	EdgeDescriptorType

typedef TubeGraph::VertexDescriptorType	VertexDescriptorType

Public Types inherited from mitk::VtkMapper
typedef VtkMapper	Self

typedef Mapper	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::Mapper
typedef Mapper	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
	mitkClassMacro (TubeGraphVtkMapper3D, VtkMapper)

virtual const TubeGraph *	GetInput ()

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override

Public Member Functions inherited from mitk::VtkMapper
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

virtual bool	IsVtkBased () const override
	Returns whether this is an vtk-based mapper. More...

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determines which geometry should be rendered (opaque, translucent, volumetric, overlay) and calls the appropriate function. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Checks visibility and renders the overlay. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Checks visibility and renders untransparent geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Checks visiblity and renders transparent geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Checks visibility and renders volumes. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Returns true if this mapper owns the specified vtkProp for the given BaseRenderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

virtual void	ApplyProperties (vtkActor actor, mitk::BaseRenderer renderer)
	Apply color and opacity properties read from the PropertyList. More...

void	ApplyShaderProperties (mitk::BaseRenderer *)

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList. Called by mapper subclasses. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release vtk-based graphics resources that are being consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid. More...

BaseData *	GetData () const
	Get the data to map. More...

virtual bool	GetColor (float rgb[3], BaseRenderer renderer, const char name="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

virtual bool	GetVisibility (bool &visible, BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty) More...

virtual bool	GetOpacity (float &opacity, BaseRenderer renderer, const char name="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

virtual bool	GetLevelWindow (LevelWindow &levelWindow, BaseRenderer renderer, const char name="levelwindow") const
	Convenience access method for color properties (instances of LevelWindoProperty) More...

virtual bool	IsVisible (BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

virtual void	Update (BaseRenderer *renderer)
	Calls the time step of the input data for the specified renderer and checks whether the time step is valid and calls method GenerateDataForRenderer() More...

int	GetTimestep () const
	Returns the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::VtkMapper
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::Mapper
static const char *	GetStaticNameOfClass ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper to node. More...

Protected Member Functions
	TubeGraphVtkMapper3D ()

	~TubeGraphVtkMapper3D () override

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override

virtual void	GenerateTubeGraphData (mitk::BaseRenderer *renderer)

virtual void	RenderTubeGraphPropertyInformation (mitk::BaseRenderer *renderer)

void	GeneratePolyDataForTube (TubeGraphEdge &edge, const TubeGraph::Pointer &graph, const TubeGraphProperty::Pointer &graphProperty, mitk::BaseRenderer *renderer)

void	GeneratePolyDataForFurcation (TubeGraphVertex &vertex, const TubeGraph::Pointer &graph, mitk::BaseRenderer *renderer)

void	ClipPolyData (TubeGraphVertex &vertex, const TubeGraph::Pointer &graph, const TubeGraphProperty::Pointer &graphProperty, mitk::BaseRenderer *renderer)

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer) More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Additional Inherited Members
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

3D Mapper for mitk::Graph< TubeGraphVertex, TubeGraphEdge >. This mapper creates tubes around each tubular structure by using vtkTubeFilter.

Definition at line 38 of file mitkTubeGraphVtkMapper3D.h.

Member Typedef Documentation

◆ EdgeDescriptorType

typedef TubeGraph::EdgeDescriptorType mitk::TubeGraphVtkMapper3D::EdgeDescriptorType

Definition at line 42 of file mitkTubeGraphVtkMapper3D.h.

◆ VertexDescriptorType

typedef TubeGraph::VertexDescriptorType mitk::TubeGraphVtkMapper3D::VertexDescriptorType

Definition at line 43 of file mitkTubeGraphVtkMapper3D.h.

Constructor & Destructor Documentation

◆ TubeGraphVtkMapper3D()

mitk::TubeGraphVtkMapper3D::TubeGraphVtkMapper3D ( )

protected

Definition at line 36 of file mitkTubeGraphVtkMapper3D.cpp.

◆ ~TubeGraphVtkMapper3D()

mitk::TubeGraphVtkMapper3D::~TubeGraphVtkMapper3D ( )

overrideprotected

Definition at line 40 of file mitkTubeGraphVtkMapper3D.cpp.

Member Function Documentation

◆ ClipPolyData()

void mitk::TubeGraphVtkMapper3D::ClipPolyData	(	mitk::TubeGraphVertex &	vertex,
		const TubeGraph::Pointer &	graph,
		const TubeGraphProperty::Pointer &	graphProperty,
		mitk::BaseRenderer *	renderer
	)

protected

Definition at line 425 of file mitkTubeGraphVtkMapper3D.cpp.

References mitk::FillVector3D(), mitk::TubeElement::GetCoordinates(), mitk::Mapper::GetDataNode(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::TubeGraphVertex::GetTubeElement(), and ls.

Referenced by GenerateTubeGraphData().

◆ GenerateDataForRenderer()

void mitk::TubeGraphVtkMapper3D::GenerateDataForRenderer ( mitk::BaseRenderer * renderer )

overrideprotectedvirtual

This method is called, each time a specific renderer is updated.

Reimplemented from mitk::Mapper.

Definition at line 54 of file mitkTubeGraphVtkMapper3D.cpp.

References GenerateTubeGraphData(), GetInput(), mitk::LocalStorageHandler< L >::GetLocalStorage(), ls, and RenderTubeGraphPropertyInformation().

◆ GeneratePolyDataForFurcation()

void mitk::TubeGraphVtkMapper3D::GeneratePolyDataForFurcation	(	mitk::TubeGraphVertex &	vertex,
		const TubeGraph::Pointer &	graph,
		mitk::BaseRenderer *	renderer
	)

protected

Definition at line 251 of file mitkTubeGraphVtkMapper3D.cpp.

References mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::TubeGraphVertex::GetTubeElement(), and ls.

Referenced by GenerateTubeGraphData().

◆ GeneratePolyDataForTube()

void mitk::TubeGraphVtkMapper3D::GeneratePolyDataForTube	(	mitk::TubeGraphEdge &	edge,
		const TubeGraph::Pointer &	graph,
		const TubeGraphProperty::Pointer &	graphProperty,
		mitk::BaseRenderer *	renderer
	)

protected

Converts a single tube into a vtkPolyData. Each point of the tube surface is labeled with the tube id.

Definition at line 282 of file mitkTubeGraphVtkMapper3D.cpp.

References mitk::TubeGraphEdge::GetElementVector(), mitk::LocalStorageHandler< L >::GetLocalStorage(), mitk::TubeGraphEdge::GetNumberOfElements(), mitk::TubeGraphVertex::GetTubeElement(), and ls.

Referenced by GenerateTubeGraphData().

◆ GenerateTubeGraphData()

void mitk::TubeGraphVtkMapper3D::GenerateTubeGraphData ( mitk::BaseRenderer * renderer )

protectedvirtual

Generate vtkPolyData containing the tube centerlines and sets these as input for a vtkTubeFilter, which generates tubes around the edges. Also generates vtkActors for each vertex. Here the vtkPolyData are vtkSphereSources. All poly data will be clipped with each other on an furcation. So you get end-caps and connecting pieces from the spheres. Clipping the tubes with each other avoids structures within the general view.

Definition at line 216 of file mitkTubeGraphVtkMapper3D.cpp.

References ClipPolyData(), GeneratePolyDataForFurcation(), GeneratePolyDataForTube(), GetInput(), mitk::LocalStorageHandler< L >::GetLocalStorage(), ls, and MITK_INFO.

Referenced by GenerateDataForRenderer().
