mitk::LabeledImageVolumeCalculator Class Reference

Class for calculating the volume (or area) for each label in a labeled image. More...

#include <mitkLabeledImageVolumeCalculator.h>

Inheritance diagram for mitk::LabeledImageVolumeCalculator:

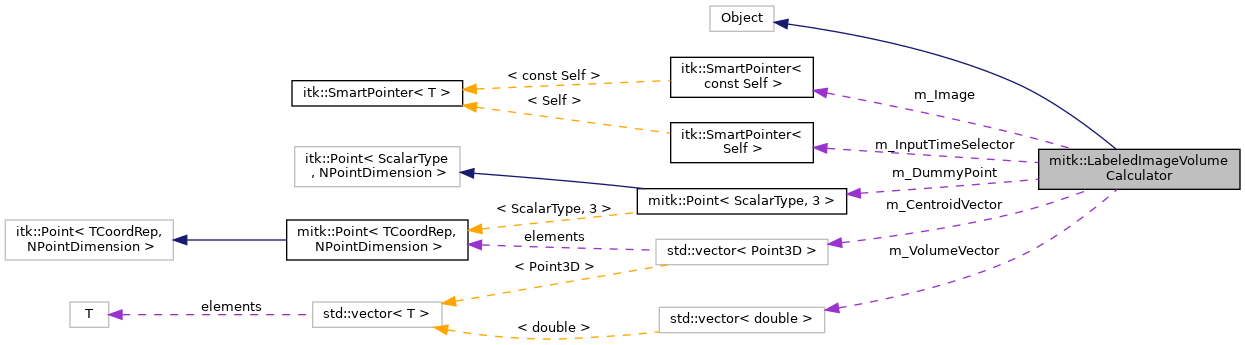

Collaboration diagram for mitk::LabeledImageVolumeCalculator:

Public Types
typedef std::vector< double >	VolumeVector
typedef std::vector< Point3D >	PointVector

Public Member Functions
	mitkClassMacroItkParent (LabeledImageVolumeCalculator, itk::Object)
Pointer	Clone () const
virtual void	SetImage (const mitk::Image *_arg)
virtual void	Calculate ()
double	GetVolume (unsigned int label) const
const Point3D &	GetCentroid (unsigned int label) const
const VolumeVector &	GetVolumes () const
const PointVector &	GetCentroids () const

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	LabeledImageVolumeCalculator ()
	~LabeledImageVolumeCalculator () override
template<typename TPixel , unsigned int VImageDimension>
void	_InternalCalculateVolumes (itk::Image< TPixel, VImageDimension > *image, LabeledImageVolumeCalculator *volumeCalculator, BaseGeometry *geometry)

Protected Attributes
ImageTimeSelector::Pointer	m_InputTimeSelector
Image::ConstPointer	m_Image
VolumeVector	m_VolumeVector
PointVector	m_CentroidVector
Point3D	m_DummyPoint

Detailed Description

Class for calculating the volume (or area) for each label in a labeled image.

Labels are expected to be of an unsigned integer type.

TODO: Extend class for time resolved images

Definition at line 34 of file mitkLabeledImageVolumeCalculator.h.

Member Typedef Documentation

PointVector

typedef std::vector<Point3D> mitk::LabeledImageVolumeCalculator::PointVector

Definition at line 38 of file mitkLabeledImageVolumeCalculator.h.

VolumeVector

typedef std::vector<double> mitk::LabeledImageVolumeCalculator::VolumeVector

Definition at line 37 of file mitkLabeledImageVolumeCalculator.h.

Constructor & Destructor Documentation

LabeledImageVolumeCalculator()

mitk::LabeledImageVolumeCalculator::LabeledImageVolumeCalculator ( )

protected

Definition at line 20 of file mitkLabeledImageVolumeCalculator.cpp.

References m_DummyPoint, m_InputTimeSelector, and mitk::ImageTimeSelector::New().

~LabeledImageVolumeCalculator()

mitk::LabeledImageVolumeCalculator::~LabeledImageVolumeCalculator ( )

overrideprotected

Definition at line 27 of file mitkLabeledImageVolumeCalculator.cpp.

Member Function Documentation

_InternalCalculateVolumes()

template<typename TPixel , unsigned int VImageDimension>

void mitk::LabeledImageVolumeCalculator::_InternalCalculateVolumes ( itk::Image< TPixel, VImageDimension > *  image, LabeledImageVolumeCalculator *  volumeCalculator, BaseGeometry *  geometry  )

protected

Definition at line 72 of file mitkLabeledImageVolumeCalculator.cpp.

References mitk::BaseGeometry::GetSpacing(), mitk::BaseGeometry::IndexToWorld(), m_CentroidVector, and m_VolumeVector.

Referenced by Calculate().

Calculate()

void mitk::LabeledImageVolumeCalculator::Calculate ( )

virtual

Definition at line 54 of file mitkLabeledImageVolumeCalculator.cpp.

References _InternalCalculateVolumes(), AccessByItk_2, m_Image, and m_InputTimeSelector.

Clone()

Pointer mitk::LabeledImageVolumeCalculator::Clone

(

)

const

GetCentroid()

const Point3D & mitk::LabeledImageVolumeCalculator::GetCentroid

(

unsigned int

label

)

const

Definition at line 36 of file mitkLabeledImageVolumeCalculator.cpp.

References m_CentroidVector, and m_DummyPoint.

GetCentroids()

const LabeledImageVolumeCalculator::PointVector & mitk::LabeledImageVolumeCalculator::GetCentroids

(

)

const

Definition at line 49 of file mitkLabeledImageVolumeCalculator.cpp.

References m_CentroidVector.

GetVolume()

double mitk::LabeledImageVolumeCalculator::GetVolume

(

unsigned int

label

)

const

Definition at line 28 of file mitkLabeledImageVolumeCalculator.cpp.

References m_VolumeVector.

GetVolumes()

const LabeledImageVolumeCalculator::VolumeVector & mitk::LabeledImageVolumeCalculator::GetVolumes

(

)

const

Definition at line 44 of file mitkLabeledImageVolumeCalculator.cpp.

References m_VolumeVector.

mitkClassMacroItkParent()

mitk::LabeledImageVolumeCalculator::mitkClassMacroItkParent	(	LabeledImageVolumeCalculator	,
		itk::Object
	)

New()

static Pointer mitk::LabeledImageVolumeCalculator::New ( )

static

SetImage()

virtual void mitk::LabeledImageVolumeCalculator::SetImage ( const mitk::Image *  _arg )

virtual

Member Data Documentation

m_CentroidVector

PointVector mitk::LabeledImageVolumeCalculator::m_CentroidVector

protected

Definition at line 70 of file mitkLabeledImageVolumeCalculator.h.

Referenced by _InternalCalculateVolumes(), GetCentroid(), and GetCentroids().

m_DummyPoint

Point3D mitk::LabeledImageVolumeCalculator::m_DummyPoint

protected

Definition at line 72 of file mitkLabeledImageVolumeCalculator.h.

Referenced by GetCentroid(), and LabeledImageVolumeCalculator().

m_Image

Image::ConstPointer mitk::LabeledImageVolumeCalculator::m_Image

protected

Definition at line 67 of file mitkLabeledImageVolumeCalculator.h.

Referenced by Calculate().

m_InputTimeSelector

ImageTimeSelector::Pointer mitk::LabeledImageVolumeCalculator::m_InputTimeSelector

protected

Definition at line 65 of file mitkLabeledImageVolumeCalculator.h.

Referenced by Calculate(), and LabeledImageVolumeCalculator().

m_VolumeVector

VolumeVector mitk::LabeledImageVolumeCalculator::m_VolumeVector

protected

Definition at line 69 of file mitkLabeledImageVolumeCalculator.h.

Referenced by _InternalCalculateVolumes(), GetVolume(), and GetVolumes().

---

The documentation for this class was generated from the following files:

• mitkLabeledImageVolumeCalculator.h
• mitkLabeledImageVolumeCalculator.cpp
