This filter creates IGTL messages from mitk::Image objects. More...

#include <mitkImageToIGTLMessageFilter.h>

Inheritance diagram for mitk::ImageToIGTLMessageFilter:

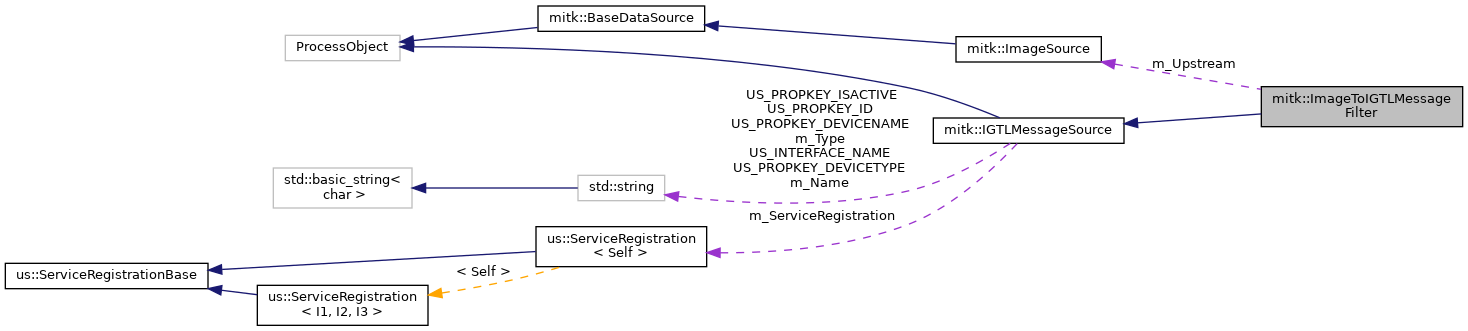

Collaboration diagram for mitk::ImageToIGTLMessageFilter:

[legend]

Public Member Functions
	mitkClassMacro (ImageToIGTLMessageFilter, IGTLMessageSource)

Pointer	Clone () const

void	GenerateData () override
	filter execute method More...

virtual void	SetInput (const mitk::Image *img)
	Sets one input Image. More...

virtual void	SetInput (unsigned int idx, const Image *img)
	Sets the input Image at a specific index. More...

const mitk::Image *	GetInput ()
	Returns the input of this filter. More...

const mitk::Image *	GetInput (unsigned int idx)
	Returns the input of this filter. More...

void	GenerateOutputInformation () override

virtual void	ConnectTo (mitk::ImageSource *UpstreamFilter)
	Connects the input of this filter to the outputs of the given ImageSource. More...

Public Member Functions inherited from mitk::IGTLMessageSource
	mitkClassMacroItkParent (IGTLMessageSource, itk::ProcessObject)

virtual std::string	GetName ()

virtual void	SetName (std::string _arg)
	Sets the human readable name of this source. There is also a default name, but you can use this method if you need to define it on your own. More...

virtual std::string	GetType ()

virtual void	SetType (std::string _arg)

IGTLMessage *	GetOutput (void)
	return the output (output with id 0) of the filter More...

IGTLMessage *	GetOutput (DataObjectPointerArraySizeType idx)
	return the output with id idx of the filter More...

IGTLMessage *	GetOutput (const std::string &messageName)
	return the output with name messageName of the filter More...

DataObjectPointerArraySizeType	GetOutputIndex (std::string messageName)
	return the index of the output with name messageName, -1 if no output with that name was found More...

virtual void	RegisterAsMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. To unregister, call UnregisterMicroservice(). More...

virtual void	UnRegisterMicroservice ()
	Registers this object as a Microservice, making it available to every module and/or plugin. More...

std::string	GetMicroserviceID ()
	Returns the id that this device is registered with. The id will only be valid, if the IGTLMessageSource has been registered using RegisterAsMicroservice(). More...

virtual void	GraftNthOutput (unsigned int idx, itk::DataObject *graft)
	Graft the specified DataObject onto this ProcessObject's output. More...

virtual void	GraftOutput (itk::DataObject *graft)
	Graft the specified DataObject onto this ProcessObject's output. More...

itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override

virtual void	SetParameters (const mitk::PropertyList *)
	Set all filter parameters as the PropertyList p. More...

virtual mitk::PropertyList::ConstPointer	GetParameters () const
	Get all filter parameters as a PropertyList. More...

void	SetFPS (unsigned int fps)
	Sets the fps used for streaming this source. More...

unsigned int	GetFPS ()
	Gets the fps used for streaming this source. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	ImageToIGTLMessageFilter ()

	~ImageToIGTLMessageFilter () override

virtual void	CreateOutputsForAllInputs ()
	create output objects for all inputs More...

Protected Member Functions inherited from mitk::IGTLMessageSource
	IGTLMessageSource ()

	~IGTLMessageSource () override

Protected Attributes
mitk::ImageSource *	m_Upstream

Protected Attributes inherited from mitk::IGTLMessageSource
std::string	m_Name

std::string	m_Type

itk::FastMutexLock::Pointer	m_StreamingFPSMutex

unsigned int	m_StreamingFPS

us::ServiceRegistration< Self >	m_ServiceRegistration

Additional Inherited Members
Static Public Attributes inherited from mitk::IGTLMessageSource
static const std::string	US_INTERFACE_NAME
	These Constants are used in conjunction with Microservices. More...

static const std::string	US_PROPKEY_DEVICENAME

static const std::string	US_PROPKEY_DEVICETYPE

static const std::string	US_PROPKEY_ID

static const std::string	US_PROPKEY_ISACTIVE

Detailed Description

This filter creates IGTL messages from mitk::Image objects.

Documentation

Definition at line 30 of file mitkImageToIGTLMessageFilter.h.

Constructor & Destructor Documentation

◆ ImageToIGTLMessageFilter()

mitk::ImageToIGTLMessageFilter::ImageToIGTLMessageFilter ( )

protected

Definition at line 18 of file mitkImageToIGTLMessageFilter.cpp.

References mitk::IGTLMessage::New().

◆ ~ImageToIGTLMessageFilter()

mitk::ImageToIGTLMessageFilter::~ImageToIGTLMessageFilter ( )

inlineoverrideprotected

Definition at line 83 of file mitkImageToIGTLMessageFilter.h.

Member Function Documentation

◆ Clone()

Pointer mitk::ImageToIGTLMessageFilter::Clone ( ) const

◆ ConnectTo()

void mitk::ImageToIGTLMessageFilter::ConnectTo ( mitk::ImageSource * UpstreamFilter )

virtual

Connects the input of this filter to the outputs of the given ImageSource.

This method does not support smartpointer. use FilterX.GetPointer() to retrieve a dumbpointer.

Definition at line 235 of file mitkImageToIGTLMessageFilter.cpp.

References MITK_INFO, and SetInput().

◆ CreateOutputsForAllInputs()

void mitk::ImageToIGTLMessageFilter::CreateOutputsForAllInputs ( )

protectedvirtual

create output objects for all inputs

Definition at line 245 of file mitkImageToIGTLMessageFilter.cpp.

References mitk::IGTLMessageSource::GetOutput(), and mitk::IGTLMessageSource::MakeOutput().

Referenced by SetInput().

◆ GenerateData()

void mitk::ImageToIGTLMessageFilter::GenerateData ( )

override

filter execute method

Definition at line 26 of file mitkImageToIGTLMessageFilter.cpp.

References mitk::Image::GetChannelData(), mitk::PixelType::GetComponentType(), mitk::Image::GetDimension(), mitk::BaseData::GetGeometry(), GetInput(), mitk::BaseData::GetMTime(), mitk::SlicedData::GetNumberOfChannels(), mitk::PixelType::GetNumberOfComponents(), mitk::IGTLMessageSource::GetOutput(), mitk::Image::GetPixelType(), mitk::PixelType::GetSize(), mitk::BaseGeometry::GetSpacing(), mitk::BaseGeometry::GetVtkMatrix(), Json::in(), MITK_ERROR, and mitk::IGTLMessage::SetMessage().

◆ GenerateOutputInformation()

void mitk::ImageToIGTLMessageFilter::GenerateOutputInformation ( )

inlineoverride

empty implementation to prevent calling of the superclass method that would try to copy information from the input Image to the output PointSet, which makes no sense!

Definition at line 69 of file mitkImageToIGTLMessageFilter.h.
