An Operation for applying an edited slice to the volume. More...

#include <mitkDiffSliceOperation.h>

Inheritance diagram for mitk::DiffSliceOperation:

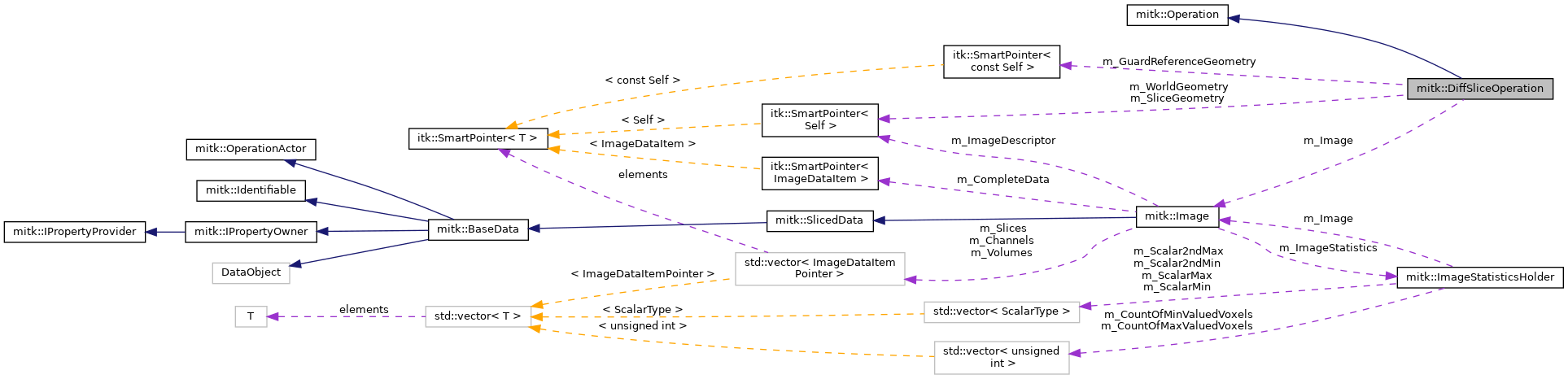

Collaboration diagram for mitk::DiffSliceOperation:

[legend]

Public Member Functions
	mitkClassMacro (DiffSliceOperation, OperationActor)

	DiffSliceOperation ()
	Creates an empty instance. Note that it is not valid yet. The properties of the object have to be set. More...

	DiffSliceOperation (mitk::Image imageVolume, mitk::Image slice, SlicedGeometry3D sliceGeometry, unsigned int timestep, BaseGeometry currentWorldGeometry)

bool	IsValid ()
	Check if it is a valid operation. More...

void	SetImage (mitk::Image *image)
	Set the image volume. More...

mitk::Image *	GetImage ()
	Get th image volume. More...

void	SetImage (vtkImageData *slice)
	Set thee slice to be applied. More...

Image::Pointer	GetSlice ()
	Get the slice that is applied in the operation. More...

void	SetTimeStep (unsigned int timestep)
	Get timeStep. More...

unsigned int	GetTimeStep ()
	Set timeStep. More...

void	SetSliceGeometry (SlicedGeometry3D *sliceGeometry)
	Set the axis where the slice has to be applied in the volume. More...

SlicedGeometry3D *	GetSliceGeometry ()
	Get the axis where the slice has to be applied in the volume. More...

void	SetCurrentWorldGeometry (BaseGeometry *worldGeometry)
	Set the axis where the slice has to be applied in the volume. More...

BaseGeometry *	GetWorldGeometry ()
	Get the axis where the slice has to be applied in the volume. More...

Public Member Functions inherited from mitk::Operation
virtual std::vector< std::string >	GetClassHierarchy () const

	itkTypeMacroNoParent (Operation) Operation(OperationType operationType)

virtual	~Operation ()

OperationType	GetOperationType ()

Protected Member Functions
	~DiffSliceOperation () override

void	OnImageDeleted ()
	Callback for image observer. More...

Protected Attributes
CompressedImageContainer::Pointer	m_zlibSliceContainer

mitk::Image *	m_Image

vtkSmartPointer< vtkImageData >	m_Slice

SlicedGeometry3D::Pointer	m_SliceGeometry

unsigned int	m_TimeStep

BaseGeometry::Pointer	m_WorldGeometry

bool	m_ImageIsValid

unsigned long	m_DeleteObserverTag

mitk::BaseGeometry::ConstPointer	m_GuardReferenceGeometry

Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType

Additional Inherited Members
Public Types inherited from mitk::Operation
typedef Operation	Self

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Member Functions inherited from mitk::Operation
static const char *	GetStaticNameOfClass ()

Detailed Description

An Operation for applying an edited slice to the volume.

See also: DiffSliceOperationApplier

The information for the operation is specified by properties:

imageVolume the volume where the slice was extracted from. slice the slice to be applied. timestep the timestep in an 4D image. currentWorldGeometry specifies the axis where the slice has to be applied in the volume.

This Operation can be used to realize undo-redo functionality for e.g. segmentation purposes.

Definition at line 38 of file mitkDiffSliceOperation.h.

Constructor & Destructor Documentation

◆ DiffSliceOperation() [1/2]

mitk::DiffSliceOperation::DiffSliceOperation ( )

Creates an empty instance. Note that it is not valid yet. The properties of the object have to be set.

Definition at line 19 of file mitkDiffSliceOperation.cpp.

References m_DeleteObserverTag, m_Image, m_ImageIsValid, m_SliceGeometry, m_TimeStep, m_WorldGeometry, and m_zlibSliceContainer.

◆ DiffSliceOperation() [2/2]

mitk::DiffSliceOperation::DiffSliceOperation	(	mitk::Image *	imageVolume,
		mitk::Image *	slice,
		SlicedGeometry3D *	sliceGeometry,
		unsigned int	timestep,
		BaseGeometry *	currentWorldGeometry
	)

Definition at line 30 of file mitkDiffSliceOperation.cpp.

References mitk::SlicedGeometry3D::Clone(), mitk::BaseGeometry::Clone(), m_DeleteObserverTag, m_GuardReferenceGeometry, m_Image, m_ImageIsValid, m_SliceGeometry, m_TimeStep, m_WorldGeometry, m_zlibSliceContainer, mitk::CompressedImageContainer::New(), and OnImageDeleted().

◆ ~DiffSliceOperation()

mitk::DiffSliceOperation::~DiffSliceOperation ( )

overrideprotected

Definition at line 72 of file mitkDiffSliceOperation.cpp.

References m_DeleteObserverTag, m_Image, m_ImageIsValid, m_WorldGeometry, and m_zlibSliceContainer.

Member Function Documentation

◆ GetImage()

mitk::Image* mitk::DiffSliceOperation::GetImage ( void )

inline

Get th image volume.

Definition at line 66 of file mitkDiffSliceOperation.h.

◆ GetSlice()

mitk::Image::Pointer mitk::DiffSliceOperation::GetSlice ( )

Get the slice that is applied in the operation.

Definition at line 85 of file mitkDiffSliceOperation.cpp.

References image, and m_zlibSliceContainer.

◆ GetSliceGeometry()

SlicedGeometry3D* mitk::DiffSliceOperation::GetSliceGeometry ( )

inline

Get the axis where the slice has to be applied in the volume.

Definition at line 79 of file mitkDiffSliceOperation.h.

◆ GetTimeStep()

unsigned int mitk::DiffSliceOperation::GetTimeStep ( )

inline

Set timeStep.

Definition at line 75 of file mitkDiffSliceOperation.h.

◆ GetWorldGeometry()

BaseGeometry* mitk::DiffSliceOperation::GetWorldGeometry ( )

inline

Get the axis where the slice has to be applied in the volume.

Definition at line 83 of file mitkDiffSliceOperation.h.

◆ IsValid()

bool mitk::DiffSliceOperation::IsValid ( )

Check if it is a valid operation.

Definition at line 91 of file mitkDiffSliceOperation.cpp.

References m_ImageIsValid, m_WorldGeometry, and m_zlibSliceContainer.

◆ mitkClassMacro()

mitk::DiffSliceOperation::mitkClassMacro	(	DiffSliceOperation	,
		OperationActor
	)

◆ OnImageDeleted()

void mitk::DiffSliceOperation::OnImageDeleted ( )

protected

Callback for image observer.

Definition at line 96 of file mitkDiffSliceOperation.cpp.

References m_ImageIsValid.

Referenced by DiffSliceOperation().

◆ SetCurrentWorldGeometry()

void mitk::DiffSliceOperation::SetCurrentWorldGeometry ( BaseGeometry * worldGeometry )

inline

Set the axis where the slice has to be applied in the volume.

Definition at line 81 of file mitkDiffSliceOperation.h.

◆ SetImage() [1/2]

void mitk::DiffSliceOperation::SetImage ( mitk::Image * image )

inline

Set the image volume.

Definition at line 64 of file mitkDiffSliceOperation.h.

References image.

◆ SetImage() [2/2]

void mitk::DiffSliceOperation::SetImage ( vtkImageData * slice )

inline

Set thee slice to be applied.

Definition at line 68 of file mitkDiffSliceOperation.h.

◆ SetSliceGeometry()

void mitk::DiffSliceOperation::SetSliceGeometry ( SlicedGeometry3D * sliceGeometry )

inline

Set the axis where the slice has to be applied in the volume.

Definition at line 77 of file mitkDiffSliceOperation.h.

◆ SetTimeStep()

void mitk::DiffSliceOperation::SetTimeStep ( unsigned int timestep )

inline

Get timeStep.

Definition at line 73 of file mitkDiffSliceOperation.h.

Member Data Documentation

◆ m_DeleteObserverTag

unsigned long mitk::DiffSliceOperation::m_DeleteObserverTag

protected

Definition at line 104 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation(), and ~DiffSliceOperation().

◆ m_GuardReferenceGeometry

mitk::BaseGeometry::ConstPointer mitk::DiffSliceOperation::m_GuardReferenceGeometry

protected

Definition at line 106 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation().

◆ m_Image

mitk::Image* mitk::DiffSliceOperation::m_Image

protected

Definition at line 92 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation(), and ~DiffSliceOperation().

◆ m_ImageIsValid

bool mitk::DiffSliceOperation::m_ImageIsValid

protected

Definition at line 102 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation(), IsValid(), OnImageDeleted(), and ~DiffSliceOperation().

◆ m_Slice

vtkSmartPointer<vtkImageData> mitk::DiffSliceOperation::m_Slice

protected

Definition at line 94 of file mitkDiffSliceOperation.h.

◆ m_SliceGeometry

SlicedGeometry3D::Pointer mitk::DiffSliceOperation::m_SliceGeometry

protected

Definition at line 96 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation().

◆ m_TimeStep

unsigned int mitk::DiffSliceOperation::m_TimeStep

protected

Definition at line 98 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation().

◆ m_WorldGeometry

BaseGeometry::Pointer mitk::DiffSliceOperation::m_WorldGeometry

protected

Definition at line 100 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation(), IsValid(), and ~DiffSliceOperation().

◆ m_zlibSliceContainer

CompressedImageContainer::Pointer mitk::DiffSliceOperation::m_zlibSliceContainer

protected

Definition at line 90 of file mitkDiffSliceOperation.h.

Referenced by DiffSliceOperation(), GetSlice(), IsValid(), and ~DiffSliceOperation().

The documentation for this class was generated from the following files:
