Base class for OpenGL based 2D mappers. Provides functionality to draw a contour. More...

#include <mitkContourModelGLMapper2DBase.h>

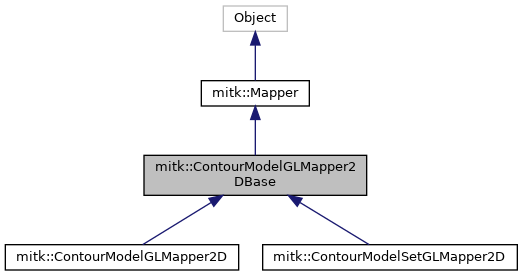

Inheritance diagram for mitk::ContourModelGLMapper2DBase:

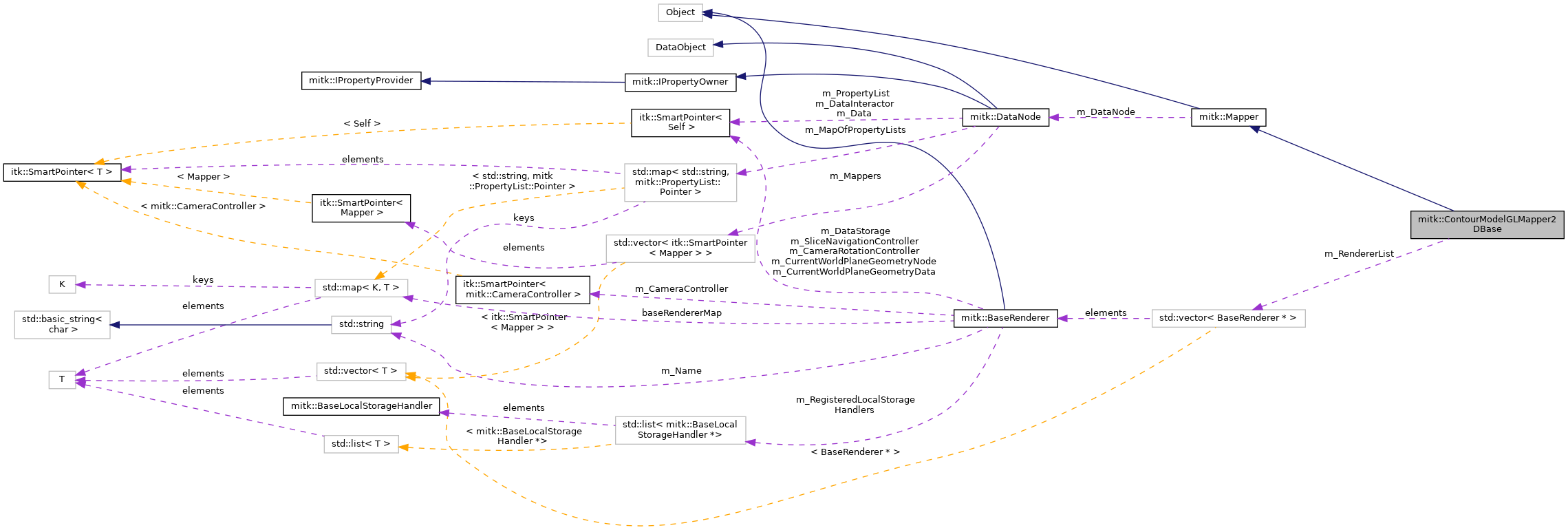

Collaboration diagram for mitk::ContourModelGLMapper2DBase:

[legend]

Public Member Functions
	mitkClassMacro (ContourModelGLMapper2DBase, Mapper)

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor=nullptr) override
	Apply specific color and opacity properties read from the PropertyList. Reimplemented in GLmapper (does not use the actor) and the VtkMapper class. The function is called by the individual mapper (mostly in the ApplyProperties() or ApplyAllProperties() method). More...

Public Member Functions inherited from mitk::Mapper
virtual std::vector< std::string >	GetClassHierarchy () const

virtual const char *	GetClassName () const

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid. More...

BaseData *	GetData () const
	Get the data to map. More...

virtual bool	GetColor (float rgb[3], BaseRenderer renderer, const char name="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

virtual bool	GetVisibility (bool &visible, BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty) More...

virtual bool	GetOpacity (float &opacity, BaseRenderer renderer, const char name="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

virtual bool	GetLevelWindow (LevelWindow &levelWindow, BaseRenderer renderer, const char name="levelwindow") const
	Convenience access method for color properties (instances of LevelWindoProperty) More...

virtual bool	IsVisible (BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

virtual bool	IsVtkBased () const
	Returns whether this is an vtk-based mapper. More...

virtual void	Update (BaseRenderer *renderer)
	Calls the time step of the input data for the specified renderer and checks whether the time step is valid and calls method GenerateDataForRenderer() More...

virtual void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type)=0
	Responsible for calling the appropriate render functions. To be implemented in sub-classes. More...

int	GetTimestep () const
	Returns the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const

Protected Types
typedef TextAnnotation2D::Pointer	TextAnnotationPointerType

typedef std::vector< BaseRenderer * >	RendererListType

Protected Member Functions
	ContourModelGLMapper2DBase ()

	~ContourModelGLMapper2DBase () override

void	DrawContour (mitk::ContourModel contour, mitk::BaseRenderer renderer)

void	WriteTextWithAnnotation (TextAnnotationPointerType textAnnotation, const char text, float rgb[3], Point2D pt2d, mitk::BaseRenderer )

virtual void	InternalDrawContour (mitk::ContourModel renderingContour, mitk::BaseRenderer renderer)

void	Initialize (mitk::BaseRenderer *renderer)

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer) More...

virtual void	GenerateDataForRenderer (BaseRenderer *)
	Generate the data needed for rendering into renderer. More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
TextAnnotationPointerType	m_PointNumbersAnnotation

TextAnnotationPointerType	m_ControlPointNumbersAnnotation

RendererListType	m_RendererList

bool	m_Initialized

vtkNew< vtkContext2D >	m_Context

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Additional Inherited Members
Public Types inherited from mitk::Mapper
typedef Mapper	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Member Functions inherited from mitk::Mapper
static const char *	GetStaticNameOfClass ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper to node. More...

Detailed Description

Base class for OpenGL based 2D mappers. Provides functionality to draw a contour.

Definition at line 36 of file mitkContourModelGLMapper2DBase.h.

Member Typedef Documentation

◆ RendererListType

typedef std::vector<BaseRenderer *> mitk::ContourModelGLMapper2DBase::RendererListType

protected

Definition at line 62 of file mitkContourModelGLMapper2DBase.h.

◆ TextAnnotationPointerType

typedef TextAnnotation2D::Pointer mitk::ContourModelGLMapper2DBase::TextAnnotationPointerType

protected

Definition at line 44 of file mitkContourModelGLMapper2DBase.h.

Constructor & Destructor Documentation

◆ ContourModelGLMapper2DBase()

mitk::ContourModelGLMapper2DBase::ContourModelGLMapper2DBase ( )

protected

Definition at line 30 of file mitkContourModelGLMapper2DBase.cpp.

References m_ControlPointNumbersAnnotation, m_PointNumbersAnnotation, and mitk::TextAnnotation2D::New().

◆ ~ContourModelGLMapper2DBase()

mitk::ContourModelGLMapper2DBase::~ContourModelGLMapper2DBase ( )

overrideprotected

Definition at line 36 of file mitkContourModelGLMapper2DBase.cpp.

Member Function Documentation

◆ ApplyColorAndOpacityProperties()

void mitk::ContourModelGLMapper2DBase::ApplyColorAndOpacityProperties	(	mitk::BaseRenderer *	renderer,
		vtkActor *	actor = `nullptr`
	)

overridevirtual

Apply specific color and opacity properties read from the PropertyList. Reimplemented in GLmapper (does not use the actor) and the VtkMapper class. The function is called by the individual mapper (mostly in the ApplyProperties() or ApplyAllProperties() method).

Implements mitk::Mapper.

Definition at line 55 of file mitkContourModelGLMapper2DBase.cpp.

References mitk::DataNode::GetColor(), mitk::Mapper::GetDataNode(), mitk::DataNode::GetOpacity(), and m_Context.

Referenced by InternalDrawContour().

◆ DrawContour()

void mitk::ContourModelGLMapper2DBase::DrawContour	(	mitk::ContourModel *	contour,
		mitk::BaseRenderer *	renderer
	)

protected

Definition at line 70 of file mitkContourModelGLMapper2DBase.cpp.

References mitk::ManualPlacementAnnotationRenderer::AddAnnotation(), InternalDrawContour(), m_ControlPointNumbersAnnotation, m_PointNumbersAnnotation, and m_RendererList.

Referenced by mitk::ContourModelGLMapper2D::MitkRender(), and mitk::ContourModelSetGLMapper2D::MitkRender().

◆ Initialize()

void mitk::ContourModelGLMapper2DBase::Initialize ( mitk::BaseRenderer * renderer )

protected

Definition at line 40 of file mitkContourModelGLMapper2DBase.cpp.

References m_Context, and m_Initialized.

Referenced by InternalDrawContour().

◆ InternalDrawContour()

void mitk::ContourModelGLMapper2DBase::InternalDrawContour	(	mitk::ContourModel *	renderingContour,
		mitk::BaseRenderer *	renderer
	)

protectedvirtual

Definition at line 86 of file mitkContourModelGLMapper2DBase.cpp.

References ApplyColorAndOpacityProperties(), mitk::ContourElement::ContourModelVertex::Coordinates, mitk::BaseRenderer::GetCurrentWorldPlaneGeometry(), mitk::Mapper::GetDataNode(), mitk::ContourModel::GetSelectedVertex(), mitk::BaseRenderer::GetTimeStep(), mitk::ContourModel::GetVertexAt(), mitk::BaseRenderer::GetVtkRenderer(), Initialize(), mitk::ContourModel::IsClosed(), mitk::ContourModel::IsEmptyTimeStep(), mitk::ContourModel::IteratorBegin(), mitk::ContourModel::IteratorEnd(), mitk::itk2vtk(), m_Context, m_ControlPointNumbersAnnotation, m_Initialized, m_PointNumbersAnnotation, mitk::ColorProperty::New(), mitk::PlaneGeometry::SignedDistance(), mitk::ContourModel::UpdateOutputInformation(), mitk::vtk2itk(), mitk::BaseRenderer::WorldToDisplay(), mitk::BaseRenderer::WorldToView(), and WriteTextWithAnnotation().

Referenced by DrawContour().

◆ mitkClassMacro()

mitk::ContourModelGLMapper2DBase::mitkClassMacro	(	ContourModelGLMapper2DBase	,
		Mapper
	)

◆ WriteTextWithAnnotation()

void mitk::ContourModelGLMapper2DBase::WriteTextWithAnnotation	(	TextAnnotationPointerType	textAnnotation,
		const char *	text,
		float	rgb[3],
		Point2D	pt2d,
		mitk::BaseRenderer *
	)
