GUI for slices interpolation. More...

#include <QmitkSliceBasedInterpolatorWidget.h>

Inheritance diagram for QmitkSliceBasedInterpolatorWidget:

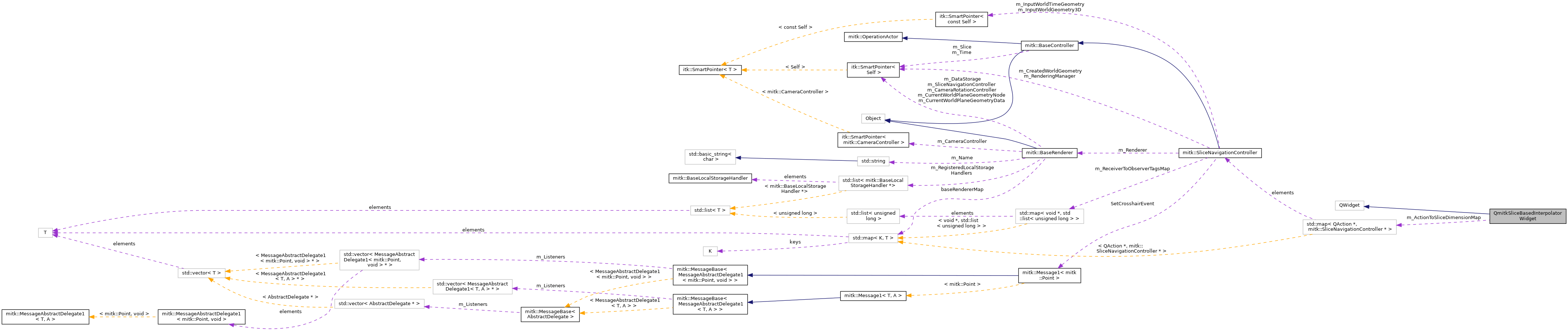

Collaboration diagram for QmitkSliceBasedInterpolatorWidget:

[legend]

Public Slots
void	OnToggleWidgetActivation (bool)
	Reaction to "Start/Stop" button click. More...

Signals
void	signalSliceBasedInterpolationEnabled (bool)

Public Member Functions
	QmitkSliceBasedInterpolatorWidget (QWidget parent=nullptr, const char name=nullptr)

	~QmitkSliceBasedInterpolatorWidget () override

void	SetDataStorage (mitk::DataStorage &storage)

void	SetSliceNavigationControllers (const QList< mitk::SliceNavigationController *> &controllers)

void	OnToolManagerWorkingDataModified ()

void	OnTimeChanged (itk::Object *sender, const itk::EventObject &)

void	OnSliceChanged (itk::Object *sender, const itk::EventObject &)

void	OnSliceNavigationControllerDeleted (const itk::Object *sender, const itk::EventObject &)

void	OnSliceInterpolationInfoChanged (const itk::EventObject &)

Public Attributes
Ui::QmitkSliceBasedInterpolatorWidgetGUIControls	m_Controls

Protected Types
typedef std::map< QAction , mitk::SliceNavigationController >	ActionToSliceDimensionMapType

Protected Slots
void	OnAcceptInterpolationClicked ()
	Reaction to "Accept Current Slice" button click. More...

void	OnAcceptAllInterpolationsClicked ()

void	OnAcceptAllPopupActivated (QAction *action)

Protected Member Functions
const ActionToSliceDimensionMapType	CreateActionToSliceDimension ()

void	AcceptAllInterpolations (mitk::SliceNavigationController *slicer)

void	WaitCursorOn ()

void	WaitCursorOff ()

void	RestoreOverrideCursor ()

mitk::Image::Pointer	GetWorkingSlice (const mitk::PlaneGeometry *planeGeometry)

void	TranslateAndInterpolateChangedSlice (const itk::EventObject &e, mitk::SliceNavigationController *slicer)

void	Interpolate (mitk::PlaneGeometry plane, unsigned int timeStep, mitk::SliceNavigationController slicer)

void	UpdateVisibleSuggestion ()

Protected Attributes
ActionToSliceDimensionMapType	m_ActionToSliceDimensionMap

Detailed Description

GUI for slices interpolation.

See also: QmitkInteractiveSegmentation; mitk::SegmentationInterpolation

While mitk::SegmentationInterpolation does the bookkeeping of interpolation (keeping track of which slices contain how much segmentation) and the algorithmic work, QmitkSliceBasedInterpolatorWidget is responsible to watch the GUI, to notice, which slice is currently visible. It triggers generation of interpolation suggestions and also triggers acception of suggestions.

Last contributor:

Author: maleike

Definition at line 55 of file QmitkSliceBasedInterpolatorWidget.h.

Member Typedef Documentation

◆ ActionToSliceDimensionMapType

typedef std::map<QAction *, mitk::SliceNavigationController *> QmitkSliceBasedInterpolatorWidget::ActionToSliceDimensionMapType

protected

Definition at line 116 of file QmitkSliceBasedInterpolatorWidget.h.

Constructor & Destructor Documentation

◆ QmitkSliceBasedInterpolatorWidget()

QmitkSliceBasedInterpolatorWidget::QmitkSliceBasedInterpolatorWidget	(	QWidget *	parent = `nullptr`,
		const char *	name = `nullptr`
	)

Definition at line 43 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::ToolManagerProvider::GetInstance(), mitk::ToolManagerProvider::GetToolManager(), m_Controls, mitk::BoolProperty::New(), mitk::IntProperty::New(), mitk::DataNode::New(), OnAcceptAllInterpolationsClicked(), OnAcceptInterpolationClicked(), OnSliceInterpolationInfoChanged(), OnToggleWidgetActivation(), OnToolManagerWorkingDataModified(), and mitk::ToolManager::WorkingDataChanged.

◆ ~QmitkSliceBasedInterpolatorWidget()

QmitkSliceBasedInterpolatorWidget::~QmitkSliceBasedInterpolatorWidget ( )

override

Definition at line 88 of file QmitkSliceBasedInterpolatorWidget.cpp.

References m_ActionToSliceDimensionMap, OnToolManagerWorkingDataModified(), and mitk::ToolManager::WorkingDataChanged.

Member Function Documentation

◆ AcceptAllInterpolations()

void QmitkSliceBasedInterpolatorWidget::AcceptAllInterpolations ( mitk::SliceNavigationController * slicer )

protected

Definition at line 527 of file QmitkSliceBasedInterpolatorWidget.cpp.

References AccessFixedDimensionByItk_2, mitk::ProgressBar::AddStepsToDo(), mitk::PlaneGeometry::Clone(), mitk::SegTool2D::DetermineAffectedImageSlice(), mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::ProgressBar::GetInstance(), mitk::RenderingManager::GetInstance(), mitk::Stepper::GetPos(), mitk::BaseController::GetTime(), GetWorkingSlice(), MITK_ERROR, mitk::ExtractSliceFilter::New(), mitk::ProgressBar::Progress(), mitk::RenderingManager::REQUEST_UPDATE_2DWINDOWS, mitk::RenderingManager::RequestUpdateAll(), and mitk::ProgressBar::Reset().

Referenced by OnAcceptAllPopupActivated().

◆ CreateActionToSliceDimension()

const QmitkSliceBasedInterpolatorWidget::ActionToSliceDimensionMapType QmitkSliceBasedInterpolatorWidget::CreateActionToSliceDimension ( )

protected

Definition at line 107 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::BaseRenderer::GetName(), and mitk::SliceNavigationController::GetRenderer().

Referenced by SetSliceNavigationControllers().

◆ GetWorkingSlice()

mitk::Image::Pointer QmitkSliceBasedInterpolatorWidget::GetWorkingSlice ( const mitk::PlaneGeometry * planeGeometry )

protected

Gets the working slice based on the given plane geometry and last saved interaction

Parameters

planeGeometry a plane geometry

Definition at line 278 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::Stepper::GetPos(), mitk::BaseController::GetTime(), MITK_ERROR, and mitk::ExtractSliceFilter::New().

Referenced by AcceptAllInterpolations(), and OnAcceptInterpolationClicked().

◆ Interpolate()

void QmitkSliceBasedInterpolatorWidget::Interpolate	(	mitk::PlaneGeometry *	plane,
		unsigned int	timeStep,
		mitk::SliceNavigationController *	slicer
	)

protected

Given a PlaneGeometry, this method figures out which slice of the first working image (of the associated ToolManager) should be interpolated. The actual work is then done by our SegmentationInterpolation object.

Definition at line 255 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::SegTool2D::DetermineAffectedImageSlice().

Referenced by TranslateAndInterpolateChangedSlice().

◆ OnAcceptAllInterpolationsClicked

void QmitkSliceBasedInterpolatorWidget::OnAcceptAllInterpolationsClicked ( )

protectedslot

Definition at line 608 of file QmitkSliceBasedInterpolatorWidget.cpp.

References m_ActionToSliceDimensionMap, and OnAcceptAllPopupActivated().

Referenced by QmitkSliceBasedInterpolatorWidget().

◆ OnAcceptAllPopupActivated

void QmitkSliceBasedInterpolatorWidget::OnAcceptAllPopupActivated ( QAction * action )

protectedslot

Definition at line 620 of file QmitkSliceBasedInterpolatorWidget.cpp.

References AcceptAllInterpolations(), and m_ActionToSliceDimensionMap.

Referenced by OnAcceptAllInterpolationsClicked().

◆ OnAcceptInterpolationClicked

void QmitkSliceBasedInterpolatorWidget::OnAcceptInterpolationClicked ( )

protectedslot

Reaction to "Accept Current Slice" button click.

Definition at line 441 of file QmitkSliceBasedInterpolatorWidget.cpp.

References AccessFixedDimensionByItk_2, mitk::SegTool2D::DetermineAffectedImageSlice(), mitk::SliceNavigationController::GetCurrentPlaneGeometry(), mitk::UndoController::GetCurrentUndoModel(), mitk::RenderingManager::GetInstance(), mitk::Stepper::GetPos(), mitk::BaseController::GetTime(), GetWorkingSlice(), MITK_ERROR, mitk::ExtractSliceFilter::New(), mitk::RenderingManager::RequestUpdateAll(), and mitk::UndoModel::SetOperationEvent().

Referenced by QmitkSliceBasedInterpolatorWidget().

◆ OnSliceChanged()

void QmitkSliceBasedInterpolatorWidget::OnSliceChanged	(	itk::Object *	sender,
		const itk::EventObject &	e
	)

Definition at line 212 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::RenderingManager::GetInstance(), mitk::RenderingManager::RequestUpdateAll(), and TranslateAndInterpolateChangedSlice().

Referenced by SetSliceNavigationControllers().

◆ OnSliceInterpolationInfoChanged()

void QmitkSliceBasedInterpolatorWidget::OnSliceInterpolationInfoChanged ( const itk::EventObject & )

Just public because it is called by itk::Commands. You should not need to call this.

Definition at line 651 of file QmitkSliceBasedInterpolatorWidget.cpp.

References UpdateVisibleSuggestion().

Referenced by QmitkSliceBasedInterpolatorWidget().

◆ OnSliceNavigationControllerDeleted()

void QmitkSliceBasedInterpolatorWidget::OnSliceNavigationControllerDeleted	(	const itk::Object *	sender,
		const itk::EventObject &
	)

Definition at line 657 of file QmitkSliceBasedInterpolatorWidget.cpp.

Referenced by SetSliceNavigationControllers().

◆ OnTimeChanged()

void QmitkSliceBasedInterpolatorWidget::OnTimeChanged	(	itk::Object *	sender,
		const itk::EventObject &	e
	)

Definition at line 194 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::SliceNavigationController::SendSlice().

Referenced by SetSliceNavigationControllers().

◆ OnToggleWidgetActivation

void QmitkSliceBasedInterpolatorWidget::OnToggleWidgetActivation ( bool enabled )

slot

Reaction to "Start/Stop" button click.

Definition at line 325 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::CastToItkImage(), mitk::UndoModel::Clear(), mitk::UndoController::GetCurrentUndoModel(), mitk::RenderingManager::GetInstance(), mitk::ToolManager::GetTools(), mitk::ToolManager::GetWorkingData(), m_Controls, mitk::RenderingManager::RequestUpdateAll(), and UpdateVisibleSuggestion().

Referenced by QmitkSliceBasedInterpolatorWidget().

◆ OnToolManagerWorkingDataModified()

void QmitkSliceBasedInterpolatorWidget::OnToolManagerWorkingDataModified ( )

Definition at line 165 of file QmitkSliceBasedInterpolatorWidget.cpp.

References mitk::DataNode::GetData(), mitk::Image::GetDimension(), and mitk::ToolManager::GetWorkingData().

Referenced by QmitkSliceBasedInterpolatorWidget(), and ~QmitkSliceBasedInterpolatorWidget().

◆ RestoreOverrideCursor()

void QmitkSliceBasedInterpolatorWidget::RestoreOverrideCursor ( )

protected

Definition at line 681 of file QmitkSliceBasedInterpolatorWidget.cpp.

Referenced by WaitCursorOff().

◆ SetDataStorage()

void QmitkSliceBasedInterpolatorWidget::SetDataStorage ( mitk::DataStorage & storage )

Definition at line 125 of file QmitkSliceBasedInterpolatorWidget.cpp.

◆ SetSliceNavigationControllers()

void QmitkSliceBasedInterpolatorWidget::SetSliceNavigationControllers ( const QList< mitk::SliceNavigationController *> & controllers )

Sets the slice navigation controllers for getting slice changed events from the views.

Definition at line 130 of file QmitkSliceBasedInterpolatorWidget.cpp.

References CreateActionToSliceDimension(), mitk::Stepper::GetPos(), mitk::BaseController::GetTime(), m_ActionToSliceDimensionMap, OnSliceChanged(), OnSliceNavigationControllerDeleted(), and OnTimeChanged().

◆ signalSliceBasedInterpolationEnabled

void QmitkSliceBasedInterpolatorWidget::signalSliceBasedInterpolationEnabled ( bool )

signal

◆ TranslateAndInterpolateChangedSlice()

void QmitkSliceBasedInterpolatorWidget::TranslateAndInterpolateChangedSlice	(	const itk::EventObject &	e,
		mitk::SliceNavigationController *	slicer
	)

protected

Retrieves the currently selected PlaneGeometry from a SlicedGeometry3D that is generated by a SliceNavigationController and calls Interpolate to further process this PlaneGeometry into an interpolation.

Parameters
