QmitkRenderWindow Class Reference
MITK Modules » QtWidgets

MITK implementation of the QVTKWidget. More...

#include <QmitkRenderWindow.h>

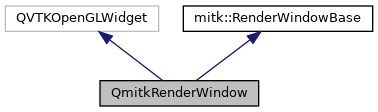

Inheritance diagram for QmitkRenderWindow:
Inheritance graph
[legend]

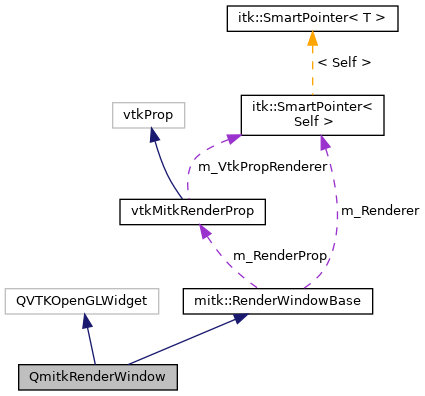

Collaboration diagram for QmitkRenderWindow:
Collaboration graph
[legend]

Signals

void LayoutDesignChanged (QmitkRenderWindowMenu::LayoutDesign)

void ResetView ()

void CrosshairRotationModeChanged (int)

void CrosshairVisibilityChanged (bool)

void moved ()

void NodesDropped (QmitkRenderWindow *thisWindow, std::vector< mitk::DataNode *> nodes)
 Emits a signal to say that this window has had the following nodes dropped on it. More...


Public Member Functions

 QmitkRenderWindow (QWidget *parent=nullptr, const QString &name="unnamed renderwindow", mitk::VtkPropRenderer *renderer=nullptr)

 ~QmitkRenderWindow () override

virtual void SetResendQtEvents (bool resend)
 Whether Qt events should be passed to parent (default: true) More...

void SetLayoutIndex (QmitkRenderWindowMenu::LayoutIndex layoutIndex)

QmitkRenderWindowMenu::LayoutIndex GetLayoutIndex ()

void LayoutDesignListChanged (QmitkRenderWindowMenu::LayoutDesign layoutDesign)

void ActivateMenuWidget (bool state)

bool GetActivateMenuWidgetFlag ()

vtkRenderWindow * GetVtkRenderWindow () override

vtkRenderWindowInteractor * GetVtkRenderWindowInteractor () override

- Public Member Functions inherited from mitk::RenderWindowBase
virtual ~RenderWindowBase ()

void InitRenderer ()

virtual mitk::SliceNavigationController * GetSliceNavigationController ()

virtual mitk::CameraRotationController * GetCameraRotationController ()

virtual mitk::BaseController * GetController ()

virtual mitk::VtkPropRenderer * GetRenderer ()

virtual bool HandleEvent (InteractionEvent *interactionEvent)


Protected Member Functions

void moveEvent (QMoveEvent *event) override

void showEvent (QShowEvent *event) override

void mousePressEvent (QMouseEvent *event) override

void mouseDoubleClickEvent (QMouseEvent *event) override

void mouseMoveEvent (QMouseEvent *event) override

void mouseReleaseEvent (QMouseEvent *event) override

void keyPressEvent (QKeyEvent *event) override

void enterEvent (QEvent *) override

void leaveEvent (QEvent *) override

void resizeGL (int w, int h) override

void dragEnterEvent (QDragEnterEvent *event) override
 Simply says we accept the event type. More...

void dropEvent (QDropEvent *event) override
 If the dropped type is application/x-mitk-datanodes we process the request by converting to mitk::DataNode pointers and emitting the NodesDropped signal. More...

void wheelEvent (QWheelEvent *) override

void AdjustRenderWindowMenuVisibility (const QPoint &pos)

- Protected Member Functions inherited from mitk::RenderWindowBase
 RenderWindowBase ()

void Initialize (const char *name="unnamed renderer")

void Destroy ()


Additional Inherited Members

- Protected Attributes inherited from mitk::RenderWindowBase
mitk::VtkPropRenderer::Pointer m_Renderer

vtkMitkRenderProp * m_RenderProp

bool m_InResize


Detailed Description

MITK implementation of the QVTKWidget.

Examples:
Step1.cpp, Step2.cpp, Step3.cpp, Step4.cpp, Step5.cpp, and Step6.cpp.

Definition at line 35 of file QmitkRenderWindow.h.

Constructor & Destructor Documentation

◆ QmitkRenderWindow()

QmitkRenderWindow::QmitkRenderWindow ( QWidget *  parent = nullptr,
const QString &  name = "unnamed renderwindow",
mitk::VtkPropRenderer *  renderer = nullptr
)

Definition at line 36 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::Initialize().

◆ ~QmitkRenderWindow()

QmitkRenderWindow::~QmitkRenderWindow ( )
override

Definition at line 57 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::Destroy().

Member Function Documentation

◆ ActivateMenuWidget()

void QmitkRenderWindow::ActivateMenuWidget ( bool  state)

Definition at line 96 of file QmitkRenderWindow.cpp.

References QmitkRenderWindowMenu::CrosshairRotationModeChanged(), CrosshairRotationModeChanged(), QmitkRenderWindowMenu::CrosshairVisibilityChanged(), CrosshairVisibilityChanged(), QmitkRenderWindowMenu::LayoutDesignChanged(), LayoutDesignChanged(), mitk::RenderWindowBase::m_Renderer, QmitkRenderWindowMenu::ResetView(), ResetView(), and QmitkRenderWindowMenu::SetLayoutIndex().

◆ AdjustRenderWindowMenuVisibility()

void QmitkRenderWindow::AdjustRenderWindowMenuVisibility ( const QPoint &  pos)
protected

Definition at line 286 of file QmitkRenderWindow.cpp.

References mitk::InteractionEvent::AltKey, mitk::InteractionEvent::ControlKey, QmitkRenderWindowMenu::HideMenu(), mitk::Key_Delete, mitk::Key_Down, mitk::Key_End, mitk::Key_Enter, mitk::Key_Escape, mitk::Key_F1, mitk::Key_F10, mitk::Key_F11, mitk::Key_F12, mitk::Key_F2, mitk::Key_F3, mitk::Key_F4, mitk::Key_F5, mitk::Key_F6, mitk::Key_F7, mitk::Key_F8, mitk::Key_F9, mitk::Key_Home, mitk::Key_Insert, mitk::Key_Left, mitk::Key_PageDown, mitk::Key_PageUp, mitk::Key_Return, mitk::Key_Right, mitk::Key_Space, mitk::Key_Up, mitk::InteractionEvent::KeyArrowDown, mitk::InteractionEvent::KeyArrowLeft, mitk::InteractionEvent::KeyArrowRight, mitk::InteractionEvent::KeyArrowUp, mitk::InteractionEvent::KeyDelete, mitk::InteractionEvent::KeyEnd, mitk::InteractionEvent::KeyEnter, mitk::InteractionEvent::KeyEsc, mitk::InteractionEvent::KeyF1, mitk::InteractionEvent::KeyF10, mitk::InteractionEvent::KeyF11, mitk::InteractionEvent::KeyF12, mitk::InteractionEvent::KeyF2, mitk::InteractionEvent::KeyF3, mitk::InteractionEvent::KeyF4, mitk::InteractionEvent::KeyF5, mitk::InteractionEvent::KeyF6, mitk::InteractionEvent::KeyF7, mitk::InteractionEvent::KeyF8, mitk::InteractionEvent::KeyF9, mitk::InteractionEvent::KeyInsert, mitk::InteractionEvent::KeyPageDown, mitk::InteractionEvent::KeyPageUp, mitk::InteractionEvent::KeyPos1, mitk::InteractionEvent::KeyReturn, mitk::InteractionEvent::KeySpace, mitk::InteractionEvent::LeftMouseButton, mitk::RenderWindowBase::m_Renderer, mitk::InteractionEvent::MiddleMouseButton, MITK_DEBUG, QmitkRenderWindowMenu::MoveWidgetToCorrectPos(), mitk::InteractionEvent::NoButton, mitk::InteractionEvent::NoKey, mitk::InteractionEvent::RightMouseButton, mitk::InteractionEvent::ShiftKey, and QmitkRenderWindowMenu::ShowMenu().

Referenced by mouseMoveEvent().

◆ CrosshairRotationModeChanged

void QmitkRenderWindow::CrosshairRotationModeChanged ( int  )
signal

Referenced by ActivateMenuWidget(), QmitkMxNMultiWidget::moveEvent(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ CrosshairVisibilityChanged

void QmitkRenderWindow::CrosshairVisibilityChanged ( bool  )
signal

Referenced by ActivateMenuWidget(), QmitkMxNMultiWidget::moveEvent(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ dragEnterEvent()

void QmitkRenderWindow::dragEnterEvent ( QDragEnterEvent *  event)
overrideprotected

Simply says we accept the event type.

Definition at line 269 of file QmitkRenderWindow.cpp.

◆ dropEvent()

void QmitkRenderWindow::dropEvent ( QDropEvent *  event)
overrideprotected

If the dropped type is application/x-mitk-datanodes we process the request by converting to mitk::DataNode pointers and emitting the NodesDropped signal.

Definition at line 277 of file QmitkRenderWindow.cpp.

References NodesDropped(), and QmitkMimeTypes::ToDataNodePtrList().

◆ enterEvent()

void QmitkRenderWindow::enterEvent ( QEvent *  e)
overrideprotected

Definition at line 243 of file QmitkRenderWindow.cpp.

◆ GetActivateMenuWidgetFlag()

bool QmitkRenderWindow::GetActivateMenuWidgetFlag ( )
inline

Definition at line 76 of file QmitkRenderWindow.h.

Referenced by QmitkRenderWindowWidget::IsRenderWindowMenuActivated().

◆ GetLayoutIndex()

QmitkRenderWindowMenu::LayoutIndex QmitkRenderWindow::GetLayoutIndex ( )

Definition at line 76 of file QmitkRenderWindow.cpp.

References mitk::BaseRenderer::AXIAL, and QmitkRenderWindowMenu::GetLayoutIndex().

◆ GetVtkRenderWindow()

vtkRenderWindow* QmitkRenderWindow::GetVtkRenderWindow ( )
inlineoverridevirtual

Implements mitk::RenderWindowBase.

Definition at line 78 of file QmitkRenderWindow.h.

Referenced by QmitkOpenCVVideoControls::Play(), SaveSliceOrImageAsPNG(), and QmitkOpenCVVideoControls::Stop().

◆ GetVtkRenderWindowInteractor()

vtkRenderWindowInteractor* QmitkRenderWindow::GetVtkRenderWindowInteractor ( )
inlineoverridevirtual

Implements mitk::RenderWindowBase.

Definition at line 80 of file QmitkRenderWindow.h.

References GetButtonState(), and GetEventButton().

◆ keyPressEvent()

void QmitkRenderWindow::keyPressEvent ( QKeyEvent *  event)
overrideprotected

Definition at line 226 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::HandleEvent(), mitk::RenderWindowBase::m_Renderer, and mitk::InteractionKeyEvent::New().

◆ LayoutDesignChanged

void QmitkRenderWindow::LayoutDesignChanged ( QmitkRenderWindowMenu::LayoutDesign  )
signal

Referenced by ActivateMenuWidget(), QmitkMxNMultiWidget::moveEvent(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ LayoutDesignListChanged()

void QmitkRenderWindow::LayoutDesignListChanged ( QmitkRenderWindowMenu::LayoutDesign  layoutDesign)

Definition at line 88 of file QmitkRenderWindow.cpp.

References QmitkRenderWindowMenu::UpdateLayoutDesignList().

◆ leaveEvent()

void QmitkRenderWindow::leaveEvent ( QEvent *  e)
overrideprotected

Definition at line 249 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::HandleEvent(), mitk::RenderWindowBase::m_Renderer, mitk::InternalEvent::New(), and QmitkRenderWindowMenu::smoothHide().

◆ mouseDoubleClickEvent()

void QmitkRenderWindow::mouseDoubleClickEvent ( QMouseEvent *  event)
overrideprotected

Definition at line 160 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::HandleEvent(), mitk::RenderWindowBase::m_Renderer, and mitk::MouseDoubleClickEvent::New().

◆ mouseMoveEvent()

void QmitkRenderWindow::mouseMoveEvent ( QMouseEvent *  event)
overrideprotected

Definition at line 194 of file QmitkRenderWindow.cpp.

References AdjustRenderWindowMenuVisibility(), mitk::RenderWindowBase::HandleEvent(), mitk::RenderWindowBase::m_Renderer, and mitk::MouseMoveEvent::New().

◆ mousePressEvent()

void QmitkRenderWindow::mousePressEvent ( QMouseEvent *  event)
overrideprotected

Definition at line 141 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::HandleEvent(), mitk::RenderWindowBase::m_Renderer, and mitk::MousePressEvent::New().

◆ mouseReleaseEvent()

void QmitkRenderWindow::mouseReleaseEvent ( QMouseEvent *  event)
overrideprotected

Definition at line 177 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::HandleEvent(), mitk::RenderWindowBase::m_Renderer, and mitk::MouseReleaseEvent::New().

◆ moved

void QmitkRenderWindow::moved ( )
signal

Referenced by moveEvent(), and showEvent().

◆ moveEvent()

void QmitkRenderWindow::moveEvent ( QMoveEvent *  event)
overrideprotected

Definition at line 124 of file QmitkRenderWindow.cpp.

References moved().

◆ NodesDropped

void QmitkRenderWindow::NodesDropped ( QmitkRenderWindow *  thisWindow,
std::vector< mitk::DataNode *>  nodes
)
signal

Emits a signal to say that this window has had the following nodes dropped on it.

Referenced by dropEvent().

◆ ResetView

void QmitkRenderWindow::ResetView ( )
signal

Referenced by ActivateMenuWidget(), QmitkMxNMultiWidget::moveEvent(), and QmitkStdMultiWidget::SetWidgetPlanesVisibility().

◆ resizeGL()

void QmitkRenderWindow::resizeGL ( int  w,
int  h
)
overrideprotected

Definition at line 263 of file QmitkRenderWindow.cpp.

References mitk::RenderingManager::ForceImmediateUpdate(), and mitk::RenderingManager::GetInstance().

◆ SetLayoutIndex()

void QmitkRenderWindow::SetLayoutIndex ( QmitkRenderWindowMenu::LayoutIndex  layoutIndex)

Definition at line 67 of file QmitkRenderWindow.cpp.

References QmitkRenderWindowMenu::SetLayoutIndex().

Referenced by QmitkRenderWindowWidget::ActivateCrosshair().

◆ SetResendQtEvents()

void QmitkRenderWindow::SetResendQtEvents ( bool  resend)
virtual

Whether Qt events should be passed to parent (default: true)

With introduction of the QVTKWidget the behaviour regarding Qt events changed. QVTKWidget "accepts" Qt events like mouse clicks (i.e. set an "accepted" flag). When this flag is set, Qt fininshed handling of this event – otherwise it is reached through to the widget's parent.

This reaching through to the parent was implicitly required by QmitkMaterialWidget / QmitkMaterialShowCase.

The default behaviour of QmitkRenderWindow is now to clear the "accepted" flag of Qt events after they were handled by QVTKWidget. This way parents can also handle events.

If you don't want this behaviour, call SetResendQtEvents(true) on your render window.

Definition at line 62 of file QmitkRenderWindow.cpp.

◆ showEvent()

void QmitkRenderWindow::showEvent ( QShowEvent *  event)
overrideprotected

Definition at line 132 of file QmitkRenderWindow.cpp.

References moved().

◆ wheelEvent()

void QmitkRenderWindow::wheelEvent ( QWheelEvent *  we)
overrideprotected

Definition at line 209 of file QmitkRenderWindow.cpp.

References mitk::RenderWindowBase::HandleEvent(), mitk::RenderWindowBase::m_Renderer, and mitk::MouseWheelEvent::New().

The documentation for this class was generated from the following files:
