mitk::VolumeCalculator Class Reference

Calculates the volume of a mitk::Image. More...

#include <mitkVolumeCalculator.h>

Inheritance diagram for mitk::VolumeCalculator:

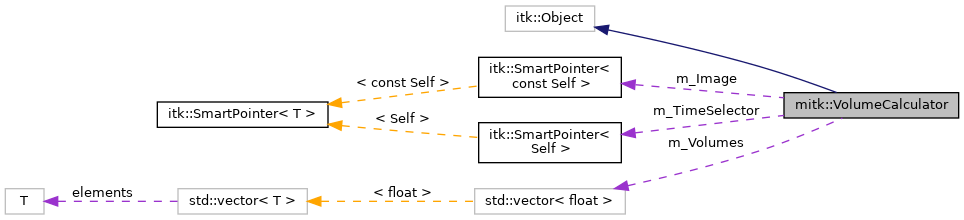

Collaboration diagram for mitk::VolumeCalculator:

Public Member Functions
	mitkClassMacroItkParent (VolumeCalculator, itk::Object)
Pointer	Clone () const
virtual void	SetImage (Image *_arg)
virtual void	SetThreshold (int _arg)
	Sets threshold; all voxels with a value equal to or greater than this are accepted. More...
virtual float	GetVolume ()
	Return the calculated volume. More...
virtual unsigned long int	GetVoxelCount ()
	Return the number of accepted voxels (those at or above the threshold). More...
std::vector< float >	GetVolumes ()
	Return the volumes for 4D images. More...
void	ComputeVolume ()
	Compute the volume by iterating over all voxels above the threshold. More...
void	ComputeVolumeFromImageStatistics ()
	Compute the volume using image statistics (count of max-valued voxels). More...

Static Public Member Functions
static Pointer	New ()
static float	ComputeVolume (Vector3D spacing, unsigned int voxelCount)
	Compute a volume from spacing and voxel count. More...

Protected Member Functions
	VolumeCalculator ()
	~VolumeCalculator () override
template<typename TPixel , unsigned int VImageDimension>
void	InternalCompute (const itk::Image< TPixel, VImageDimension > *itkImage)

Protected Attributes
Image::ConstPointer	m_Image
int	m_Threshold
float	m_Volume
unsigned long int	m_VoxelCount
std::vector< float >	m_Volumes
ImageTimeSelector::Pointer	m_TimeSelector

Detailed Description

Calculates the volume of a mitk::Image.

The volume is given in milliliters (cubic cm for 3D, square cm for 2D) or as a voxel count. Voxels are counted if their gray value is equal to or greater than a threshold (see SetThreshold). The default threshold is 0.

The filter works for 2D, 3D, and 3D+t images. In the 3D+t case, a vector of volumes is provided (see GetVolumes()).

Definition at line 36 of file mitkVolumeCalculator.h.

Constructor & Destructor Documentation

VolumeCalculator()

mitk::VolumeCalculator::VolumeCalculator ( )

protected

~VolumeCalculator()

mitk::VolumeCalculator::~VolumeCalculator ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::VolumeCalculator::Clone

(

)

const

ComputeVolume() [1/2]

void mitk::VolumeCalculator::ComputeVolume

(

)

Compute the volume by iterating over all voxels above the threshold.

For 4D images, the per-time-step volumes are stored and can be retrieved via GetVolumes().

ComputeVolume() [2/2]

static float mitk::VolumeCalculator::ComputeVolume ( Vector3D  spacing, unsigned int  voxelCount  )

static

Compute a volume from spacing and voxel count.

Parameters

[in]	spacing	The voxel spacing in each dimension.
[in]	voxelCount	The number of voxels.

Returns

The computed volume in cubic cm.

ComputeVolumeFromImageStatistics()

void mitk::VolumeCalculator::ComputeVolumeFromImageStatistics

(

)

Compute the volume using image statistics (count of max-valued voxels).

This is a faster alternative to ComputeVolume() when only the maximum-valued voxels are of interest.

GetVolume()

virtual float mitk::VolumeCalculator::GetVolume ( )

virtual

Return the calculated volume.

For 2D images the result is in square cm, for 3D images in cubic cm. For 4D data, use GetVolumes() instead.

See also

GetVolumes()

GetVolumes()

std::vector<float> mitk::VolumeCalculator::GetVolumes

(

)

Return the volumes for 4D images.

Each entry in the returned vector represents the volume for one time step in cubic cm.

Note

For 2D+t images the result is also returned in cubic cm.

Returns

A vector of volumes, one per time step.

GetVoxelCount()

virtual unsigned long int mitk::VolumeCalculator::GetVoxelCount ( )

virtual

Return the number of accepted voxels (those at or above the threshold).

InternalCompute()

template<typename TPixel , unsigned int VImageDimension>

void mitk::VolumeCalculator::InternalCompute ( const itk::Image< TPixel, VImageDimension > *  itkImage )

protected

mitkClassMacroItkParent()

mitk::VolumeCalculator::mitkClassMacroItkParent	(	VolumeCalculator	,
		itk::Object
	)

New()

static Pointer mitk::VolumeCalculator::New ( )

static

SetImage()

virtual void mitk::VolumeCalculator::SetImage ( Image *  _arg )

virtual

SetThreshold()

virtual void mitk::VolumeCalculator::SetThreshold ( int  _arg )

virtual

Sets threshold; all voxels with a value equal to or greater than this are accepted.

Member Data Documentation

m_Image

Image::ConstPointer mitk::VolumeCalculator::m_Image

protected

Definition at line 111 of file mitkVolumeCalculator.h.

m_Threshold

int mitk::VolumeCalculator::m_Threshold

protected

Definition at line 112 of file mitkVolumeCalculator.h.

m_TimeSelector

ImageTimeSelector::Pointer mitk::VolumeCalculator::m_TimeSelector

protected

Definition at line 116 of file mitkVolumeCalculator.h.

m_Volume

float mitk::VolumeCalculator::m_Volume

protected

Definition at line 113 of file mitkVolumeCalculator.h.

m_Volumes

std::vector<float> mitk::VolumeCalculator::m_Volumes

protected

Definition at line 115 of file mitkVolumeCalculator.h.

m_VoxelCount

unsigned long int mitk::VolumeCalculator::m_VoxelCount

protected

Definition at line 114 of file mitkVolumeCalculator.h.

---

The documentation for this class was generated from the following file:

• mitkVolumeCalculator.h
