A limited linear undo model providing GUI elements with stack status information. More...

#include <mitkVerboseLimitedLinearUndo.h>

Inheritance diagram for mitk::VerboseLimitedLinearUndo:

[legend]

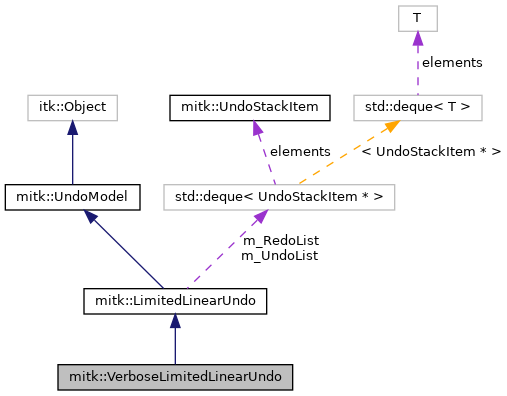

Collaboration diagram for mitk::VerboseLimitedLinearUndo:

[legend]

Public Types
typedef std::pair< int, std::string >	StackDescriptionItem
	A pair of ObjectEventId and its human-readable description. More...

typedef std::vector< StackDescriptionItem >	StackDescription
	A list of (ObjectEventId, description) pairs representing a stack. More...

Public Types inherited from mitk::LimitedLinearUndo
typedef std::deque< UndoStackItem * >	UndoContainer

typedef std::deque< UndoStackItem * >::reverse_iterator	UndoContainerRevIter

Public Member Functions
	mitkClassMacro (VerboseLimitedLinearUndo, LimitedLinearUndo)

Pointer	Clone () const

bool	SetOperationEvent (UndoStackItem *undoStackItem) override
	Store an operation event on the undo stack. More...

virtual StackDescription	GetUndoDescriptions ()
	Return human-readable descriptions of the undo stack. More...

virtual StackDescription	GetRedoDescriptions ()
	Return human-readable descriptions of the redo stack. More...

Public Member Functions inherited from mitk::LimitedLinearUndo
	mitkClassMacro (LimitedLinearUndo, UndoModel)

Pointer	Clone () const

bool	Undo () override
	Undoes the last changes. More...

bool	Undo (bool) override
	Undoes the last changes. More...

virtual bool	Undo (int oeid)
	Undoes all changes until ObjectEventID oeid. More...

bool	Redo () override
	Redoes the last undone changes. More...

bool	Redo (bool) override
	Redoes changes (parameter currently unused). More...

virtual bool	Redo (int oeid)
	Redoes all changes until ObjectEventID oeid. More...

void	Clear () override
	Clears both the UndoList and RedoList. More...

void	ClearRedoList () override
	Clears the RedoList. More...

bool	RedoListEmpty () override
	Returns true if the RedoList is empty. More...

bool	UndoListEmpty () override
	Returns true if the UndoList is empty. More...

std::size_t	GetUndoLimit () const override
	Gets the limit on the size of the undo history. More...

void	SetUndoLimit (std::size_t limit) override
	Sets a limit on the size of the undo history. More...

int	GetLastObjectEventIdInList () override
	Returns the ObjectEventId of the top element in the OperationHistory. More...

int	GetLastGroupEventIdInList () override
	Returns the GroupEventId of the top element in the OperationHistory. More...

OperationEvent *	GetLastOfType (OperationActor *destination, OperationType opType) override
	Returns the last OperationEvent in the Undo-list matching the given destination and operation type. More...

unsigned int	RemoveInvalidOperations () override
	Removes invalid operations from the undo/redo stack. More...

Public Member Functions inherited from mitk::UndoModel
	mitkClassMacroItkParent (UndoModel, itk::Object)

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::LimitedLinearUndo
static Pointer	New ()

Protected Member Functions
	VerboseLimitedLinearUndo ()

	~VerboseLimitedLinearUndo () override

Protected Member Functions inherited from mitk::LimitedLinearUndo
	LimitedLinearUndo ()
	Constructor. More...

	~LimitedLinearUndo () override
	Destructor. Deletes all undo and redo entries. More...

void	ClearList (UndoContainer *list)
	Convenience method to free the memory of elements in the list and clear it. More...

Protected Member Functions inherited from mitk::UndoModel
	UndoModel ()

	~UndoModel () override

Additional Inherited Members
Protected Attributes inherited from mitk::LimitedLinearUndo
UndoContainer	m_UndoList

UndoContainer	m_RedoList

Detailed Description

A limited linear undo model providing GUI elements with stack status information.

Extends LimitedLinearUndo by allowing retrieval of human-readable description lists for the undo and redo stacks. These descriptions can be displayed in GUI elements such as undo/redo menus.

Definition at line 38 of file mitkVerboseLimitedLinearUndo.h.

Member Typedef Documentation

◆ StackDescription

typedef std::vector<StackDescriptionItem> mitk::VerboseLimitedLinearUndo::StackDescription

A list of (ObjectEventId, description) pairs representing a stack.

Definition at line 49 of file mitkVerboseLimitedLinearUndo.h.

◆ StackDescriptionItem

typedef std::pair<int, std::string> mitk::VerboseLimitedLinearUndo::StackDescriptionItem

A pair of ObjectEventId and its human-readable description.

Definition at line 46 of file mitkVerboseLimitedLinearUndo.h.

Constructor & Destructor Documentation

◆ VerboseLimitedLinearUndo()

mitk::VerboseLimitedLinearUndo::VerboseLimitedLinearUndo ( )

protected

◆ ~VerboseLimitedLinearUndo()

mitk::VerboseLimitedLinearUndo::~VerboseLimitedLinearUndo ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::VerboseLimitedLinearUndo::Clone ( ) const

◆ GetRedoDescriptions()

virtual StackDescription mitk::VerboseLimitedLinearUndo::GetRedoDescriptions ( )

virtual

Return human-readable descriptions of the redo stack.

Groups operations by ObjectEventId and generates a description for each group.

Returns: A StackDescription vector with entries ordered from most recent to oldest.

◆ GetUndoDescriptions()

virtual StackDescription mitk::VerboseLimitedLinearUndo::GetUndoDescriptions ( )

virtual

Return human-readable descriptions of the undo stack.

Groups operations by ObjectEventId and generates a description for each group.

Returns: A StackDescription vector with entries ordered from most recent to oldest.

◆ mitkClassMacro()

mitk::VerboseLimitedLinearUndo::mitkClassMacro	(	VerboseLimitedLinearUndo	,
		LimitedLinearUndo
	)

◆ New()

static Pointer mitk::VerboseLimitedLinearUndo::New ( )

static

◆ SetOperationEvent()

bool mitk::VerboseLimitedLinearUndo::SetOperationEvent ( UndoStackItem * undoStackItem )

overridevirtual

Store an operation event on the undo stack.

Clears the redo list when a new operation is stored. Respects the undo limit by removing the oldest entry if necessary.

Parameters

[in] undoStackItem The undo stack item to store.

Returns: True if the item was stored successfully, false if the item is nullptr.

Reimplemented from mitk::LimitedLinearUndo.

The documentation for this class was generated from the following file:

mitkVerboseLimitedLinearUndo.h
