Curve description parameter that computes the time to peak and the peak value. More...

#include <mitkTimeToPeakCurveDescriptionParameter.h>

Inheritance diagram for mitk::TimeToPeakCurveDescriptionParameter:

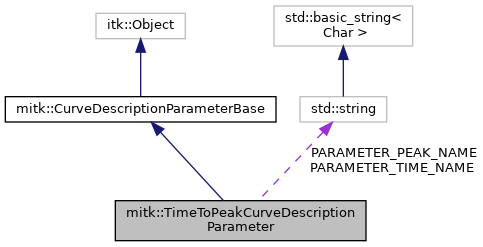

Collaboration diagram for mitk::TimeToPeakCurveDescriptionParameter:

[legend]

Public Types
typedef mitk::TimeToPeakCurveDescriptionParameter	Self

typedef CurveDescriptionParameterBase	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::CurveDescriptionParameterBase
typedef CurveDescriptionParameterBase	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::Array< double >	CurveType
	Array type for curve values. More...

typedef itk::Array< double >	CurveGridType
	Array type for the curve time grid. More...

typedef double	CurveDescriptionParameterResultType
	Scalar result type for a single description parameter value. More...

typedef std::string	CurveDescriptionParameterNameType
	String type for description parameter names. More...

typedef std::vector< CurveDescriptionParameterResultType >	DescriptionParameterResultsType
	Vector of computed description parameter results. More...

typedef std::vector< CurveDescriptionParameterNameType >	DescriptionParameterNamesType
	Vector of description parameter names. More...

Public Member Functions
Pointer	Clone () const

DescriptionParameterNamesType	GetDescriptionParameterName () const override
	Returns the names of the computed parameters ("TimeToPeak", "PeakValue"). More...

Public Member Functions inherited from mitk::CurveDescriptionParameterBase
virtual const char *	GetClassName () const

DescriptionParameterResultsType	GetCurveDescriptionParameter (const CurveType &curve, const CurveGridType &grid) const
	Computes and returns the description parameter values for the given curve. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	TimeToPeakCurveDescriptionParameter ()

	~TimeToPeakCurveDescriptionParameter () override

DescriptionParameterResultsType	ComputeCurveDescriptionParameter (const CurveType &curve, const CurveGridType &grid) const override

Protected Member Functions inherited from mitk::CurveDescriptionParameterBase
	CurveDescriptionParameterBase ()

	~CurveDescriptionParameterBase () override

Static Protected Attributes
static const std::string	PARAMETER_PEAK_NAME

static const std::string	PARAMETER_TIME_NAME

Detailed Description

Curve description parameter that computes the time to peak and the peak value.

Returns two values: the time point at which the first maximum of the curve occurs and the maximum curve value itself.

See also: MaximumCurveDescriptionParameter, CurveDescriptionParameterBase

Definition at line 27 of file mitkTimeToPeakCurveDescriptionParameter.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer< const Self > mitk::TimeToPeakCurveDescriptionParameter::ConstPointer

Definition at line 33 of file mitkTimeToPeakCurveDescriptionParameter.h.

◆ Pointer

typedef itk::SmartPointer< Self > mitk::TimeToPeakCurveDescriptionParameter::Pointer

Definition at line 32 of file mitkTimeToPeakCurveDescriptionParameter.h.

◆ Self

typedef mitk::TimeToPeakCurveDescriptionParameter mitk::TimeToPeakCurveDescriptionParameter::Self

Definition at line 30 of file mitkTimeToPeakCurveDescriptionParameter.h.

◆ Superclass

typedef CurveDescriptionParameterBase mitk::TimeToPeakCurveDescriptionParameter::Superclass

Definition at line 31 of file mitkTimeToPeakCurveDescriptionParameter.h.

Constructor & Destructor Documentation

◆ TimeToPeakCurveDescriptionParameter()

mitk::TimeToPeakCurveDescriptionParameter::TimeToPeakCurveDescriptionParameter ( )

protected

◆ ~TimeToPeakCurveDescriptionParameter()

mitk::TimeToPeakCurveDescriptionParameter::~TimeToPeakCurveDescriptionParameter ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::TimeToPeakCurveDescriptionParameter::Clone ( ) const

◆ ComputeCurveDescriptionParameter()

DescriptionParameterResultsType mitk::TimeToPeakCurveDescriptionParameter::ComputeCurveDescriptionParameter	(	const CurveType &	curve,
		const CurveGridType &	grid
	)		const

overrideprotectedvirtual

Slot to implement the computation of the descriptor values.

Implements mitk::CurveDescriptionParameterBase.

◆ GetDescriptionParameterName()

DescriptionParameterNamesType mitk::TimeToPeakCurveDescriptionParameter::GetDescriptionParameterName ( ) const

overridevirtual

Returns the names of the computed parameters ("TimeToPeak", "PeakValue").

Returns: Vector of parameter name strings.

Implements mitk::CurveDescriptionParameterBase.

◆ New()

static Pointer mitk::TimeToPeakCurveDescriptionParameter::New ( )

static

Member Data Documentation

◆ PARAMETER_PEAK_NAME

const std::string mitk::TimeToPeakCurveDescriptionParameter::PARAMETER_PEAK_NAME

staticprotected

Definition at line 44 of file mitkTimeToPeakCurveDescriptionParameter.h.

◆ PARAMETER_TIME_NAME

const std::string mitk::TimeToPeakCurveDescriptionParameter::PARAMETER_TIME_NAME
